添加到购物车内

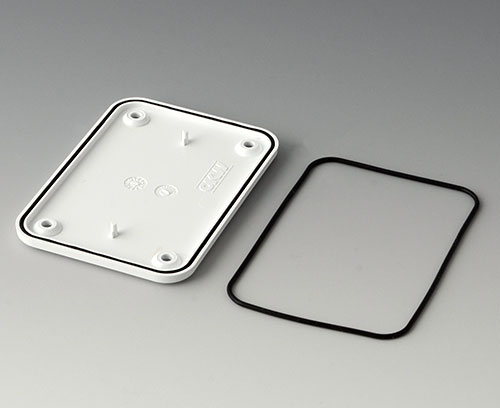

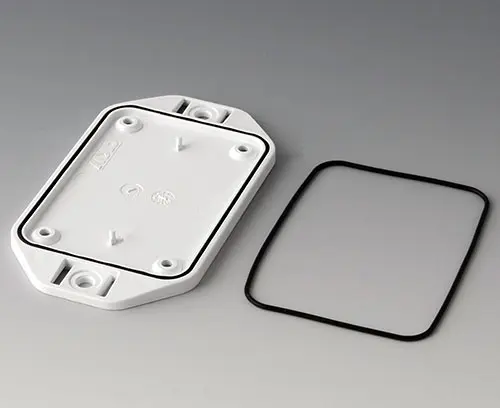

B1924101
Sealing E50/EF50
Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.
1 seal
B1824117
MINI-DATA-BOX E50, flat
2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Top part flat
Supply Top and bottom parts, assembly kit
关闭B1824117
MINI-DATA-BOX E50, flat产品已添加到关注清单中
traffic white RAL 9016
70x50x15mm
IP 65 opt., IP 40
B1824118
MINI-DATA-BOX E50, flat
2-part plastic enclosure with flat top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Top part flat
Supply Top and bottom parts, assembly kit
关闭B1824118
MINI-DATA-BOX E50, flat产品已添加到关注清单中
anthracite grey RAL 7016
70x50x15mm
IP 65 opt., IP 40

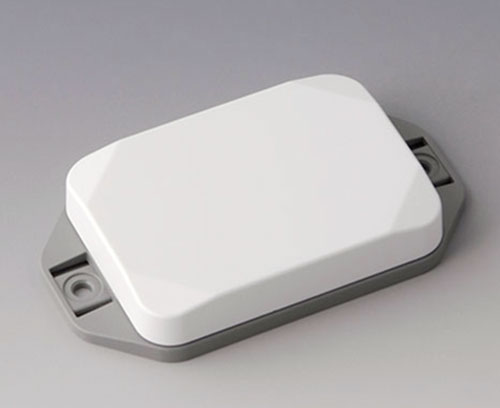

B1824126
MINI-DATA-BOX EF50, flat, with flanges
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part flat
Supply Top and bottom parts, assembly kit
关闭B1824126
MINI-DATA-BOX EF50, flat, with flanges产品已添加到关注清单中
traffic white RAL 9016
70x50x15mm
IP 65 opt., IP 40
B1824127
MINI-DATA-BOX EF50, flat, with flanges
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part flat
Supply Top and bottom parts, assembly kit
关闭B1824127
MINI-DATA-BOX EF50, flat, with flanges产品已添加到关注清单中
traffic white RAL 9016
70x50x15mm
IP 65 opt., IP 40

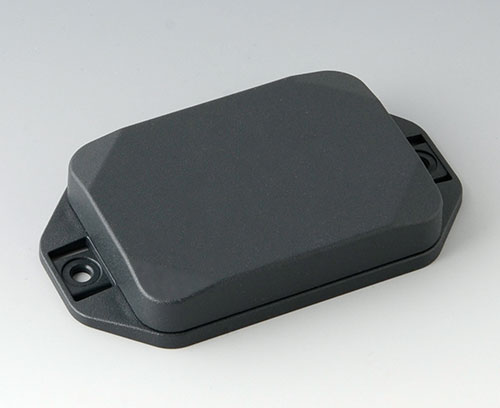

B1824128
MINI-DATA-BOX EF50, flat, with flanges
2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part flat
Supply Top and bottom parts, assembly kit
关闭B1824128
MINI-DATA-BOX EF50, flat, with flanges产品已添加到关注清单中
anthracite grey RAL 7016
70x50x15mm
IP 65 opt., IP 40

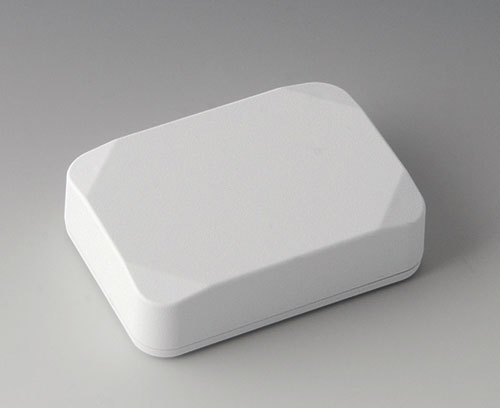

B1824217
MINI-DATA-BOX E50, high
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Top part high
Supply Top and bottom parts, assembly kit
关闭B1824217
MINI-DATA-BOX E50, high产品已添加到关注清单中
traffic white RAL 9016
70x50x20mm
IP 65 opt., IP 40
B1824218
MINI-DATA-BOX E50, high
2-part plastic enclosure with high top part, for universal use. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Top part high
Supply Top and bottom parts, assembly kit
关闭B1824218
MINI-DATA-BOX E50, high产品已添加到关注清单中
anthracite grey RAL 7016
70x50x20mm
IP 65 opt., IP 40

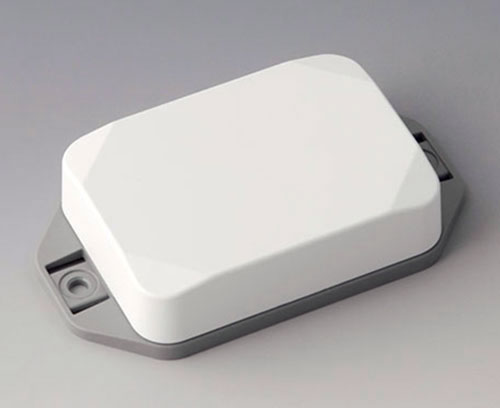

B1824226
MINI-DATA-BOX EF50, high, with flanges
2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part high
Supply Top and bottom parts, assembly kit
关闭B1824226
MINI-DATA-BOX EF50, high, with flanges产品已添加到关注清单中
traffic white RAL 9016
70x50x20mm
IP 65 opt., IP 40
B1824227
MINI-DATA-BOX EF50, high, with flanges
2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part high
Supply Top and bottom parts, assembly kit
关闭B1824227
MINI-DATA-BOX EF50, high, with flanges产品已添加到关注清单中
traffic white RAL 9016
70x50x20mm
IP 65 opt., IP 40

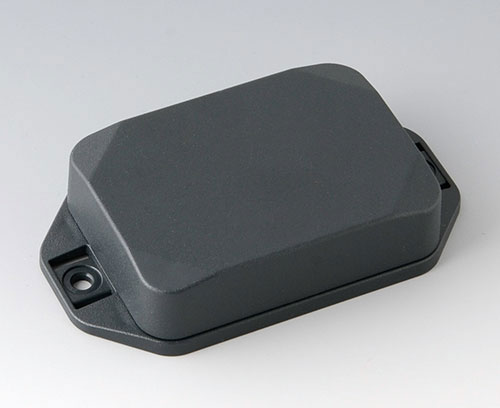

B1824228
MINI-DATA-BOX EF50, high, with flanges
2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.
Version Bottom part with flanges, top part high
Supply Top and bottom part, assembly kit
关闭B1824228
MINI-DATA-BOX EF50, high, with flanges产品已添加到关注清单中
anthracite grey RAL 7016
70x50x20mm
IP 65 opt., IP 40
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
(OKW product)
40169300
Country of manufacture
Germany
