B1824128 MINI-DATA-BOX EF50, flat, with flanges
Scroll

B1824128

MINI-DATA-BOX EF50, flat, with flanges

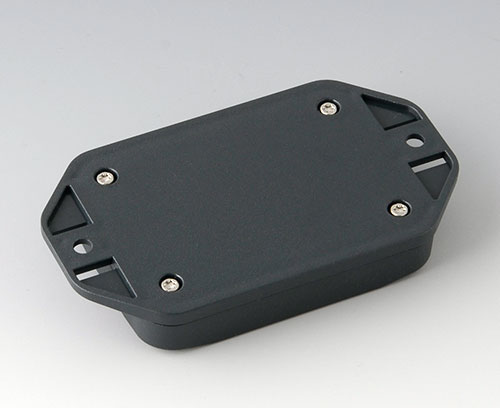

2-part plastic enclosure with flat top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

Bottom part with flanges, top part flat

Supply

Top and bottom parts, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载 制作 PDF 数据表

请制作 PDF 数据表用于 B1824128

请选择产品信息以输入数据表。

关闭
添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

B1924101 Sealing E50/EF50

B1924101

Sealing E50/EF50

Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

关闭

B1924101

Sealing E50/EF50
产品已添加到关注清单中

Customising options for B1824128

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ASA+PC (UL 94 V-0)
防护等级
IP 65 opt.
Necessary accessories: sealing, IP 40
颜色
anthracite grey RAL 7016
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
70 mm
宽度
50 mm
高度
15 mm
电路板长度，下盒
62 mm
电路板宽度，下盒
42 mm
电路板长度，上盒
62 mm
电路板宽度，上盒
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
25 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B1824128请务必索取报价！
