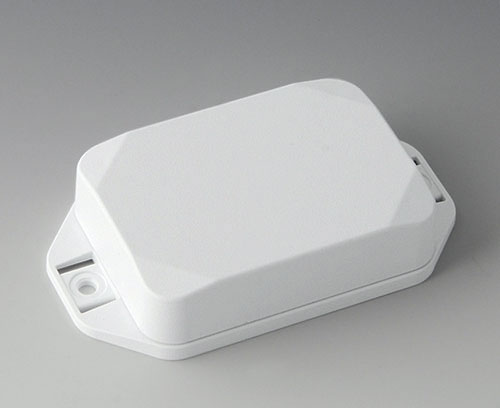

B1824227 MINI-DATA-BOX EF50, high, with flanges

B1824227

MINI-DATA-BOX EF50, high, with flanges

2-part plastic enclosure with high top part. Bottom part with integrated flanges for fast wall mounting or for mounting on rails and tube profiles or on masts. Robust design with proven tongue and groove connection. Assembled with Torx stainless steel screws. Fixing supports for PCBs and components in the top and bottom parts. Fastening on the supports is by means of hot caulking.

Version

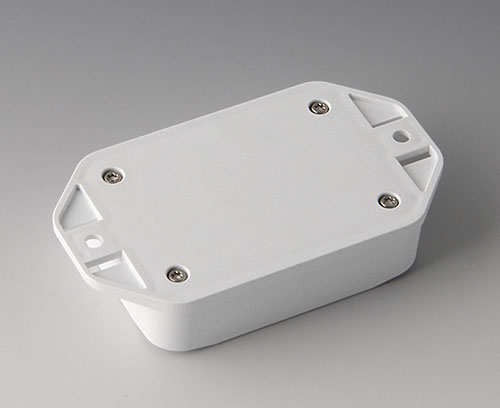

Bottom part with flanges, top part high

Supply

Top and bottom parts, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

B1924101 Sealing E50/EF50

B1924101

Sealing E50/EF50

Use: increases the protection class of MINI-DATA-BOX E50 and EF50. Fits to the groove in the bottom part of the enclosure.

Supply 1 seal

关闭

B1924101

Sealing E50/EF50
产品已添加到关注清单中

Customising options for B1824227

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料

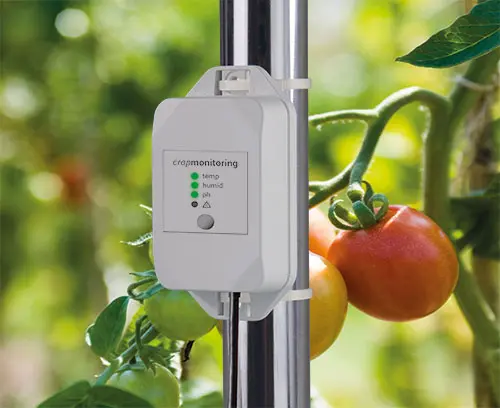

  • 应用示例
  • 采购有关数据
防护等级
IP 65 opt.
Necessary accessories: sealing, IP 40
颜色
traffic white RAL 9016
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
70 mm
Width
50 mm
Height
20 mm
电路板长度,下盒
62 mm
电路板宽度,下盒
42 mm
电路板长度,上盒
62 mm
电路板宽度,上盒
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
28 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
