B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I

Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version

Basic housing, unmachined

Supply

1 basic housing, 4 screws, 4 non slip feet, sealing kit

  • 适配系统部件
  • 按客户要求修改加工

需加附件使产品完整

B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

关闭

B4016671

Cover strip M / L
产品已添加到关注清单中
PC (UL 94 V-0)
transparent

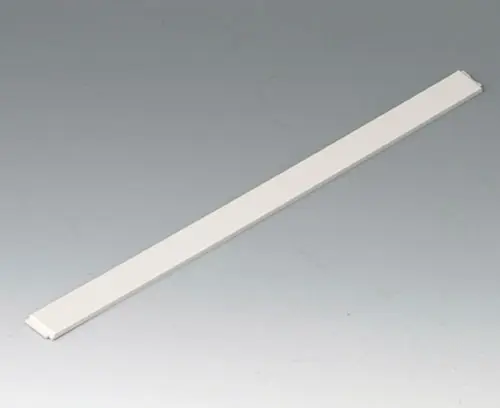

B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

关闭

B4016677

Cover strip M / L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002

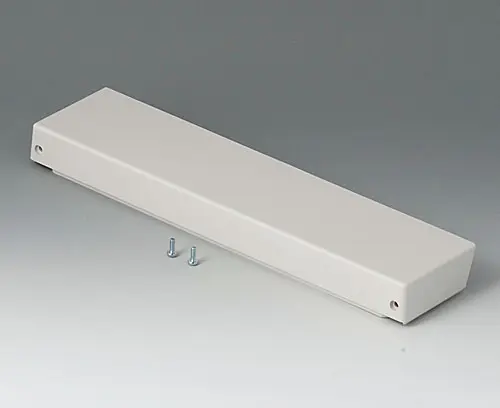

B4030417 Lid L closed, flat

B4030417

Lid L closed, flat Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

关闭

B4030417

Lid L closed, flat
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
268x62x24mm

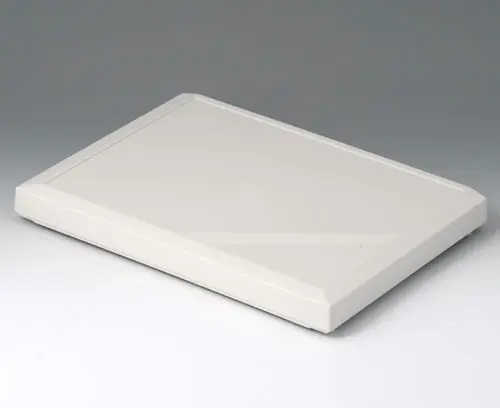

B4030617 Cover L, flat

B4030617

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

关闭

B4030617

Cover L, flat
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

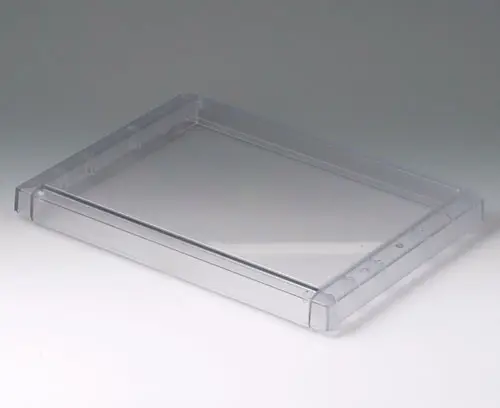

B4030621 Cover L, flat

B4030621

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

关闭

B4030621

Cover L, flat
产品已添加到关注清单中
PC (UL 94 V-0)
transparent
302x220x29mm

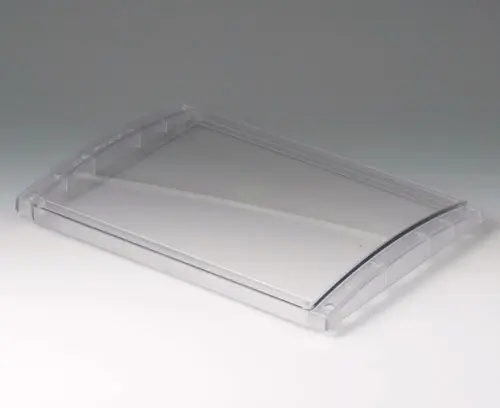

B4030631 Cover L, convex

B4030631

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

关闭

B4030631

Cover L, convex
产品已添加到关注清单中
PC (UL 94 V-0)
transparent
302x220x29mm

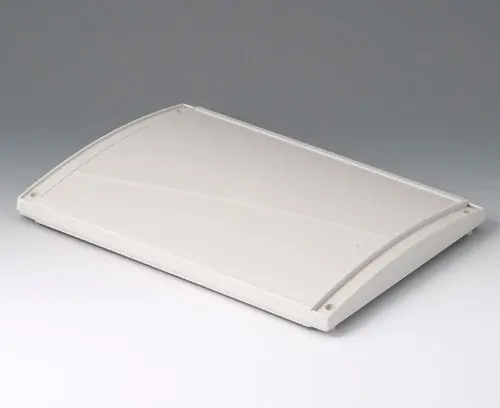

B4030637 Cover L, convex

B4030637

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

关闭

B4030637

Cover L, convex
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

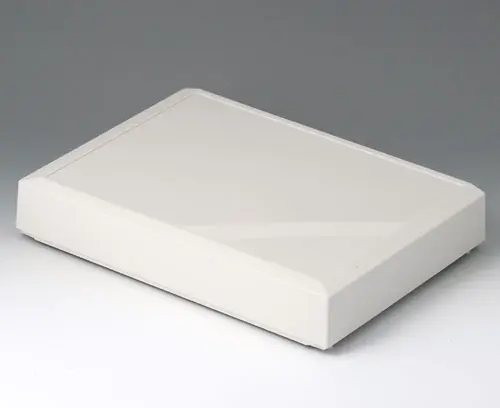

B4030657 Cover L, high

B4030657

Cover L, high Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

关闭

B4030657

Cover L, high
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
302x220x50mm
B4030917 Lid L with card slot, one piece

B4030917

Lid L with card slot, one piece Lid L with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

关闭

B4030917

Lid L with card slot, one piece
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
268x67x38mm

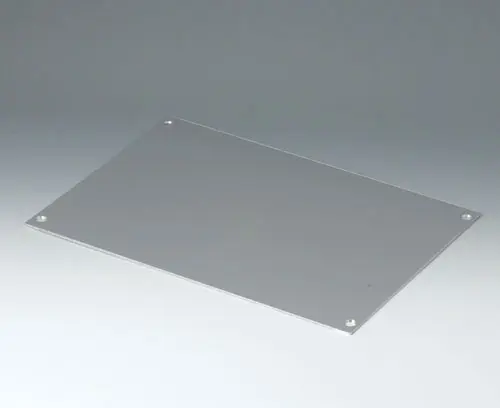

B4130106 Front panel LS

B4130106

Front panel LS Front panel LS for the mounting of all kinds of operating elements. When using cover, please refer to front panel LH (accessory).

Supply 1 front panel, 4 screws diameter 5.0 mm

关闭

B4130106

Front panel LS
产品已添加到关注清单中
Aluminium
matt anodised
299.4x217.4x2mm

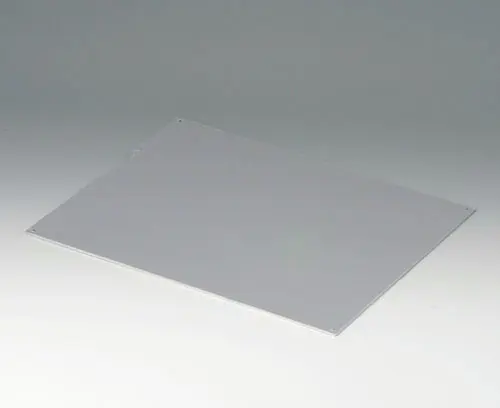

B4130116 Front panel LH

B4130116

Front panel LH Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

关闭

B4130116

Front panel LH
产品已添加到关注清单中
Aluminium
matt anodised
262x209x2mm

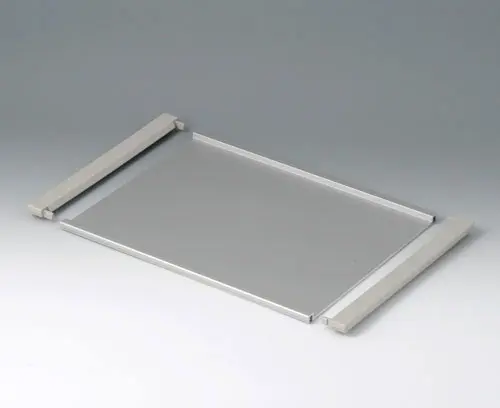

B4130126 Profile plate L

B4130126

Profile plate L Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply 1 profile plate, 4 screws, 2 cover strips

关闭

B4130126

Profile plate L
产品已添加到关注清单中
Aluminium
matt anodised
302x220x8mm

“挂墙支架” 配件

B4130147 Wall suspension element L

B4130147

Wall suspension element L Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

关闭

B4130147

Wall suspension element L
产品已添加到关注清单中
Steel
galvanized
214x260x12mm

附件

B4116136 Support plate L and M

B4116136

Support plate L and M Suitable for lid L (B4030917) and lid M (B4016917) with card slot, one piece. Support plate for installation of most popular types of card readers.

Supply 1 support plate, 2 screws diameter 2.5 mm

关闭

B4116136

Support plate L and M
产品已添加到关注清单中
Aluminium
matt anodised
102x45x1mm

Customising options for B4030117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 应用示例
  • 采购有关数据
防护等级
IP 54 opt.
Necessary accessories: cover / cover convex and closed lid
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
302 mm
Depth
272 mm
Height
101 mm
电路板长度,下盒
255 mm
电路板宽度,下盒
258 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
660 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
