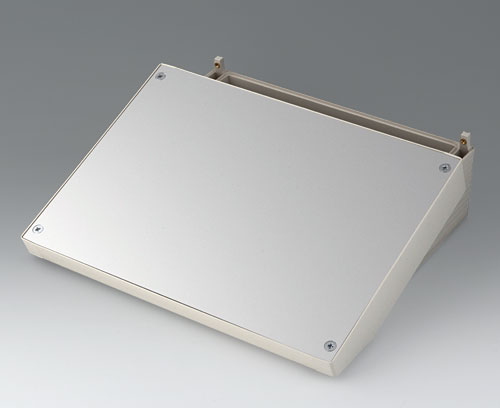

B4130106 Front panel LS

B4130106

Front panel LS

Front panel LS for the mounting of all kinds of operating elements. When using cover, please refer to front panel LH (accessory).

Supply

1 front panel, 4 screws diameter 5.0 mm

  • 应用于
  • 按客户要求修改加工
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

关闭

B4030117

DATEC-TERMINAL L, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.

Customising options for B4130106

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
matt anodised
Width
299.4 mm
Depth
217.4 mm
Height
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
250 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
