B4130147

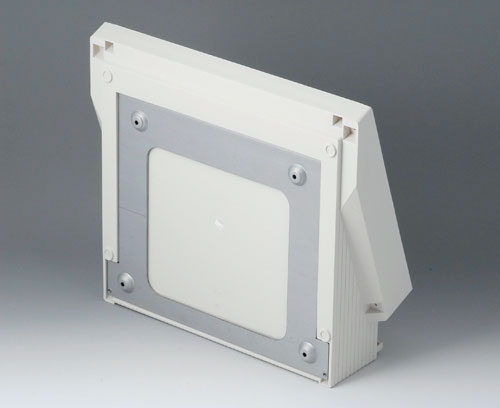

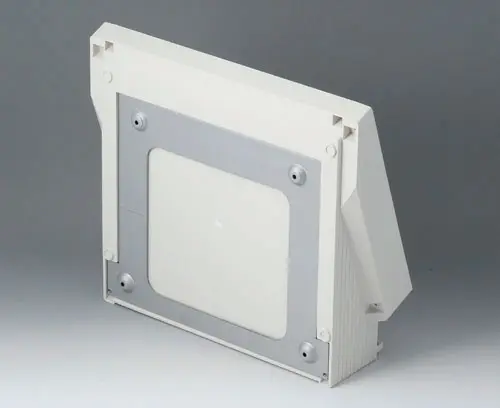

Wall suspension element L

Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply

1 wall suspension element, 2 screws M3

请制作 PDF 数据表用于 B4130147

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

B4030117

DATEC-TERMINAL L, Vers. I
产品已添加到关注清单中

off-white RAL 9002
302x272x101mm
B4030217 DATEC-TERMINAL L, Vers. II

B4030217

DATEC-TERMINAL L, Vers. II Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

B4030217

DATEC-TERMINAL L, Vers. II
产品已添加到关注清单中

off-white RAL 9002
302x272x101mm
B4030317 DATEC-TERMINAL L, Vers. III

B4030317

DATEC-TERMINAL L, Vers. III Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

B4030317

DATEC-TERMINAL L, Vers. III
产品已添加到关注清单中

off-white RAL 9002
302x272x101mm

Customising options for B4130147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
galvanized
标准根据
RoHS compliant
REACH compliant
宽度
214 mm
高度
260 mm
深度
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
170 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
