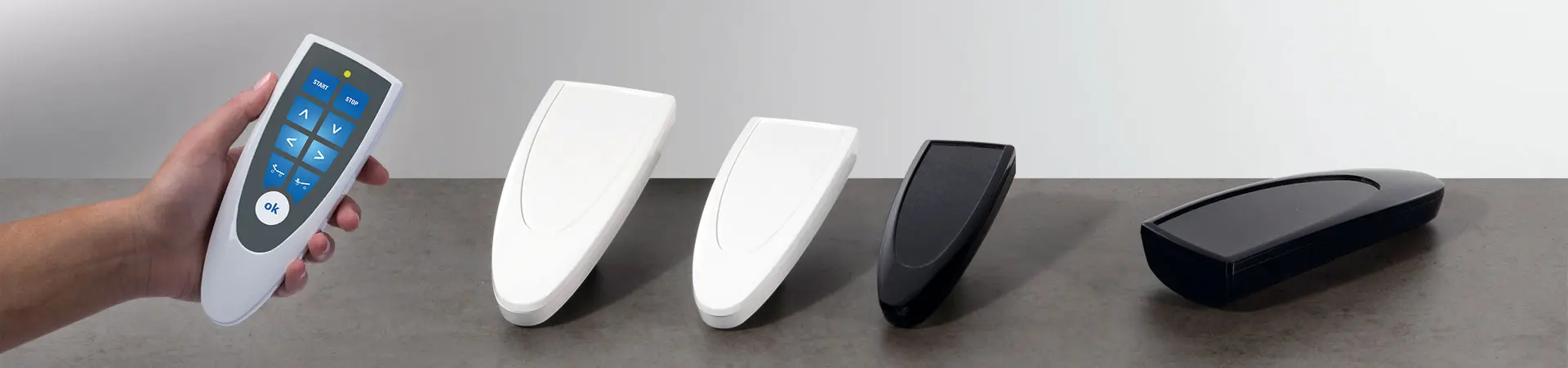

Style-Case 精光盒

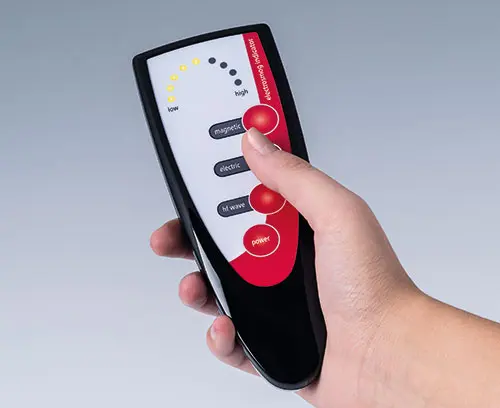

符合人体工程学的光亮手持盒

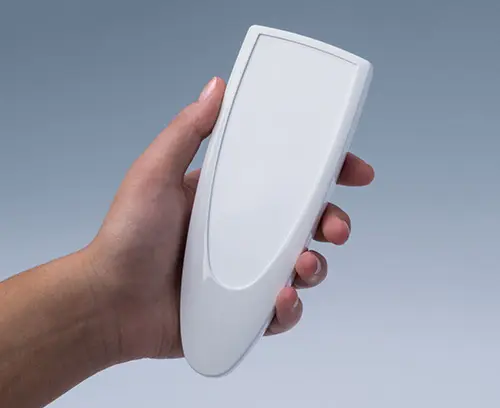

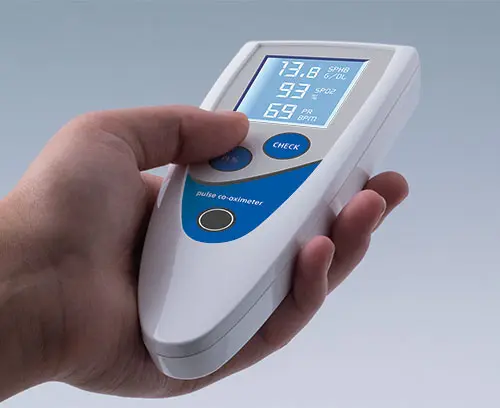

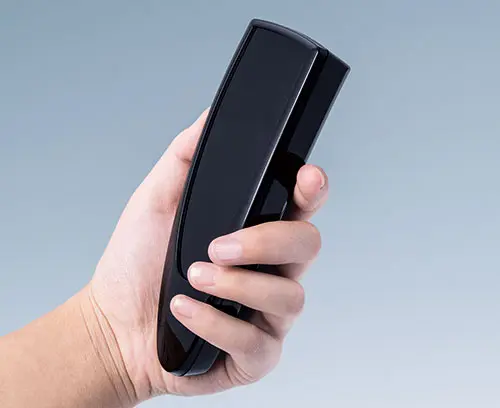

OKW 显示出的 STYLE-CASE 精光盒具有高精度抛光的表面，从而为现代手持盒的设计款式提供一个额外的设计亮点。通过良好的触感性使手持盒成为具备优雅外观，佩戴舒适和使用安全的手抚摸器。

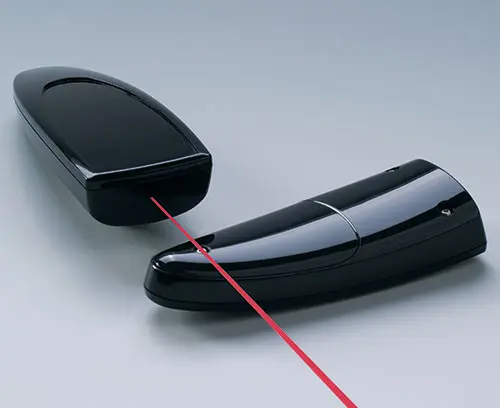

- 具有高度防紫外线的 ASA 材质或可透红外线的 PMMA （有机玻璃）材质
- 易清洁的光泽表面
- 坚固和防水性达 IP 65，密封组件作为附件
- Torx 梅花头不锈钢螺钉固定

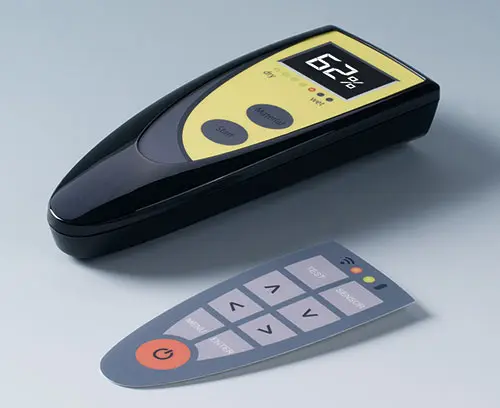

- 操作区域凹陷，以保护膜键盘和装饰膜

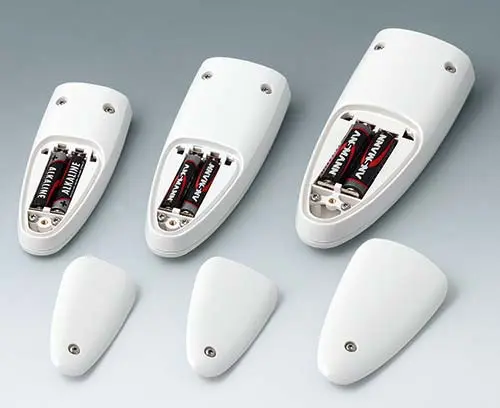

- 集成电池隔室: 适配 2 个 1,5 V AAA 电池 (S, M) 和 2 个 1,5 V AA 电池 (L)，接触弹簧组件作为附件

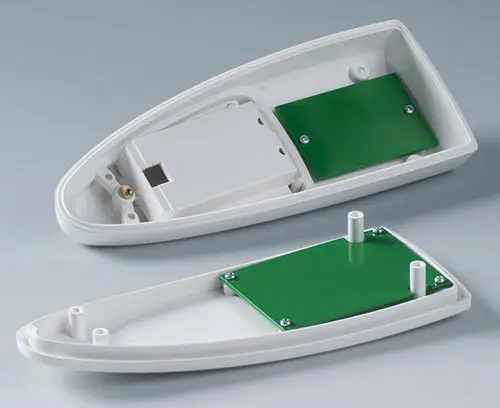

- 固定柱用于固定电路板和元器件，电路板固定用自攻螺钉作为附件
应用范围

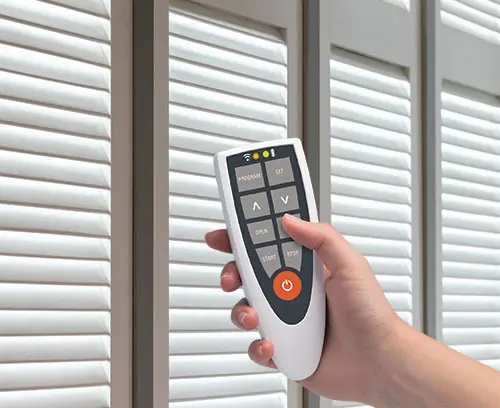

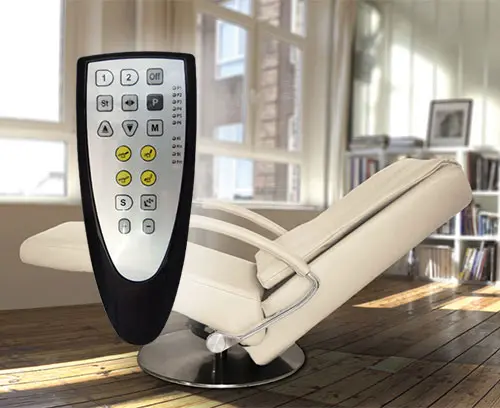

特别适配强调款式设计的多种遥控器。 特别是在医院和公共场所以及在家庭和工业领域。
B2802016

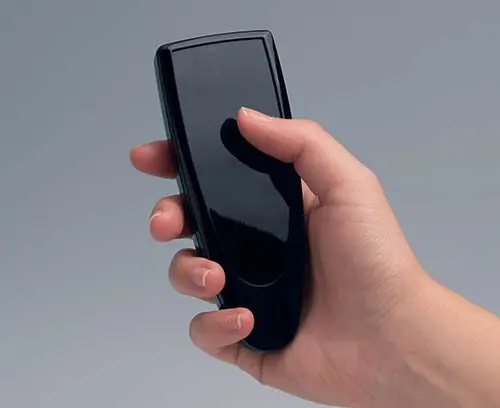

STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802016
STYLE-CASE S产品已添加到关注清单中
black RAL 9005
123x48x24mm
B2802017
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802017
STYLE-CASE S产品已添加到关注清单中
traffic white RAL 9016
123x48x24mm
B2803016
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803016
STYLE-CASE M产品已添加到关注清单中
black RAL 9005
147x56x27mm
,
B2803017
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803017
STYLE-CASE M产品已添加到关注清单中
traffic white RAL 9016
147x56x27mm
,
B2804016
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804016
STYLE-CASE L产品已添加到关注清单中
black RAL 9005
166x64x31mm
,
B2804017
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804017
STYLE-CASE L产品已添加到关注清单中
traffic white RAL 9016
166x64x31mm
,
B2804027
STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Supply Top and bottom part, assembly kit
B2804027
STYLE-CASE L产品已添加到关注清单中
traffic white RAL 9016
166x64x31mm
,
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
A9190020
Set of battery clips
For contacting 2 AAA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clips产品已添加到关注清单中
nickel-plated
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain relief产品已添加到关注清单中
volcano
B2902031
Adhesive foil S
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2902031
Adhesive foil S产品已添加到关注清单中
B2902037
Holder S

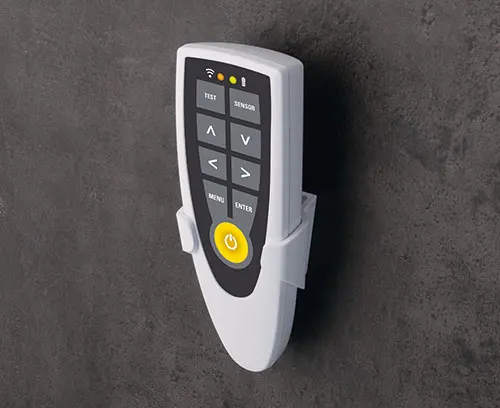

Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902037
Holder S产品已添加到关注清单中
traffic white RAL 9016
B2902039
Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902039
Holder S产品已添加到关注清单中
black RAL 9005
B2902111

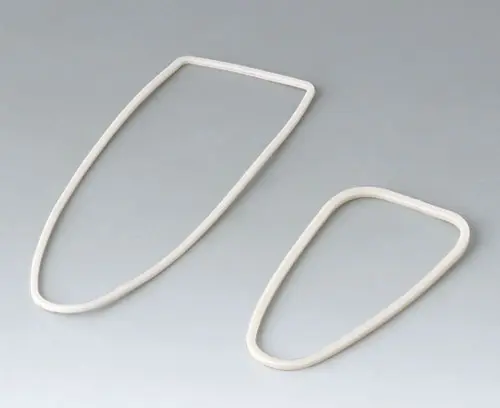

Sealing kit S
Application: for increasing the protection class, of STYLE-CASE S.
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit S产品已添加到关注清单中
B2903031
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2903031
Adhesive foil M产品已添加到关注清单中
B2903037
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903037
Holder M产品已添加到关注清单中
traffic white RAL 9016
B2903039
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903039
Holder M产品已添加到关注清单中
black RAL 9005
B2903111
Sealing kit M
Application: for increasing the protection class, of STYLE-CASE M.
Supply 2 sealings kit (enclosure, battery compartment)
B2903111
Sealing kit M产品已添加到关注清单中
B2904011
Sealing L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 1 sealing
B2904011
Sealing L产品已添加到关注清单中
B2904031
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2904031
Adhesive foil L产品已添加到关注清单中
B2904037
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904037
Holder L产品已添加到关注清单中
traffic white RAL 9016
B2904039
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904039
Holder L产品已添加到关注清单中
black RAL 9005
B2904111
Sealing kit L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 2 sealings kit (enclosure, battery compartment)
B2904111
Sealing kit L产品已添加到关注清单中
B2904210

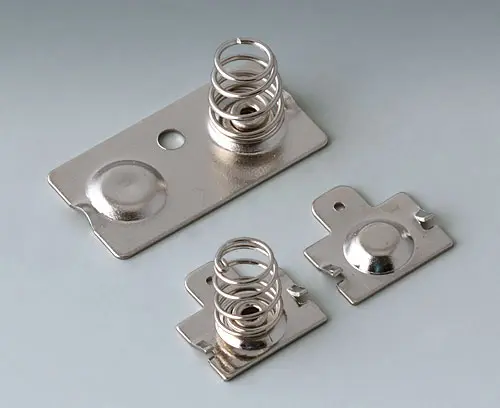

Set of battery clips
For contacting 2 AA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
B2904210
Set of battery clips产品已添加到关注清单中
nickel-plated
C2353849
Flexible cable grommet Ø 5,3
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
