B2804016 STYLE-CASE L

B2804016

STYLE-CASE L

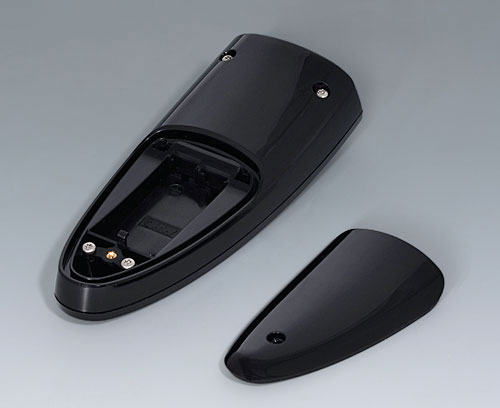

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply

Top and bottom part, battery compartment lid, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

B2904210 Set of battery clips

B2904210

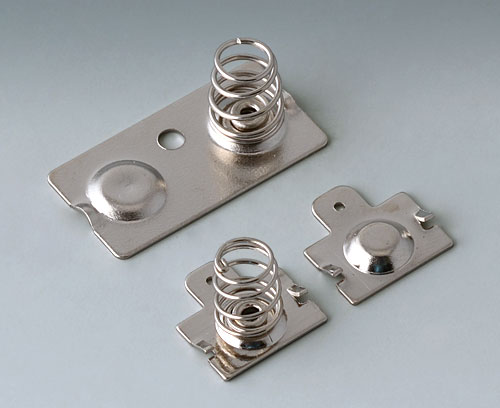

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

关闭

B2904210

Set of battery clips
产品已添加到关注清单中
Steel
nickel-plated

“保护等级” 附件

B2904111 Sealing kit L

B2904111

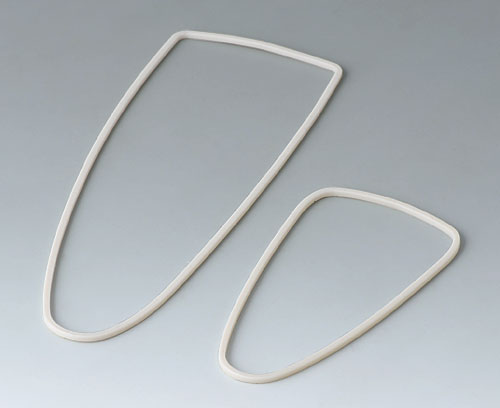

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.
