B2802016 STYLE-CASE S

B2802016

STYLE-CASE S

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

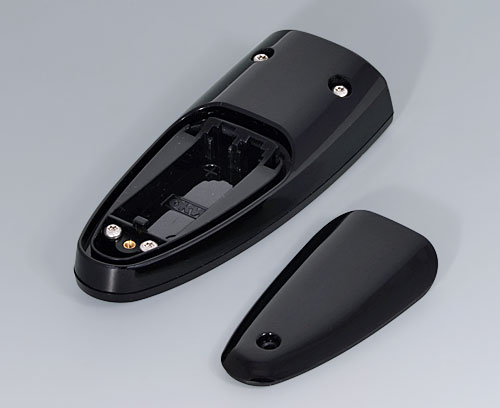

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply

Top and bottom part, battery compartment lid, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“电池” 配件

A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

关闭

A9190020

Set of battery clips
产品已添加到关注清单中
Steel
nickel-plated

“保护等级” 附件

B2902111 Sealing kit S

B2902111

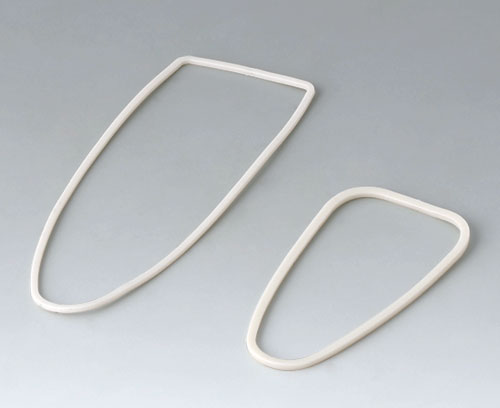

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.
