DIN 标准导轨接线盒
In-Box 工业用机盒

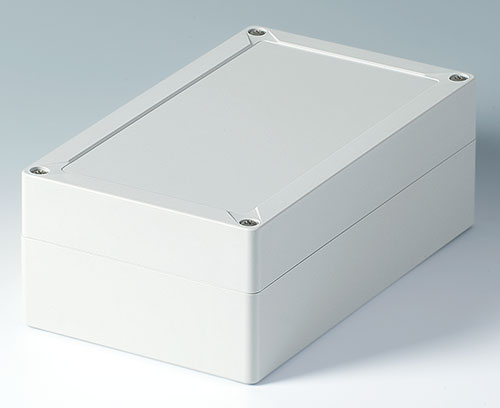

坚固耐用的工业用机盒

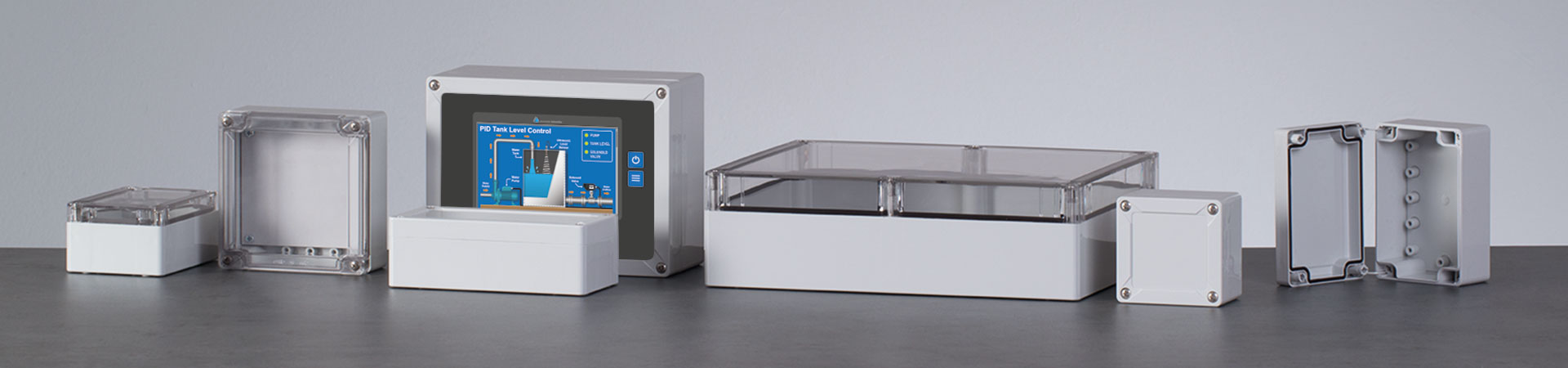

作为接线盒和电子器件盒的 IN-BOX- 工业用机盒产品系列提供很多不同的应用方式。

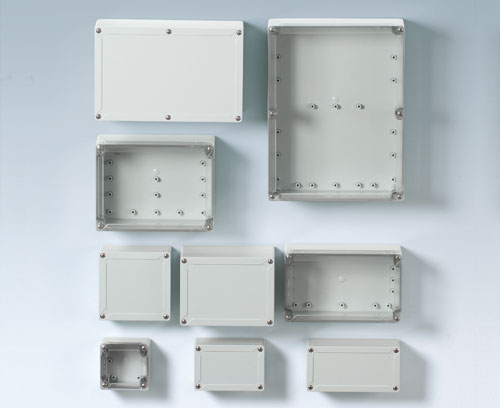

- 9 种精亮表面的基础盒及各种高度规格
- 两种标准材质: ABS (UL 94 HB) 或 PC (V-2) 塑料;
整个机盒为 PC 塑料材质能使其达到防火等级 UL 94 5V (优于 V-0 ), 尽管该材料等级只有 V-2 - 无线电波通透式机盒材料组
- 高防护等级 IP 66/67; 盒盖已配备密封泡沫
- 高度的抗冲击性 IK07 (ABS 材质), IK08 (PC 材质)

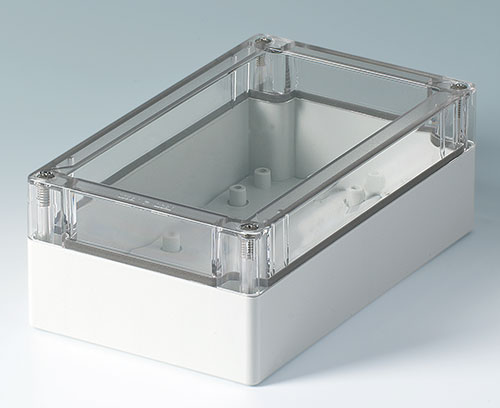

- 壳盖与壳体的颜色相同或透明颜色

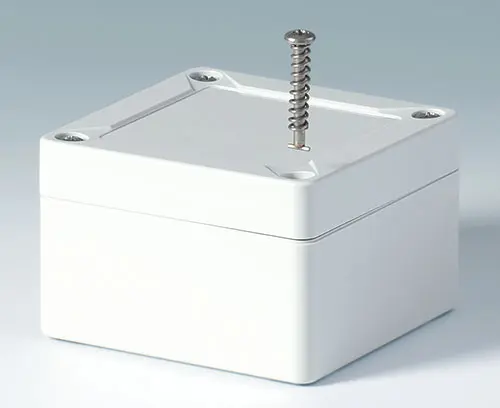

- 具备不锈钢材质的理性快速拆卸结构

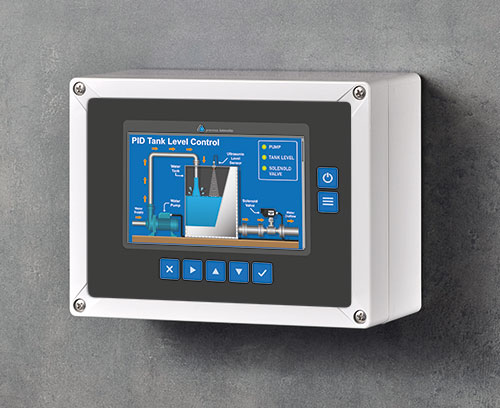

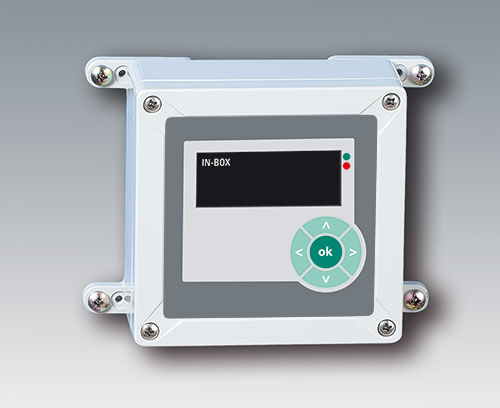

- 凹陷的操作区域，以保护膜键盘

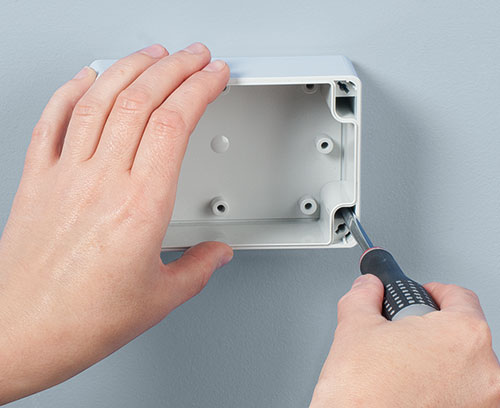

- 直接安装在墙壁内或通过墙托架安装墙外部; 如有必要可利用内部铰链进行安装

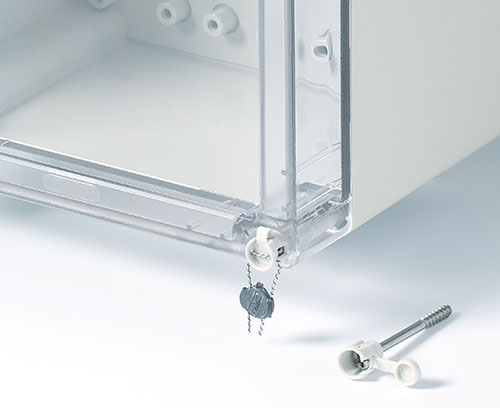

- 蜡封装置可选，以防侵权操动

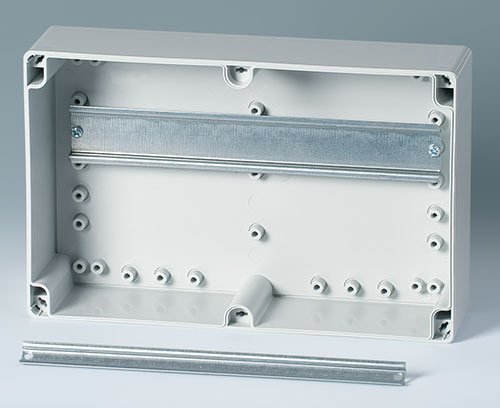

- 如有需要可配置标准导轨和特殊安装板
- 集成固定柱用于固定电路板、DIN 标准导轨、安装板和元器件
Learn more!
Read our blog posts on in-box View blog posts >>
应用范围

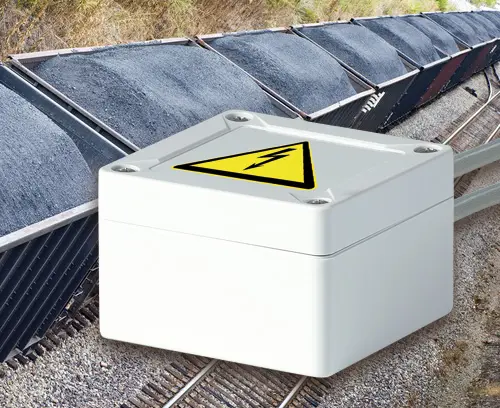

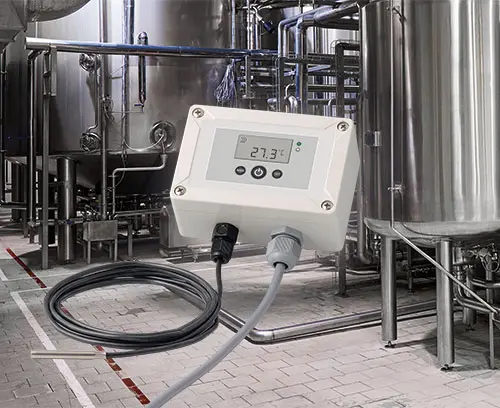

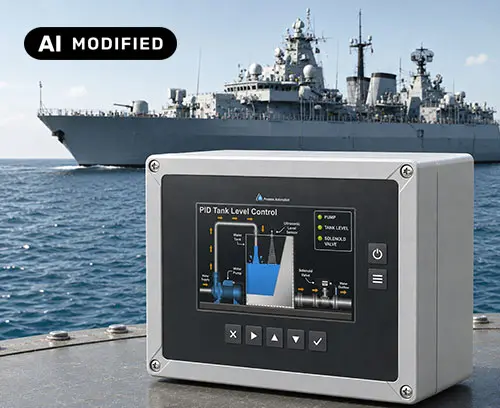

特别适用于电气安装，例如用于供暖、通风和空调设备的控制和监视、用于机器设备及安全工程等。 但也可用于电子领域，例如用于数字和模拟测量仪器、传感器应用、作为接口机盒，报警机盒等。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracket产品已添加到关注清单中
anthracite grey RAL 7016
100x100x20mm
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75产品已添加到关注清单中
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1产品已添加到关注清单中
light grey RAL 7035
C2320137

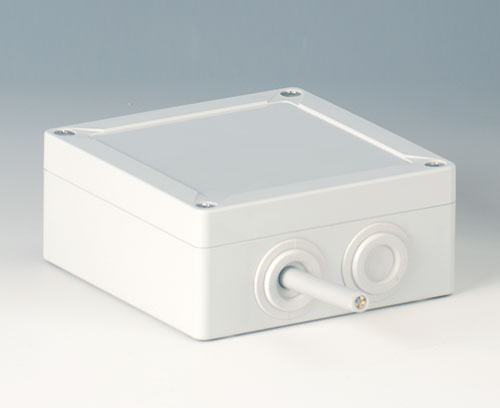

Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommet产品已添加到关注清单中
light grey RAL 7035
C7100092
Wall-mounting brackets
Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.
Supply 4 wall-mounting brackets incl. fasteners
C7100092
Wall-mounting brackets产品已添加到关注清单中

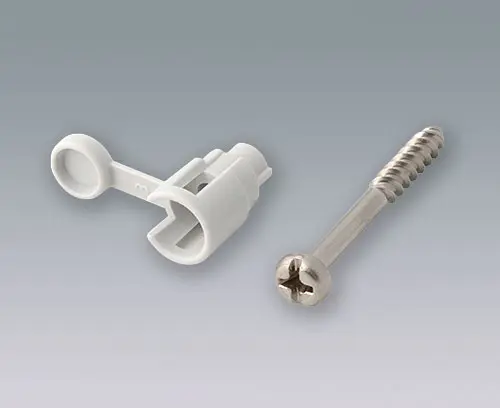

C7100128
Security kit
To secure the enclosure against unauthorised access.
Supply 1 security kit
C7100128
Security kit产品已添加到关注清单中
C7100138
Security kit
To secure the enclosure against unauthorised access.
Supply 1 security kit
C7100138
Security kit产品已添加到关注清单中

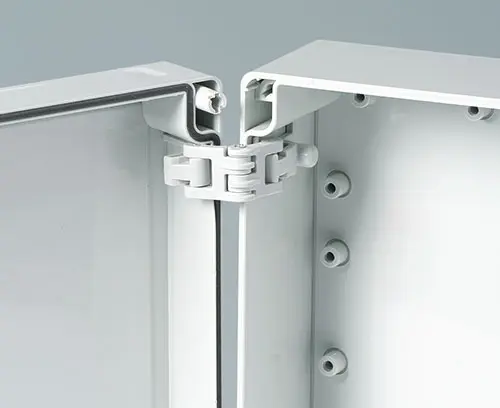

C7100142

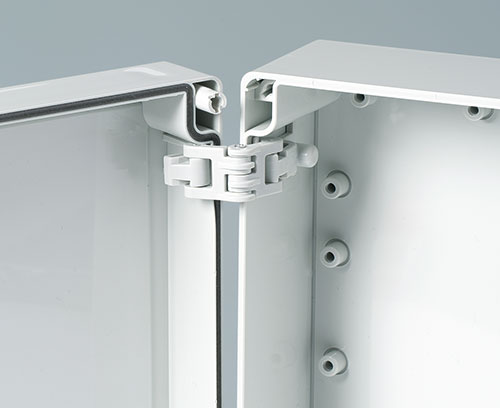

Inside hinge
For converting the top part of the enclosure into a folding door.
Supply 2 hinges, fastening screws with drill template
C7100142
Inside hinge产品已添加到关注清单中
C7100167
Screw 3.9 x 9 mm
For fitting standard DIN rails, mounting plates, PCBs, components etc.
Supply 1 self-tapping screw
C7100167
Screw 3.9 x 9 mm产品已添加到关注清单中

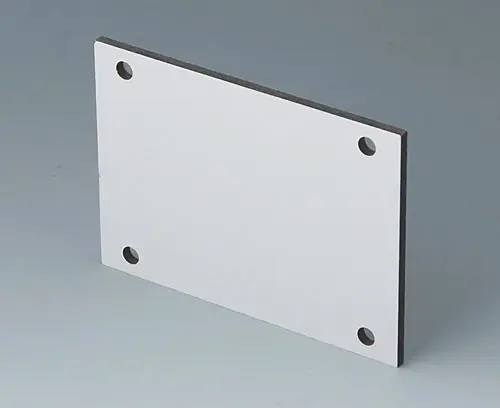

C7110056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7110056
Mounting plate产品已添加到关注清单中

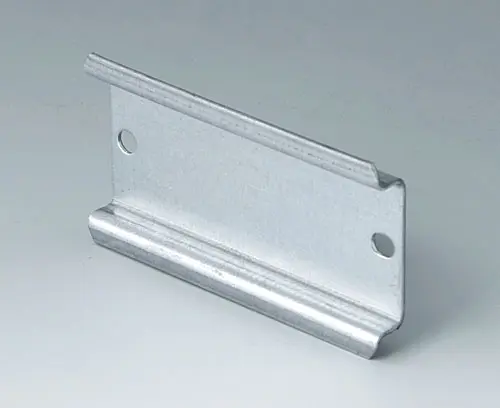

C7110077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7110077
Standard DIN rail, Type TH 35产品已添加到关注清单中
66x35x7.5mm
C7110087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7110087
Standard DIN rail, Type TH 15产品已添加到关注清单中
66x15x5.5mm

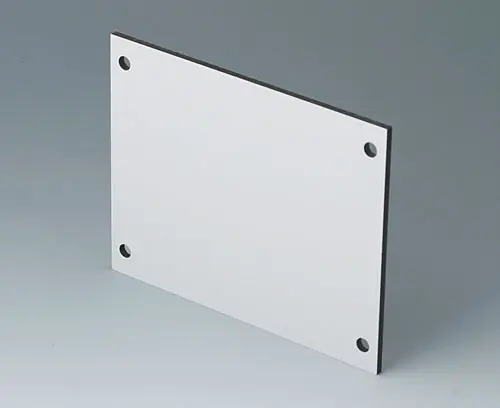

C7111056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7111056
Mounting plate产品已添加到关注清单中

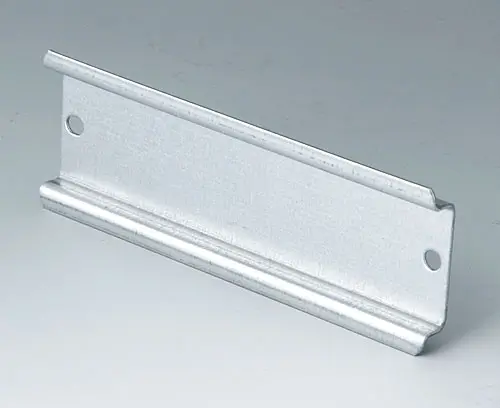

C7111077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7111077
Standard DIN rail, Type TH 35产品已添加到关注清单中
104x35x7.5mm
C7111087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7111087
Standard DIN rail, Type TH 15产品已添加到关注清单中
104x15x5.5mm

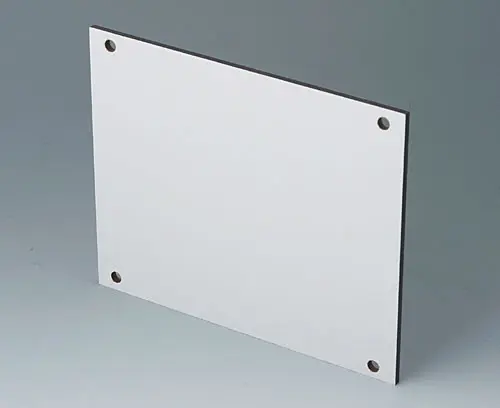

C7112056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7112056
Mounting plate产品已添加到关注清单中

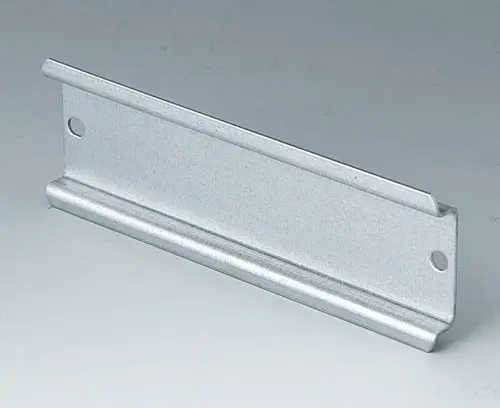

C7112077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7112077
Standard DIN rail, Type TH 35产品已添加到关注清单中
108x35x7.5mm

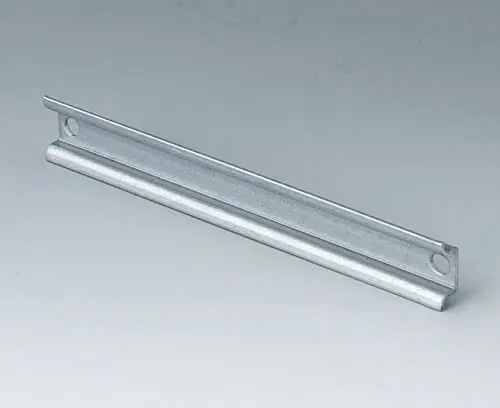

C7112087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7112087
Standard DIN rail, Type TH 15产品已添加到关注清单中
108x15x5.5mm

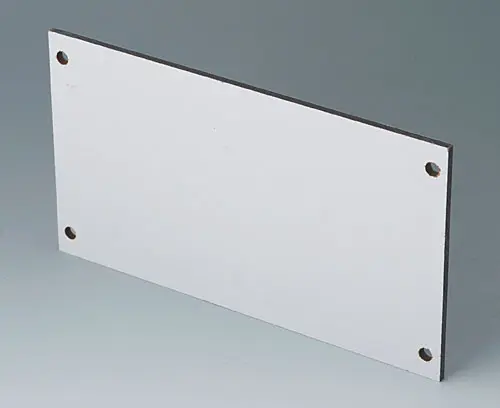

C7113056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7113056
Mounting plate产品已添加到关注清单中

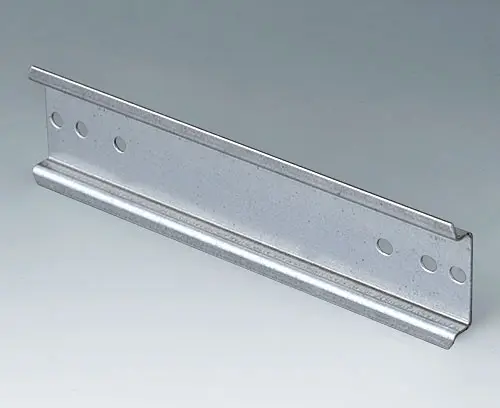

C7113077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7113077
Standard DIN rail, Type TH 35产品已添加到关注清单中
144x35x7.5mm

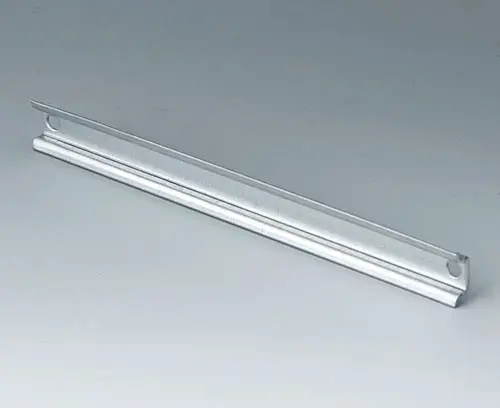

C7113087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7113087
Standard DIN rail, Type TH 15产品已添加到关注清单中
144x15x5.5mm

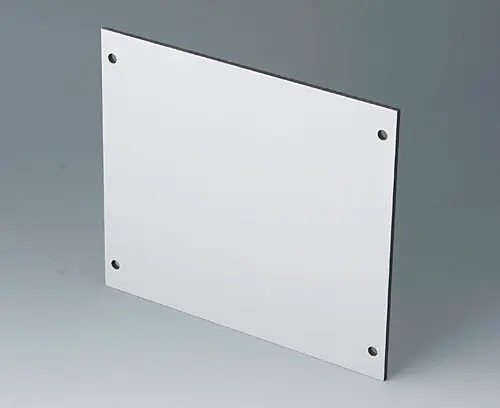

C7114056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7114056
Mounting plate产品已添加到关注清单中

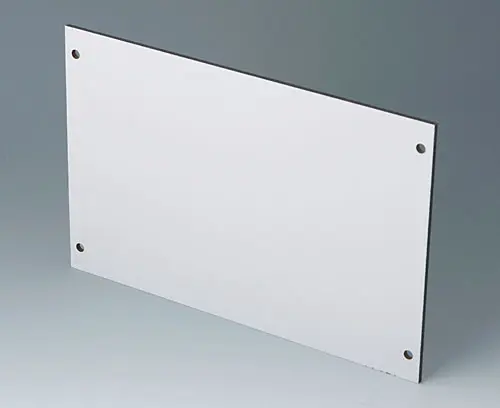

C7115056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7115056
Mounting plate产品已添加到关注清单中

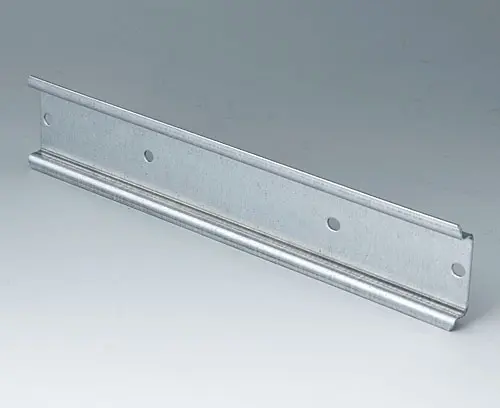

C7115077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7115077
Standard DIN rail, Type TH 35产品已添加到关注清单中
184x35x7.5mm
C7115087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7115087
Standard DIN rail, Type TH 15产品已添加到关注清单中
184x15x5.5mm

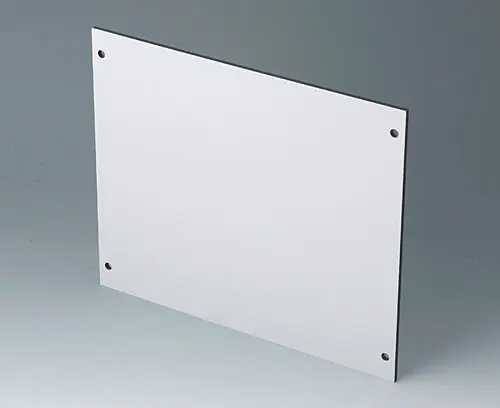

C7116056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7116056
Mounting plate产品已添加到关注清单中
C7116077

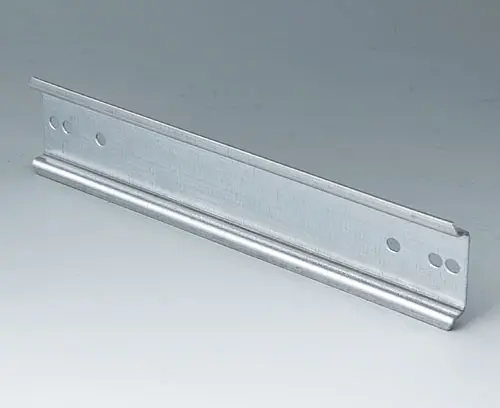

Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7116077
Standard DIN rail, Type TH 35产品已添加到关注清单中
168x35x7.5mm

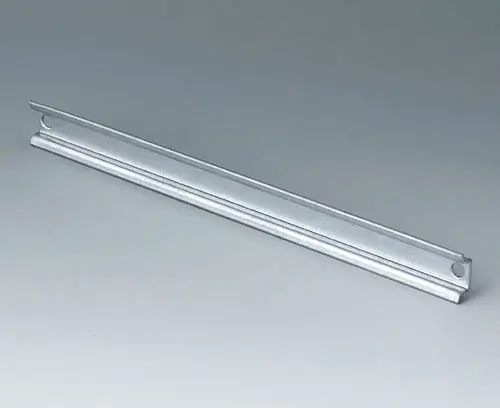

C7116087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7116087
Standard DIN rail, Type TH 15产品已添加到关注清单中
168x15x5.5mm
C7117056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7117056
Mounting plate产品已添加到关注清单中
C7117077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7117077
Standard DIN rail, Type TH 35产品已添加到关注清单中
220x35x7.5mm
C7117087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7117087
Standard DIN rail, Type TH 15产品已添加到关注清单中
220x15x5.5mm
C7118056
Mounting plate
Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.
Supply 1 mounting plate
C7118056
Mounting plate产品已添加到关注清单中
C7118077
Standard DIN rail, Type TH 35
Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 35
C7118077
Standard DIN rail, Type TH 35产品已添加到关注清单中
283.5x35x7.5mm
C7118087
Standard DIN rail, Type TH 15
Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.
Supply 1 standard DIN rail TH 15
C7118087
Standard DIN rail, Type TH 15产品已添加到关注清单中
283.5x15x5.5mm
