C7115087 Standard DIN rail, Type TH 15

C7115087

Standard DIN rail, Type TH 15

Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply

1 standard DIN rail TH 15

  • 适配系统部件

系统组件使产品完整

C7020041 IN-BOX

C7020041

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020041

IN-BOX
产品已添加到关注清单中
ABS (UL 94 HB)
light grey RAL 7035
202x122x75mm
IP 66, IP 67, IK 07
C7020042 IN-BOX

C7020042

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020042

IN-BOX
产品已添加到关注清单中
PC
light grey RAL 7035
202x122x75mm
IP 66, IP 67, IK 08
C7020044 IN-BOX

C7020044

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020044

IN-BOX
产品已添加到关注清单中
ABS/PC (UL 94 HB)
transparent
202x122x75mm
IP 66, IP 67, IK 07

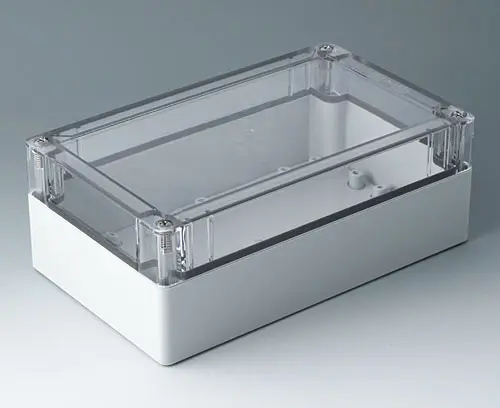

C7020045 IN-BOX

C7020045

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020045

IN-BOX
产品已添加到关注清单中
PC
transparent
202x122x75mm
IP 66, IP 67, IK 08

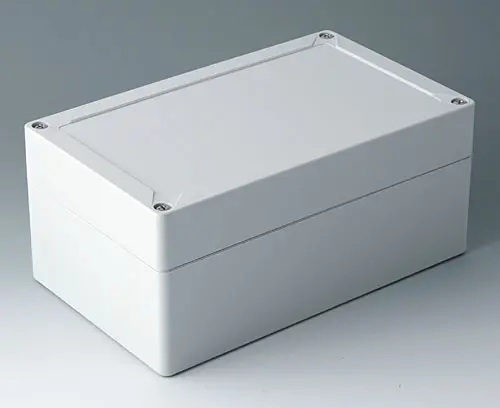

C7020061 IN-BOX

C7020061

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020061

IN-BOX
产品已添加到关注清单中
ABS (UL 94 HB)
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 07
C7020064 IN-BOX

C7020064

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020064

IN-BOX
产品已添加到关注清单中
ABS/PC (UL 94 HB)
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 07
C7020065 IN-BOX

C7020065

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

关闭

C7020065

IN-BOX
产品已添加到关注清单中
PC
light grey RAL 7035
202x122x90mm
IP 66, IP 67, IK 08

“螺钉” 附件

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

关闭

C7100167

Screw 3.9 x 9 mm
产品已添加到关注清单中
  • 技术数据
  • 采购有关数据
材料
标准根据
Length
184 mm
Width
15 mm
Height
5.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
28 g
Customs tariff number
(OKW product)
72287010
Country of manufacture
Germany
