Acessórios para Caixas
B6522821

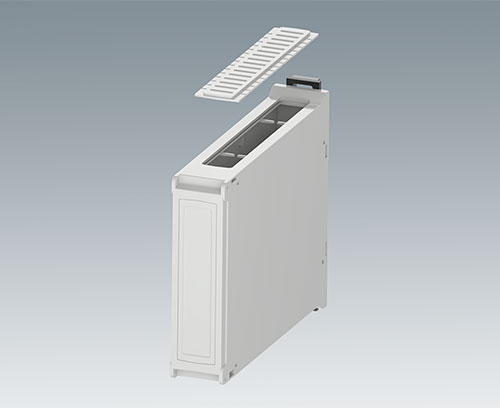

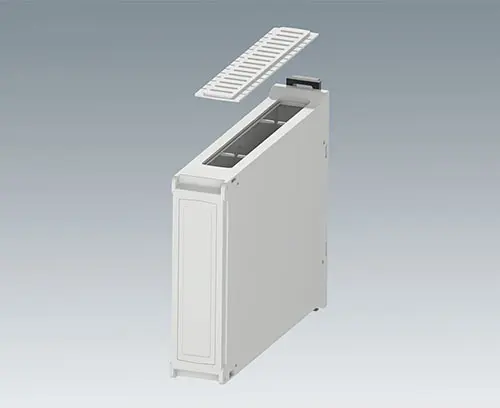

Side panel with ventilation slots
Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.
Minimum order quantity: 10 pieces or multiples
in packaging units of 10 pieces
Gerar seu Datasheet em PDF para B6522821
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
B6522101
RAILTEC BP, M22, with closed side panels
DIN rail enclosure with pluggable side panels and front panel. Connection options on three sides. For plug headers max. 2 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version with closed side panels
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 closed side panels, 1 front panel, 2 locking clips)
B6522101
RAILTEC BP, M22, with closed side panelsProduto adicionado a sua lista
light grey RAL 7035
95x23x113mm
B6522102
RAILTEC BP, M22, closed/with ventilation slots
DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version 1 side panel closed, 1 side panel with ventilation slots
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)
B6522102
RAILTEC BP, M22, closed/with ventilation slotsProduto adicionado a sua lista
light grey RAL 7035
95x23x113mm
B6522103
RAILTEC BP, M22, with ventilation slots
DIN rail enclosure with 2 pluggable side panels with ventilation slots for increased heat dissipation and front panel. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.
Minimum order quantity: 10 pieces or multiples
Minimum order quantity: 10 pieces or multiples
Version 2 side panels with ventilation slots
Supply in packaging units of 10 cases (each enclosure consists of 2 case shells, 2 side panels with ventilation slots, 1 front panel, 2 locking clips)
B6522103
RAILTEC BP, M22, with ventilation slotsProduto adicionado a sua lista
light grey RAL 7035
95x23x113mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Dinamarca
