B6522102

RAILTEC BP, M22, closed/with ventilation slots

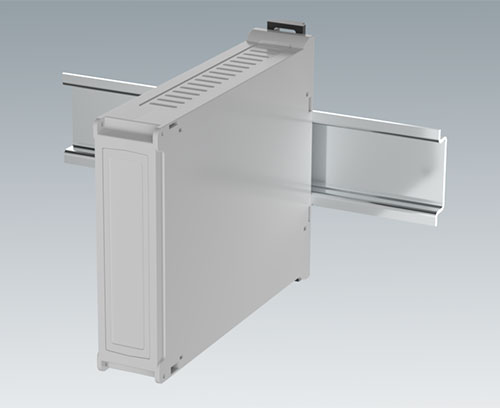

DIN rail enclosure with pluggable side panels (1 side panel closed, 1 side panel with ventilation slots) and front panel. For plug headers max. 1 x 16-pin, 5.08, fixed or pluggable. Simple and quick assembly by locking onto DIN rails EN 60715 TH35. The panel version provides simple and flexible installation of the electronics as well as efficient, screwless case assembly.

Minimum order quantity: 10 pieces or multiples

Version

1 side panel closed, 1 side panel with ventilation slots

Supply

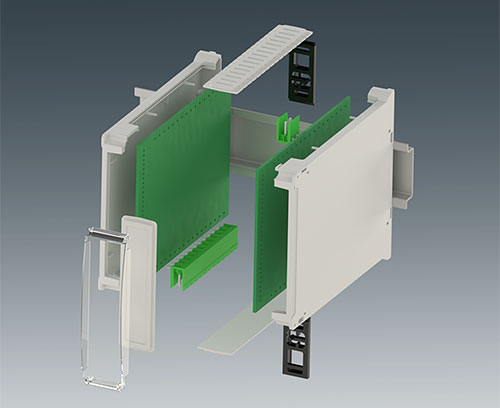

in packaging units of 10 cases (each enclosure consists of 2 case shells, 1 side panel closed, 1 side panel with ventilation slots, 1 front panel, 2 locking clips)

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B6522102

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

Accessory "protection"

B6622101 Hinged cover

B6622101

Hinged cover Hinged convex cover for RAILTEC BP, M22. Can be swivelled up or down. Protects electronics, interfaces and/or operating elements.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

B6622101

Hinged cover
Produto adicionado a sua lista
transparent

Accessory "terminals"

B6600222 Plug header, block 5.08

B6600222

Plug header, block 5.08 Male terminal block, 5.08. 3-pin.

Supply 1 piece

B6600222

Plug header, block 5.08
Produto adicionado a sua lista
B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

B6601222

Plug header, block 5.08
Produto adicionado a sua lista
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

B6602222

Plug header, block 5.08
Produto adicionado a sua lista
B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

B6605222

Plug header, block 5.08
Produto adicionado a sua lista
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

B6606222

Plug header, block 5.08
Produto adicionado a sua lista
B6608222 Plug header, block 5.08

B6608222

Plug header, block 5.08 Male terminal block, 5.08. 6-pin.

Supply 1 piece

B6608222

Plug header, block 5.08
Produto adicionado a sua lista

Accessory

B6522801 Front panel

B6522801

Front panel Front panel for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

B6522801

Front panel
Produto adicionado a sua lista

light grey RAL 7035
B6522811 Side panel closed

B6522811

Side panel closed Side panel closed for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

B6522811

Side panel closed
Produto adicionado a sua lista

light grey RAL 7035
B6522821 Side panel with ventilation slots

B6522821

Side panel with ventilation slots Side panel with ventilation slots for RAILTEC BP, M22 as an accessory for replacement purposes.

Minimum order quantity: 10 pieces or multiples

Supply in packaging units of 10 pieces

B6522821

Side panel with ventilation slots
Produto adicionado a sua lista

light grey RAL 7035

Customising options for B6522102

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
Width
95 mm
Height
23 mm
Depth
113 mm
Pitch
5.08 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
59 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Dinamarca
