Acessórios para Caixas

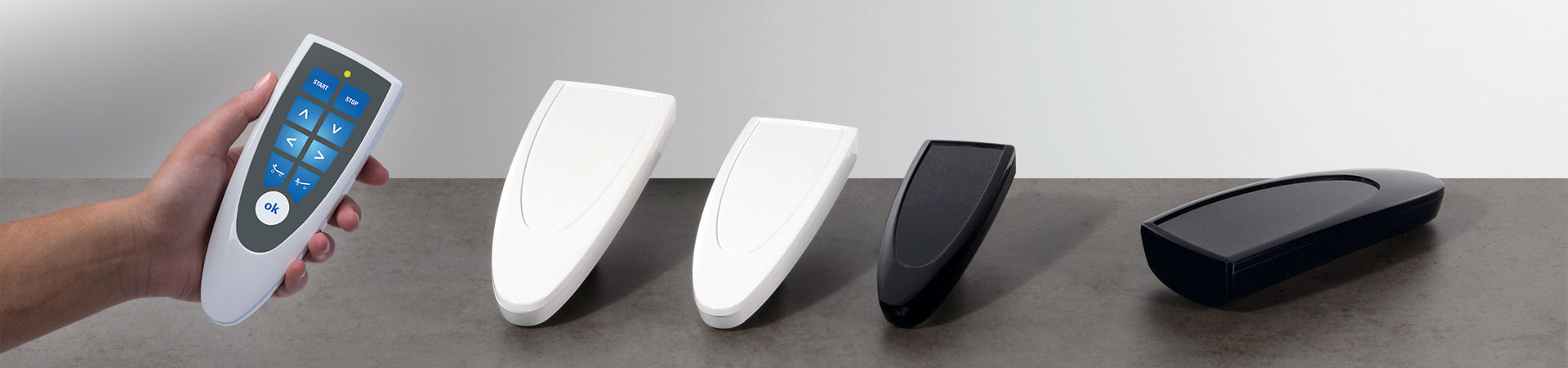

Style-Case

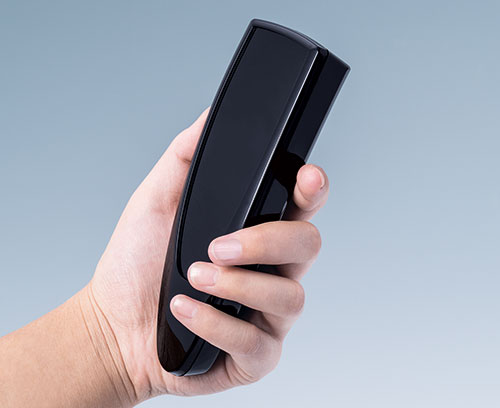

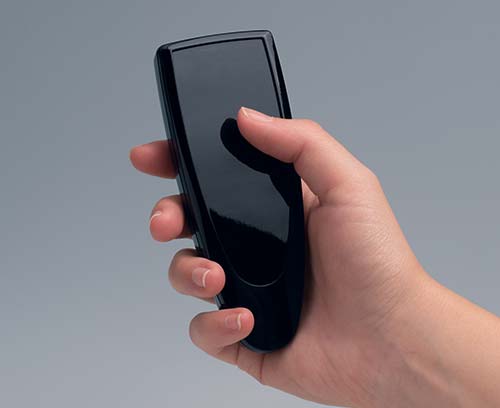

Caixas portáteis altamente ergonômicas e brilhantes

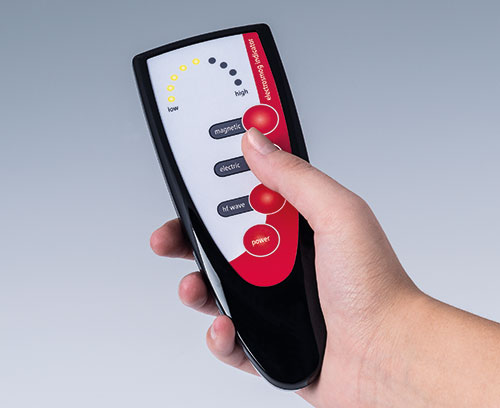

A OKW apresenta a caixa STYLE-CASE com um acabamento de superfície de alto brilho, dando assim, destaque ao design para unidades de controle manuais e modernas. Estas caixas atraentes e elegantes se encaixam perfeitamente na mão e são fáceis e confiáveis para operar. A superfície altamente polida tem uma sensação muito agradável que confere uma alta qualidade e aparência moderna ao usuário.

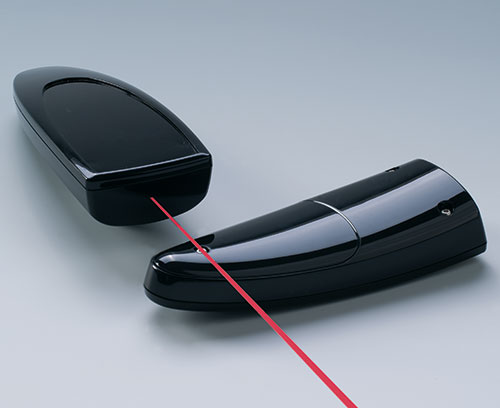

- ASA de alta qualidade com alta proteção UV ou em material PMMA permeável à luz infravermelho (Plexiglas)

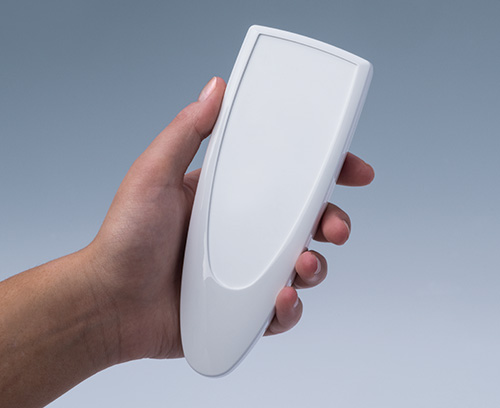

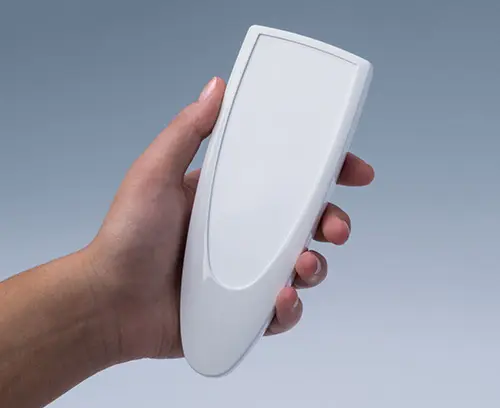

- superfície brilhante fácil de limpar
- montagem por parafusos de aço inoxidável

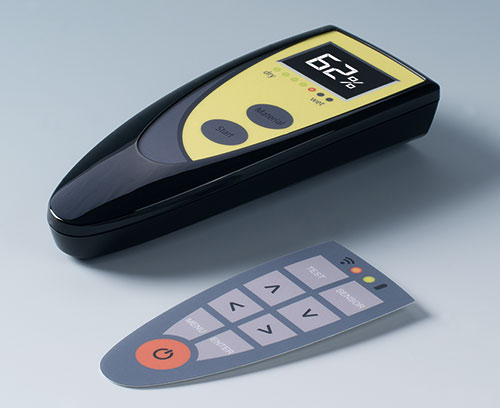

- painel de operação embutido para proteção do teclado de membrana/etiqueta do produto

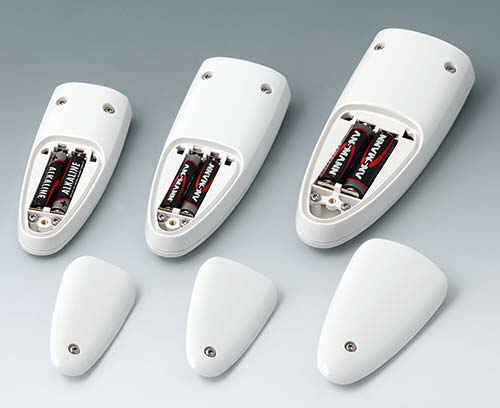

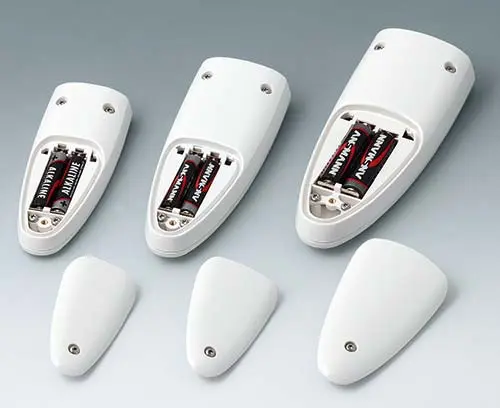

- compartimento de bateria integrado para 2 x 1.5 V AAA (S, M) e 2 x 1.5 V AA (L), conjunto de clipes de bateria fornecidos como acessórios

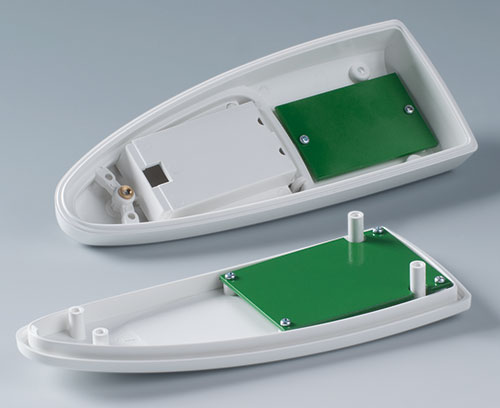

- pilares de fixação para PCBs e componentes, parafusos auto-roscantes para montar as placas estão disponíveis como acessórios
Application Fields

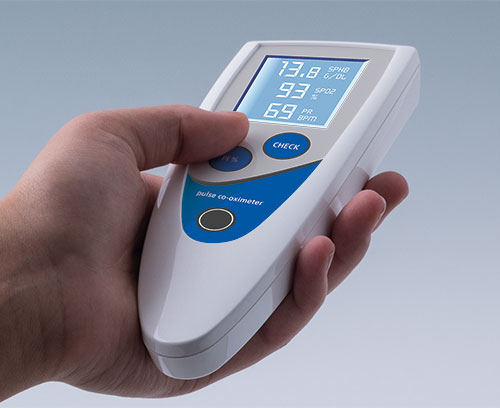

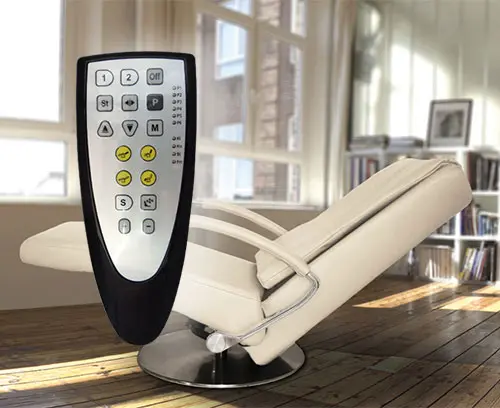

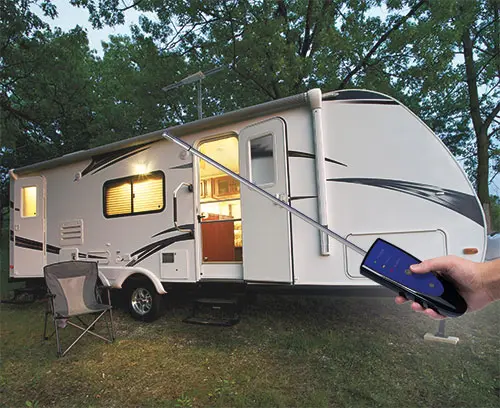

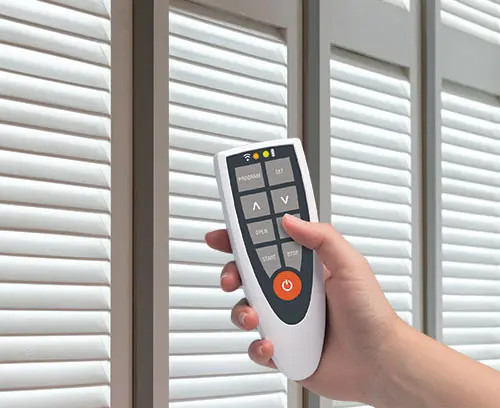

Ideal para unidades de controle de mão orientadas para o projeto. Muitos tipos diferentes de sistemas de controle remoto. Feita especialmente para as áreas médica e social, bem como residencial e industrial.

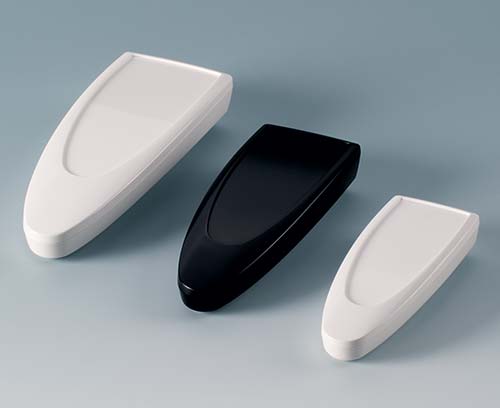

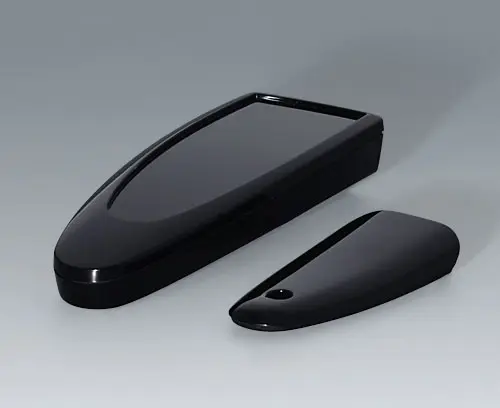

B2802016
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.

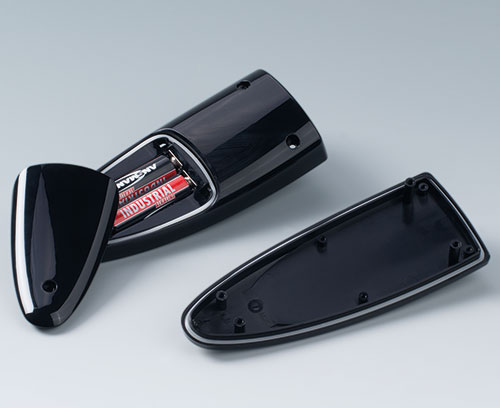

Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802016
STYLE-CASE SProduto adicionado a sua lista
black RAL 9005
123x48x24mm

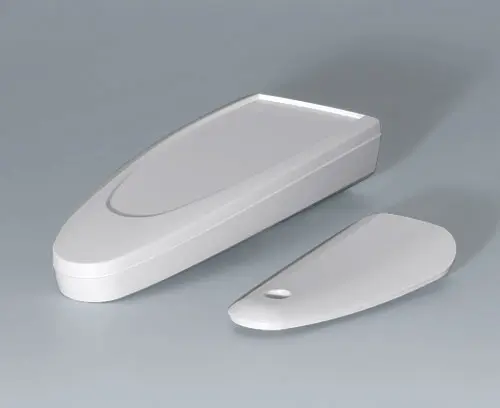

B2802017
STYLE-CASE S
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2802017
STYLE-CASE SProduto adicionado a sua lista
traffic white RAL 9016
123x48x24mm

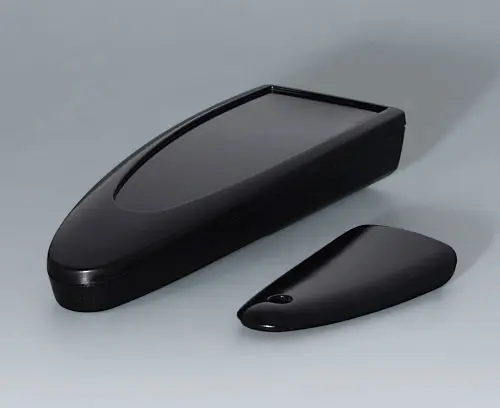

B2803016
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803016
STYLE-CASE MProduto adicionado a sua lista
black RAL 9005
147x56x27mm
,

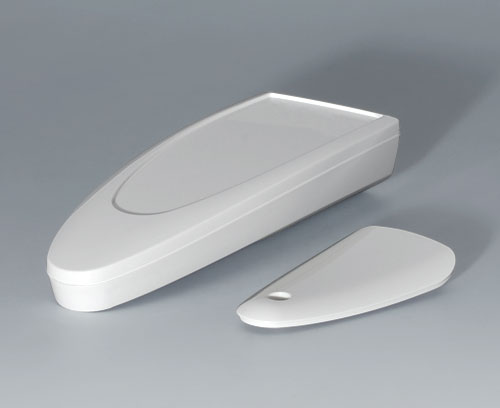

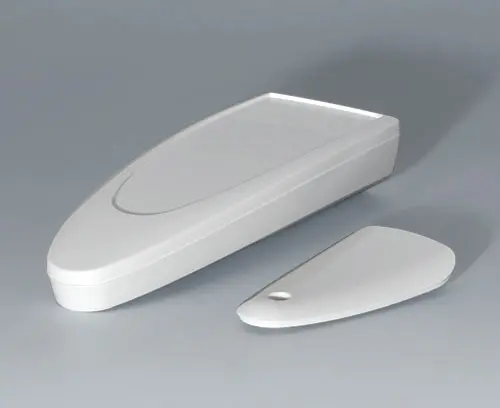

B2803017
STYLE-CASE M
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2803017
STYLE-CASE MProduto adicionado a sua lista
traffic white RAL 9016
147x56x27mm
,

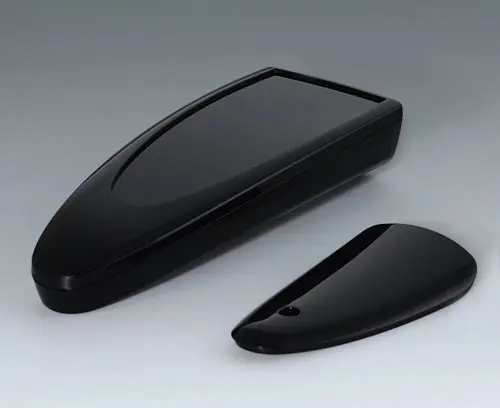

B2804016
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804016
STYLE-CASE LProduto adicionado a sua lista
black RAL 9005
166x64x31mm
,

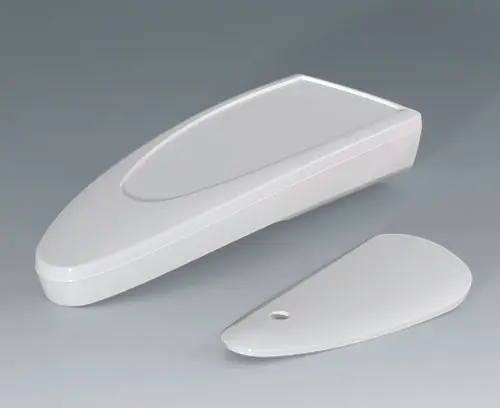

B2804017
STYLE-CASE L
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.
Supply Top and bottom part, battery compartment lid, assembly kit
B2804017
STYLE-CASE LProduto adicionado a sua lista
traffic white RAL 9016
166x64x31mm
,

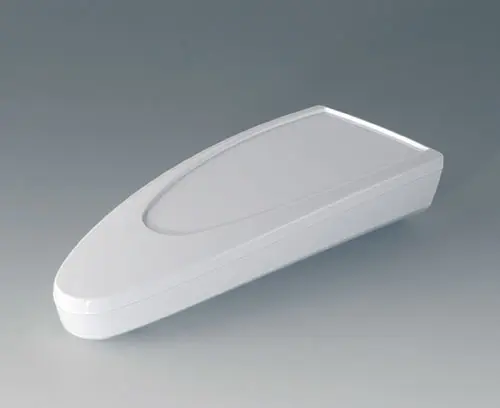

B2804027
STYLE-CASE L
Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.
Supply Top and bottom part, assembly kit
B2804027
STYLE-CASE LProduto adicionado a sua lista
traffic white RAL 9016
166x64x31mm
,

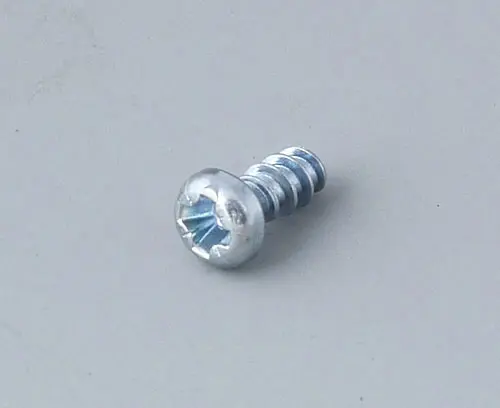

A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produto adicionado a sua lista
A9190020

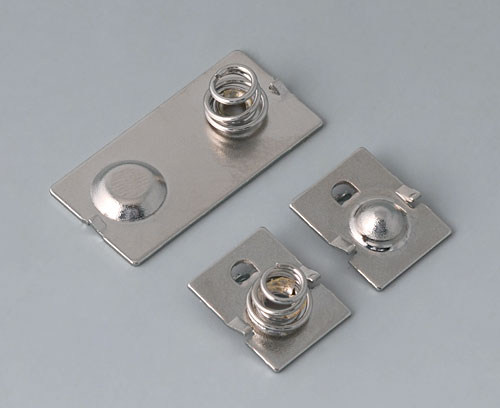

Set of battery clips
For contacting 2 AAA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsProduto adicionado a sua lista
nickel-plated

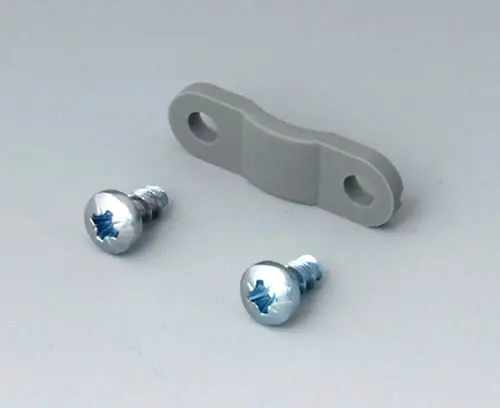

A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply 1 strain relief device, 2 screws
A9199005
Strain reliefProduto adicionado a sua lista
volcano

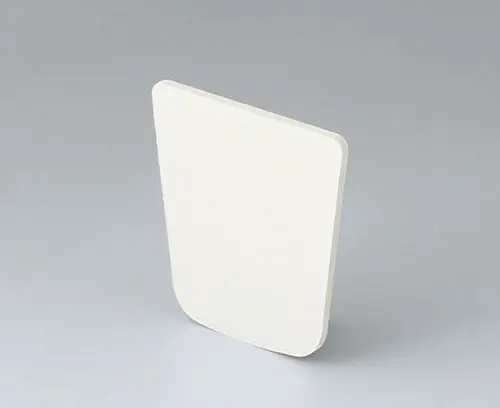

B2902031
Adhesive foil S
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2902031
Adhesive foil SProduto adicionado a sua lista

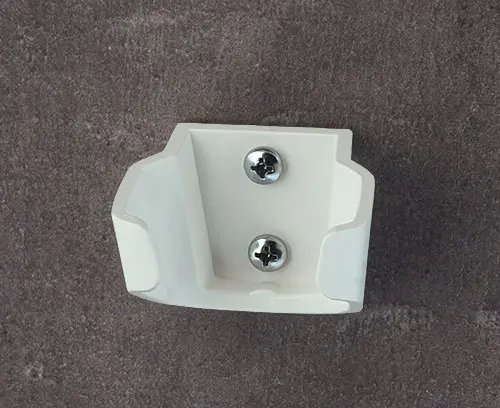

B2902037
Holder S

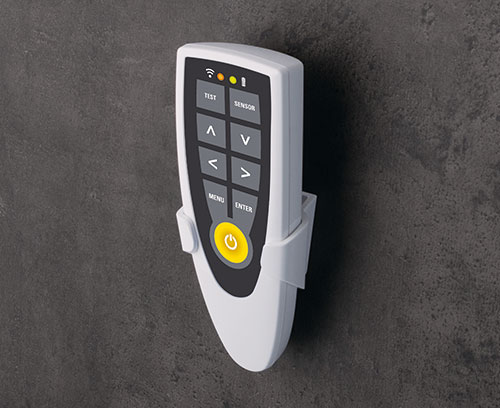

Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902037
Holder SProduto adicionado a sua lista
traffic white RAL 9016

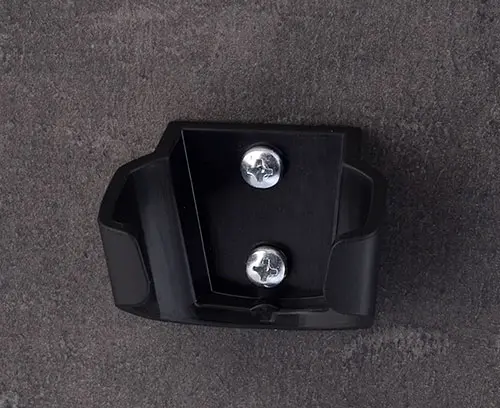

B2902039
Holder S
Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.
Supply 1 holder
B2902039
Holder SProduto adicionado a sua lista
black RAL 9005

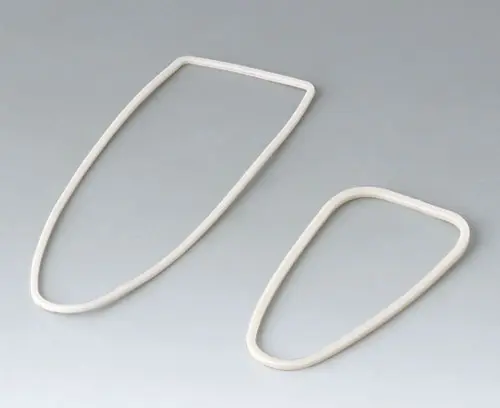

B2902111

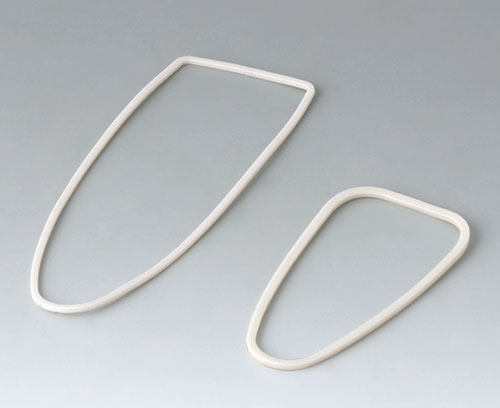

Sealing kit S
Application: for increasing the protection class, of STYLE-CASE S.
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit SProduto adicionado a sua lista

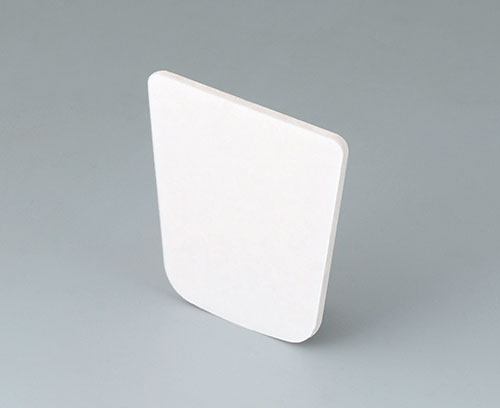

B2903031
Adhesive foil M
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2903031
Adhesive foil MProduto adicionado a sua lista
B2903037

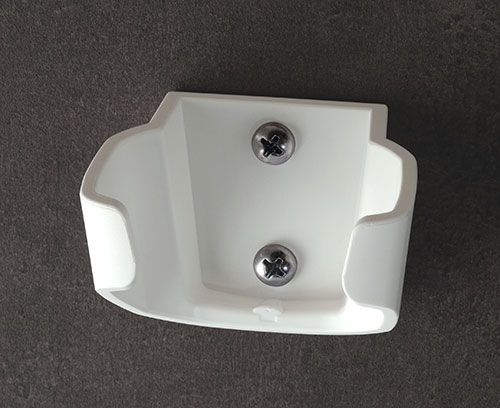

Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903037
Holder MProduto adicionado a sua lista
traffic white RAL 9016

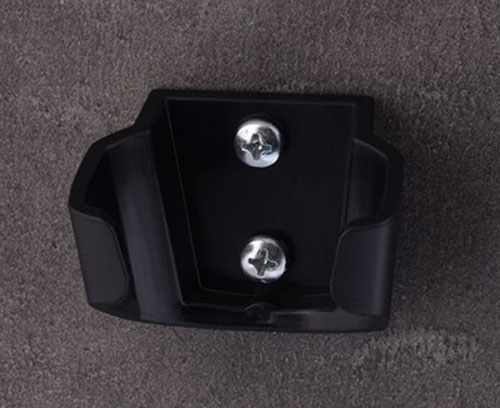

B2903039
Holder M
Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.
Supply 1 holder
B2903039
Holder MProduto adicionado a sua lista
black RAL 9005

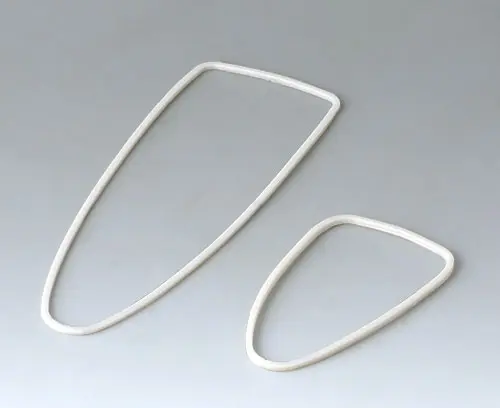

B2903111
Sealing kit M
Application: for increasing the protection class, of STYLE-CASE M.
Supply 2 sealings kit (enclosure, battery compartment)
B2903111
Sealing kit MProduto adicionado a sua lista
B2904011
Sealing L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 1 sealing
B2904011
Sealing LProduto adicionado a sua lista

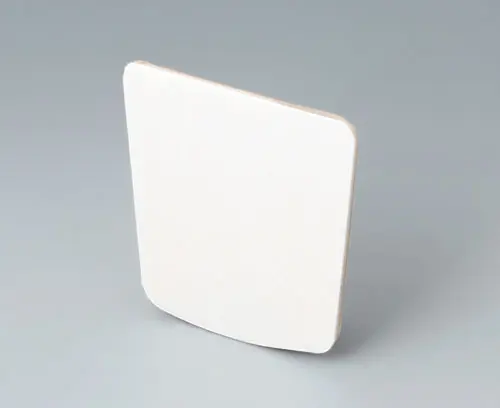

B2904031
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
B2904031
Adhesive foil LProduto adicionado a sua lista

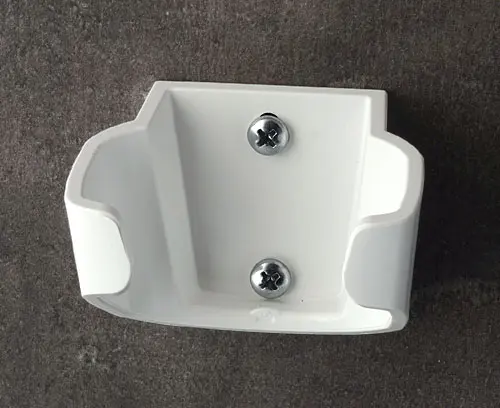

B2904037
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904037
Holder LProduto adicionado a sua lista
traffic white RAL 9016

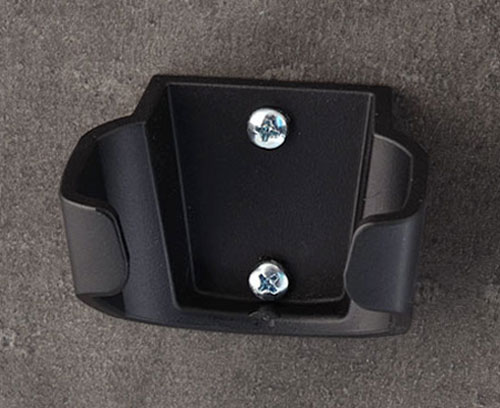

B2904039
Holder L
Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.
Supply 1 holder
B2904039
Holder LProduto adicionado a sua lista
black RAL 9005
B2904111
Sealing kit L
Application: for increasing the protection class, of STYLE-CASE L.
Supply 2 sealings kit (enclosure, battery compartment)
B2904111
Sealing kit LProduto adicionado a sua lista
B2904210

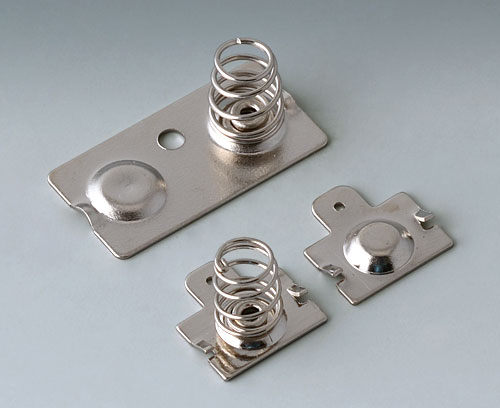

Set of battery clips
For contacting 2 AA batteries.
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
B2904210
Set of battery clipsProduto adicionado a sua lista
nickel-plated

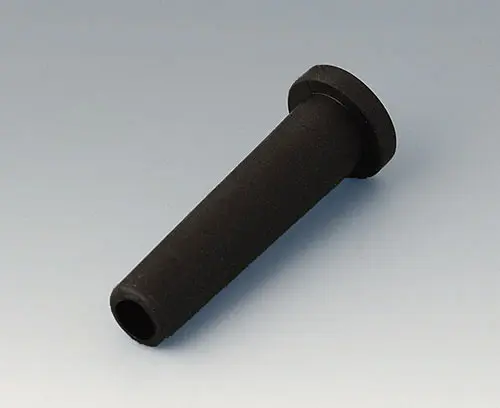

C2353849
Flexible cable grommet Ø 5,3
Flexible cable grommet to protect the cable connection, for universal use.
Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.
Supply 1 flexible cable grommet
C2353849
Flexible cable grommet Ø 5,3Produto adicionado a sua lista

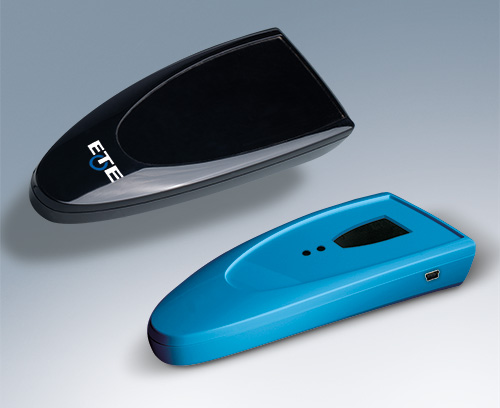

Opções para customizadas Style-Case
O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
