STYLE-CASE S

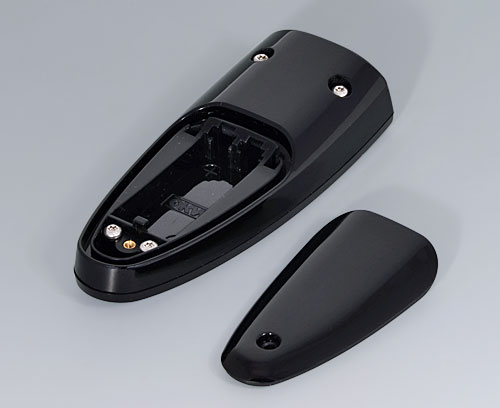

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Top and bottom part, battery compartment lid, assembly kit
Gerar seu Datasheet em PDF para B2802016
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Accessory "battery"
A9190020
Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"
A9190020
Set of battery clipsnickel-plated
Accessory "protection"
B2902111
Supply 2 sealings kit (enclosure, battery compartment)
B2902111
Sealing kit SAccessory "wall/holder"
B2902031
Supply 1 piece
B2902031
Adhesive foil S
B2902039
Supply 1 holder
B2902039
Holder Sblack RAL 9005
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
