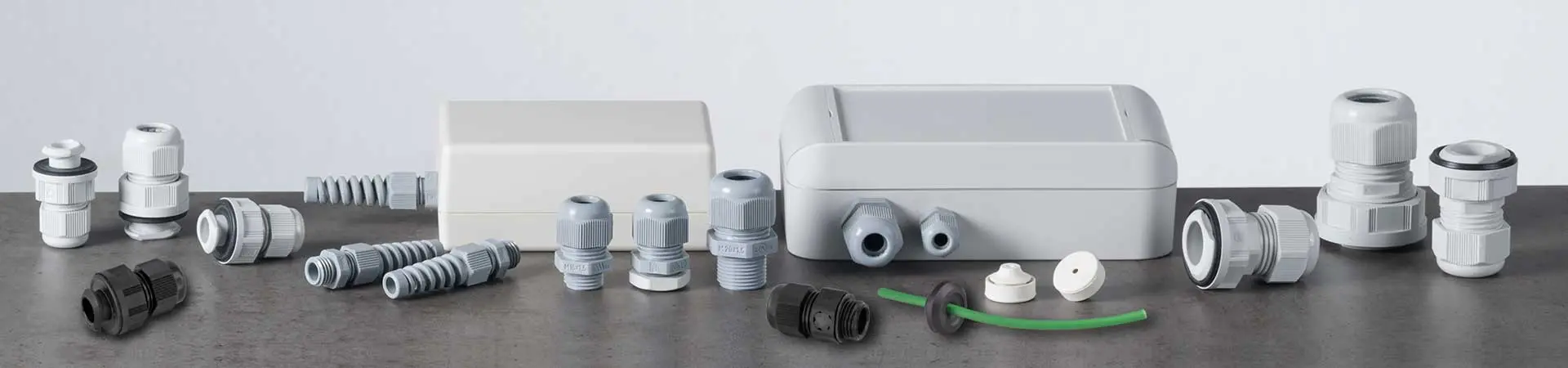

Prensa cabos, aliviador de esforço mecânico

Prensa cabos, aliviador de esforço mecânico

  • Prensa-cabos com alta classe de proteção IP 68, nos tamanhos de M12 a M32, com um anel de vedação de roscas externas.
  • O prensa-cabos Quickfix é novidade em nossa gama de produtos e apenas se estende na caixa por alguns milímetros, não prejudicando desta forma quaisquer outros componentes no interior. Eles também são fáceis de instalar sem ferramentas especiais.
  • Aliviador de esforço mecânico para proteger os cabos elétricos de stress mecânico.
  • Navegue na Lista Completa
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Fechar

A9199005

Strain relief
Produto adicionado a sua lista
PA 6
volcano
C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2312117

Counternut M12x1.5
Produto adicionado a sua lista
PA
light grey RAL 7035
C2312126 Sealing ring for external thread M12x1.5

C2312126

Sealing ring for external thread M12x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Fechar

C2312126

Sealing ring for external thread M12x1.5
Produto adicionado a sua lista
PE
natural-coloured

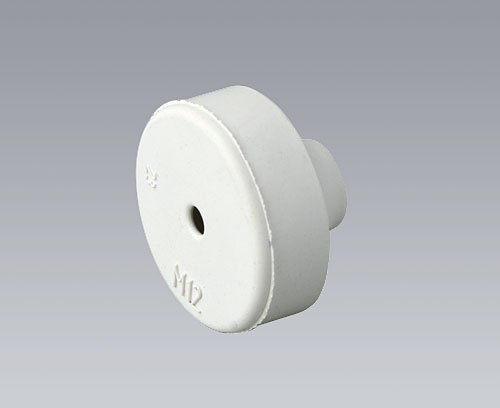

C2312137 Cable grommet

C2312137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 2 mm and for cable diameters from 4 - 7 mm. Operating temperatures from -40°C to +100°C. Borehole ø 12.5 mm.

Supply 1 cable grommet

Fechar

C2312137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67
C2312418 Cable gland M12x1.5

C2312418

Cable gland M12x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

Fechar

C2312418

Cable gland M12x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2312518 Cable gland M12x1.5, bending protection

C2312518

Cable gland M12x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm.

Supply 1 cable gland

Fechar

C2312518

Cable gland M12x1.5, bending protection
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2316117 Counternut M16x1.5

C2316117

Counternut M16x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2316117

Counternut M16x1.5
Produto adicionado a sua lista
PA
light grey RAL 7035
C2316126 Sealing ring for external thread M16x1.5

C2316126

Sealing ring for external thread M16x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Fechar

C2316126

Sealing ring for external thread M16x1.5
Produto adicionado a sua lista
PE
natural-coloured

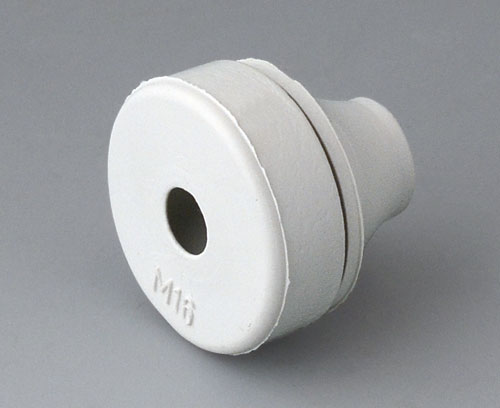

C2316137 Cable grommet

C2316137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 5 - 9 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Fechar

C2316137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Fechar

C2316147

Cable grommet
Produto adicionado a sua lista
TPE
light grey RAL 7035
IP 67

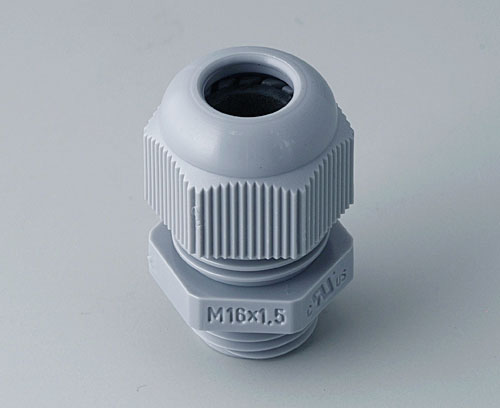

C2316418 Cable gland M16x1.5

C2316418

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 8 mm.

Supply 1 cable gland

Fechar

C2316418

Cable gland M16x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2316518 Cable gland M16x1.5, bending protection

C2316518

Cable gland M16x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Fechar

C2316518

Cable gland M16x1.5, bending protection
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68

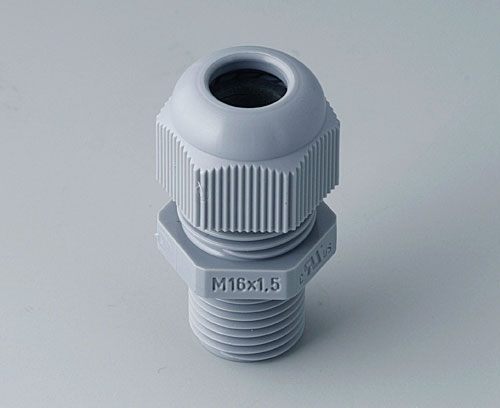

C2316618 Cable gland M16x1.5

C2316618

Cable gland M16x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 5 - 10 mm. Thread length 15 mm.

Supply 1 cable gland

Fechar

C2316618

Cable gland M16x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2316717 Quick fix cable gland, M16

C2316717

Quick fix cable gland, M16 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 5 - 10 mm.

Supply 1 cable gland

Fechar

C2316717

Quick fix cable gland, M16
Produto adicionado a sua lista
PA
light grey RAL 7035
IP 68

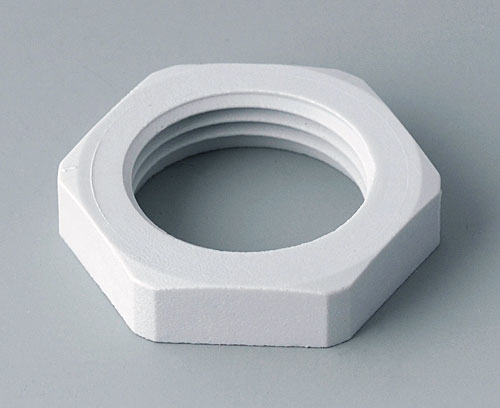

C2320117 Counternut M20x1.5

C2320117

Counternut M20x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2320117

Counternut M20x1.5
Produto adicionado a sua lista
PA
light grey RAL 7035

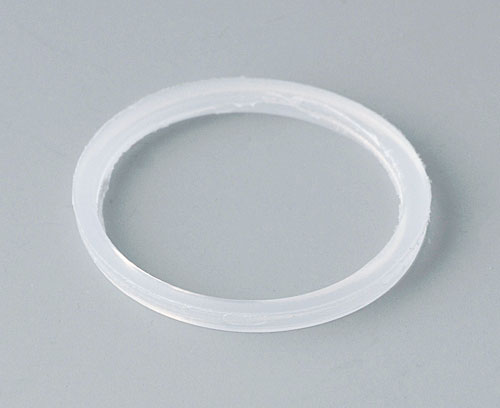

C2320126 Sealing ring for external thread M20x1.5

C2320126

Sealing ring for external thread M20x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Fechar

C2320126

Sealing ring for external thread M20x1.5
Produto adicionado a sua lista
PE
natural-coloured
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Fechar

C2320137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Fechar

C2320147

Cable grommet
Produto adicionado a sua lista
TPE
light grey RAL 7035
IP 67

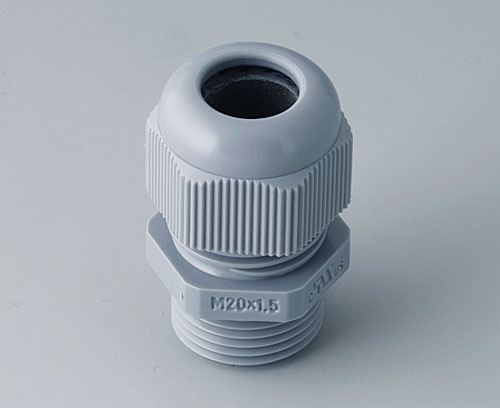

C2320418 Cable gland M20x1.5

C2320418

Cable gland M20x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply 1 cable gland

Fechar

C2320418

Cable gland M20x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68

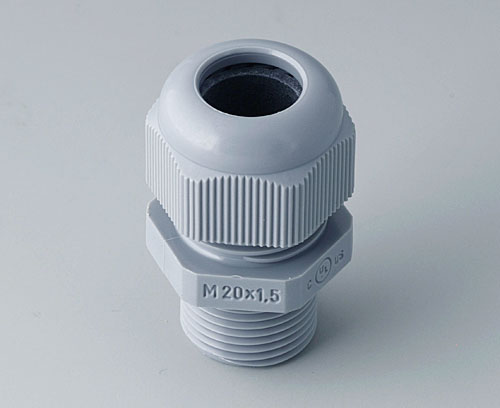

C2320428 Cable gland M20x1.5

C2320428

Cable gland M20x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 10 - 14 mm.

Supply 1 cable gland

Fechar

C2320428

Cable gland M20x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68

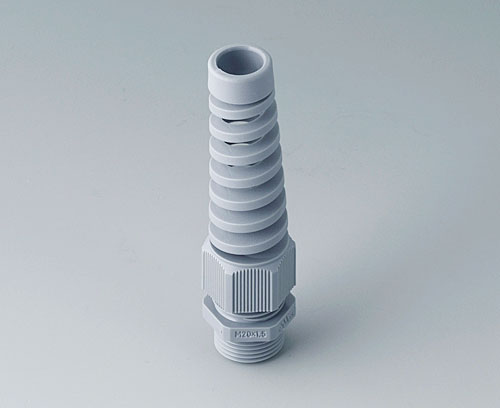

C2320518 Cable gland M20x1.5, bending protection

C2320518

Cable gland M20x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 6 - 12 mm.

Supply 1 cable gland

Fechar

C2320518

Cable gland M20x1.5, bending protection
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68

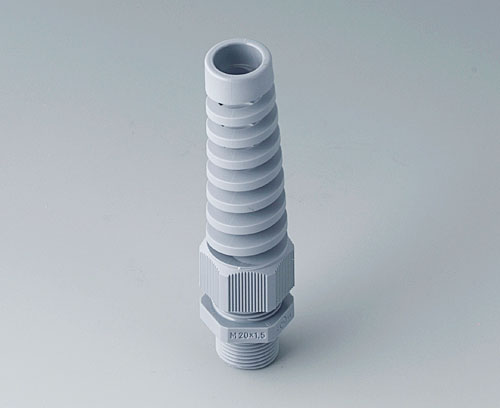

C2320528 Cable gland M20x1.5, bending protection

C2320528

Cable gland M20x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 10 - 14 mm.

Supply 1 cable gland

Fechar

C2320528

Cable gland M20x1.5, bending protection
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68

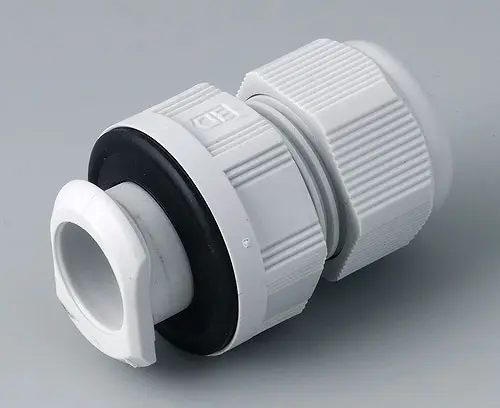

C2320717 Quick fix cable gland, M20

C2320717

Quick fix cable gland, M20 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 8 - 13 mm.

Supply 1 cable gland

Fechar

C2320717

Quick fix cable gland, M20
Produto adicionado a sua lista
PA
light grey RAL 7035
IP 68
C2325117 Counternut M25x1.5

C2325117

Counternut M25x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2325117

Counternut M25x1.5
Produto adicionado a sua lista
PA
light grey RAL 7035
C2325126 Sealing ring for external thread M25x1.5

C2325126

Sealing ring for external thread M25x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Fechar

C2325126

Sealing ring for external thread M25x1.5
Produto adicionado a sua lista
PE
natural-coloured
C2325137 Cable grommet

C2325137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 11 - 17 mm. Operating temperatures from -40°C to +100°C. Borehole ø 25.5 mm.

Supply 1 cable grommet

Fechar

C2325137

Cable grommet
Produto adicionado a sua lista
EPDM
light grey RAL 7035
IP 67
C2325147

C2325147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3.5 mm and for cable diameters from 8 - 17 mm. Operating temperatures from -40°C to +100°C. Borehole ø 25.5 mm.

Supply 1 cable grommet

Fechar

C2325147

Cable grommet
Produto adicionado a sua lista
TPE
light grey RAL 7035
IP 67
C2325418 Cable gland M25x1.5

C2325418

Cable gland M25x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 13 - 18 mm.

Supply 1 cable gland

Fechar

C2325418

Cable gland M25x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2325518 Cable gland M25x1.5, bending protection

C2325518

Cable gland M25x1.5, bending protection Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 13 - 18 mm.

Supply 1 cable gland

Fechar

C2325518

Cable gland M25x1.5, bending protection
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2325717 Quick fix cable gland, M25

C2325717

Quick fix cable gland, M25 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 11 - 17 mm.

Supply 1 cable gland

Fechar

C2325717

Quick fix cable gland, M25
Produto adicionado a sua lista
PA
light grey RAL 7035
IP 68
C2332117 Counternut M32x1.5

C2332117

Counternut M32x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2332117

Counternut M32x1.5
Produto adicionado a sua lista
PA
light grey RAL 7035
C2332126 Sealing ring for external thread M32x1.5

C2332126

Sealing ring for external thread M32x1.5 Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Fechar

C2332126

Sealing ring for external thread M32x1.5
Produto adicionado a sua lista
PE
natural-coloured
C2332418 Cable gland M32x1.5

C2332418

Cable gland M32x1.5 Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 18 - 25 mm.

Supply 1 cable gland

Fechar

C2332418

Cable gland M32x1.5
Produto adicionado a sua lista
PA
silver grey RAL 7001
IP 68
C2332717 Quick fix cable gland, M32

C2332717

Quick fix cable gland, M32 Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Clamp ranges: diameter 15 - 21 mm.

Supply 1 cable gland

Fechar

C2332717

Quick fix cable gland, M32
Produto adicionado a sua lista
PA
light grey RAL 7035
IP 68
C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Fechar

C2353849

Flexible cable grommet Ø 5,3
Produto adicionado a sua lista
black
