Acessórios para Caixas
C2312126
Sealing ring for external thread M12x1.5
Mounting between housing and gland flange. Preserves the high protection class IP 68.
Supply1 sealing ring for external thread
Gerar seu Datasheet em PDF para C2312126
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho

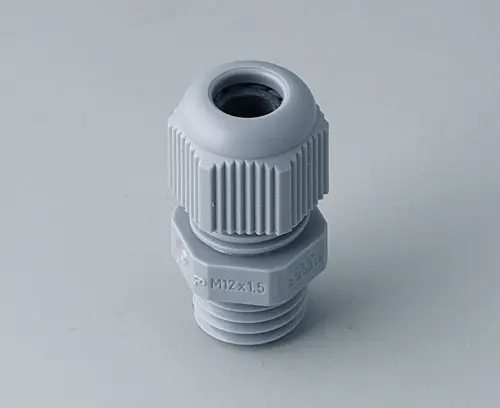

C2312418
Cable gland M12x1.5
Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm. Operating temperatures from -20°C to +100°C (dynamic) and -40°C ( static, short-term).
Supply 1 cable gland
C2312418
Cable gland M12x1.5Produto adicionado a sua lista
silver grey RAL 7001

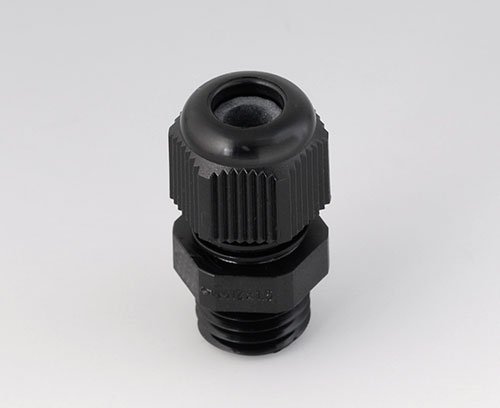

C2312419
Cable gland M12x1.5
Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 3 - 6.5 mm. Operating temperatures from -20°C to +100°C (dynamic) and -40°C ( static, short-term).
Supply 1 cable gland
C2312419
Cable gland M12x1.5Produto adicionado a sua lista
black RAL 9005
C2312518
Cable gland M12x1.5, bending protection
Easy to assemble cable gland with metric connection thread. Superior pull relief with bending protection and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Operating temperatures from -20°C to +100°C (dynamic) and -40°C ( static, short-term).
Supply 1 cable gland
C2312518
Cable gland M12x1.5, bending protectionProduto adicionado a sua lista
silver grey RAL 7001
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0,15 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Outros países
