NET-BOX

Net-Box

Caixa suporte de parede para unidades de controle

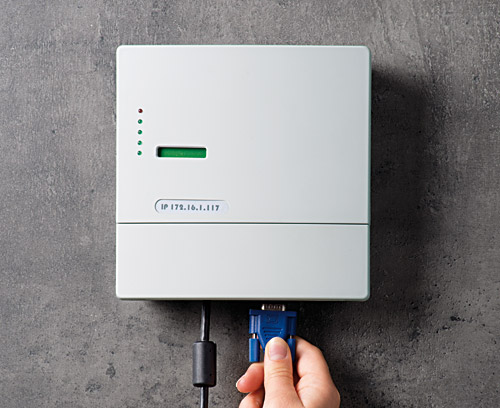

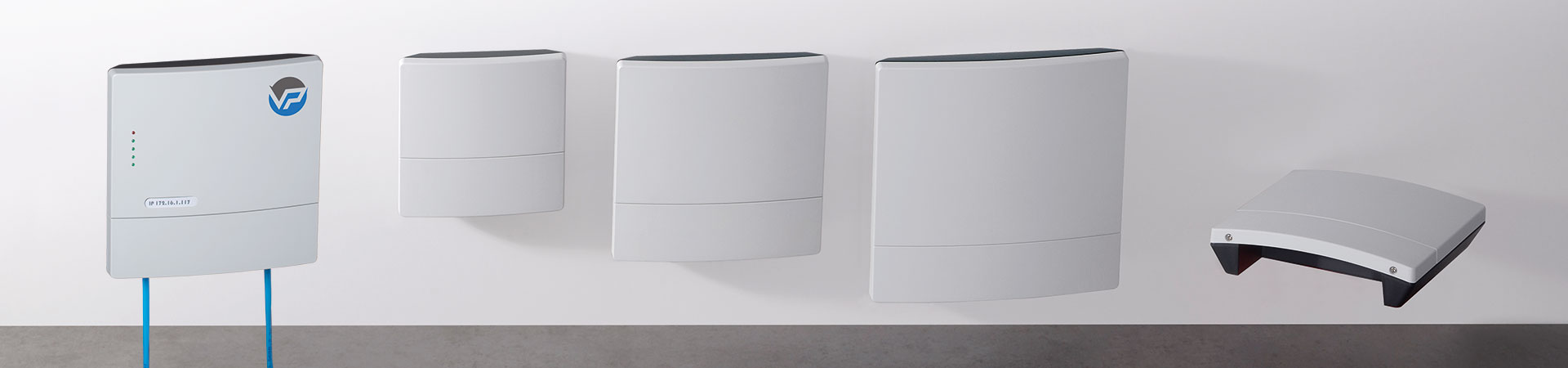

A nova NET-BOX com parte superior curvada é moderna e elegante, para unidades de controle com montagem em parede, rede e muito mais.

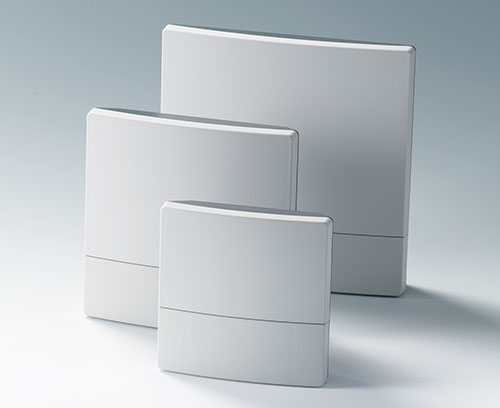

  • três tamanhos com espaço sobressalente para eletrônicos e interfaces

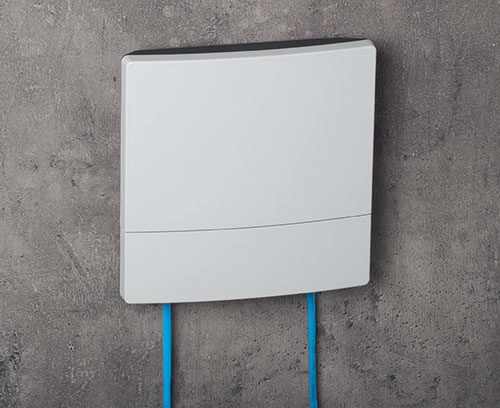

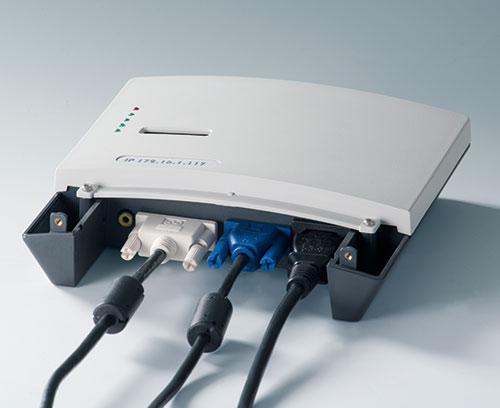

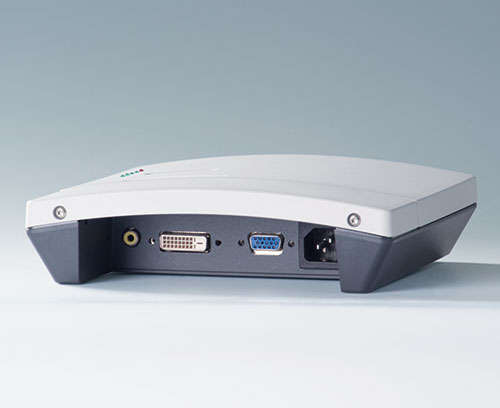

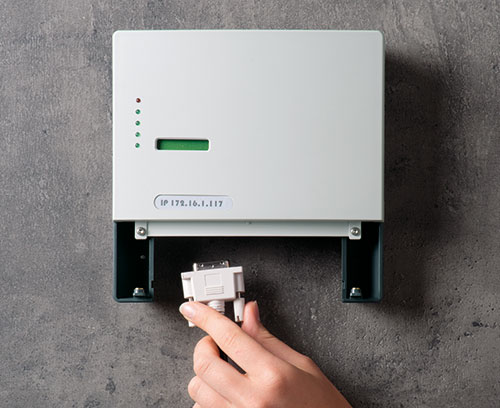

  • conectores e cabos estão escondidos sob a tampa frontal
  • as caixas são moldadas em material que retarda chamas e pode ser selada com IP 65

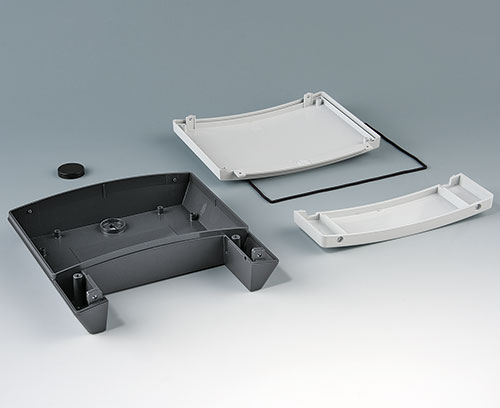

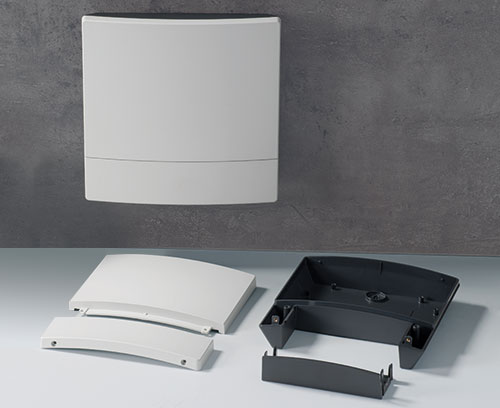

  • montagem de três partes simples - parte traseira, cobertura dianteira e tampa frontal; não há parafusos visíveis na frente, apenas dois na parte inferior da tampa

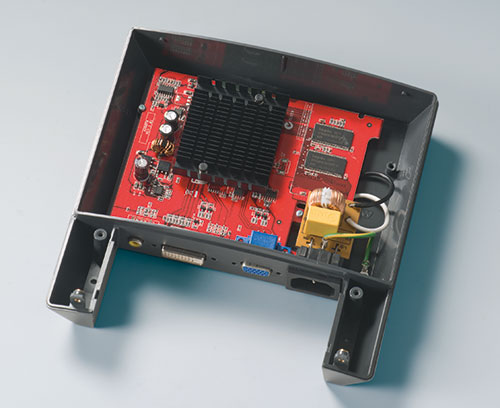

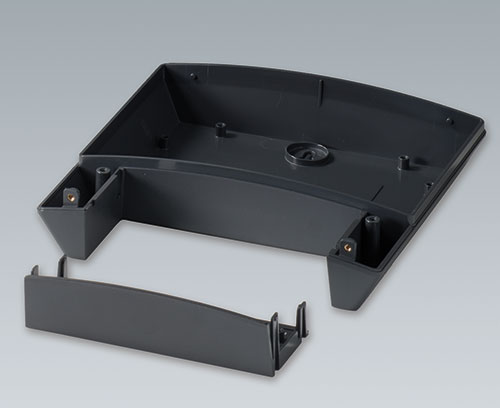

  • pilares de parafuso são fornecidos na parte inferior para montagem PCB e montagens
  • enchimento opcional cobre a abertura inferior e pode ser usada para PCBs ou conjuntos adicionais de montagem
  • sistema de montagem em parede através de três pontos - não há necessidade de abrir a seção de produtos eletrônicos principal, apenas a tampa frontal tem que ser recolocada após a instalação (modelos II já equipados com aberturas na parte inferior)
  • fornecido com parafusos de montagem Torx T10
  • caixas NET-BOX também podem ser usadas como unidades em mesa de trabalho, pés antiderrapantes estão disponíveis como acessório
  • Video

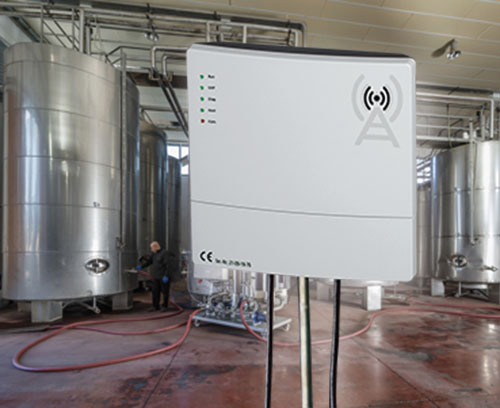

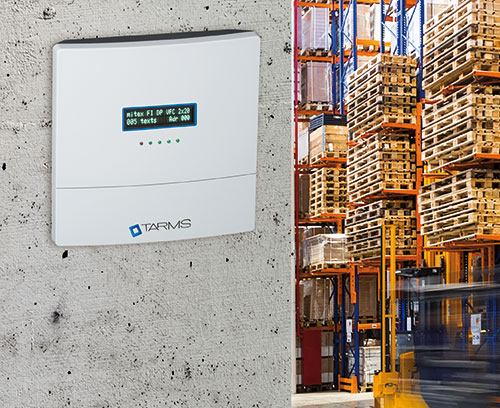

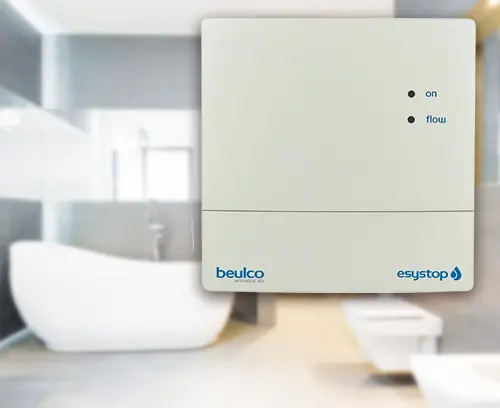

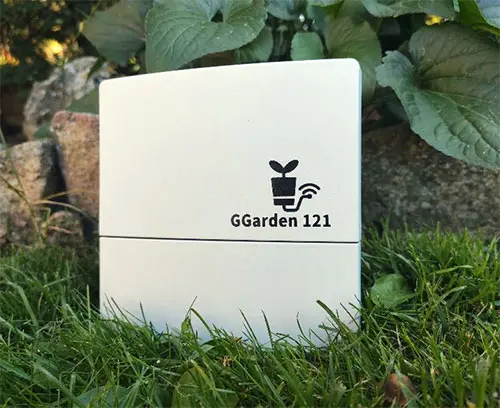

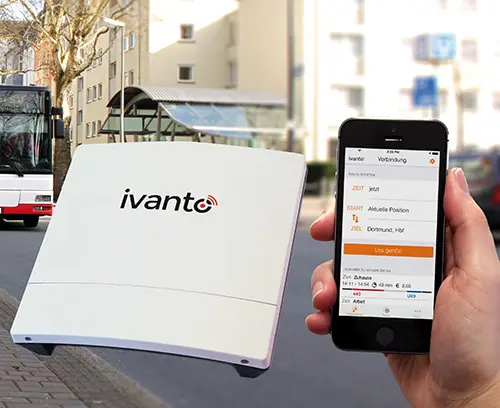

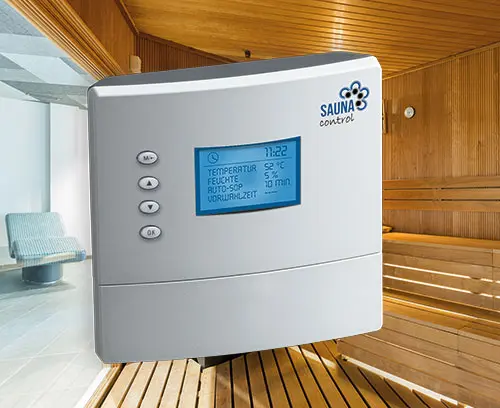

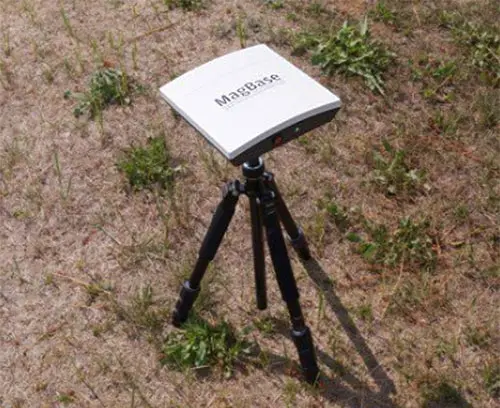

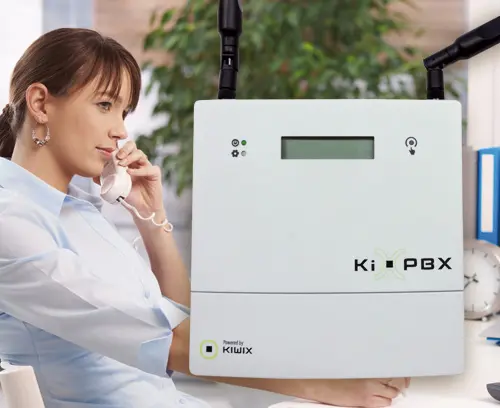

  • Exemplos de Aplicação

Application fields

  • Gestão de edifício
  • Unidades de controle central

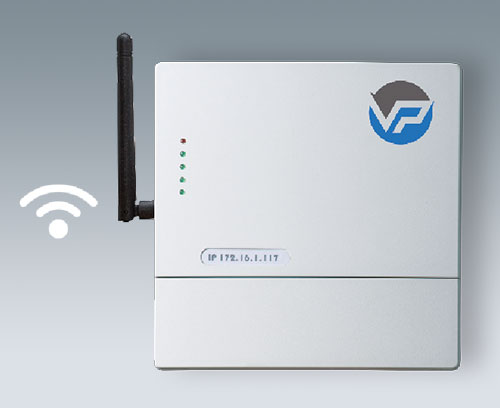

  • IoT/IIoT
  • Sistemas de aquisição de dados
  • Engenharia de sistemas de dados
  • Tecnologia de medição e controle
  • Terminais de supervisão e controle de acesso
  • Médica e tecnologia de bem-estar
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas
B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3214101

NET-BOX 140, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
140x140x46,5mm
IP 65 opt., IP 40

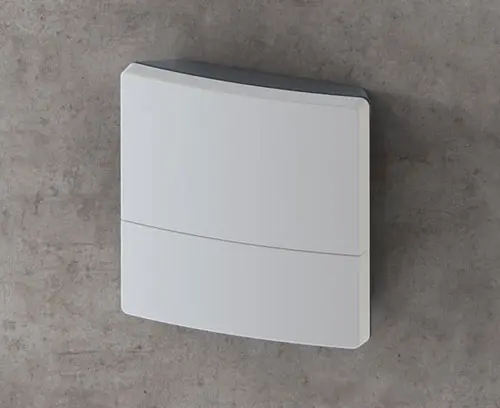

B3214201 NET-BOX 140, Vers. II

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3214201

NET-BOX 140, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
140x140x46,5mm
IP 65 opt.
B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3218101

NET-BOX 180, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
180x180x48,5mm
IP 65 opt., IP 40
B3218201 NET-BOX 180, Vers. II

B3218201

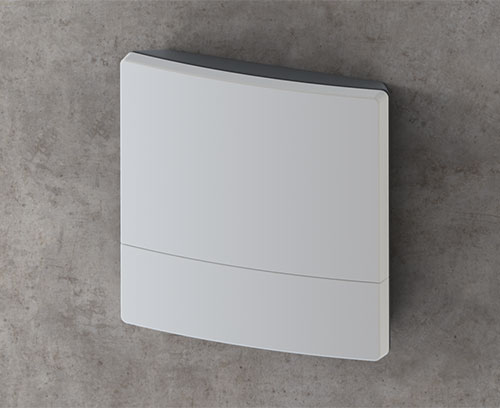

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3218201

NET-BOX 180, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
180x180x48,5mm
IP 65 opt.
B3222101 NET-BOX 220, Vers. I

B3222101

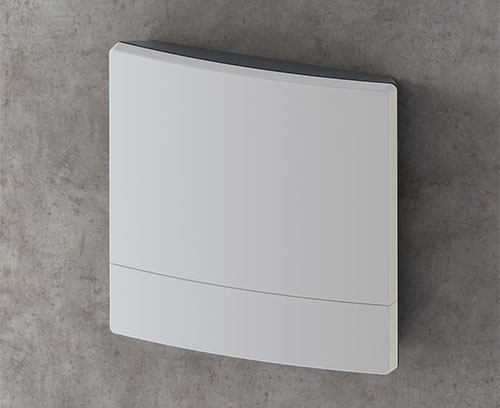

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3222101

NET-BOX 220, Vers. I
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
220x220x50,5mm
IP 65 opt., IP 40
B3222201 NET-BOX 220, Vers. II

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Fechar

B3222201

NET-BOX 220, Vers. II
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
220x220x50,5mm
IP 65 opt.
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Fechar

A0399T10

Torx T10 screwdriver
Produto adicionado a sua lista
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
B3314159 Sealing kit 140

B3314159

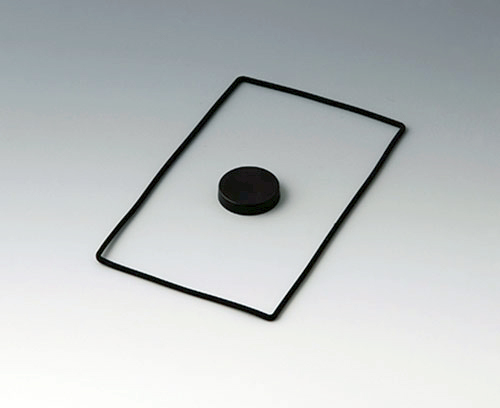

Sealing kit 140 Application: for increasing the protection class, of NET-BOX140.

Supply 1 sealing kit

Fechar

B3314159

Sealing kit 140
Produto adicionado a sua lista
Silicone
black

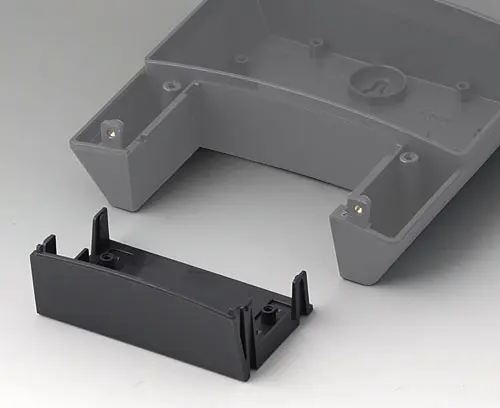

B3314918 Infill cover 140

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Fechar

B3314918

Infill cover 140
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava

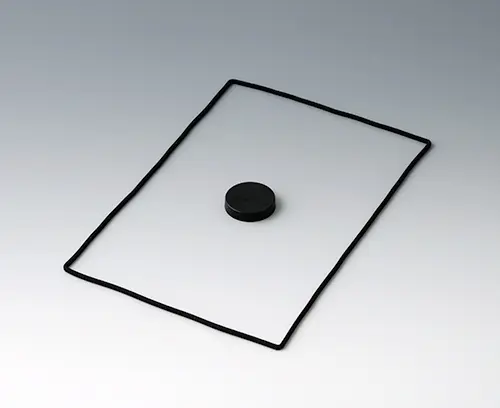

B3318159 Sealing kit 180

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

Fechar

B3318159

Sealing kit 180
Produto adicionado a sua lista
Silicone
black

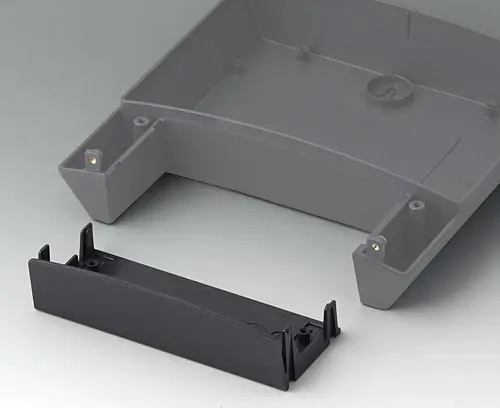

B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Fechar

B3318918

Infill cover 180
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava
B3322159 Sealing kit 220

B3322159

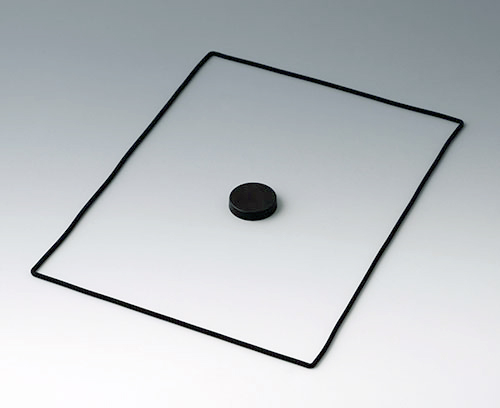

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

Fechar

B3322159

Sealing kit 220
Produto adicionado a sua lista
Silicone
black
B3322918 Infill cover 220

B3322918

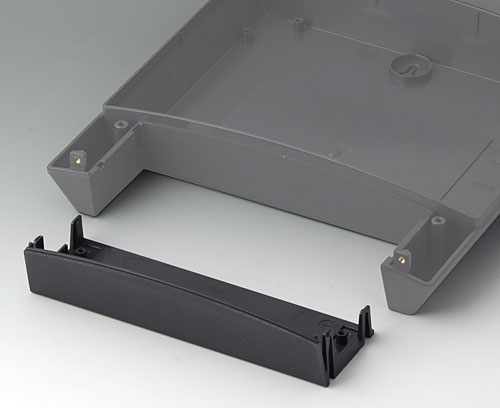

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Fechar

B3322918

Infill cover 220
Produto adicionado a sua lista
ASA+PC-FR (UL 94 V-0)
lava

Opções para customizadas Net-Box

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
