Acessórios para Caixas
B3322918

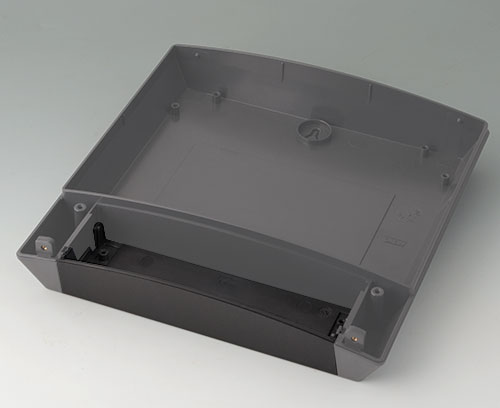

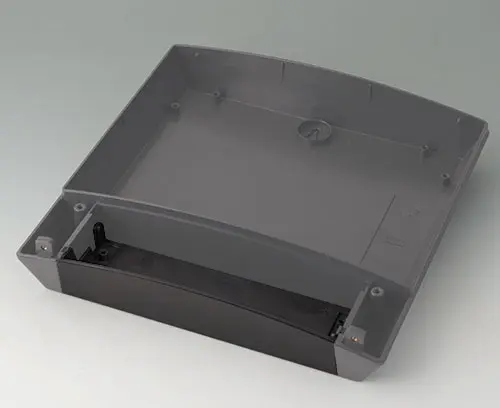

Infill cover 220
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply1 infill cover
Gerar seu Datasheet em PDF para B3322918
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
System components to complete
B3222101
NET-BOX 220, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. IProduto adicionado a sua lista
light grey RAL 7035
220x220x50,5mm
,
B3222201
NET-BOX 220, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIProduto adicionado a sua lista
light grey RAL 7035
220x220x50,5mm
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produto adicionado a sua lista
Customising options for B3322918
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
PCB length, base
44 mm
PCB width, base
156 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
45 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Alemanha
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B3322918 e não se esqueça de solicitar uma cotação!
