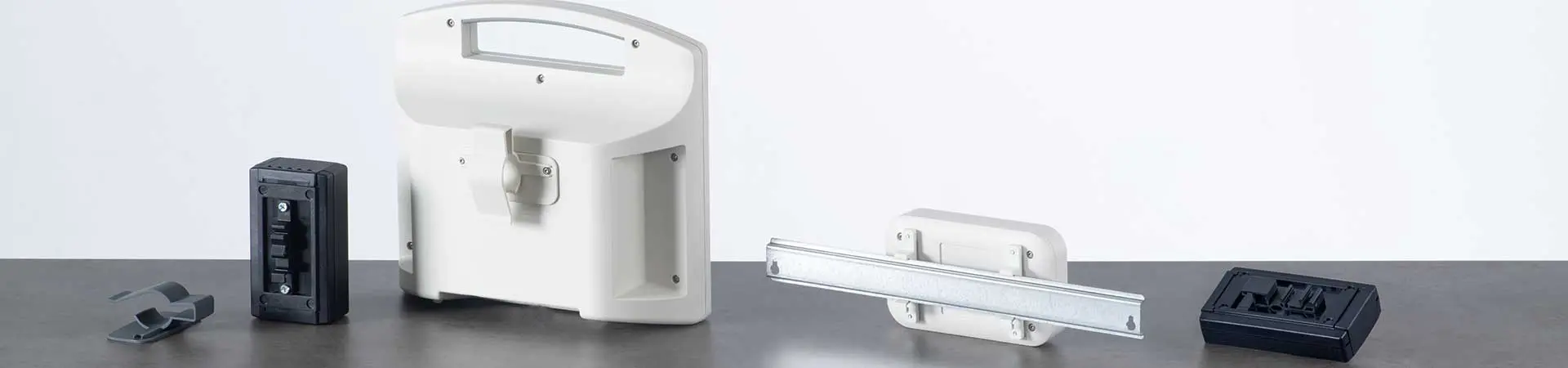

Dispositivos de Fixação

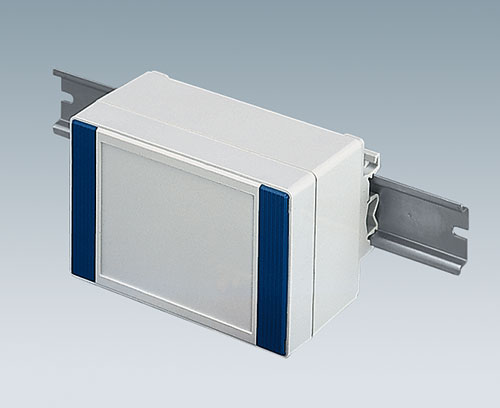

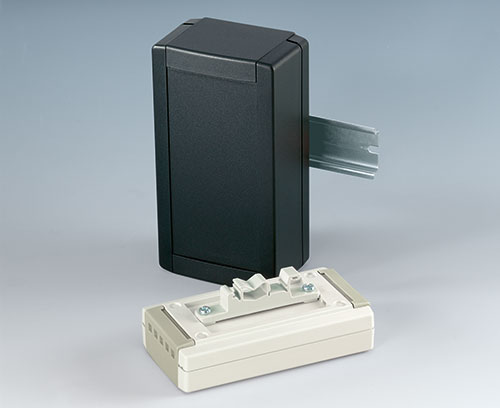

  • Elemento para fixação em trilhos DIN em conformidade com a norma DIN EN 60715 TH35 e G32

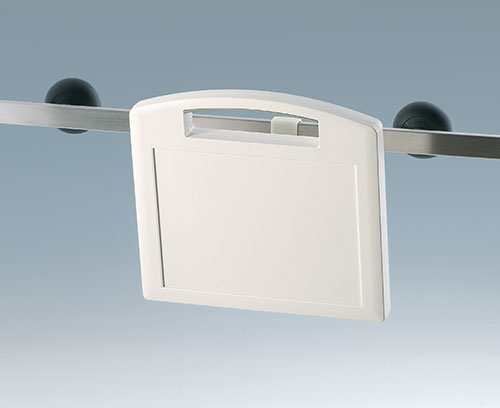

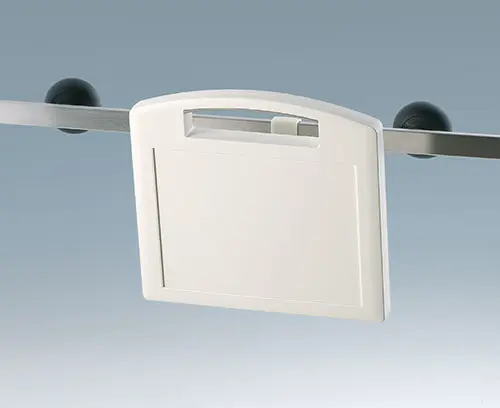

  • Fixando braçadeira para tubos redondos de até Ø 32 mm / equipamentos de trilho DIN EN ISO 19054

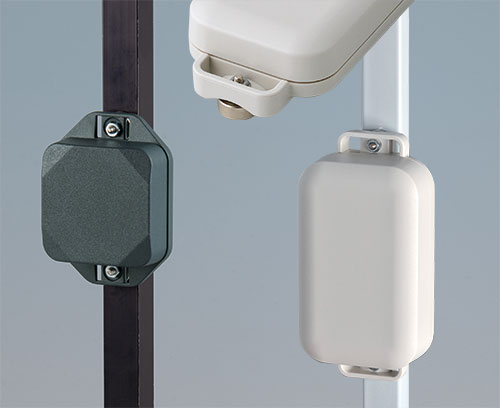

  • Suporte de fixação para poste/mastro para aplicações versáteis
Generate PDF

  • Navegue na Lista Completa
  • Customizadas
A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

Fechar

A9325018

Pole/mast mounting bracket
Produto adicionado a sua lista
ASA (UL 94 HB)
anthracite grey RAL 7016
100x100x20mm
B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Fechar

B1300017

Fastening element for DIN-Rails
Produto adicionado a sua lista
PA 6
off-white RAL 9002
B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Fechar

B1300019

Fastening element for DIN-Rails
Produto adicionado a sua lista
PA 6
black RAL 9005

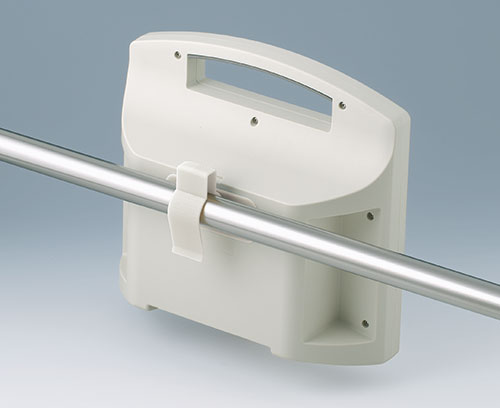

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Fechar

B4308237

Holding clamps
Produto adicionado a sua lista
PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Fechar

B4308238

Holding clamps
Produto adicionado a sua lista
PA 6
lava

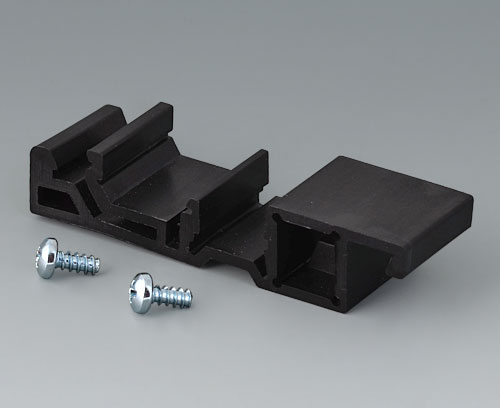

B6811751 DIN rail adapter

B6811751

DIN rail adapter Universal suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.

Supply 1 piece, 2 screws

Fechar

B6811751

DIN rail adapter
Produto adicionado a sua lista
PA 66 (UL 94 V-0)
black RAL 9005
C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

Fechar

C2201088

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035

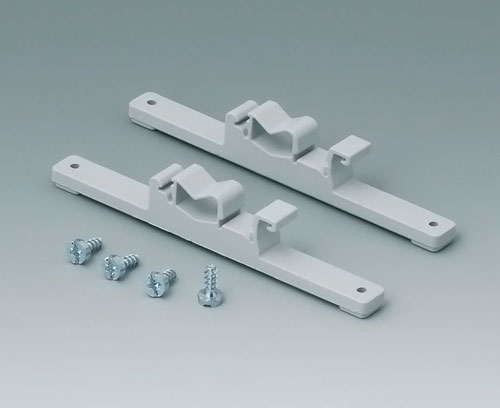

C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

Fechar

C2203128

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

Fechar

C2204168

Fastening elements to DIN-Rails
Produto adicionado a sua lista
PA 6
light grey RAL 7035

Opções para customizadas Dispositivos de Fixação

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
