A9325018 Pole/mast mounting bracket
Scroll

A9325018

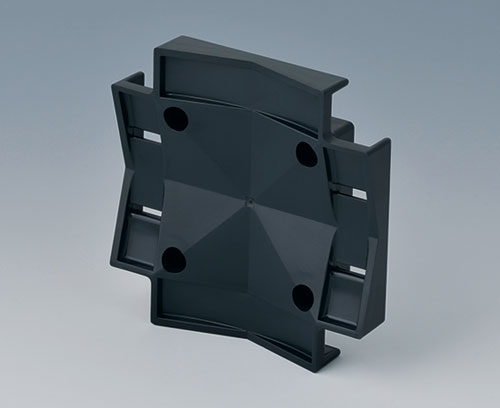

Pole/mast mounting bracket

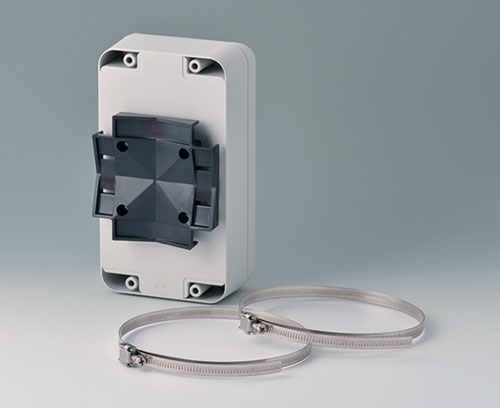

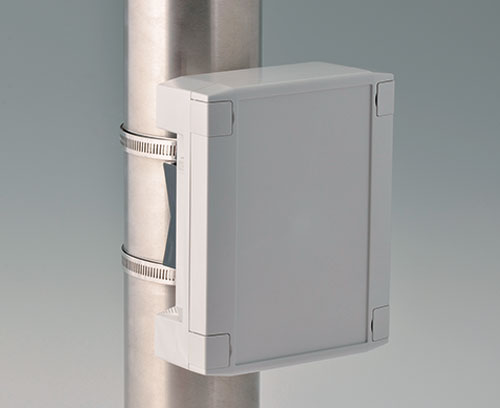

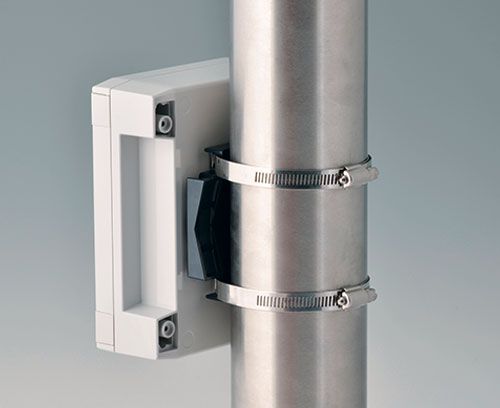

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply

1 pole/mast mounting bracket

Desenho PDF 2D
Baixar arquivos 3D/2D Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9325018

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ASA (UL 94 HB)
Colour
anthracite grey RAL 7016
Standards
RoHS compliant
REACH compliant
Width
100 mm
Height
100 mm
Depth
20 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
47 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
China
