Acessórios para Caixas
C2204168

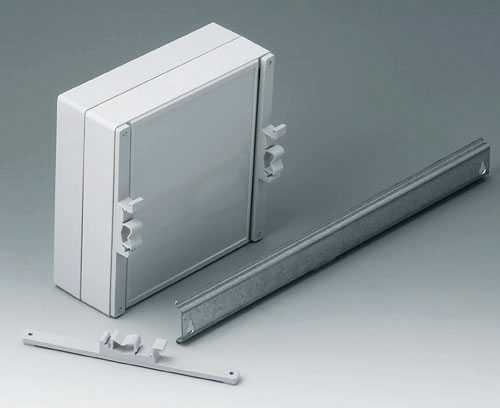

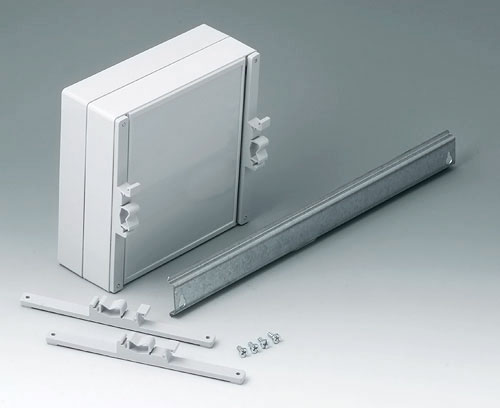

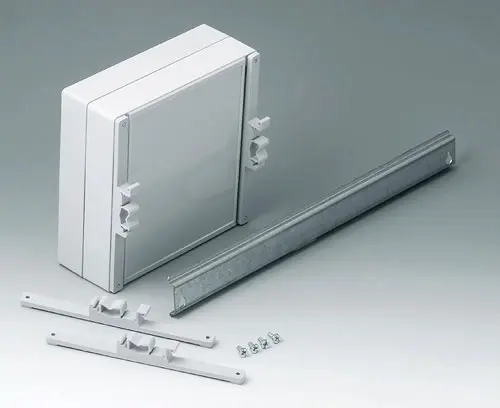

Fastening elements to DIN-Rails
For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.
Supply2 fastening elements, assembly kit
Gerar seu Datasheet em PDF para C2204168
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
C0161601
Supply 1 case shell with tongue
C0161601
Case shell 160, with tonguelight grey RAL 7035
160x160x30mm
C0161602
Supply 1 case shell with tongue
C0161602
Case shell 160, with tonguelight grey RAL 7035
160x160x30mm
C0162401
Supply 1 case shell with tongue
C0162401
Case shell 160, with tonguelight grey RAL 7035
240x160x30mm
C0162402
Supply 1 case shell with tongue
C0162402
Case shell 160, with tonguelight grey RAL 7035
240x160x30mm
C1161601
Supply 1 case shell with groove
C1161601
Case shell 160, with groovelight grey RAL 7035
160x160x30mm
C1161602
Supply 1 case shell with groove
C1161602
Case shell 160, with groovelight grey RAL 7035
160x160x30mm
C1162401
Supply 1 case shell with groove
C1162401
Case shell 160, with groovelight grey RAL 7035
240x160x30mm
C1162402
Supply 1 case shell with groove
C1162402
Case shell 160, with groovelight grey RAL 7035
240x160x30mm
C2016161
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016161
ROBUST-BOX WIDTH 160, Vers. Ilight grey RAL 7035
160x160x60mm
C2016162
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016162
ROBUST-BOX WIDTH 160, Vers. IIlight grey RAL 7035
160x160x60mm
C2016241
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016241
ROBUST-BOX WIDTH 160, Vers. Ilight grey RAL 7035
240x160x60mm
C2016242
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2016242
ROBUST-BOX WIDTH 160, Vers. IIlight grey RAL 7035
240x160x60mm
C2116161
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116161
ROBUST-BOX WIDTH 160, Vers. Ilight grey RAL 7035
160x160x90mm
C2116162
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116162
ROBUST-BOX WIDTH 160, Vers. IIlight grey RAL 7035
160x160x90mm
C2116241
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116241
ROBUST-BOX WIDTH 160, Vers. Ilight grey RAL 7035
240x160x90mm
C2116242
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2116242
ROBUST-BOX WIDTH 160, Vers. IIlight grey RAL 7035
240x160x90mm
C2161601
Supply 1 case shell with tongue
C2161601
Case shell 160, with tonguelight grey RAL 7035
160x160x60mm
C2161602
Supply 1 case shell with tongue
C2161602
Case shell 160, with tonguelight grey RAL 7035
160x160x60mm
C2162401
Supply 1 case shell with tongue
C2162401
Case shell 160, with tonguelight grey RAL 7035
240x160x60mm
C2162402
Supply 1 case shell with tongue
C2162402
Case shell 160, with tonguelight grey RAL 7035
240x160x60mm
C2416241
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416241
ROBUST-BOX WIDTH 160, Vers. Ilight grey RAL 7035
240x160x120mm
C2416242
Supply 2 case shells with sealing, cover strips top and bottom, assembly kit
C2416242
ROBUST-BOX WIDTH 160, Vers. IIlight grey RAL 7035
240x160x120mm
C3162401
Supply 1 case shell with groove
C3162401
Case shell 160, with groovelight grey RAL 7035
240x160x60mm
C3162402
Supply 1 case shell with groove
C3162402
Case shell 160, with groovelight grey RAL 7035
240x160x60mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 90 KB
- AutoCAD DWG-File 298 KB
- AutoCAD DXF-File 782 KB
