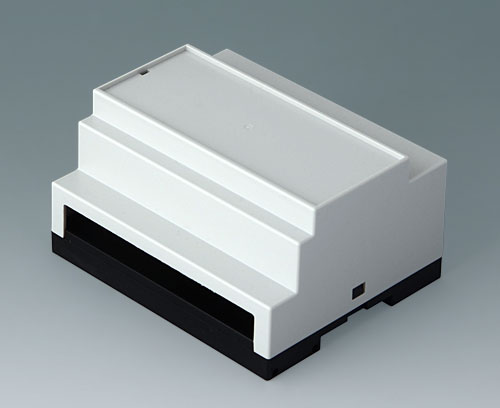

RAILTEC B, 6 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
VersionFor plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply1 base part with locking clip, 1 top part
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B6514112
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
Accessory "wall/holder"
B6600334
Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply 2 pieces as kit
B6600334
Wall suspension elementsprodukt został dodany do twojej listy
black
Accessory "terminals"
B6604222
Plug header, block 5.08
Male terminal block, 5.08. 18-pin.
Supply 1 piece
B6604222
Plug header, block 5.08produkt został dodany do twojej listy
B6604223
Plug header, block 5.08
Female terminal block, 5.08. 18-pin.
Supply 1 piece
B6604223
Plug header, block 5.08produkt został dodany do twojej listy
Accessory "screws"
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)produkt został dodany do twojej listy
Accessory
B6604100
Lid, 6 modules
Locking lid for protecting the display and operating elements.
Supply 1 lid
B6604100
Lid, 6 modulesprodukt został dodany do twojej listy
transparent
Opcje dostosowywania dla B6514112
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Dane zakupowe
Materiał
Top part
Bottom part
Kolor
Top part
light grey RAL 7035,
Bottom part black,
Locking clip black
Bottom part black,
Locking clip black
Standards
Szerokość
105 mm
Wysokość
86 mm
Głębokość
59 mm
PCB length, base
82,4 mm
PCB width, base
99,2 mm
Poles
≤ 36
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 217 KB
- AutoCAD DWG-File 425 KB
- AutoCAD DXF-File 1 430 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 345 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00022344.x_t 2 937 KB
- 00022344.step 6 767 KB
- 00022344.sat 5 576 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
Weight/1 part
72 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
