Smart-Control

Obudowy narożne

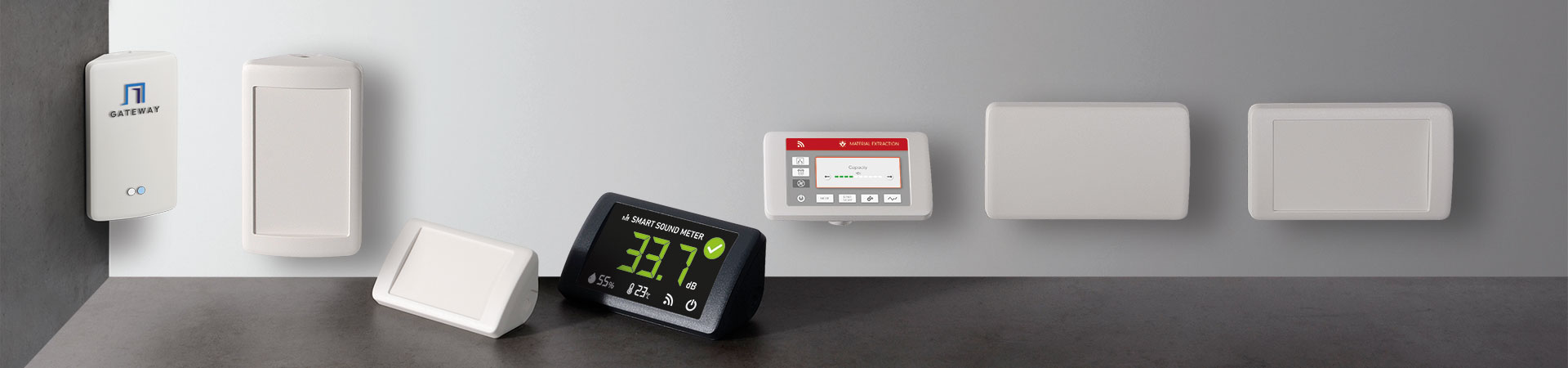

SMART-CONTROL to nasza pierwsza standardowa obudowa do łatwego montażu w narożnikach ścian. Dodatkowo, obudowy mogą być montowane zarówno on na ścianie, jak i ustawione na biurku pod ergonomicznie kątem nachylenia.

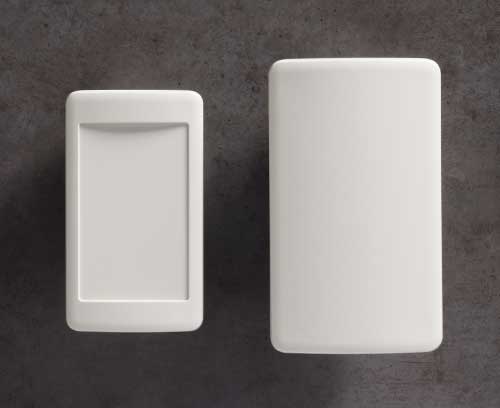

  • dwa rozmiary, M i S

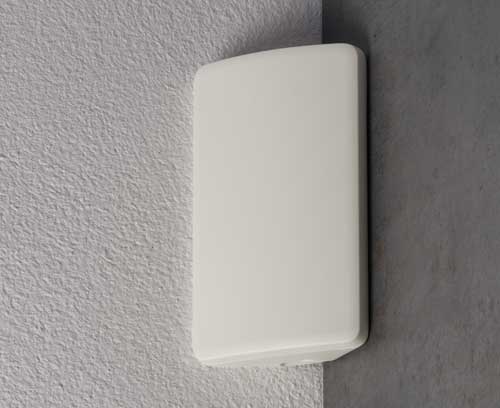

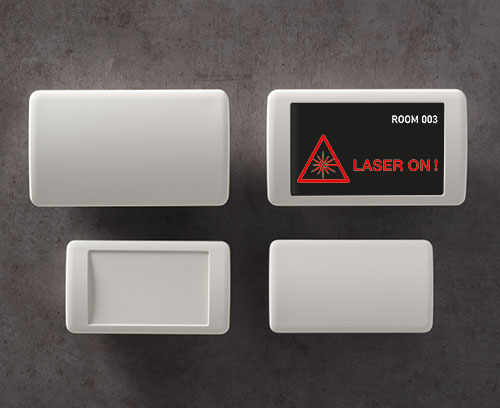

  • wersja wypukła lub z zagłębionym obszarem roboczym do montażu klawiatur membranowych
  • wysokiej jakości materiał ASA+PC-FR z wysoką ochroną UV w standardowym kolorze złamanej bieli (RAL 9002)
  • mocowanie i łączenie z tyłu obudowy za pomocą śrub ze stali nierdzewnej Torx

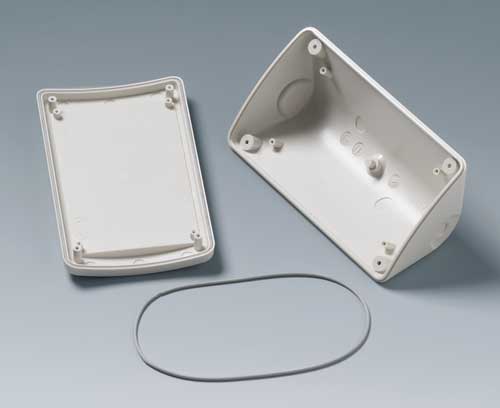

  • opcjonalna uszczelka (wyposażenie dodatkowe) dla IP 55

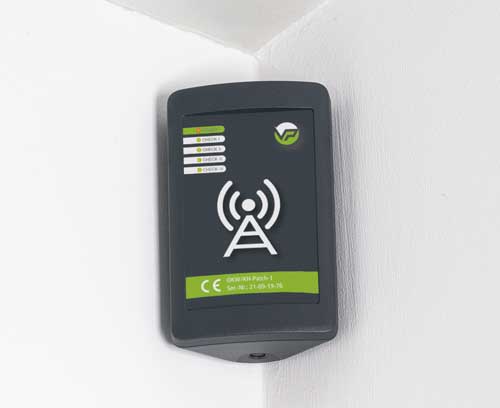

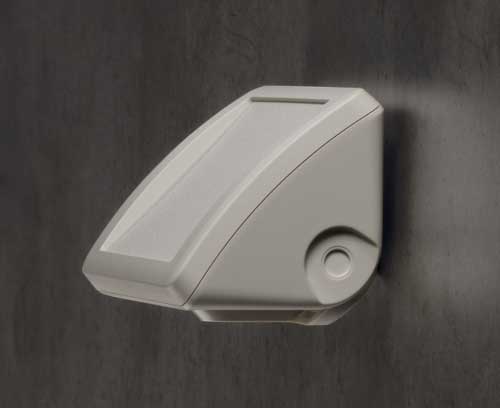

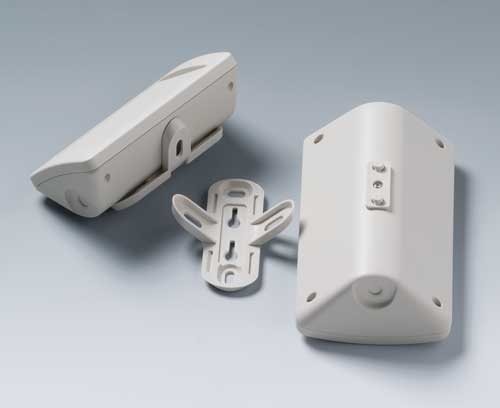

  • specjalny element mocujący do ściany (wyposażenie dodatkowe) do zawieszenia obudowy w narożnikach o kącie 90° lub na płaskich powierzchniach

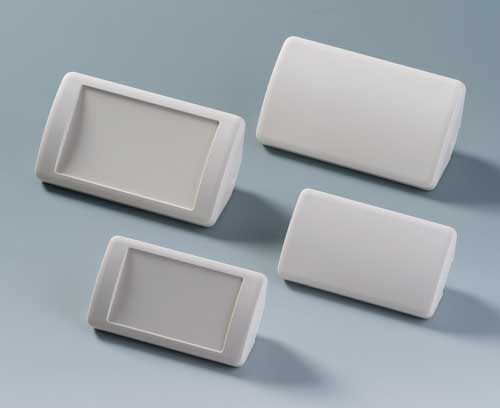

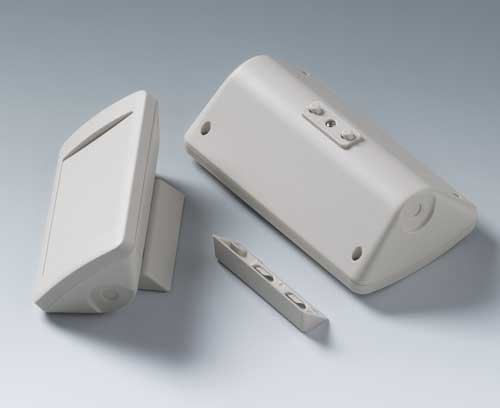

  • stojak do ustawienia na biurku (akcesoria) zapewnia wygodne i ergonomiczne ustawienie pulpitu
  • miejsce do montażu płytki drukowanej w górnej i dolnej części
  • Wideo
  • Przykłady aplikacji

Obszary zastosowań

  • Inżynieria bezpieczeństwa i sprzęt monitorujący
  • Technologia środowiskowa
  • IoT/IIoT
  • Bramy i systemy zabezpieczeń
  • Systemy pomiarowe i sterowanicze
  • Czujniki i inne systemy kontrolne
  • Sprzęt medyczny i laboratoryjny
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
AltText

B4608107

SMART-CONTROL S, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Zamknij

B4608107

SMART-CONTROL S, Vers. I
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40
AltText

B4608207

SMART-CONTROL S, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Zamknij

B4608207

SMART-CONTROL S, Vers. II
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
142x81x46mm
IP 55 opt., IP 40
AltText

B4610107

SMART-CONTROL M, Vers. I Two-part plastic enclosure with convex, curved top part. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top without recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Zamknij

B4610107

SMART-CONTROL M, Vers. I
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40
AltText

B4610207

SMART-CONTROL M, Vers. II Two-part plastic enclosure with recessed panel to protect the membrane keypad / décor foil. The basic triangular shape allows it to be used in corners or at an ergonomically favourable angle of 45°. Robust design with proven tongue and groove assembly. Case assembled with Torx drive stainless steel screws. Protection class IP 40 without optional sealing kit. Fastening pillars for PCBs and components in the top and bottom parts.

Version Case-top with recessed operating area

Supply Top and bottom parts, assembly kit incl. universal adapter

Zamknij

B4610207

SMART-CONTROL M, Vers. II
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
off-white RAL 9002
173x101x59mm
IP 55 opt., IP 40
AltText

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
produkt został dodany do twojej listy
Stainless steel
AltText

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T08

Torx T8 screwdriver
produkt został dodany do twojej listy
AltText

B4705207

Desktop stand set For reliable positioning on a desktop, giving an ergonomic reading angle of 45° when the enclosure is set up horizontally. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 desktop stand set incl. 2 self-adhesive rubber feet

Zamknij

B4705207

Desktop stand set
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
AltText

B4705907

Wall suspension element This element allows simple, flush installation of the enclosure to 90° inside corners or on a wall. Snap-in assembly using the universal adapter supplied with the enclosure. (accessory for the complete enclosure).

Supply 1 wall suspension element

Zamknij

B4705907

Wall suspension element
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
AltText

B4708920

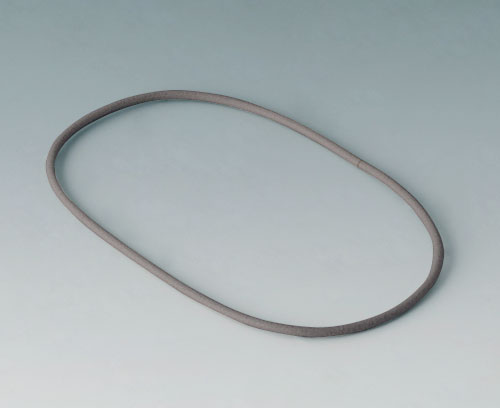

Seal S Application: for increasing the protection class, of SMART-CONTROL S. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zamknij

B4708920

Seal S
produkt został dodany do twojej listy
AltText

B4710920

Seal M Application: for increasing the protection class, of SMART-CONTROL M. Bottom part of the enclosure with groove for inserting the seal.

Supply 1 seal

Zamknij

B4710920

Seal M
produkt został dodany do twojej listy

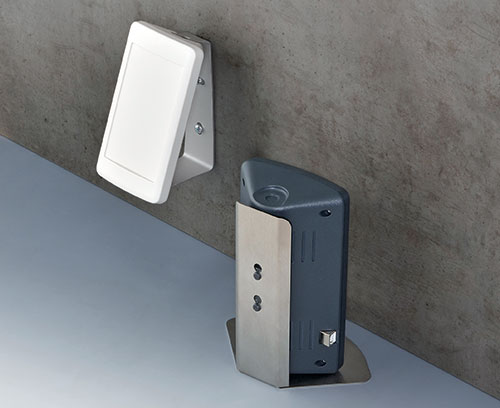

Opcje dostosowywania dla Smart-Control

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
