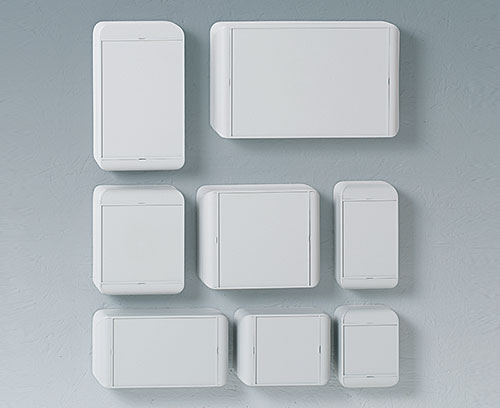

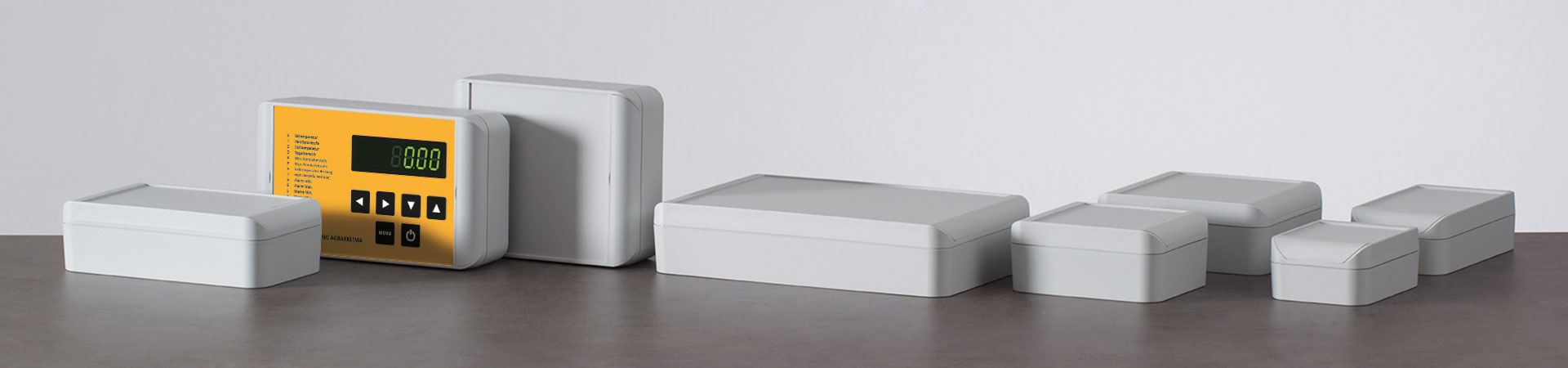

Smart-Box

Zaawansowane obudowy IP 66

Zaokrąglony ergonomiczny kształt obudów serii SMART-Box jest zaprojektowany, tak aby wzmocnić doświadczenia wizualne i dotykowe elektroniki przemysłowej.

  • przekonujący projekt; zlicowane klapki aby ukryć wszystkie miejsca mocowania
  • wysokiej jakości materiał ASA+PC (UL 94 V-0) do trudnych warunków; trudnopalne, samogasnące

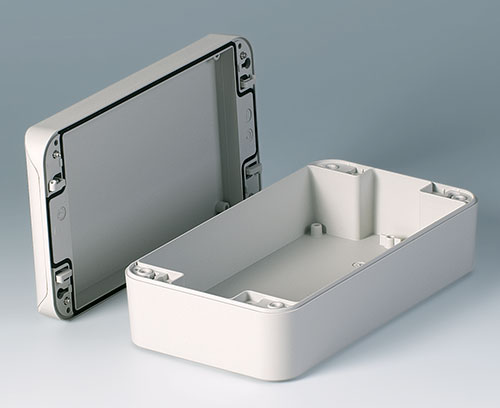

  • wysoka klasa szczelności IP 66; uszczelka wstępnie montowana w górnej części
  • wysokiej jakości A2 śruby nierdzewne – odporne na agresywne substancje

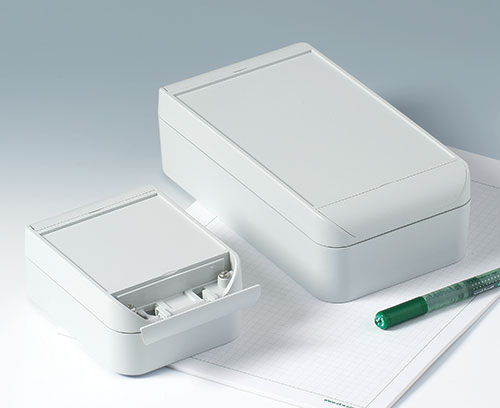

  • uniwersalne zastosowanie do montażu na ścianie i aplikacje nabiurkowe

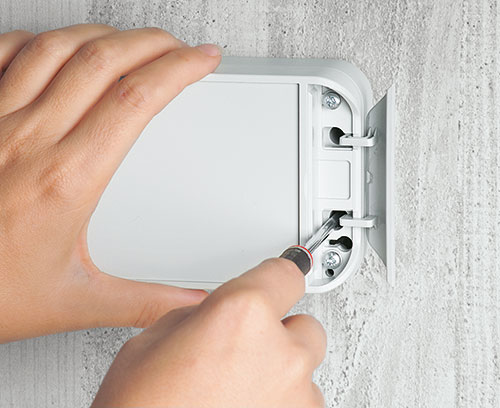

  • otwory montażowe schowane pod klapkami

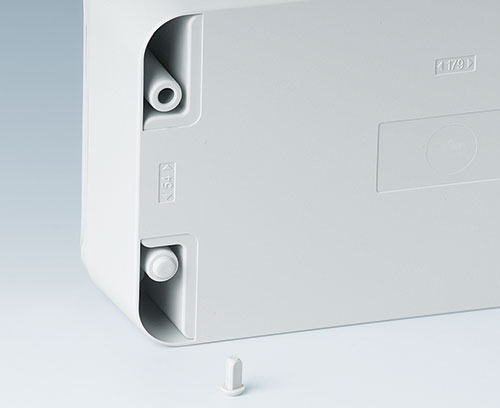

  • opcjonalne nóżki antypoślizgowe dla aplikacji nabiurkowej (akcesoria)

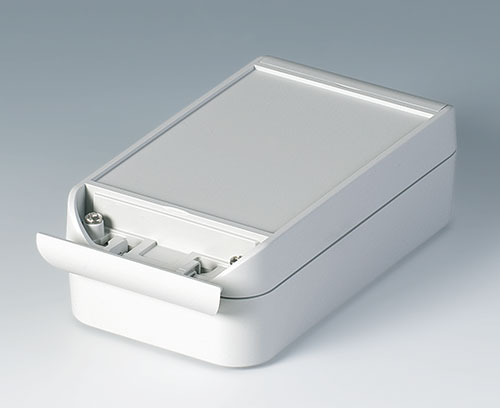

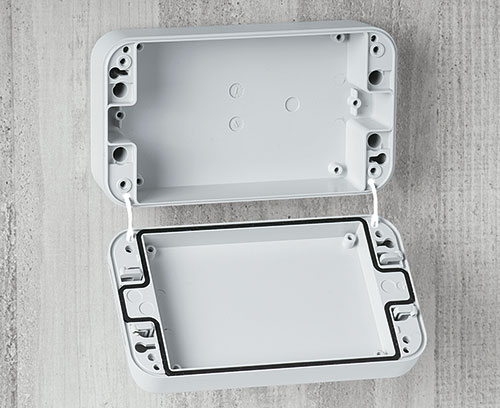

  • dwie klapki zawieszone na paskach z tworzywa

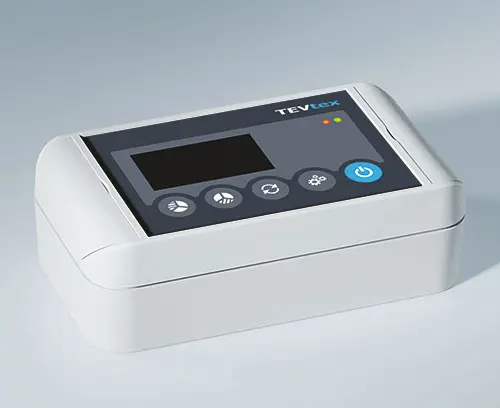

  • zagłębienie pod klawiaturę membranową lub folię dekoracyjną

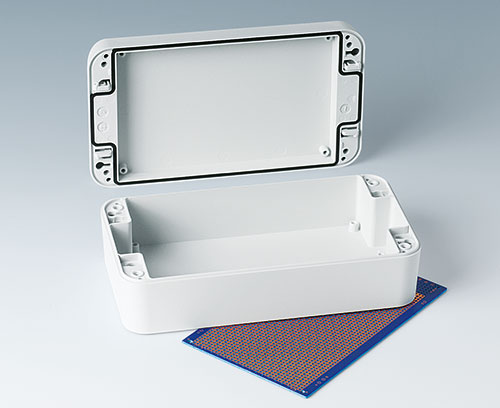

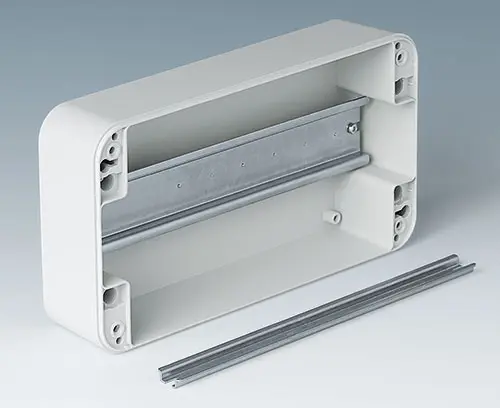

  • wewnętrzne słupki do montażu PCB i szyn DIN

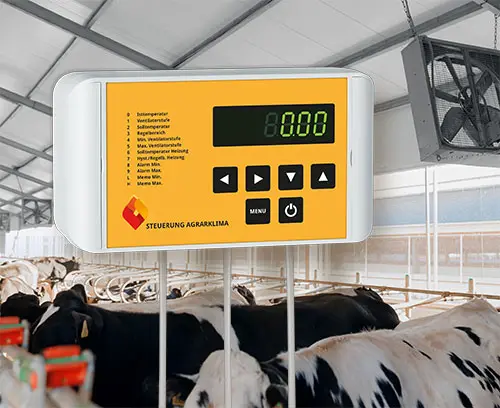

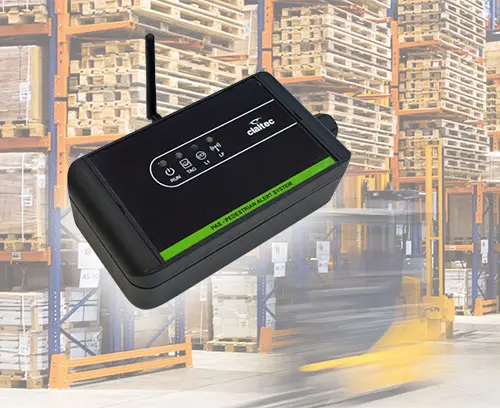

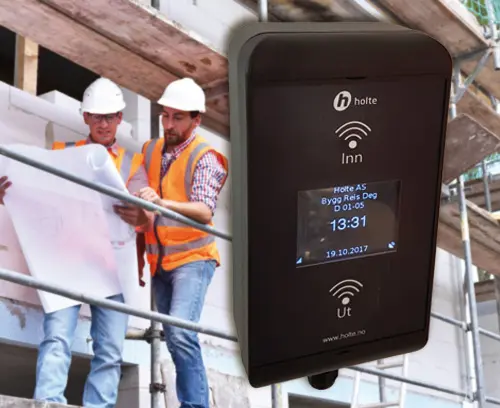

  • Przykłady aplikacji

Obszary zastosowań

Idealna do projektowania aplikacji elektrycznych i elektronicznych,

  • Na przykład w instalacjach grzewczych, klimatyzacji i wentylacji
  • Technikach sterowania
  • Systemach bezpieczeństwa

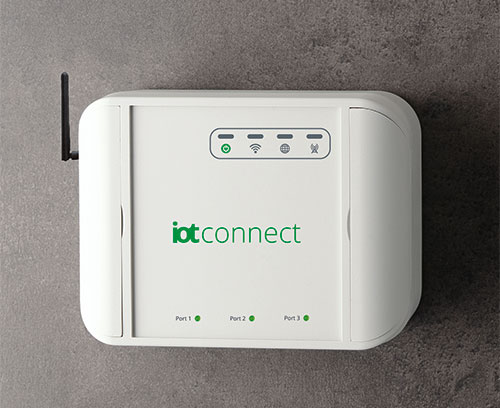

  • IoT/IIoT
  • Smart Factory
  • Industry 4.0
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
AltText

C6009121

SMART-BOX WIDTH 90 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6009121

SMART-BOX WIDTH 90
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
120x90x50mm
IP 66
AltText

C6009161

SMART-BOX WIDTH 90 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6009161

SMART-BOX WIDTH 90
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
160x90x50mm
IP 66
AltText

C6011141

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6011141

SMART-BOX WIDTH 110
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x110x60mm
IP 66
AltText

C6011201

SMART-BOX WIDTH 110 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6011201

SMART-BOX WIDTH 110
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
200x110x60mm
IP 66
AltText

C6013161

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6013161

SMART-BOX WIDTH 130
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
160x130x60mm
IP 66
AltText

C6013221

SMART-BOX WIDTH 130 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6013221

SMART-BOX WIDTH 130
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x130x60mm
IP 66
AltText

C6015181

SMART-BOX WIDTH 150 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention

Zamknij

C6015181

SMART-BOX WIDTH 150
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x150x60mm
IP 66
AltText

C6017281

SMART-BOX WIDTH 170 Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.

Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

Zamknij

C6017281

SMART-BOX WIDTH 170
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
light grey RAL 7035
280x170x60mm
IP 65
AltText

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel
AltText

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Zamknij

C2299018

Case feet
produkt został dodany do twojej listy
TPE (UL 94 HB)
AltText

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2306917

Pressure equalisation element M6x0.75
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
AltText

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zamknij

C2310917

Pressure equalisation element M10x1
produkt został dodany do twojej listy
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
AltText

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Zamknij

C2316147

Cable grommet
produkt został dodany do twojej listy
TPE
light grey RAL 7035
IP 67
AltText

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zamknij

C2320137

Cable grommet
produkt został dodany do twojej listy
EPDM
light grey RAL 7035
IP 67
AltText

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Zamknij

C2320147

Cable grommet
produkt został dodany do twojej listy
TPE
light grey RAL 7035
IP 67
AltText

C6100006

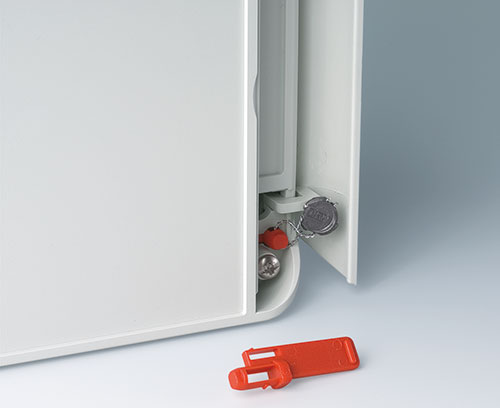

Security plug For use with lead tags.

Supply 1 plug

Zamknij

C6100006

Security plug
produkt został dodany do twojej listy
PA 6
red
AltText

C6100016

Set of security For use with lead tags.

Supply 2 plugs

Zamknij

C6100016

Set of security
produkt został dodany do twojej listy
PA 6
red

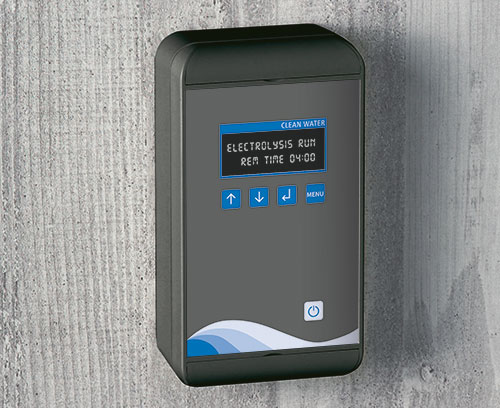

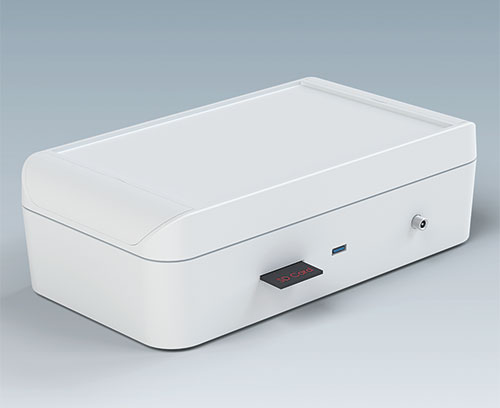

Opcje dostosowywania dla Smart-Box

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
