Akcesoria do obudów
Net-Box
Obudowy naścienne do systemów kontroli

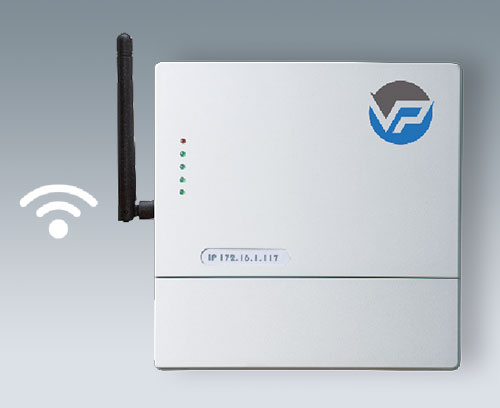

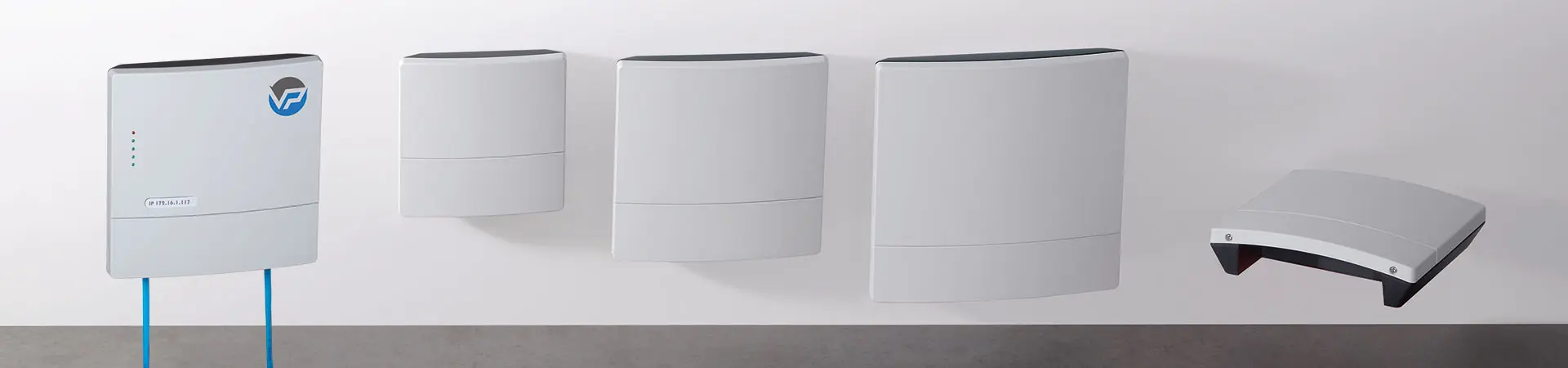

Nowa stylowa obudowa NET-BOX z zakrzywioną górną częścią o nowoczesnym i eleganckim wzornictwie. Do sterowania, węzłów sieciowych itp.

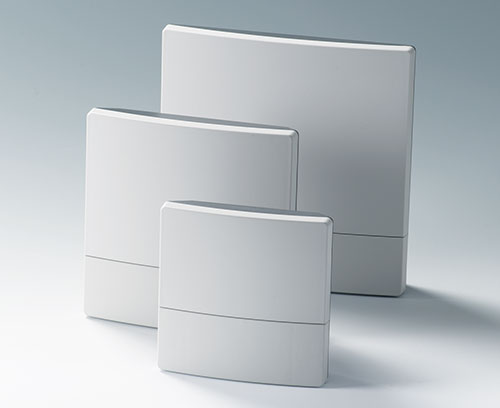

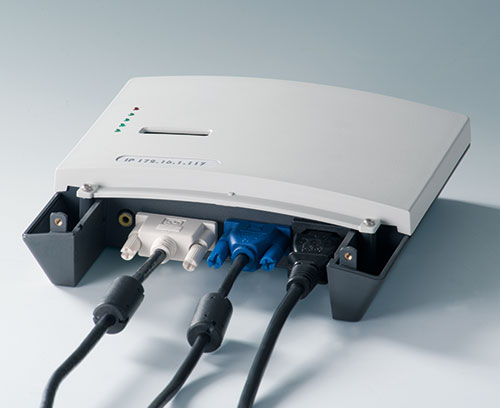

- trzy rozmiary z dużą ilością miejsca dla elektroniki i interfejsów

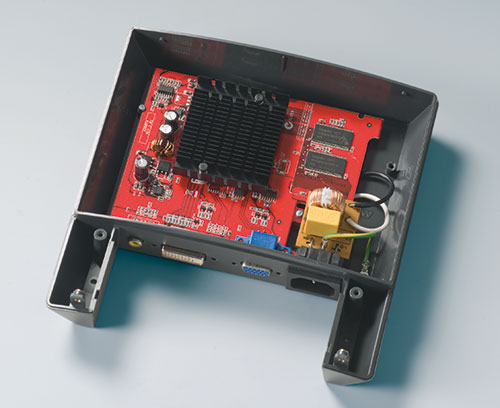

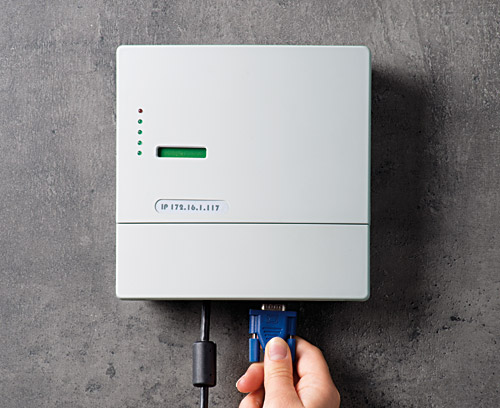

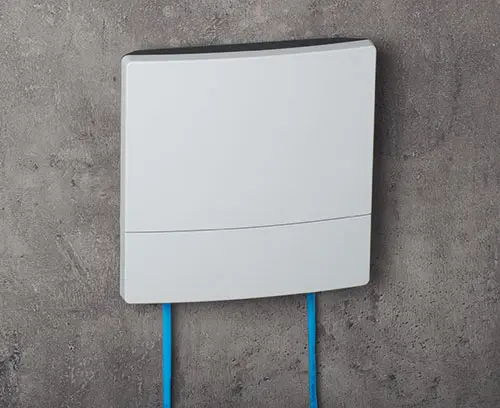

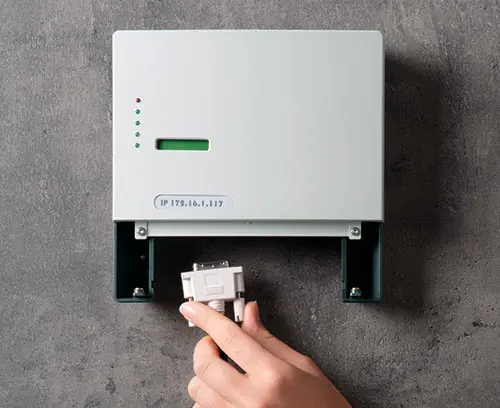

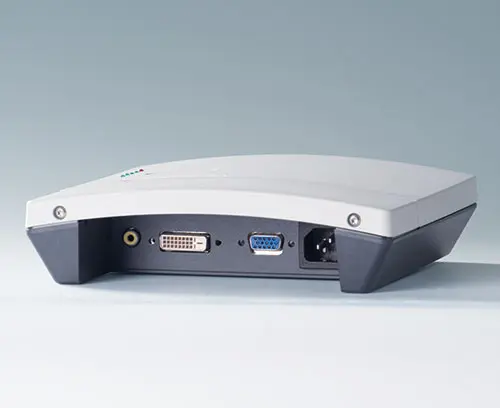

- złącza i kable są ukryte pod przednią pokrywą

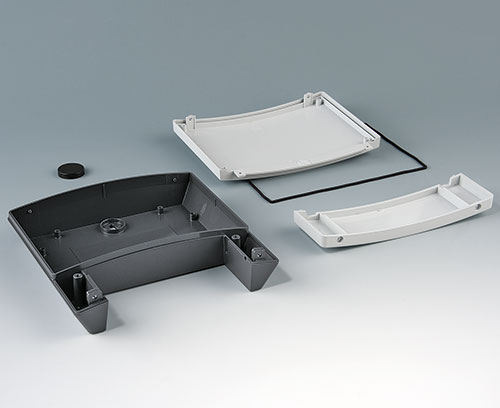

- obudowy z materiału trudnopalnego, możliwość uszczelnienia do IP65

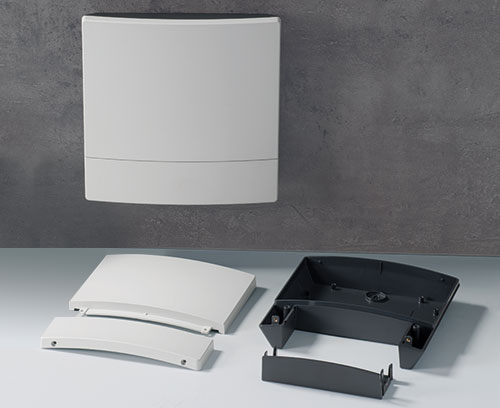

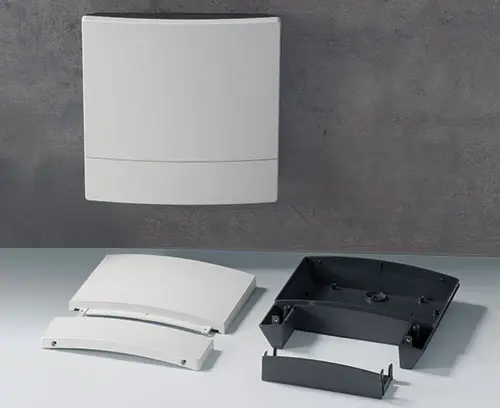

- prosty montaż trzech części - część dolna, przedni panel i pokrywa złącz; brak widocznych śrub z przodu, tylko dwa pod pokrywą złącz
- słupki montażowe na spodzie obudowy, do montażu PCB itp.

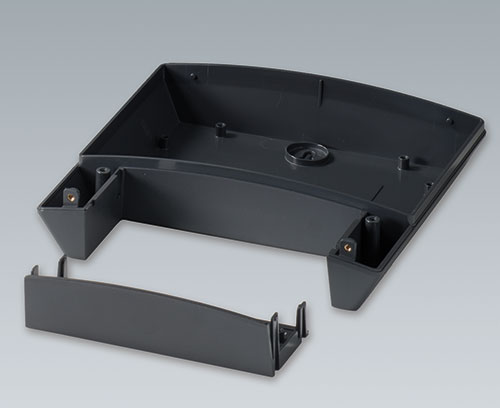

- opcjonalna ścianka zamykająca miejsce złącz do montażu dodatkowych elementów, PCB, itp.
- system mocowania trzypunktowego - nie ma potrzeby, aby otwierać główną sekcję elektroniki, wystarczy przednia pokrywa
- dostarczane z zabezpieczającymi śrubami montażowymi Torx T10
- NET-BOX może być również wykorzystywane jako urządzenie nablatowe, dostępne - antypoślizgowe nóżki (akcesoria)
Obszary zastosowań

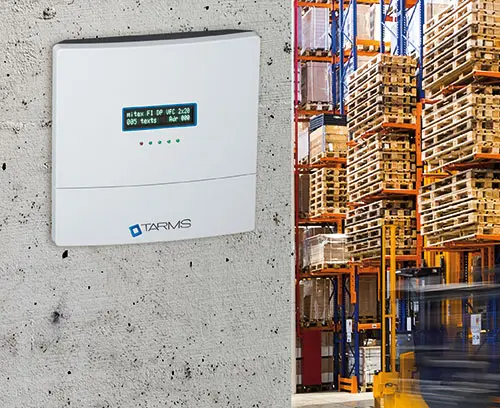

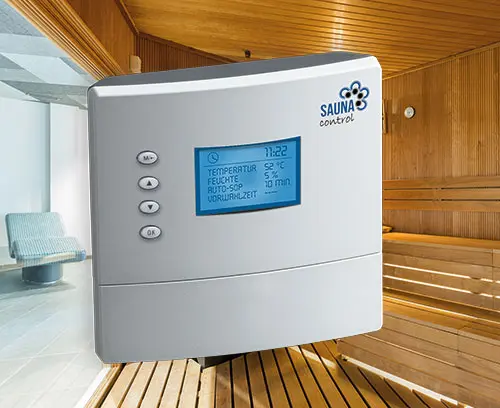

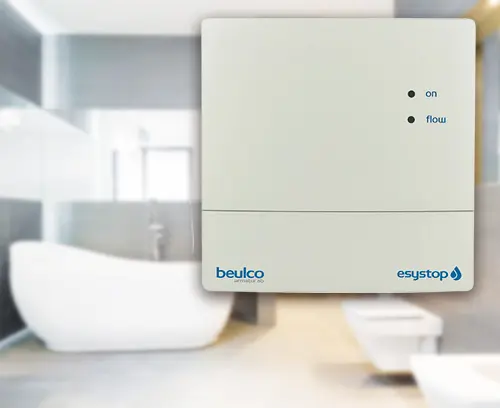

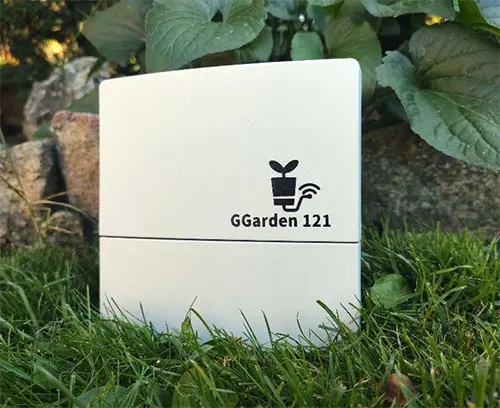

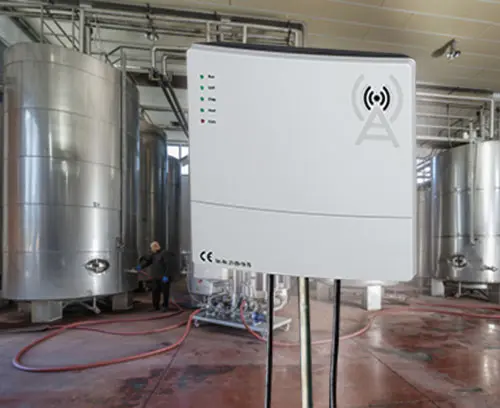

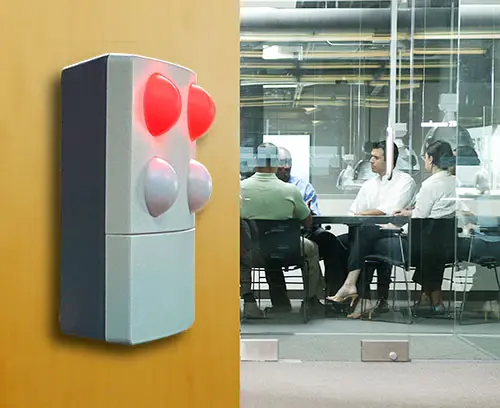

Zarządzanie budynkami, centralne jednostki sterujące, IoT/IIoT, smart Factory, industry 4.0, systemy akwizycji danych, inżynieria systemów informatycznych, pomiary i sterowanie, terminale nadzoru i kontroli dostępu, technologie medyczne i odnowy biologicznej, itp.

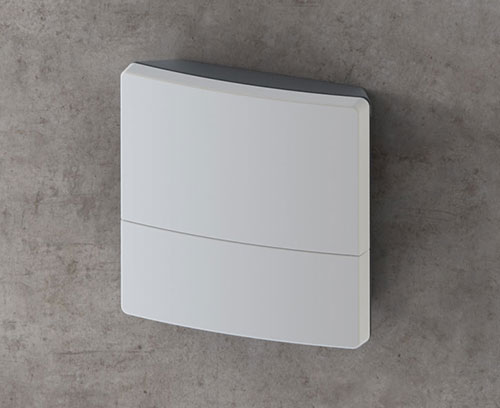

B3214101
NET-BOX 140, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214101
NET-BOX 140, Vers. Iprodukt został dodany do twojej listy
light grey RAL 7035
140x140x46,5mm
,
B3214201
NET-BOX 140, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3214201
NET-BOX 140, Vers. IIprodukt został dodany do twojej listy
light grey RAL 7035
140x140x46,5mm
B3218101
NET-BOX 180, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218101
NET-BOX 180, Vers. Iprodukt został dodany do twojej listy
light grey RAL 7035
180x180x48,5mm
,
B3218201
NET-BOX 180, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3218201
NET-BOX 180, Vers. IIprodukt został dodany do twojej listy
light grey RAL 7035
180x180x48,5mm
B3222101
NET-BOX 220, Vers. I
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part without openings.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222101
NET-BOX 220, Vers. Iprodukt został dodany do twojej listy
light grey RAL 7035
220x220x50,5mm
,
B3222201

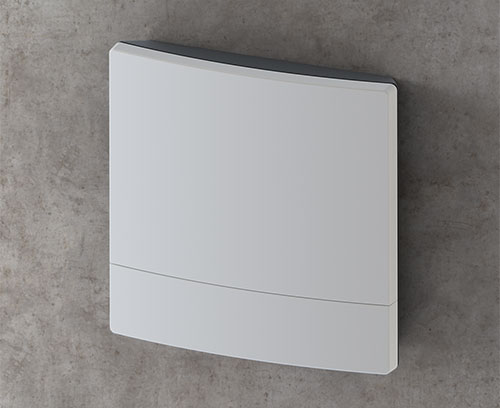

NET-BOX 220, Vers. II
Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.
Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit
B3222201
NET-BOX 220, Vers. IIprodukt został dodany do twojej listy
light grey RAL 7035
220x220x50,5mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)produkt został dodany do twojej listy
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmprodukt został dodany do twojej listy
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketprodukt został dodany do twojej listy
anthracite grey RAL 7016
100x100x20mm
B3314159

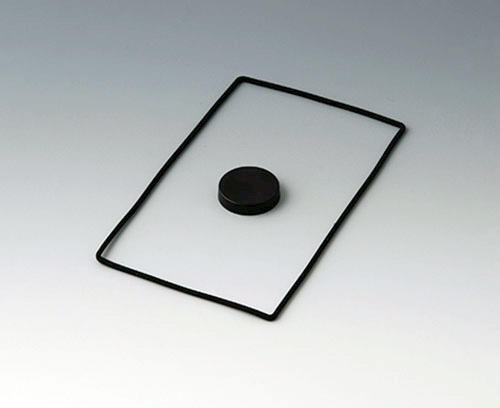

Sealing kit 140
Application: for increasing the protection class, of NET-BOX140.
Supply 1 sealing kit
B3314159
Sealing kit 140produkt został dodany do twojej listy
black
B3314918

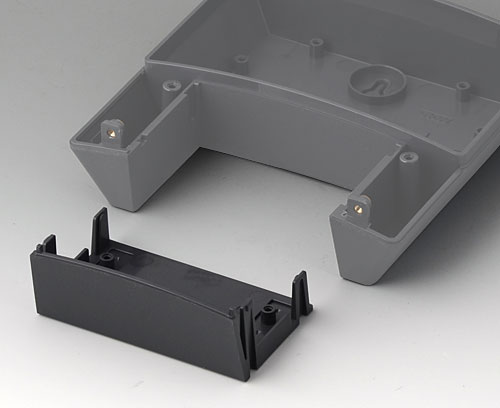

Infill cover 140
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3314918
Infill cover 140produkt został dodany do twojej listy
lava
B3318159

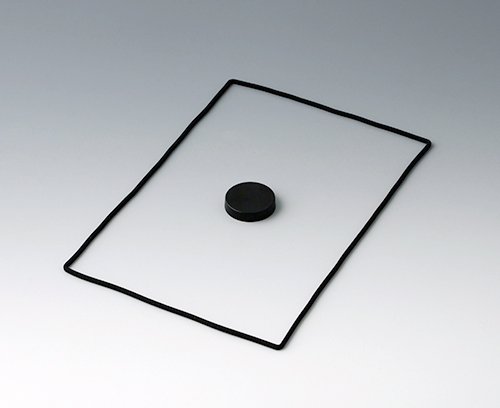

Sealing kit 180
Application: for increasing the protection class, of NET-BOX 180.
Supply 1 sealing kit
B3318159
Sealing kit 180produkt został dodany do twojej listy
black
B3318918

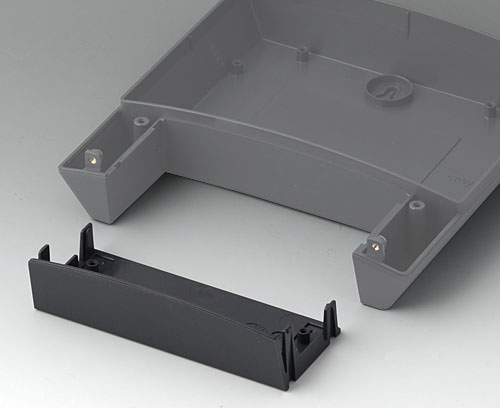

Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3318918
Infill cover 180produkt został dodany do twojej listy
lava
B3322159

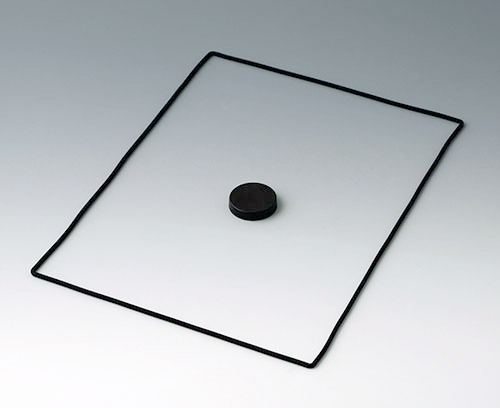

Sealing kit 220
Application: for increasing the protection class, of NET-BOX 220.
Supply 1 sealing kit
B3322159
Sealing kit 220produkt został dodany do twojej listy
black

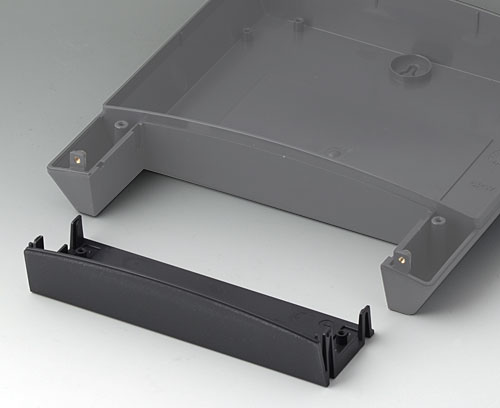

B3322918
Infill cover 220
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3322918
Infill cover 220produkt został dodany do twojej listy
lava
Opcje dostosowywania dla Net-Box
Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
