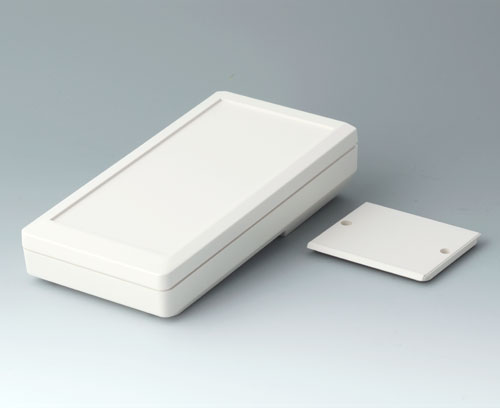

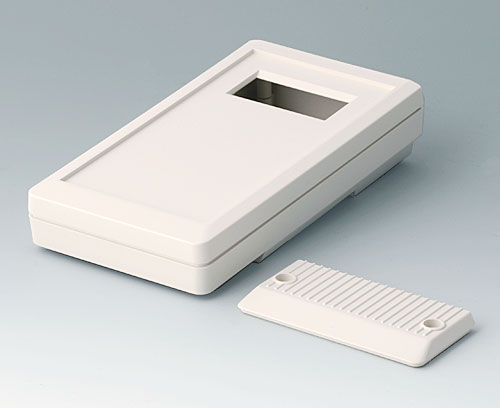

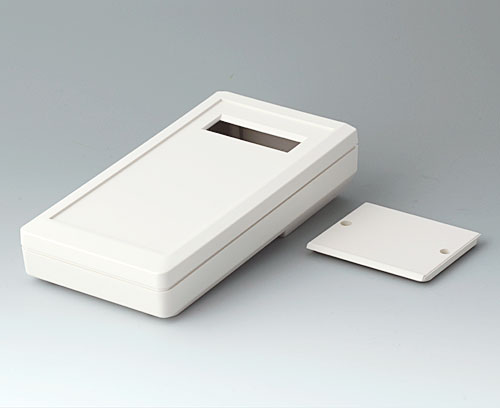

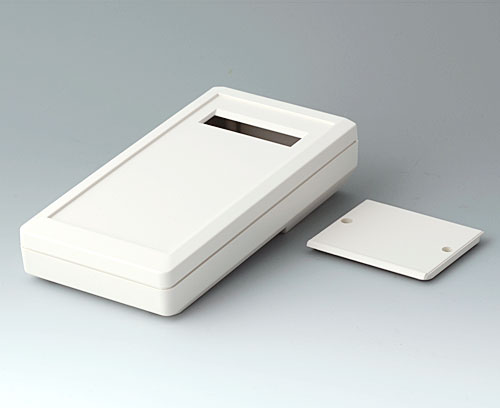

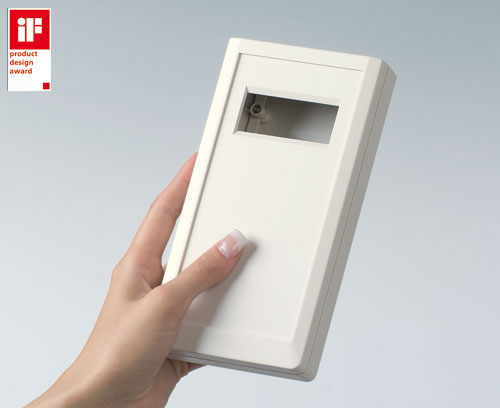

Datec-Mobil-Box

Wytrzymałe obudowy IP65 do ręki

Obudowy o szerokim wachlarzu możliwości, aby zaspokoić potrzeby urządzeń mobilnych wykorzystywanych wewnątrz lub na zewnątrz.

  • ergonomiczny profil do wygodnego utrzymywania i eksploatacji
  • wytrzymała o wysokiej klasie ochrony IP65 (zestaw uszczelnień w akcesoriach)

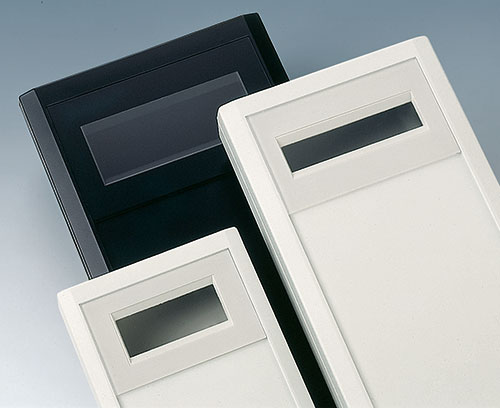

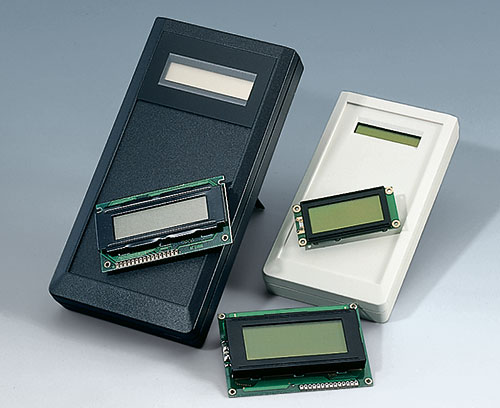

  • przeznaczona do instalacji standardowych modułów LCD; akcesoria- akrylowa szybka ochronna do zapewnienia szczelności
  • gładkie powierzchnie pod interfejsy

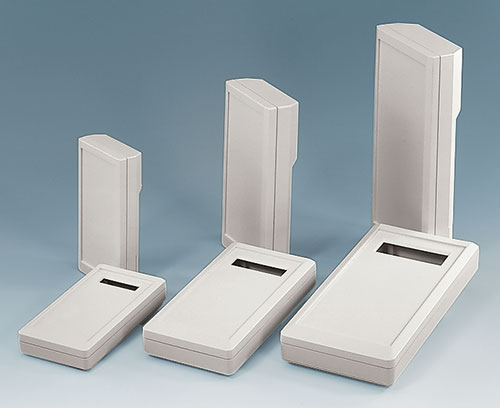

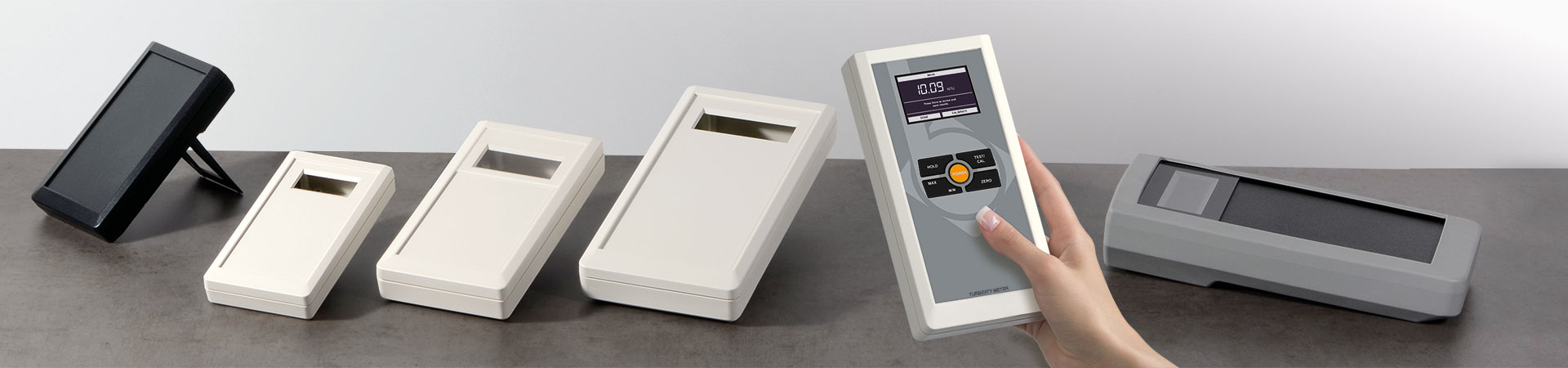

  • trzy rozmiary w dwóch kolorach

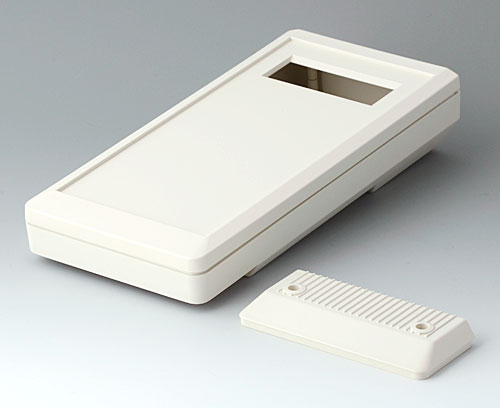

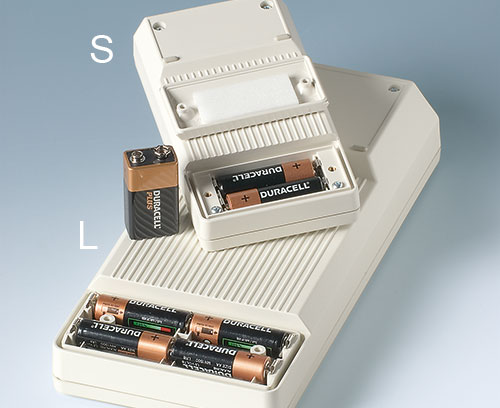

  • rozmiary S i L z/bez pojemnika na baterie

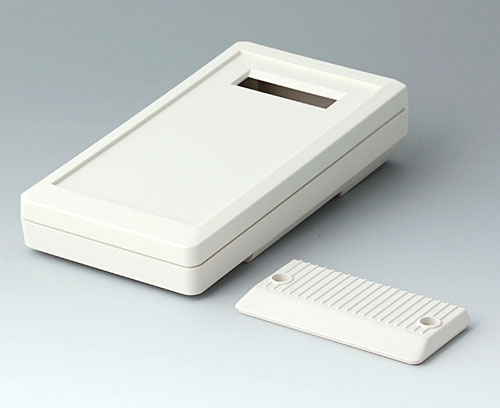

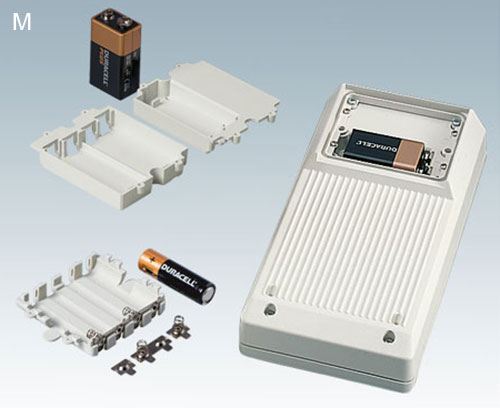

  • rozmiar M tylko z klapką baterii - mocowanie baterii zamawiane oddzielnie

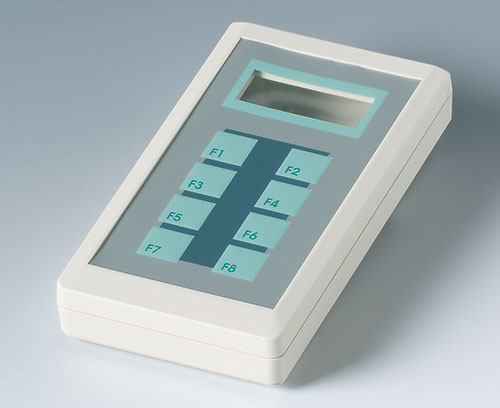

  • zagłębienie pod klawiaturę membranową lub folię dekoracyjną
  • wewnętrzne słupki do montażu PCB

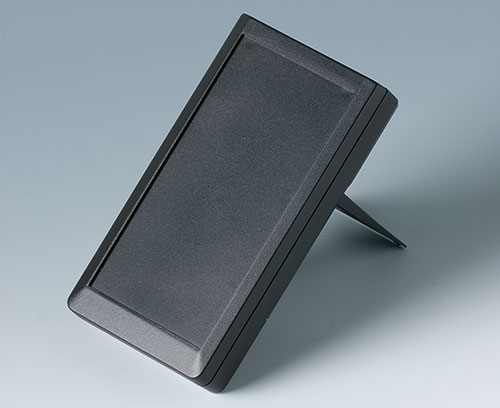

  • odchylane nóżki dla zwiększenia ergonomii   (akcesoria)
  • element mocujący na ścianie (akcesoria)
  • gumowa osłona absorbuje uderzenia i chroni powierzchnie (akcesoria wielkości L)

Oświadczenie projektanta

"DATEC-MOBIL-BOX jest prawdziwym cudem kosmosu. Jeśli spojżysz na linię produktów DATEC-POCKET-BOX, masz do dyspozycji sześć rozmiarów obudowy dopasowanych do dostępnych w handlu komponentów i pozwalających na efektywne wykorzystanie wnętrza aż do ostatniego kąta. Każda z tych mobilnych obudów może być opisana jako uosobienie wykorzystania przestrzeni w połączeniu z funkcjonalnością standardowego wyświetlacza, panelu operacyjnego, interfejsów i zasilania. Jeśli chodzi o produkty kompaktowe i mobilne, konstrukcja obudowy nie ma sobie równych."
Martin Nußberger, polyform Industrie Design

Wygeneruj PDF

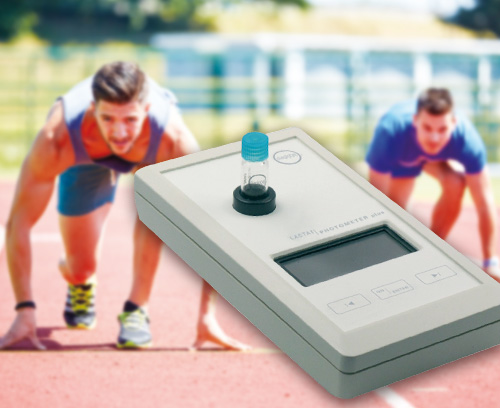

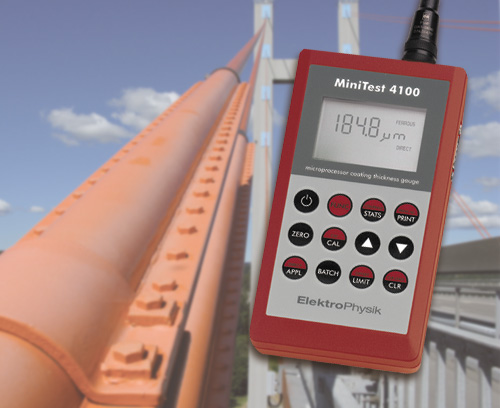

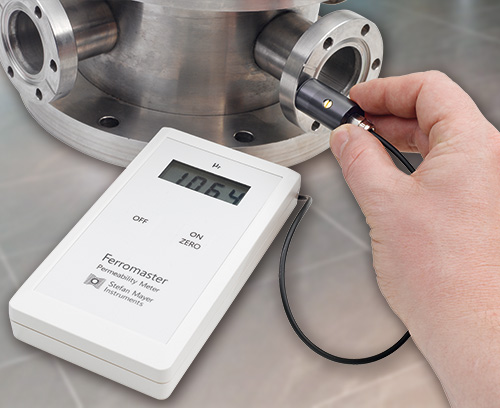

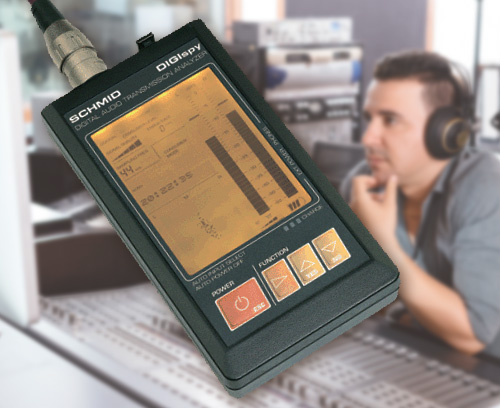

Obszary zastosowań

Zapisywanie i przesyłanie danych, technologia pomiaru i kontroli, punkty sprzedaży, technologia cyfrowa, szczególnie nadaje się do pracy w trudnych warunkach zewnętrznych i wewnętrznych, itp.

Wybierz poniżej wersję / rozmiar lub przejrzyj pełną listę produktów.

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
produkt został dodany do twojej listy

volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
produkt został dodany do twojej listy
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
produkt został dodany do twojej listy

tin-plated

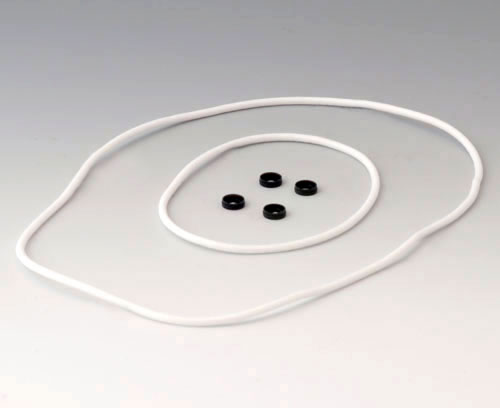

A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

A9173001

Sealing kit S
produkt został dodany do twojej listy

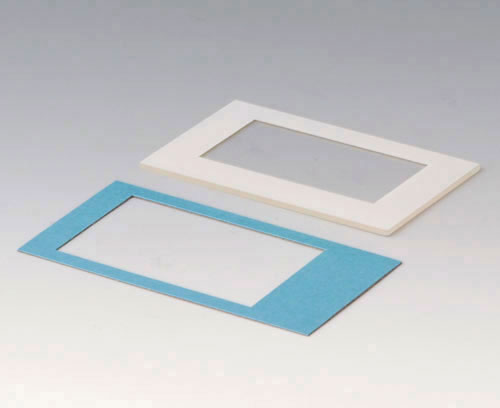

A9173007 Display window S, border off-white

A9173007

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

A9173007

Display window S, border off-white
produkt został dodany do twojej listy

transparent

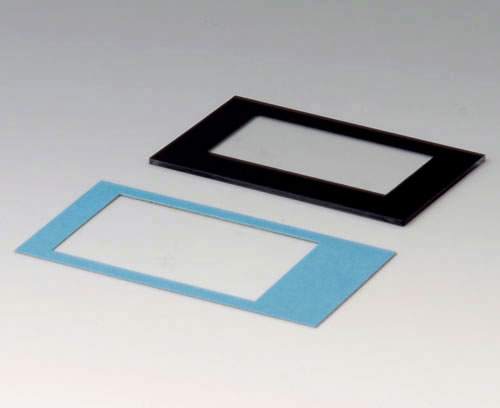

A9173009 Display window S, border black

A9173009

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

A9173009

Display window S, border black
produkt został dodany do twojej listy

transparent
A9173010 9 V contact kit, 1 x 9 V

A9173010

9 V contact kit, 1 x 9 V For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.

Supply 1 plug-in contact set

A9173010

9 V contact kit, 1 x 9 V
produkt został dodany do twojej listy
A9173307 Display window S, border off-white

A9173307

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

A9173307

Display window S, border off-white
produkt został dodany do twojej listy

transparent

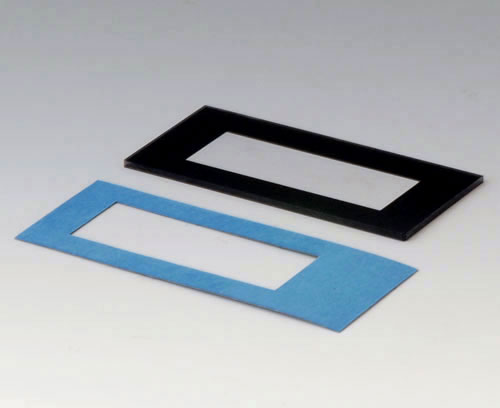

A9173309 Display window S, border black

A9173309

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

A9173309

Display window S, border black
produkt został dodany do twojej listy

transparent

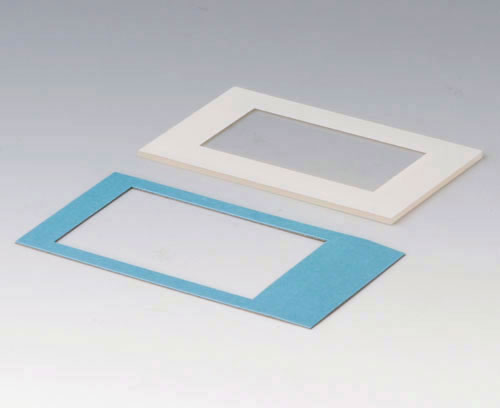

A9173407 Display window S, border off-white

A9173407

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

A9173407

Display window S, border off-white
produkt został dodany do twojej listy

transparent

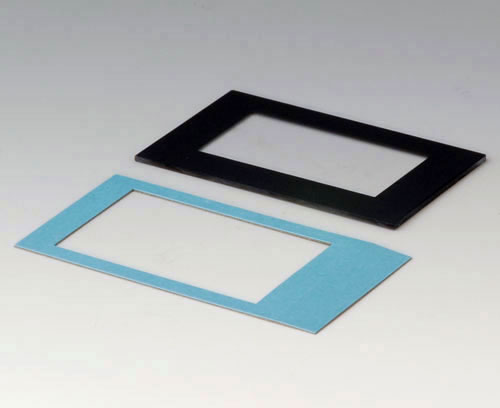

A9173409 Display window S, border black

A9173409

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

A9173409

Display window S, border black
produkt został dodany do twojej listy

transparent
A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class, of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

A9174001

Sealing kit M
produkt został dodany do twojej listy
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
produkt został dodany do twojej listy

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
produkt został dodany do twojej listy

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
produkt został dodany do twojej listy

tin-plated
A9174007 Display window M, border off-white

A9174007

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

A9174007

Display window M, border off-white
produkt został dodany do twojej listy

transparent

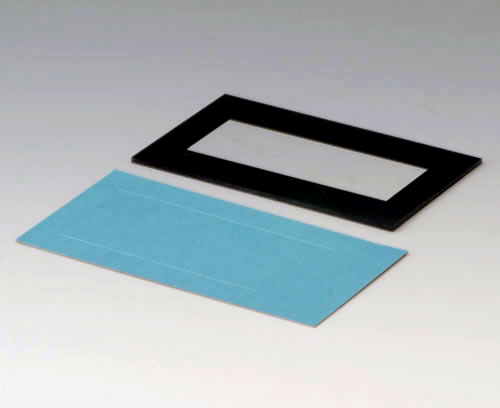

A9174009 Display window M, border black

A9174009

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

A9174009

Display window M, border black
produkt został dodany do twojej listy

transparent

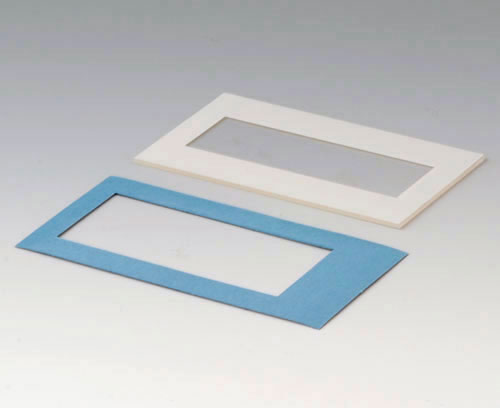

A9174307 Display window M, border off-white

A9174307

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

A9174307

Display window M, border off-white
produkt został dodany do twojej listy

transparent
A9174309 Display window M, border black

A9174309

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

A9174309

Display window M, border black
produkt został dodany do twojej listy

transparent

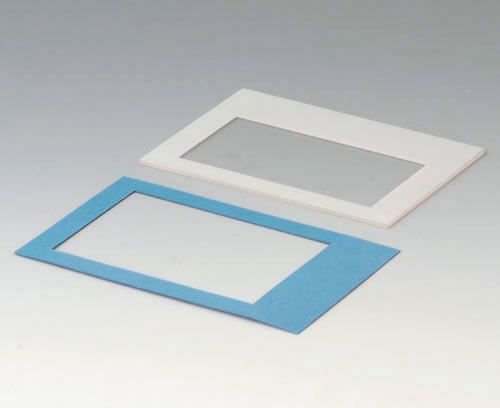

A9174407 Display window M, border off-white

A9174407

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version IV

Supply 1 display window, 1 adhesive foil

A9174407

Display window M, border off-white
produkt został dodany do twojej listy

transparent

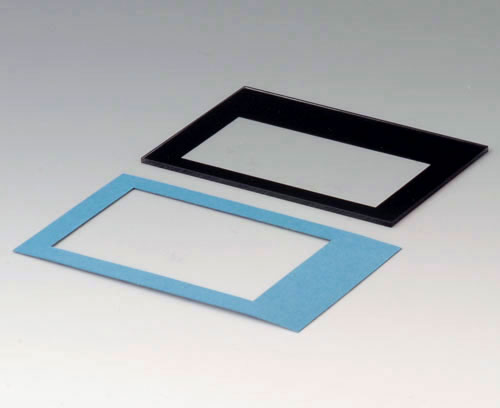

A9174409 Display window M, border black

A9174409

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

A9174409

Display window M, border black
produkt został dodany do twojej listy

transparent

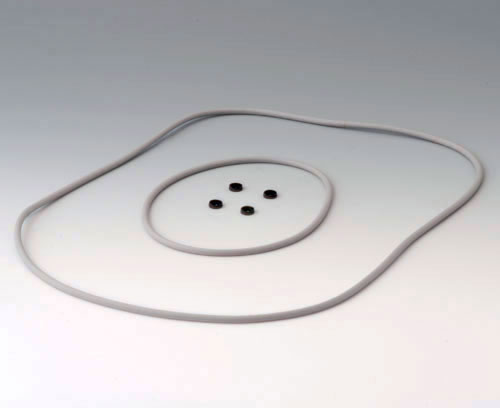

A9175001 Sealing kit L

A9175001

Sealing kit L Application: for increasing the protection class, of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

A9175001

Sealing kit L
produkt został dodany do twojej listy

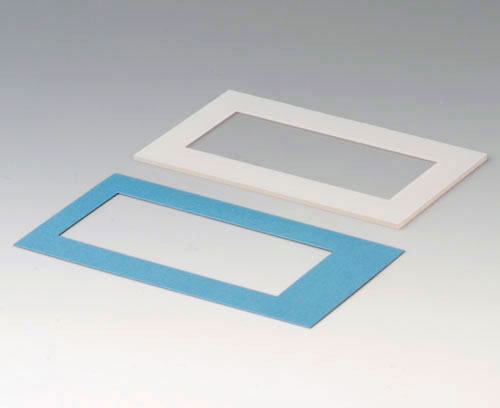

A9175007 Display window L, border off-white

A9175007

Display window L, border off-white The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

A9175007

Display window L, border off-white
produkt został dodany do twojej listy

transparent

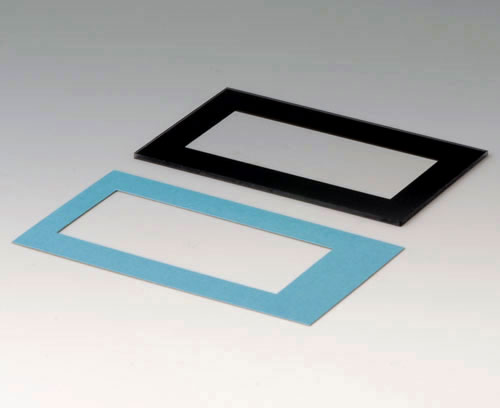

A9175009 Display window L, border black

A9175009

Display window L, border black The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

A9175009

Display window L, border black
produkt został dodany do twojej listy

transparent
A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

A9175108

Protector L
produkt został dodany do twojej listy

volcano

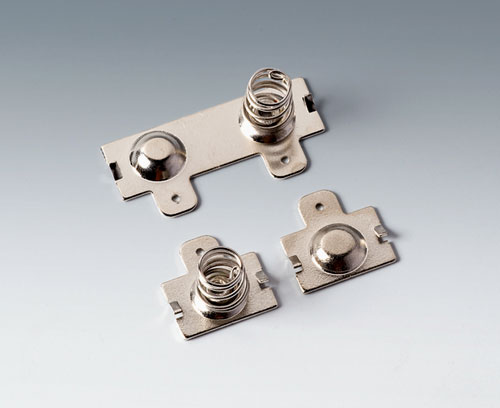

A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

A9190011

Set of battery clips, 2 x AA
produkt został dodany do twojej listy

nickel-plated

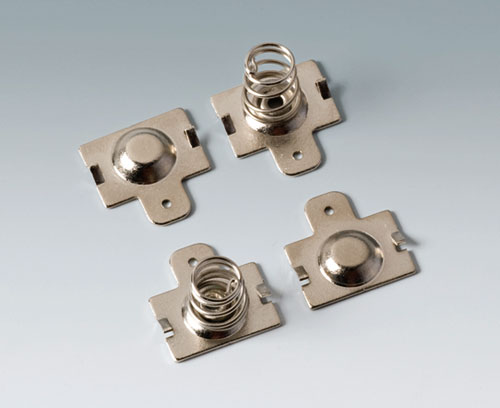

A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

A9190012

Set of battery clips, 4 x AA
produkt został dodany do twojej listy

nickel-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
produkt został dodany do twojej listy
transparent

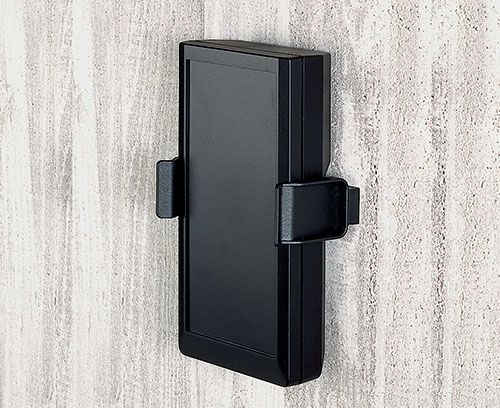

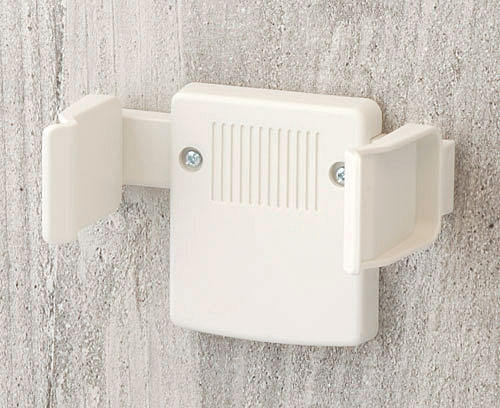

A9226127 Wall suspension element

A9226127

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226127

Wall suspension element
produkt został dodany do twojej listy

off-white RAL 9002
A9226129 Wall suspension element

A9226129

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226129

Wall suspension element
produkt został dodany do twojej listy

black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226227

Wall suspension element
produkt został dodany do twojej listy

off-white RAL 9002

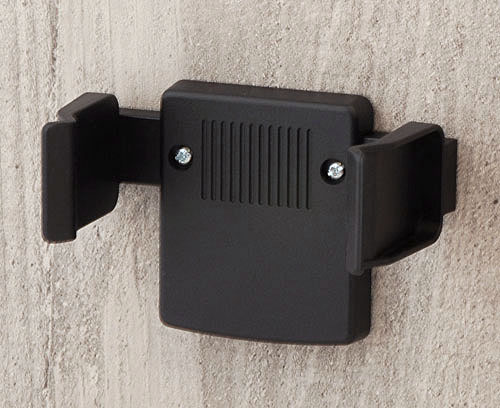

A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226229

Wall suspension element
produkt został dodany do twojej listy

black RAL 9005

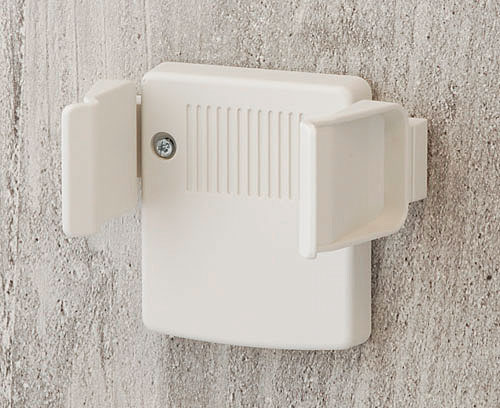

A9226237 Wall suspension element

A9226237

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226237

Wall suspension element
produkt został dodany do twojej listy

off-white RAL 9002

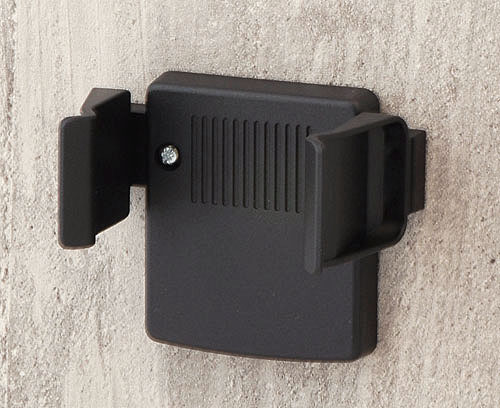

A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226239

Wall suspension element
produkt został dodany do twojej listy

black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
produkt został dodany do twojej listy

50x25x4mm
A9250907 Tilt foot bar

A9250907

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

A9250907

Tilt foot bar
produkt został dodany do twojej listy

off-white RAL 9002

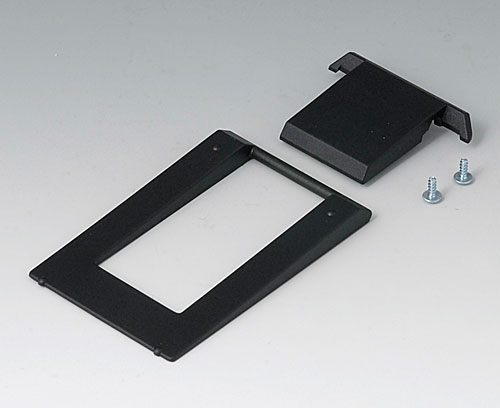

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

A9250909

Tilt foot bar
produkt został dodany do twojej listy

black RAL 9005
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
produkt został dodany do twojej listy

off-white RAL 9002

Opcje dostosowywania dla Datec-Mobil-Box

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
