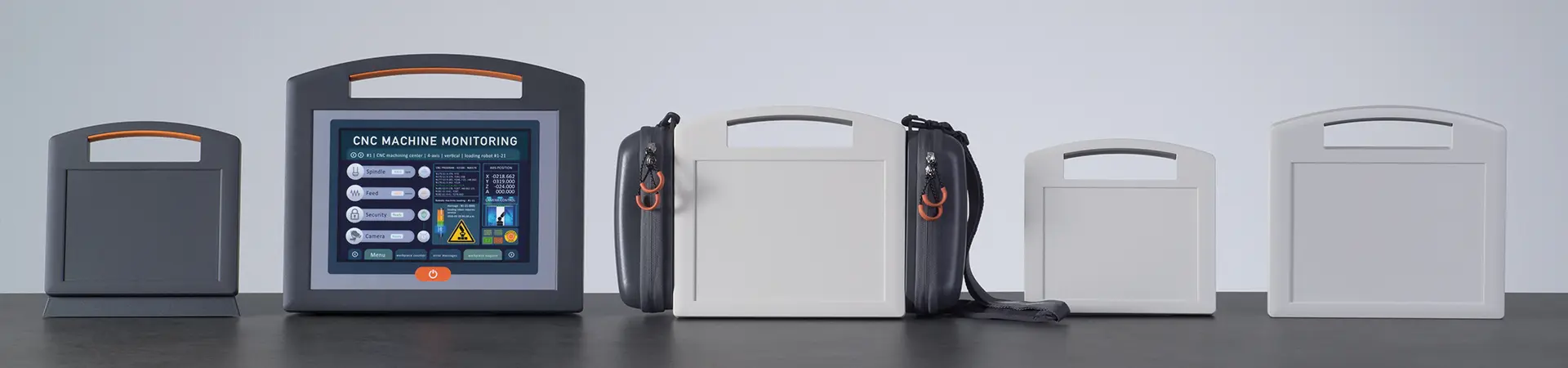

Carrytec

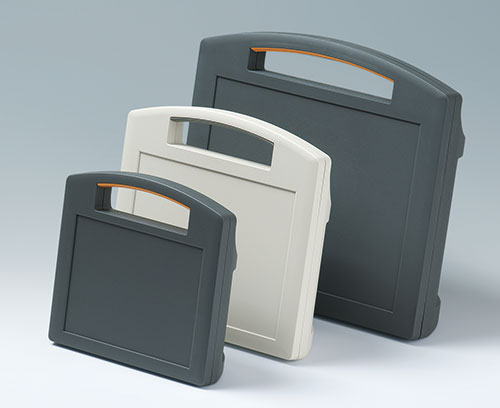

Obudowy z tworzywa z zintegrowaną rączką

CARRYTEC jest unikalnym typem produkt, który dzięki ergonomicznej rączce nabiera wiele przydatnych funkcji dla różnych zadań i sytuacji, w pomieszczeniu lub na zewnątrz.

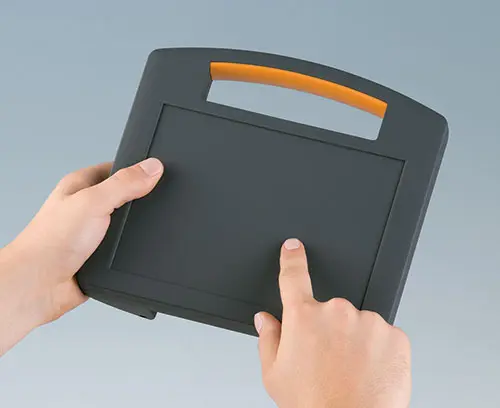

  • zintegrowana rączka z miękkim wykończeniem dla lepszego chwytu

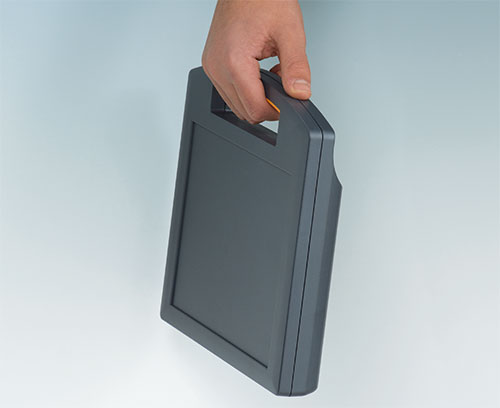

  • CARRYTEC M w wersji smukłej do montażu tabletów, itp.
  • rączka ulokowana powyżej środka ciężkości, dla lepszego balansu

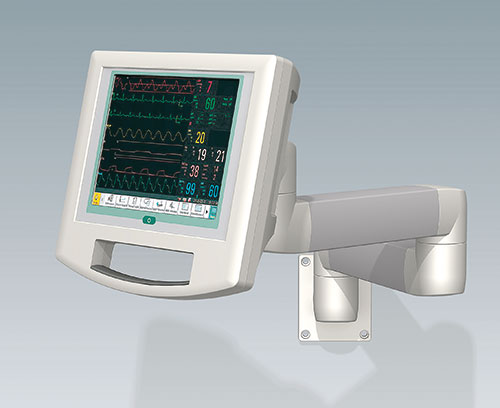

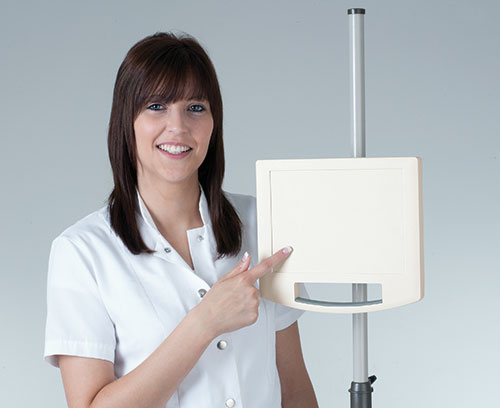

  • tył może być mocowany do tripodów lub ramion
  • specjalna duża powierzchnia jest idealna pod wszelkiego rodzaju interfejsy (S: 8,4"/21 cm; M: 10,4"/26 cm; L: 13,4"/34 cm)
  • przestronne wnętrze z jednoczesnym zachowaniem smukłości
  • płaszczyzny chronione są dzięki wgłębieniom

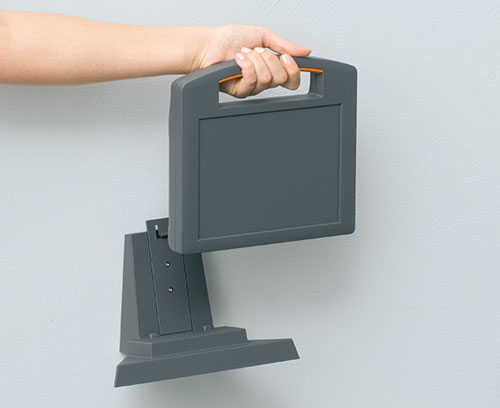

  • łatwe stawianie na blacie lub mocowanie na ścianie; łatwy przesył danych lub zasilania, kontakty jako akcesoria(oprócz obudowy slim)

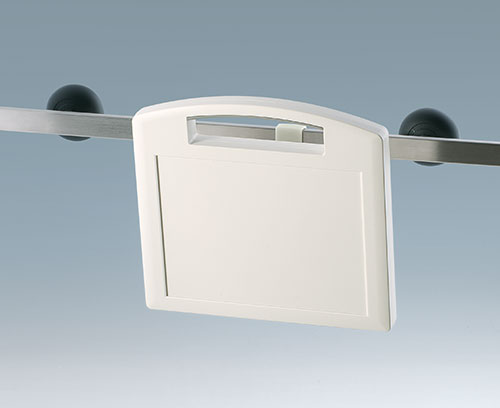

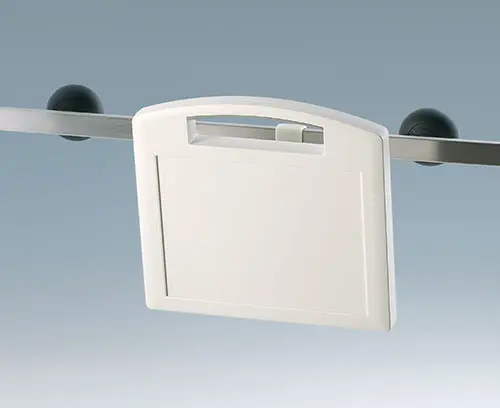

  • uchwyt do rur okrągłych lub szyn zgodnych z DIN EN ISO 19054
  • możliwość produkcji z bardziej wytrzymałego tworzywa   ciemniejsze kolory dla trudnych/brudnych warunków w wewnątrz i na zewnątrz
  • klasa szczelności IP54 z uszczelnieniem (akcesoria)

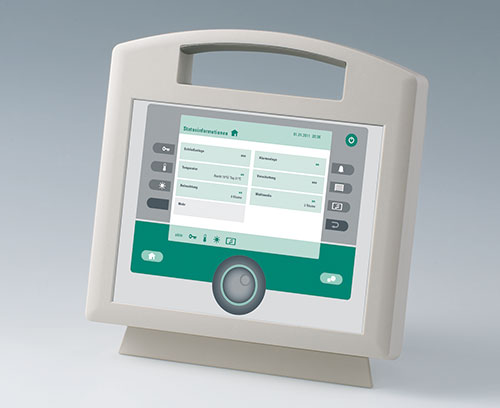

  • wgłębienie pod klawiatury membranowe lub folie dekoracyjne
  • łatwe czyszczenie

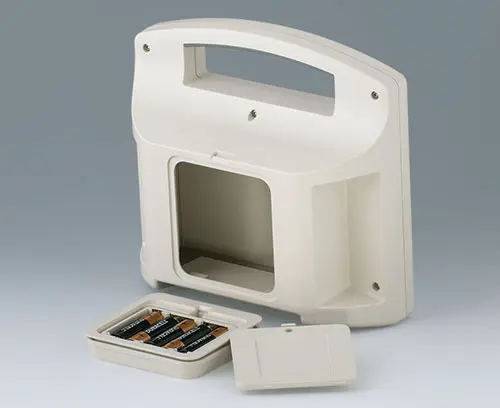

  • pojemnik baterii 5 x AA , baterie mogą być wpuszczane (wymagana obróbka)

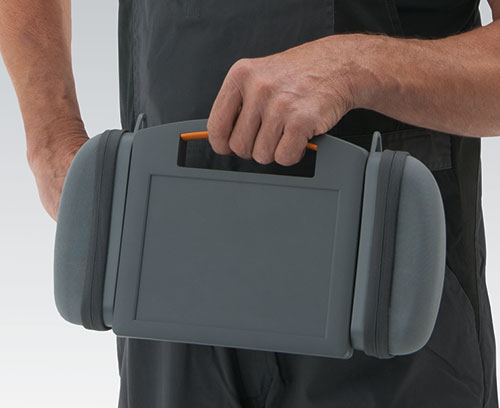

  • opcjonalne futerały ochronne do sensorów, kabli, itp.(rozmiary S i M)

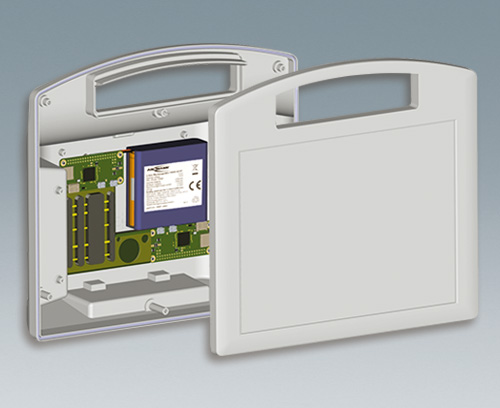

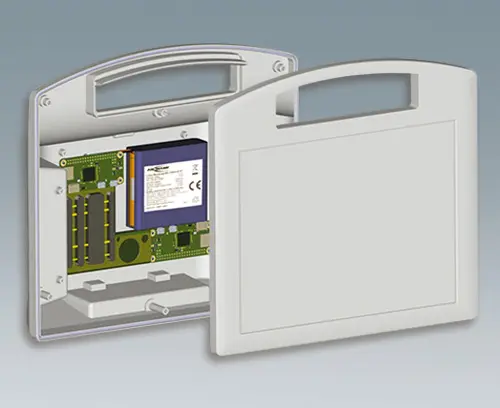

  • słupki do montażu PCB
  • Wideo
  • Przykłady aplikacji

Obszary zastosowań

Wyjątkowa różnorodność możliwych zastosowań: mobilna - biurkowa - montowana na ścianie - montowana na szynie - na rórze - trójnogu - ramieniu.
W zależności od zastosowania (wewnątrz / na zewnątrz) ta innowacyjna obudowa jest dostępna w różnych materiałach, np. odporny na uderzenia tworzywo sztucznege w ciemniejszych kolorach do trudnych warunków.

  • Medyczne, np. systemy awaryjne, urządzenia monitorujące i alarmowe
  • Diagnostyka, terapia, urządzenia laboratoryjne
  • Sprzęt testowy i pomiarowy
  • Technologia komunikacyjna
  • Terminale mobilne, jednostki gromadzenia danych
  • Systemy zarządzania energią
  • Czujniki
  • Przemysł 4.0, inteligentna fabryka
  • Budowa maszyn i urządzeń budowlanych
  • Ekonomika rolnictwa, leśnictwo
  • Przeglądaj pełną listę
  • Akcesoria
  • Opcje dostosowywania
AltText

B4208107

CARRYTEC S Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4208107

CARRYTEC S
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
222x205x80mm
IP 54 opt.
AltText

B4208208

CARRYTEC S Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4208208

CARRYTEC S
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
222x205x80mm
IP 54 opt.
AltText

B4210107

CARRYTEC M Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4210107

CARRYTEC M
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
270x247x91mm
IP 54 opt.
AltText

B4210127

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4210127

CARRYTEC M slim version
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
270x247x42mm
IP 54 opt.
AltText

B4210208

CARRYTEC M Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4210208

CARRYTEC M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
270x247x91mm
IP 54 opt.
AltText

B4210228

CARRYTEC M slim version Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.
The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4210228

CARRYTEC M slim version
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
270x247x42mm
IP 54 opt.
AltText

B4213107

CARRYTEC L Robust plastic enclosure with handle. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4213107

CARRYTEC L
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
348x303x117mm
IP 54 opt.
AltText

B4213208

CARRYTEC L Particularly robust plastic enclosure with handle for outdoor use. Recessed surface for membrane keyboards. Flat, impact-protected areas on the bottom part of the enclosure for installing interfaces, plug-in connectors, peripheral equipment etc. Interface installation at the rear, e.g. support arm applications, ensures orderly cable routing through enclosure connection, mounting points match the hole patterns of VESA MIS-D 100. Attachment domes for PCBs and components in the top and bottom parts. Stations for easy transmission of data and charging current, as well as battery compartment 5 x AA (processing on request) as an accessory.

Supply Top and bottom parts, TPE handle pad, assembly kit

Zamknij

B4213208

CARRYTEC L
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
348x303x117mm
IP 54 opt.
AltText

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
produkt został dodany do twojej listy
AltText

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Zamknij

A0399T10

Torx T10 screwdriver
produkt został dodany do twojej listy
AltText

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178007

Contacts, male
produkt został dodany do twojej listy
gold-plated
AltText

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Zamknij

A9178008

Contacts, female
produkt został dodany do twojej listy
gold-plated
AltText

A9193042

Mounting plates for contacts Universal accessories that simplify the assembly of contacts for transferring data and charging current between enclosures and stations. Available as a kit consisting of two plastic mounting plates for holding the 6-pin contacts which are available as accessories ("female" contact for the enclosure and "male" contact for the station).
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station. The mounting plates can be installed first in the enclosure and station, and the contacts (accessories) at a later point in time.

Supply 2 mounting plates

Zamknij

A9193042

Mounting plates for contacts
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
AltText

A9193044

Contacting kit, 6-pin Universal accessory consisting of mounting plates and 6-pin contacts. Simplifies the assembly of contacts for transferring data and charging current between enclosures and stations. The "female" and "male" contacts are already permanently glued in the corresponding mounting plate. The contact pins are freely accessible for soldering work.
For installation, cutouts into which the mounting plates can be glued must be made in the enclosure and in the station ("female" contact for the enclosure and "male" contact for the station).

Supply 2 mounting plates, 2 6-pin contacts ("female" and "male")

Zamknij

A9193044

Contacting kit, 6-pin
produkt został dodany do twojej listy
ABS (UL 94 HB)
black RAL 9005
AltText

A9338117

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Zamknij

A9338117

Battery compartment kit, 5 x AA
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
93x98mm
IP 54
AltText

A9338218

Battery compartment kit, 5 x AA For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

Zamknij

A9338218

Battery compartment kit, 5 x AA
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
93x98mm
IP 54
AltText

B4308001

Sealing S Application: for increasing the protection class, of CARRYTEC S. Bottom part with groove to assemble the sealing.

Supply 1 sealing

Zamknij

B4308001

Sealing S
produkt został dodany do twojej listy
AltText

B4308117

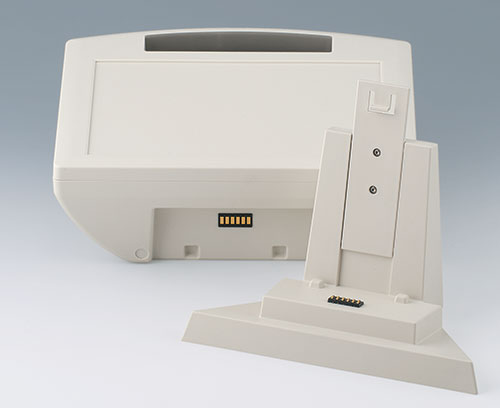

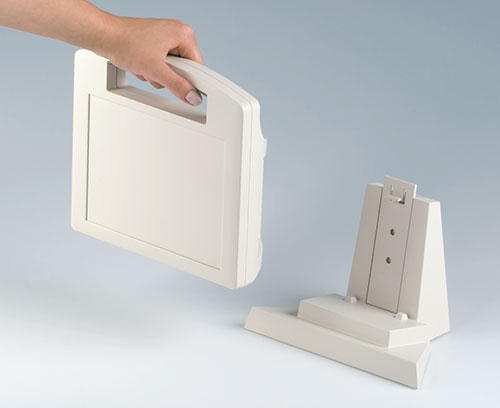

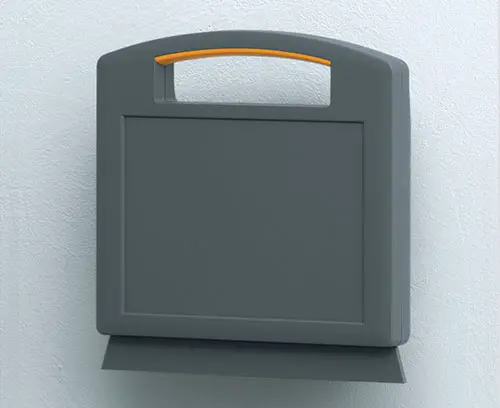

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Zamknij

B4308117

Station S/M
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
AltText

B4308127

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Zamknij

B4308127

Base plate for station
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
AltText

B4308218

Station S/M For secure storage of the enclosure. Can be used on table stand and/or wall suspension element. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Zamknij

B4308218

Station S/M
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
AltText

B4308228

Base plate for station Recommended for table-top applications. The rubber feet included in the supply ensure that the table-top version does not slip.

Supply 1 base plate, 4 rubber feet, assembly kit

Zamknij

B4308228

Base plate for station
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
AltText

B4308237

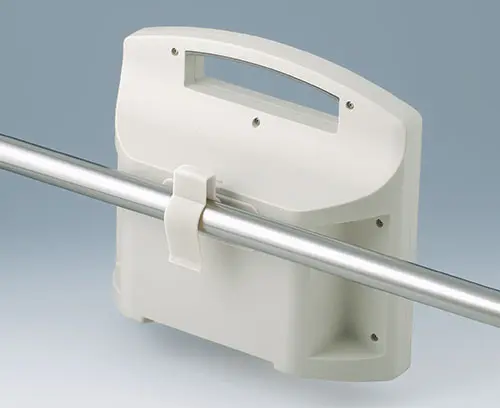

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Zamknij

B4308237

Holding clamps
produkt został dodany do twojej listy
PA 6
off-white RAL 9002
AltText

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Zamknij

B4308238

Holding clamps
produkt został dodany do twojej listy
PA 6
lava
AltText

B4308600

Carrying case S, right-hand side

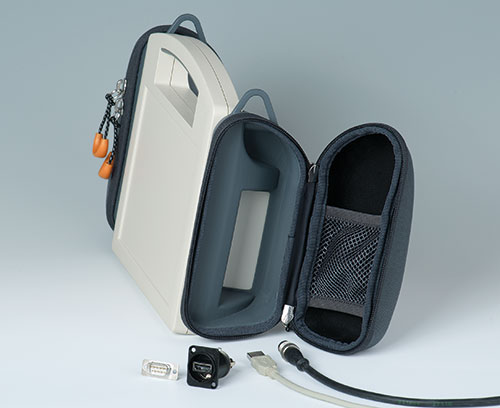

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4308600

Carrying case S, right-hand side
produkt został dodany do twojej listy
grey
82x180x65mm
AltText

B4308610

Carrying case S, left-hand side

Specially designed for CARRYTEC S. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4308610

Carrying case S, left-hand side
produkt został dodany do twojej listy
grey
82x180x65mm
AltText

B4308650

Shoulder strap Practical shoulder strap with shoulder padding.

Supply 1 shoulder strap

Zamknij

B4308650

Shoulder strap
produkt został dodany do twojej listy
grey
1400mm
AltText

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Zamknij

B4310001

Sealing M
produkt został dodany do twojej listy
AltText

B4310600

Carrying case M, right-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Right-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4310600

Carrying case M, right-hand side
produkt został dodany do twojej listy
grey
99x214x64mm
AltText

B4310610

Carrying case M, left-hand side

Specially designed for CARRYTEC M. Protects enclosure, cables and sensors. Consists of a moulded plastic part and hard-wearing textile fabric, with a practical zip fastener for fast access. Integrated recesses in the sides of the enclosure for connecting instruments, which are then ready for immediate use. Easy to attach to the screwed connection in the enclosure. Eyelet on the top for carrying with the shoulder strap (separate article, see Accessories).

Version Left-hand side.

Supply 1 carrying case, left-hand side, assembly kit

Zamknij

B4310610

Carrying case M, left-hand side
produkt został dodany do twojej listy
grey
99x214x64mm
AltText

B4313001

Sealing L Application: for increasing the protection class, of CARRYTEC L.

Supply 1 sealing

Zamknij

B4313001

Sealing L
produkt został dodany do twojej listy
AltText

B4313117

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Zamknij

B4313117

Station L
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
AltText

B4313147

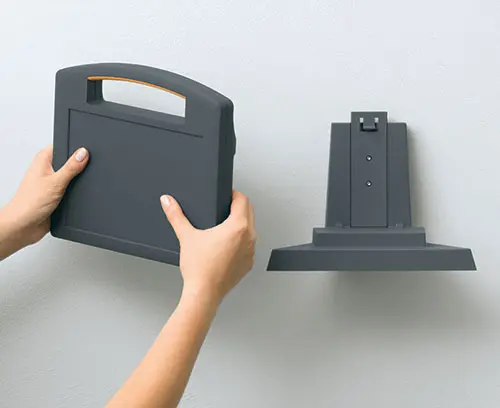

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Zamknij

B4313147

Adapter for Station L
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002
AltText

B4313218

Station L For secure storage of the enclosure. Can be used on table stand or as wall suspension element. By using it as a wall suspension element the adapter (accessories) is needed. Available with or without base plate (accessory). The enclosure snaps securely into the station. It can be removed easily by pulling the handle. Offers room for charging and data transfer contacts (accessories), interfaces etc.

Supply 1 base, assembly kit

Zamknij

B4313218

Station L
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava
AltText

B4313248

Adapter for Station L Adapter for mounting Station L on a wall. Supplied with two self-tapping screws for attaching Station L.

Supply 1 adapter and 2 self-tapping screws

Zamknij

B4313248

Adapter for Station L
produkt został dodany do twojej listy
ASA+PC (UL 94 V-0)
lava

Opcje dostosowywania dla Carrytec

Czego potrzebujesz do spersonalizowania, swojego produktu? Dostarczamy obudowy i pokrętła wraz ze wszystkimi niezbędnymi wymaganymi modyfikacjami.
