Akcesoria do obudów
A0326370
Front / rear panel 63 TE 2 HE
Front/rear panel for case 63 TE 2 HE.
Supply1 front panel
Generate Your PDF Datasheet for A0326370
Please select the product details you would like to include in the PDF.
A0110270
Supply 1 side panel
A0110270
Side panel 1 HEoff-white RAL 9002
250x44,45mm
A0110280
Supply 1 side panel
A0110280
Side panel 1 HEpebble grey RAL 7032
250x44,45mm
A0111270
Supply 1 side panel
A0111270
Side panel 1 HE, for handle mountingoff-white RAL 9002
250x44,45mm
A0111280
Supply 1 side panel
A0111280
Side panel 1 HE, for handle mountingpebble grey RAL 7032
250x44,45mm
A0116170
Supply 1 shell
A0116170
Shell 63 TEoff-white RAL 9002
367x250x27mm
A0116370
Supply 1 snap-in panel without slots
A0116370
Snap-in panel, without slotsoff-white RAL 9002
A0126370
Supply 1 snap-in panel with slots
A0126370
Snap-in panel, with slotsoff-white RAL 9002
A0136370
Supply 1 snap-in panel without slots
A0136370
Snap-in panel, without slots, with feetoff-white RAL 9002
A0146370
Supply 1 snap-in panel with slots
A0146370
Snap-in panel, with slots, with feetoff-white RAL 9002
A0226070
Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet
A0226070
EURO CASE 63 TE, without handleoff-white RAL 9002
367x250x98,5mm
A0226170
Supply 2 shells, 2 side panels 1 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each
A0226170
EURO CASE 63 TE, without handleoff-white RAL 9002
367x250x98,5mm

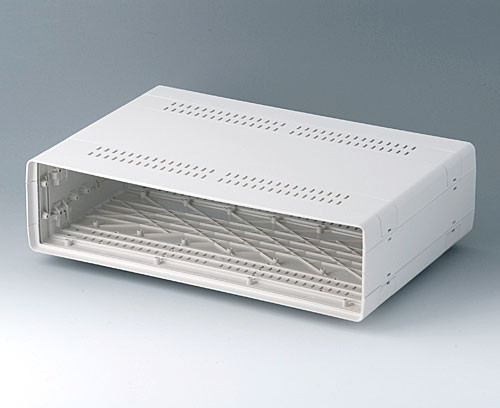

A0226270
Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet
A0226270
EURO CASE 63 TE, without handleoff-white RAL 9002
367x250x98,5mm
A0226470
Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle
A0226470
EURO CASE 63 TE, with handleoff-white RAL 9002
367x250x98,5mm

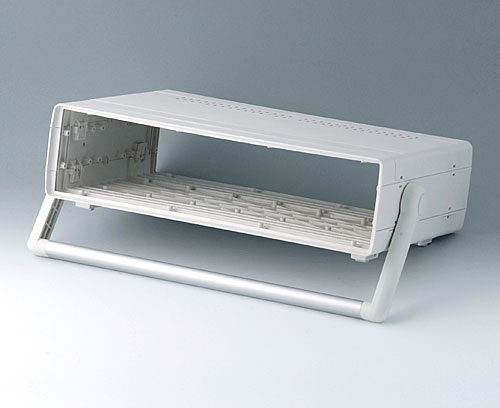

A0226570
Supply 2 shells, 2 side panels 1 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle
A0226570
EURO CASE 63 TE, with handleoff-white RAL 9002
367x250x98,5mm

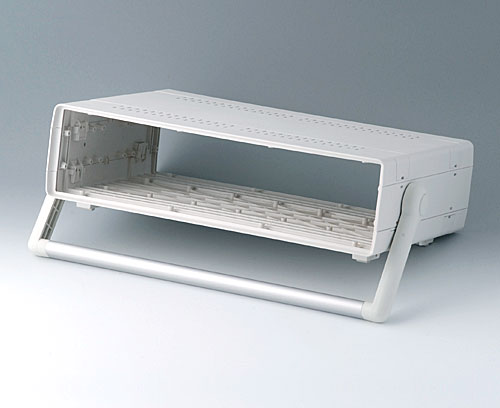

A0226670
Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle
A0226670
EURO CASE 63 TE, with handleoff-white RAL 9002
367x250x98,5mm
A0346316
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346316
Handle 63 TEoff-white RAL 9002
A0346317
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346317
Handle 63 TEoff-white RAL 9002
A0346318
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0346318
Handle 63 TEpebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 424 KB
- AutoCAD DWG-File 1 042 KB
- AutoCAD DXF-File 4 186 KB
(OKW product)
