A0226070 EURO CASE 63 TE, without handle

A0226070

EURO CASE 63 TE, without handle

Modular construction without screws. Fixing support in the shells and side panels.

Supply

2 shells, 2 side panels 1 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

  • Komponenty / Akcesoria
  • Opcje dostosowywania

Accessory to complete

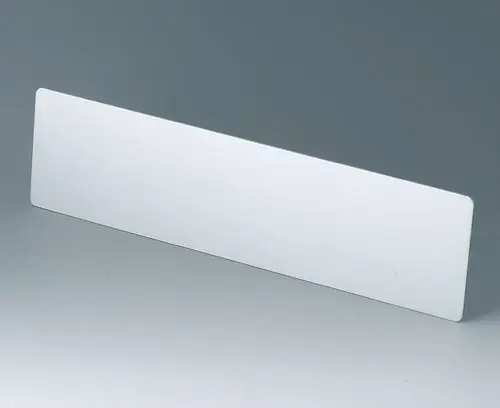

A0326370 Front / rear panel 63 TE 2 HE

A0326370

Front / rear panel 63 TE 2 HE Front/rear panel for case 63 TE 2 HE.

Supply 1 front panel

Zamknij

A0326370

Front / rear panel 63 TE 2 HE
produkt został dodany do twojej listy
Aluminium
matt anodised
357,8x90,7x2mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
produkt został dodany do twojej listy
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
produkt został dodany do twojej listy
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Zamknij

A0308132

Self-tapping screw 3 x 8 mm (T10)
produkt został dodany do twojej listy
Stainless steel

Accessory

A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

Zamknij

A0350007

Tilt foot
produkt został dodany do twojej listy
ABS (UL 94 HB)
off-white RAL 9002

Opcje dostosowywania dla A0226070

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Informacje techniczne
  • Rysunki / Informacje
  • Dane zakupowe
Kolor
off-white RAL 9002
Width
367 mm
Depth
250 mm
Height
98,5 mm
PCB length, base
350 mm
PCB width, base
220 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
926 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
