Akcesoria do obudów
A9093107
DIATEC S

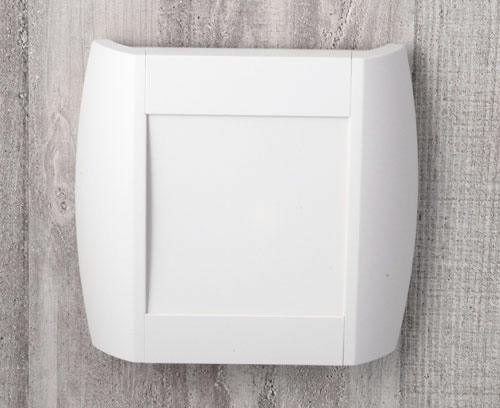

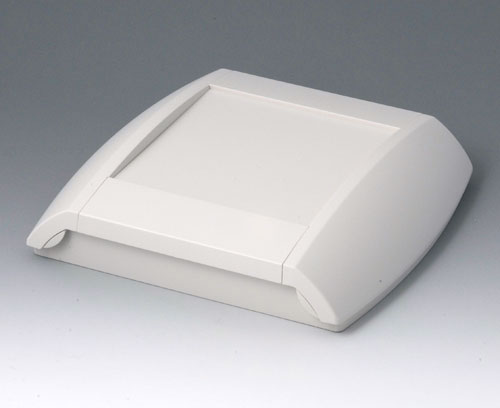

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.
SupplyBottom and top part, trim left and right side incl. 2 locking elements, assembly kit
Generate Your PDF Datasheet for A9093107
Please select the product details you would like to include in the PDF.
Accessory "battery"
A9160003
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)
A9190002
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAtin-plated
Accessory "protection"
A9194007
Supply 1 slot-in panel
A9194007

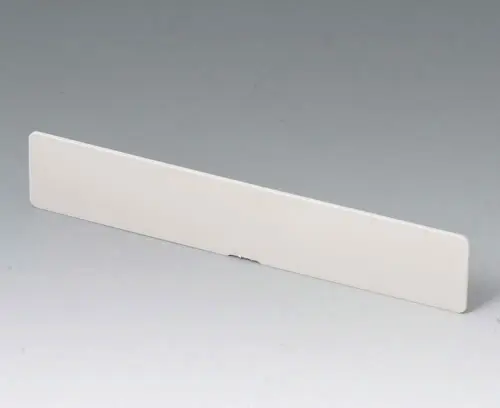

Slot-in paneloff-white RAL 9002
156x30x3mm
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Accessory
A9212330
Supply 2 rubber feet
A9212330

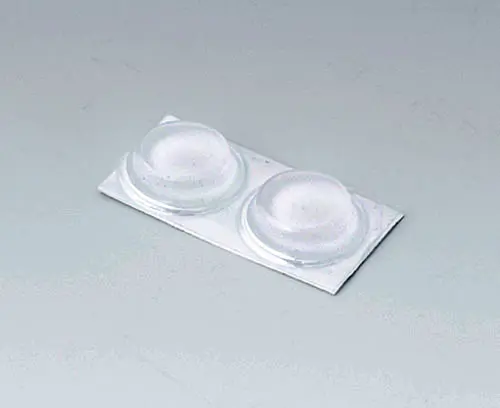

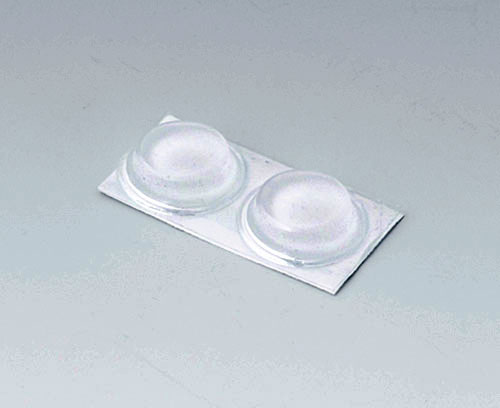

Anti-slide feet 12 x 3.5 mmAssembly Instructions (Part)
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 235 KB
- AutoCAD DWG-File 594 KB
- AutoCAD DXF-File 2 247 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 2 261 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009500.x_t 5 868 KB
- 00009500.STEP 8 405 KB
- 00009500.SAT 8 385 KB
(OKW product)
