A9092108
DIATEC XS

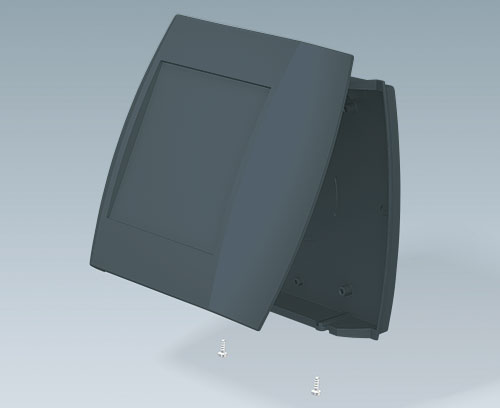

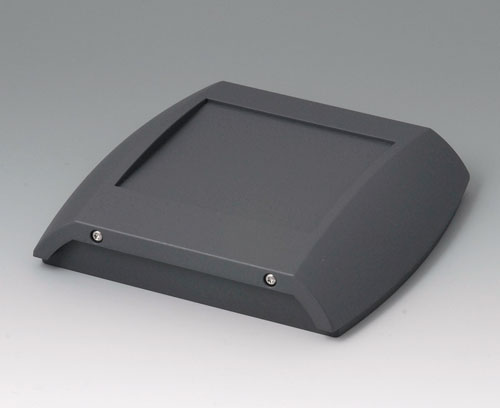

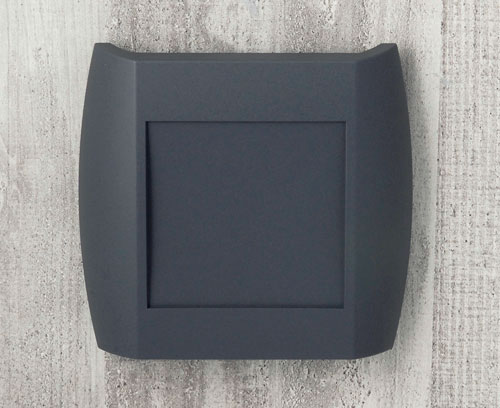

Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.
SupplyTop and bottom part, assembly kit
Generate Your PDF Datasheet for A9092108
Please select the product details you would like to include in the PDF.
Accessory "battery"
A9190015
Supply 1 single contact positive, 1 single contact negative
A9190015
Set of battery clips, 2 x AAnickel-plated
Accessory "wall/holder"
B1360048
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elementspebble grey RAL 7032
Accessory
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 447 KB
- AutoCAD DWG-File 621 KB
- AutoCAD DXF-File 2 293 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 626 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010101.x_t 4 047 KB
- 00010101.STEP 8 691 KB
- 00010101.SAT 7 595 KB
(OKW product)
