CONNECT M

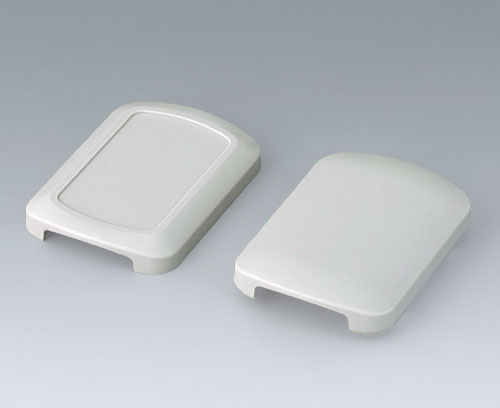

Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.
Supply1 shell convex and 1 flattened shell with recessed surface
Rysunek 2D w formacie PDF
Widok 3D PDF
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B2832107
Please select the product details you would like to include in the PDF.
Dodaj do koszyka
Accessory to complete
B2811207
End part
Universal plug-in component.
Supply 1 piece
B2811207
End partprodukt został dodany do twojej listy
off-white RAL 9002
B2811209
End part
Universal plug-in component.
Supply 1 piece
B2811209
End partprodukt został dodany do twojej listy
black RAL 9005
B2911308
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911308
Cable gland kit, 3.4 - 4.2produkt został dodany do twojej listy
volcano
B2911309
Cable gland kit, 3.4 - 4.2
For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911309
Cable gland kit, 3.4 - 4.2produkt został dodany do twojej listy
black RAL 9005
B2911318
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911318
Cable gland kit, 4.2 - 5.0produkt został dodany do twojej listy
volcano
B2911319
Cable gland kit, 4.2 - 5.0
For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911319
Cable gland kit, 4.2 - 5.0produkt został dodany do twojej listy
black RAL 9005
B2911328
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911328
Cable gland kit, 5.0 - 5.9produkt został dodany do twojej listy
volcano
B2911329
Cable gland kit, 5.0 - 5.9
For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.
Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws
B2911329
Cable gland kit, 5.0 - 5.9produkt został dodany do twojej listy
black RAL 9005
Accessory "wall/holder"
B2931507
Holder M
Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.
Supply 1 holder
B2931507
Holder Mprodukt został dodany do twojej listy
off-white RAL 9002
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)produkt został dodany do twojej listy
Opcje dostosowywania dla B2832107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Informacje techniczne
-
Rysunki / Informacje
- Przykłady aplikacji
- Dane zakupowe
Długość
76 mm
Szerokość
54 mm
Wysokość
22 mm
PCB length, base
58 mm
PCB width, base
45 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 230 KB
- AutoCAD DWG-File 593 KB
- AutoCAD DXF-File 2 322 KB
- Widok 3D PDF (Acrobat Reader) (obróć produkt o 360 °, elementy niewidoczne na zewnątrz, akcesoria...) 625 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00019202.x_t 3 763 KB
- 00019202.step 11 498 KB
- 00019202.sat 11 210 KB
Weight/1 part
31 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
