Accessori per contenitori
A9167017

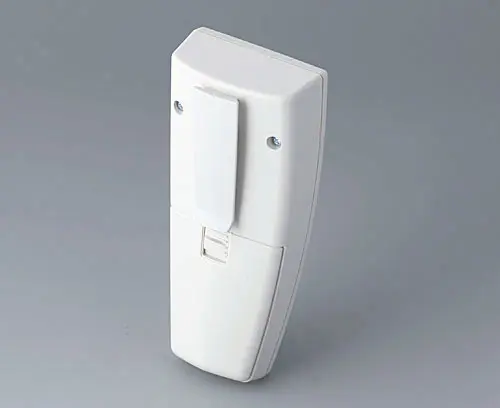

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 Clip, assembly kit
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9167017
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
A9066107
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066107
SMART-CASE M, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9066117
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066117
SMART-CASE M, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9066127
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066127
SMART-CASE M, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9066137

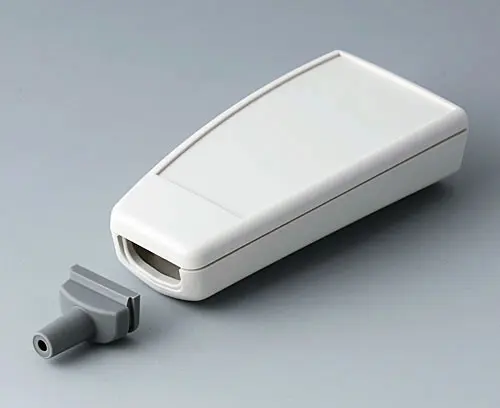

SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066137
SMART-CASE M, Vers. IVProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9066147

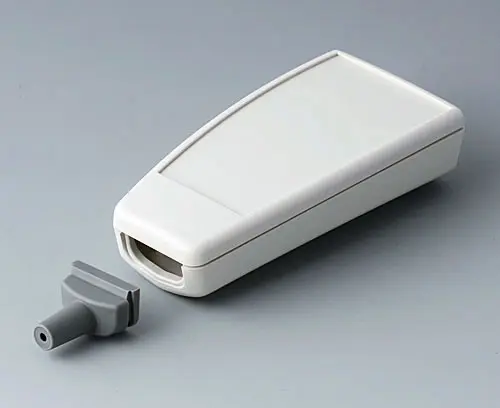

SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066147
SMART-CASE M, Vers. VProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9066317

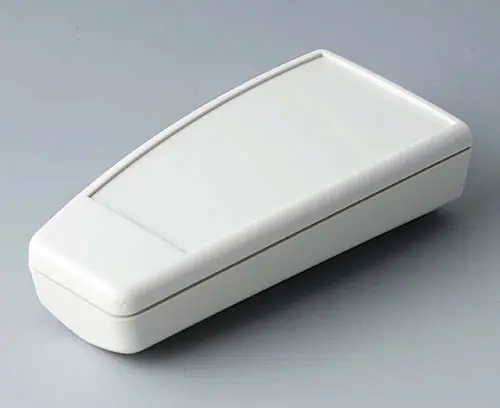

SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066317
SMART-CASE M, Vers. VIProdotto aggiunto alla lista
off-white RAL 9002
96x47x24mm
A9067107

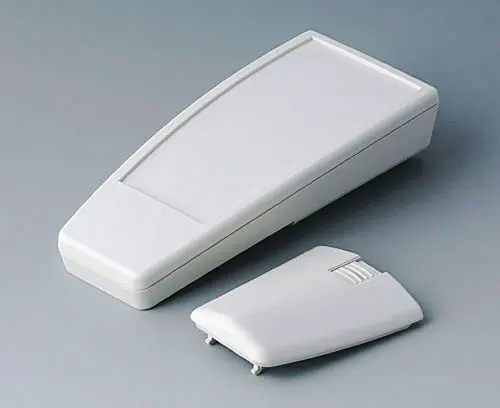

SMART-CASE L, Vers. I
Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067107
SMART-CASE L, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
140x62,7x30,5mm
A9067117

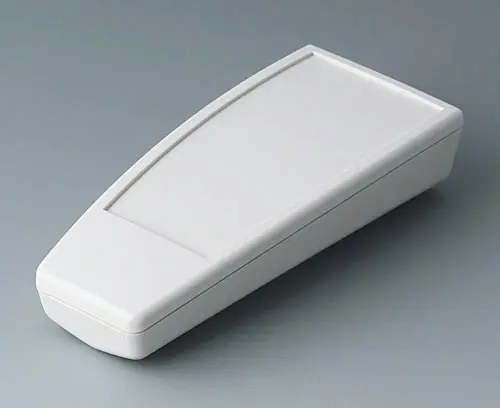

SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067117
SMART-CASE L, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
140x62,7x30,5mm
,
A9067127
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067127
SMART-CASE L, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
140x62,7x30,5mm
,
A9067137
SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067137
SMART-CASE L, Vers. IVProdotto aggiunto alla lista
off-white RAL 9002
140x62,7x30,5mm
,
A9067147

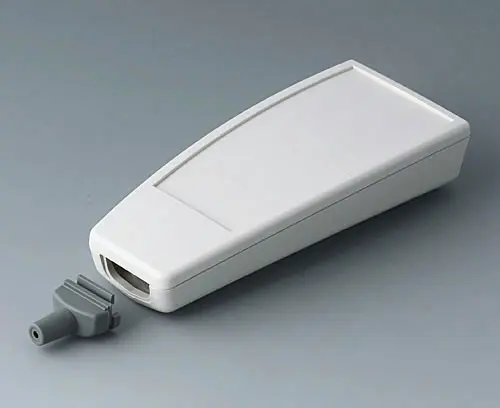

SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067147
SMART-CASE L, Vers. VProdotto aggiunto alla lista
off-white RAL 9002
140x62,7x30,5mm
,
A9068107

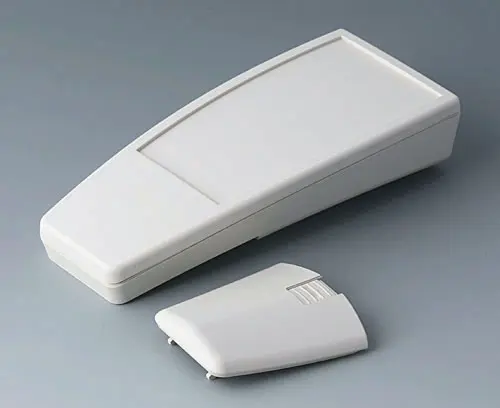

SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068107
SMART-CASE XL, Vers. IProdotto aggiunto alla lista
off-white RAL 9002
168x74,4x35,4mm
A9068117
SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068117
SMART-CASE XL, Vers. IIProdotto aggiunto alla lista
off-white RAL 9002
168x74,4x35,4mm
,
A9068127
SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068127
SMART-CASE XL, Vers. IIIProdotto aggiunto alla lista
off-white RAL 9002
168x74,4x35,4mm
,
A9068137
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068137
SMART-CASE XL, Vers. IVProdotto aggiunto alla lista
off-white RAL 9002
168x74,4x35,4mm
,
A9068147
SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068147
SMART-CASE XL, Vers. VProdotto aggiunto alla lista
off-white RAL 9002
168x74,4x35,4mm
,
Customising options for A9167017
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
