SMART-CASE L, Vers. I
Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
VersionWith battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery (PP3)
SupplyCase-top and base, battery compartment lid, assembly kit
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per A9067107
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory "battery"
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Prodotto aggiunto alla lista
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAProdotto aggiunto alla lista
tin-plated
A9190003
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9190003
Set of battery clips, 2xN/2xAA/2xAAAProdotto aggiunto alla lista
nickel-plated
Accessory "station"
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefProdotto aggiunto alla lista
volcano
A9167037
Station L
Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided, for SMART-CASE L without battery compartment only). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9167037
Station LProdotto aggiunto alla lista
off-white RAL 9002
Accessory "wall/holder"
A9167005
Adhesive foil L
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9167005
Adhesive foil LProdotto aggiunto alla lista
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdotto aggiunto alla lista
off-white RAL 9002
A9167307

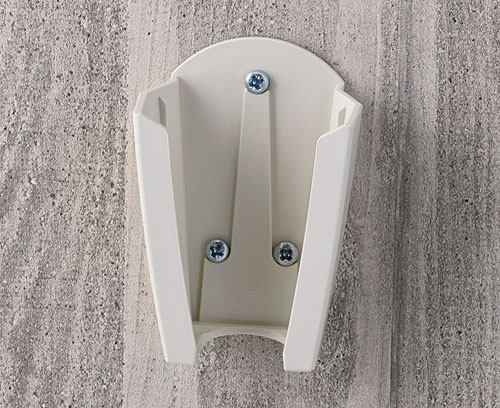

Holder L
Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.
Supply 1 holder
A9167307
Holder LProdotto aggiunto alla lista
off-white RAL 9002
Accessory "carrying"
A9167017
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167017
Belt/pocket clipProdotto aggiunto alla lista
off-white RAL 9002
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Prodotto aggiunto alla lista
Customising options for A9067107
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Esempi di applicazione
- Purchasing Data
Materiale
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Lunghezza
140 mm
Larghezza
62,7 mm
Altezza
30,5 mm
PCB length, base
60 mm
PCB width, base
51 mm
PCB length, top
66 mm
PCB width, top
51 mm
Keypad length
103,5 mm
Keypad width
51,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 409 KB
- AutoCAD DWG-File 1.520 KB
- AutoCAD DXF-File 5.866 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 1.948 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012128.x_t 3.985 KB
- 00012128.STEP 8.445 KB
- 00012128.SAT 9.079 KB
External Accessory - miscellaneous
Weight/1 part
72 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
