B5503300

SLIM-CASE M, Vers. III 2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

SLIM-CASE M, Vers. VI 3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

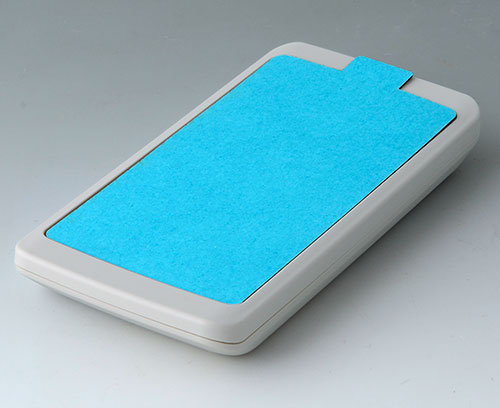

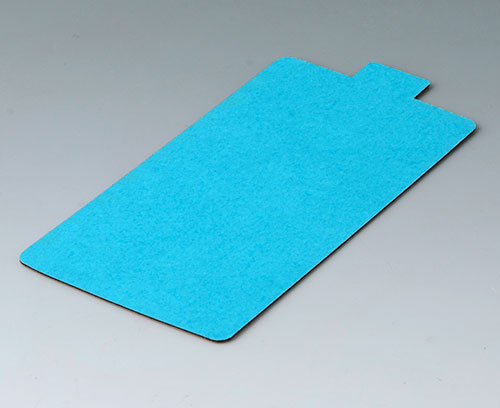

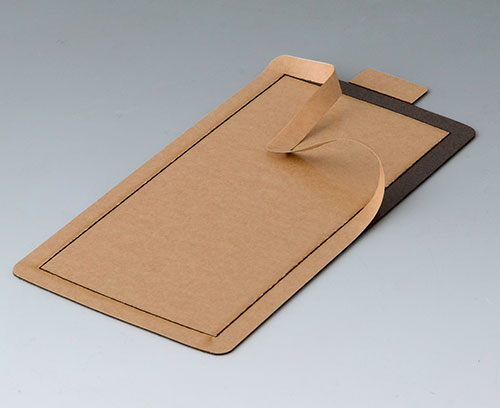

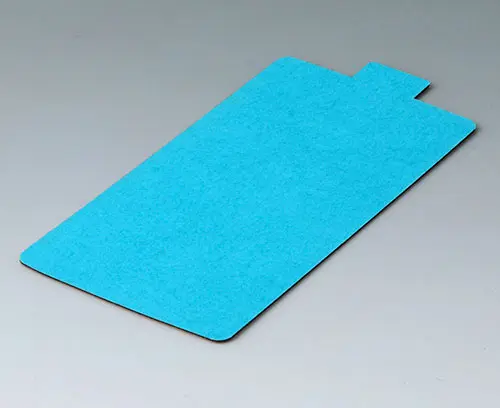

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.
