SLIM-CASE M, Vers. VI

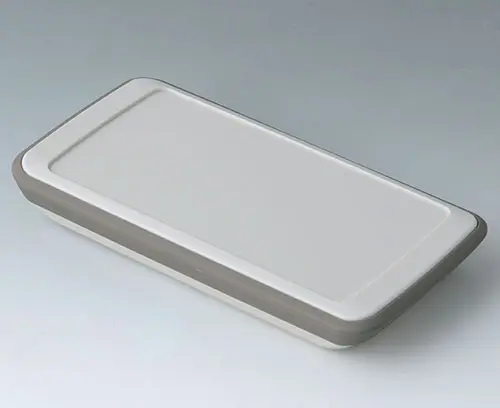

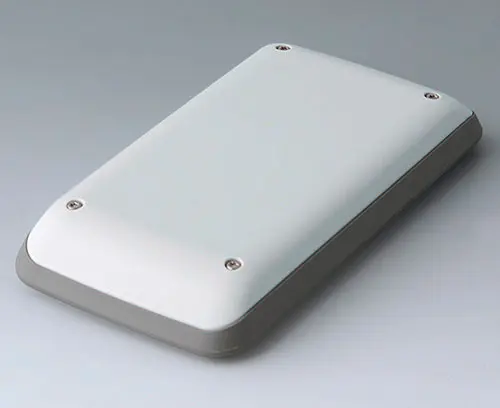

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts.
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
With TPE intermediate ring and operating panel recessed 1.6 mm
SupplyTop and bottom part, TPE intermediate ring, assembly kit
Create la vostra scheda dati PDF per B5403317
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "protection"
B5503201
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.
Supply 1 front screenm
B5503201
Front screen Mtransparent
125,3x63,5x1,3mm
B5503300
Supply 1 adhesive foil
B5503300
Adhesive foil MAccessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Bottom and top part
Intermediate ring
Intermediate ring volcano
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 376 KB
- AutoCAD DWG-File 852 KB
- AutoCAD DXF-File 3.253 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 543 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00026934.x_t 5.613 KB
- 00026934.step 10.936 KB
- 00026934.sat 17.251 KB
(OKW product)
