RAILTEC C, 2 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
VersionFront open, connection side with free through passage, with ventilations slots
Supply1 bottom part, 2 clips, 1 top part
Create la vostra scheda dati PDF per B6701102
Selezionate le informazioni prodotto per la vostra scheda dati.
Accessory "wall/holder"
B6811542
Supply 1 piece
B6811542
Adapterlight grey
Accessory "terminals"
B6601222
Supply 1 piece
B6601222
Plug header, block 5.08
B6601223
Supply 1 piece
B6601223
Plug header, block 5.08
B6606222
Supply 1 piece
B6606222
Plug header, block 5.08
B6606223
Supply 1 piece
B6606223
Plug header, block 5.08
B6801650
Supply 1 piece
B6801650
Terminal block, block 5.08light grey
Accessory "terminal guards"
B6801111
Version Closed
Supply 1 piece
B6801111
Terminal guards, closedlight grey
B6801112
Version 6 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6801112

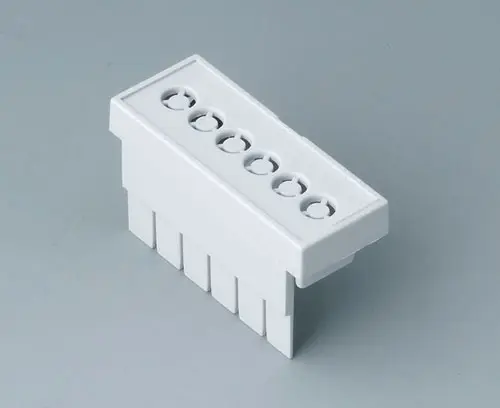

Terminal guards, perforated, 5.08light grey
B6801113
Version 6 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6801113
Terminal guards, with holes, 5.08light grey
B6801114
Version 4 poles (designed to allow the use of terminals, block 7.5 & 7.62)
Supply 1 piece
B6801114
Terminal guards, with holes, 7.5 & 7.62light grey
B6801115
Version 3 poles (designed to allow the use of terminals, block 10.16)
Supply 1 piece
B6801115
Terminal guards, with holes, 10.16light grey
Locking clip black/translucent
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 290 KB
- AutoCAD DWG-File 777 KB
- AutoCAD DXF-File 2.945 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 427 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011209.x_t 3.438 KB
- 00011209.STEP 7.209 KB
- 00011209.SAT 6.017 KB
Miscellaneous information
- Max. size of PCB in mm 285 KB
(OKW product)
