Accessori per contenitori
B6600334

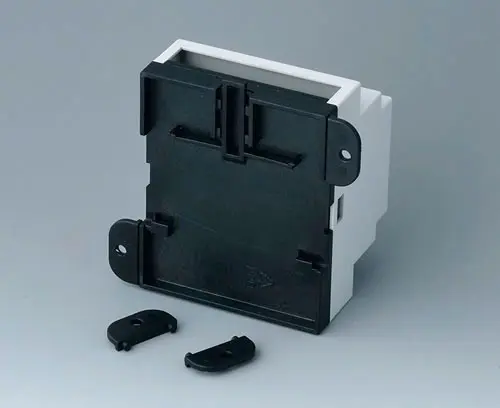

Wall suspension elements
For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).
Supply2 pieces as kit
Create la vostra scheda dati PDF per B6600334
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B6501110
RAILTEC B, 2 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin
Supply 1 base part with locking clip, 1 top part
B6501110
RAILTEC B, 2 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501111
RAILTEC B, 2 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (10 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6501111
RAILTEC B, 2 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501112
RAILTEC B, 2 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (5-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6501112
RAILTEC B, 2 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501113
RAILTEC B, 2 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6501113
RAILTEC B, 2 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501114
RAILTEC B, 2 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (10 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6501114
RAILTEC B, 2 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501115
RAILTEC B, 2 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (5-poles) blocks 5.0 / 5.08.
Supply 1 base part with locking clip, 1 top part
B6501115
RAILTEC B, 2 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501116
RAILTEC B, 2 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6501116
RAILTEC B, 2 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501117
RAILTEC B, 2 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6501117
RAILTEC B, 2 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501118
RAILTEC B, 2 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6501118
RAILTEC B, 2 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501119
RAILTEC B, 2 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin
Supply 1 base part with locking clip, 1 top part
B6501119
RAILTEC B, 2 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6501121
RAILTEC B, 2 modules, Vers. VI
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501121
RAILTEC B, 2 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
35x90x58mm
B6501223
RAILTEC B, 2 modules, Vers. III low profile
Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Closed case with a generous operating area for displays, operating elements and interfaces
Supply 1 base part with locking clip, 1 top part
B6501223
RAILTEC B, 2 modules, Vers. III low profileProdotto aggiunto alla lista
light grey RAL 7035
35x86x31,25mm
B6501229
RAILTEC B, 2 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 2 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501229
RAILTEC B, 2 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
35x89,6x31,25mm
B6502110
RAILTEC B, 3 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin
Supply 1 base part with locking clip, 1 top part
B6502110
RAILTEC B, 3 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502111
RAILTEC B, 3 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6502111
RAILTEC B, 3 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502112
RAILTEC B, 3 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (9-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6502112
RAILTEC B, 3 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502113
RAILTEC B, 3 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6502113
RAILTEC B, 3 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502114
RAILTEC B, 3 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6502114
RAILTEC B, 3 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502115
RAILTEC B, 3 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (9-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6502115
RAILTEC B, 3 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502116
RAILTEC B, 3 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6502116
RAILTEC B, 3 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502117
RAILTEC B, 3 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6502117
RAILTEC B, 3 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502118
RAILTEC B, 3 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6502118
RAILTEC B, 3 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502119
RAILTEC B, 3 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin
Supply 1 base part with locking clip, 1 top part
B6502119
RAILTEC B, 3 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
52,5x86x58mm
B6502121
RAILTEC B, 3 modules, Vers. VI
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6502121
RAILTEC B, 3 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
52,5x90x58mm
B6503110
RAILTEC B, 4 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin
Supply 1 base part with locking clip, 1 top part
B6503110
RAILTEC B, 4 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503111
RAILTEC B, 4 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (24 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6503111
RAILTEC B, 4 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503112
RAILTEC B, 4 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6503112
RAILTEC B, 4 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503113
RAILTEC B, 4 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6503113
RAILTEC B, 4 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503114
RAILTEC B, 4 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (24 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6503114
RAILTEC B, 4 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503115
RAILTEC B, 4 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6503115
RAILTEC B, 4 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503116
RAILTEC B, 4 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6503116
RAILTEC B, 4 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503117
RAILTEC B, 4 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6503117
RAILTEC B, 4 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503118
RAILTEC B, 4 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6503118
RAILTEC B, 4 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503119
RAILTEC B, 4 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin
Supply 1 base part with locking clip, 1 top part
B6503119
RAILTEC B, 4 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6503121
RAILTEC B, 4 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503121
RAILTEC B, 4 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
70x90x58mm
B6503223
RAILTEC B, 4 modules, Vers. III low profile
Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Closed case with a generous operating area for displays, operating elements and interfaces
Supply 1 base part with locking clip, 1 top part
B6503223
RAILTEC B, 4 modules, Vers. III low profileProdotto aggiunto alla lista
light grey RAL 7035
70x86x31,25mm
B6503229
RAILTEC B, 4 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503229
RAILTEC B, 4 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
70x89,6x31,25mm
B6504110
RAILTEC B, 6 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin
Supply 1 base part with locking clip, 1 top part
B6504110
RAILTEC B, 6 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504111
RAILTEC B, 6 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (36 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6504111
RAILTEC B, 6 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504112
RAILTEC B, 6 modules, Vers. II
Case corresponds to DIN 43880,size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6504112
RAILTEC B, 6 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504113
RAILTEC B, 6 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6504113
RAILTEC B, 6 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504114
RAILTEC B, 6 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (36 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6504114
RAILTEC B, 6 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504115
RAILTEC B, 6 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6504115
RAILTEC B, 6 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504116
RAILTEC B, 6 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6504116
RAILTEC B, 6 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504117
RAILTEC B, 6 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6504117
RAILTEC B, 6 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504118
RAILTEC B, 6 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6504118
RAILTEC B, 6 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504119
RAILTEC B, 6 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin
Supply 1 base part with locking clip, 1 top part
B6504119
RAILTEC B, 6 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6504121
RAILTEC B, 6 modules, Vers. VI
Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6504121
RAILTEC B, 6 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
105x90x58mm
B6504223
RAILTEC B, 6 modules, Vers. III low profile
Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Closed case with a generous operating area for displays, operating elements and interfaces
Supply 1 base part with locking clip, 1 top part
B6504223
RAILTEC B, 6 modules, Vers. III low profileProdotto aggiunto alla lista
light grey RAL 7035
105x86x31,25mm
B6504229
RAILTEC B, 6 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6504229
RAILTEC B, 6 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
105x89,6x31,25mm
B6505110
RAILTEC B, 9 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505110
RAILTEC B, 9 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505111
RAILTEC B, 9 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505111
RAILTEC B, 9 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505112
RAILTEC B, 9 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505112
RAILTEC B, 9 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505113
RAILTEC B, 9 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505113
RAILTEC B, 9 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505114
RAILTEC B, 9 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505114
RAILTEC B, 9 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505115
RAILTEC B, 9 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505115
RAILTEC B, 9 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505116
RAILTEC B, 9 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505116
RAILTEC B, 9 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505117
RAILTEC B, 9 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505117
RAILTEC B, 9 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505118
RAILTEC B, 9 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505118
RAILTEC B, 9 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505119
RAILTEC B, 9 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505119
RAILTEC B, 9 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6505121
RAILTEC B, 9 modules, Vers. VI
Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505121
RAILTEC B, 9 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
157x90x58mm
B6505223
RAILTEC B, 9 modules, Vers. III low profile
Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Closed case with a generous operating area for displays, operating elements and interfaces
Supply 1 base part with locking clip, 1 top part
B6505223
RAILTEC B, 9 modules, Vers. III low profileProdotto aggiunto alla lista
light grey RAL 7035
157x86x31,25mm
B6505229
RAILTEC B, 9 modules, Vers. low profile
Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505229
RAILTEC B, 9 modules, Vers. low profileProdotto aggiunto alla lista
light grey RAL 7035
157,5x89,6x31,25mm
B6506110
RAILTEC B, 12 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506110
RAILTEC B, 12 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506111
RAILTEC B, 12 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (64 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6506111
RAILTEC B, 12 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506112
RAILTEC B, 12 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6506112
RAILTEC B, 12 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506113
RAILTEC B, 12 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6506113
RAILTEC B, 12 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506114
RAILTEC B, 12 modules, Vers. I
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (64 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6506114
RAILTEC B, 12 modules, Vers. IProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506115
RAILTEC B, 12 modules, Vers. II
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For plug header (4 x 8-poles and 4 x 7-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6506115
RAILTEC B, 12 modules, Vers. IIProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506116
RAILTEC B, 12 modules, Vers. III
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6506116
RAILTEC B, 12 modules, Vers. IIIProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506117
RAILTEC B, 12 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6506117
RAILTEC B, 12 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506118
RAILTEC B, 12 modules, Vers. IV
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6506118
RAILTEC B, 12 modules, Vers. IVProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506119
RAILTEC B, 12 modules, Vers. V
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.
Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles
Supply 1 base part with locking clip, 1 top part
B6506119
RAILTEC B, 12 modules, Vers. VProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6506121
RAILTEC B, 12 modules, Vers. VI
Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6506121
RAILTEC B, 12 modules, Vers. VIProdotto aggiunto alla lista
light grey RAL 7035
210x90x58mm
B6511111
RAILTEC B, 2 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (5 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6511111
RAILTEC B, 2 modules, Vers. XIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6511112
RAILTEC B, 2 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (5-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6511112
RAILTEC B, 2 modules, Vers. XIIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6511113
RAILTEC B, 2 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6511113
RAILTEC B, 2 modules, Vers. XIIIProdotto aggiunto alla lista
light grey RAL 7035
35x86x58mm
B6513111
RAILTEC B, 4 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (12 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6513111
RAILTEC B, 4 modules, Vers. XIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6513112
RAILTEC B, 4 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (12-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6513112
RAILTEC B, 4 modules, Vers. XIIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6513113
RAILTEC B, 4 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6513113
RAILTEC B, 4 modules, Vers. XIIIProdotto aggiunto alla lista
light grey RAL 7035
70x86x58mm
B6514111
RAILTEC B, 6 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (18 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6514111
RAILTEC B, 6 modules, Vers. XIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6514112
RAILTEC B, 6 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 18-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6514112
RAILTEC B, 6 modules, Vers. XIIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6514113
RAILTEC B, 6 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6514113
RAILTEC B, 6 modules, Vers. XIIIProdotto aggiunto alla lista
light grey RAL 7035
105x86x59mm
B6515111
RAILTEC B, 9 modules, Vers. XI
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For terminal blocks 5.0 / 5.08 (26 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6515111
RAILTEC B, 9 modules, Vers. XIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6515112
RAILTEC B, 9 modules, Vers. XII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version For plug header (2 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6515112
RAILTEC B, 9 modules, Vers. XIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
B6515113
RAILTEC B, 9 modules, Vers. XIII
Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6515113
RAILTEC B, 9 modules, Vers. XIIIProdotto aggiunto alla lista
light grey RAL 7035
157x86x59mm
Customising options for B6600334
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Denmark
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B6600334 e non dimenticare di chiedere la quotazione!
