B2210117

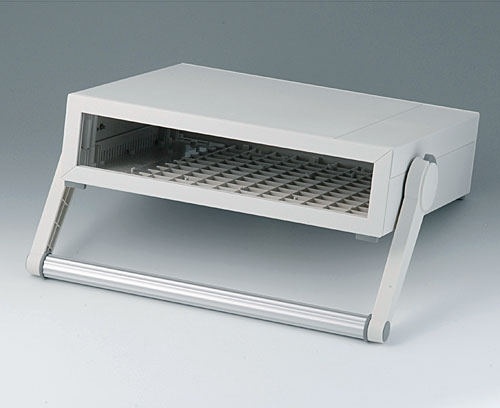

MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar
Disegno PDF 2D
Vista 3D in PDF
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B2210117
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
Accessory to complete
B2129007
Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version D (for MEDITEC D160 or D220)
Supply 1 angle, 1 cover, assembly kit
B2129007
Sloping control panel DProdotto aggiunto alla lista
off-white RAL 9002
B2129307

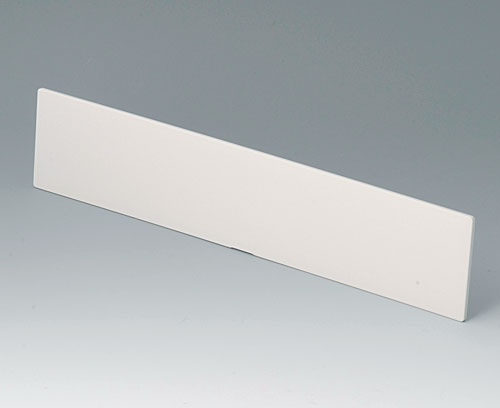

Front / rear panel D, flat
For case without side panels.
Supply 1 front panel
B2129307
Front / rear panel D, flatProdotto aggiunto alla lista
off-white RAL 9002
271,6x55,6x3mm
Accessory "screws"
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screwsProdotto aggiunto alla lista
Accessory
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elementsProdotto aggiunto alla lista
volcano
Customising options for B2210117
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Materiale
Protection class
Colore
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Larghezza
290 mm
Profindità
260 mm
Altezza
74 mm
PCB length, base
260 mm
PCB width, base
245 mm
Keypad length
262 mm
Keypad width
46 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Assembly Instructions (Part)
- Trims, MEDITEC, assembly instruction (English) 2.175 KB
- Handle bar, MEDITEC, assembly instruction (English) 2.184 KB
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 471 KB
- AutoCAD DWG-File 1.082 KB
- AutoCAD DXF-File 4.451 KB
- Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti e accessori ecc.) 10.594 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010942.x_t 12.077 KB
- 00010942.STEP 27.698 KB
- 00010942.SAT 62.799 KB
Weight/1 part
1380 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2210117 e non dimenticare di chiedere la quotazione!
