Accessori per contenitori
B2129007

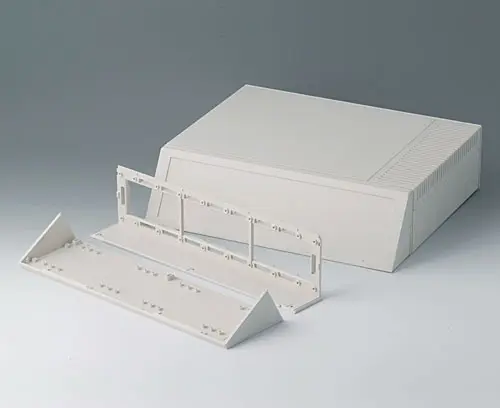

Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
VersionD (for MEDITEC D160 or D220)
Supply1 angle, 1 cover, assembly kit
Disegno PDF 2D
3D/2D download
3D/2D download
Create la vostra scheda dati PDF per B2129007
Selezionate le informazioni prodotto per la vostra scheda dati.
Aggiungi al carrello
B2010007
L-shells D 220, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010007
L-shells D 220, without holesProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2010107
L-shells D 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010107
L-shells D 220, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2011007
L-shells D 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011007
L-shells D 160, without holesProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2011107
L-shells D 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011107
L-shells D 160, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilationProdotto aggiunto alla lista
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilationProdotto aggiunto alla lista
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilationProdotto aggiunto alla lista
lagoon
B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilationProdotto aggiunto alla lista
off-white RAL 9002
B2022005
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilationProdotto aggiunto alla lista
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilationProdotto aggiunto alla lista
off-white RAL 9002
B2023005
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilationProdotto aggiunto alla lista
lagoon
B2023007
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023007
Side trims 160, with ventilationProdotto aggiunto alla lista
off-white RAL 9002
B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030007
Side panels 220, without holesProdotto aggiunto alla lista
off-white RAL 9002
B2030107
Side panels 220, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030107
Side panels 220, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
B2031007
Side panels 160, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031007
Side panels 160, without holesProdotto aggiunto alla lista
off-white RAL 9002
B2031107
Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handleProdotto aggiunto alla lista
off-white RAL 9002
B2129507
Handle bar D
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 Al-profile, antislipping device, lid, assembly kit
B2129507
Handle bar DProdotto aggiunto alla lista
off-white RAL 9002
B2210005
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2210005
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210007
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2210007
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210015
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2210015
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210017
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2210017
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210105
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar
B2210105
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210107
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar
B2210107
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210115
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar
B2210115
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210117
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar
B2210117
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x74mm
B2210205
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210205
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210207
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210207
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210215
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210215
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210217
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210217
MEDITEC D 220, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210305
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2210305
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210307
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2210307
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210315
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2210315
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2210317
MEDITEC D 220, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2210317
MEDITEC D 220, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x260x124mm
B2211005
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2211005
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211007
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2211007
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211015
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2211015
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211017
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2211017
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211105
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar
B2211105
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211107
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar
B2211107
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211115
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar
B2211115
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211117
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar
B2211117
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x74mm
B2211205
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2211205
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211207
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2211207
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211215
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2211215
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211217
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2211217
MEDITEC D 160, without handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211305
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2211305
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211307
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2211307
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211315
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2211315
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
B2211317
MEDITEC D 160, with handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet, 1 handle bar
B2211317
MEDITEC D 160, with handle barProdotto aggiunto alla lista
off-white RAL 9002
290x200x124mm
Customising options for B2129007
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dati tecnici
-
Disegni / Informazioni
- Purchasing Data
Keypad length
261,7 mm
Keypad width
66 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 213 KB
- AutoCAD DWG-File 473 KB
- AutoCAD DXF-File 1.504 KB
Weight/1 part
170 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Servizio di customizzazione : Possiamo modificare i nostri contenitori per soddisfare le vostre specifiche esigenze. Saranno consegnati completamente finiti e pronti all’uso. Dovrete solamente installare la vostra elettronica al loro interno. Visualizza le opzioni di customizzazione B2129007 e non dimenticare di chiedere la quotazione!
