Accessori per contenitori

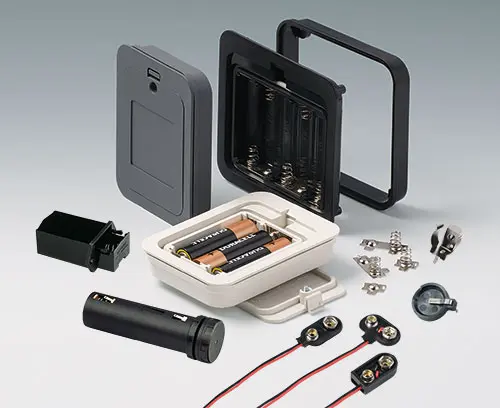

Supporto batteria, vani batteria, supporti pile a bottone

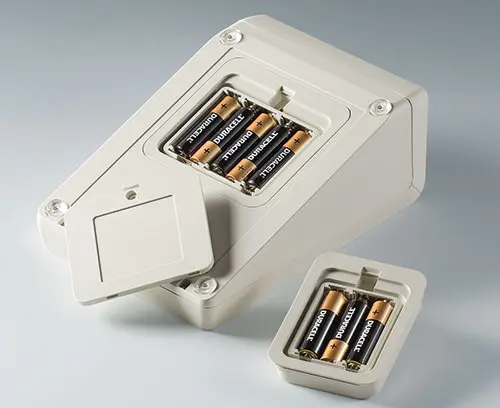

- Vani e supporti universali per batterie AAA, AA, C e a 9V per l'installazione diretta in placche frontali o pareti del contenitore.

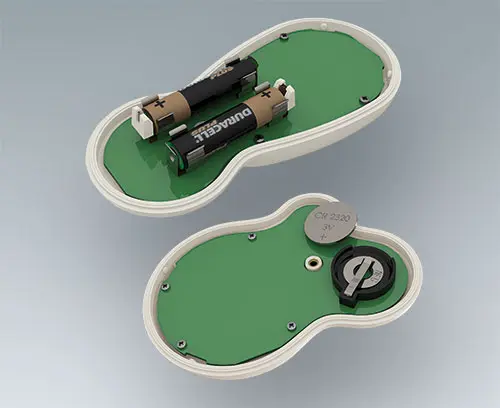

- Supporti per pile a bottone per il montaggio su schede.

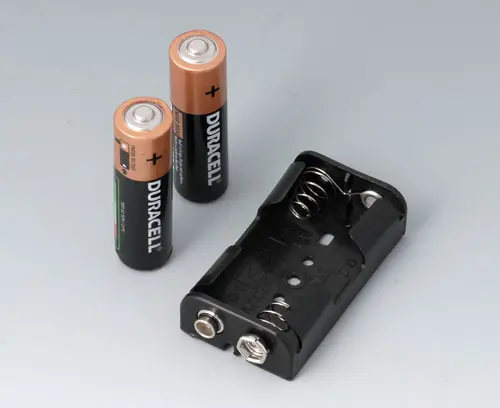

A9156001
Battery holder, 2 x AA
For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).
Supply 1 battery holder
A9156001
Battery holder, 2 x AAProdotto aggiunto alla lista
black RAL 9005

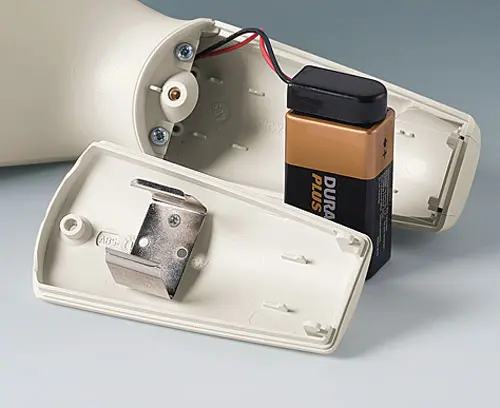

A9156003

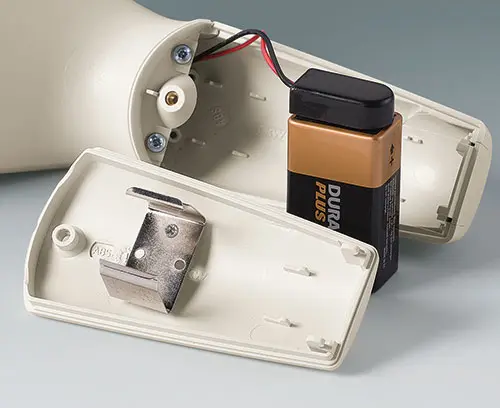

Battery holder, 1 x 9 V (PP3)
For 1 x 9 V flat battery (PP3).
Supply 1 battery holder, 2 self-tapping screws
A9156003
Battery holder, 1 x 9 V (PP3)Prodotto aggiunto alla lista
nickel-plated

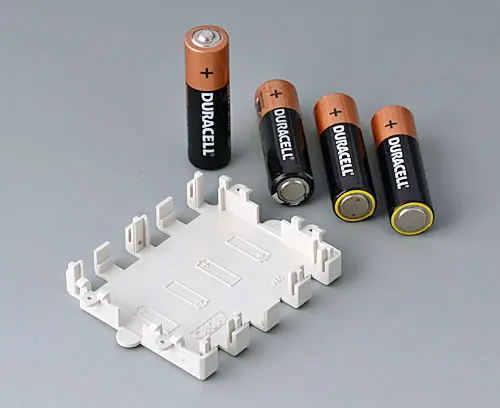

A9174004
Battery compartment, 4 x AA
Application: for 4 x 1.5 V mignon-cells (AA).
Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.
Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.
Supply 1 battery compartment, assembly kit
A9174004
Battery compartment, 4 x AAProdotto aggiunto alla lista
off-white RAL 9002
A9193037
Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mmProdotto aggiunto alla lista
A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mmProdotto aggiunto alla lista
A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mmProdotto aggiunto alla lista
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mmProdotto aggiunto alla lista
A9250250
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacerProdotto aggiunto alla lista
50x25x4mm

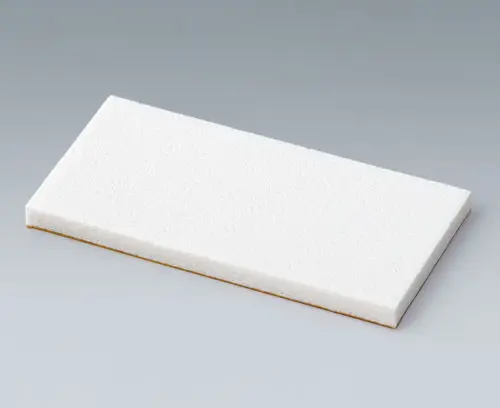

A9250251
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.
Application: DATEC-POCKET-BOX L.
Supply 1 spacer
A9250251
Battery spacerProdotto aggiunto alla lista
50x25x3mm

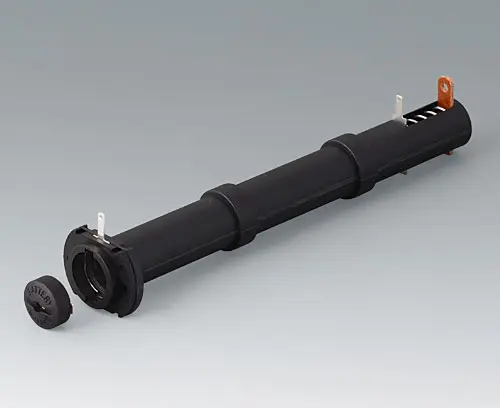

A9301330
Battery holder, 3 x AA
Battery holder for direct installation in front and rear panels. Battery replacement is considerably easier - housings need not be opened.
Version For 3 mignon cells 1.5 V (AA), mounting lenght 169.5 mm
Supply 1 battery holder
A9301330
Battery holder, 3 x AAProdotto aggiunto alla lista
black RAL 9005

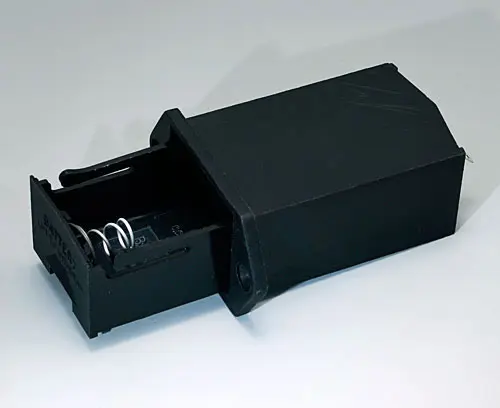

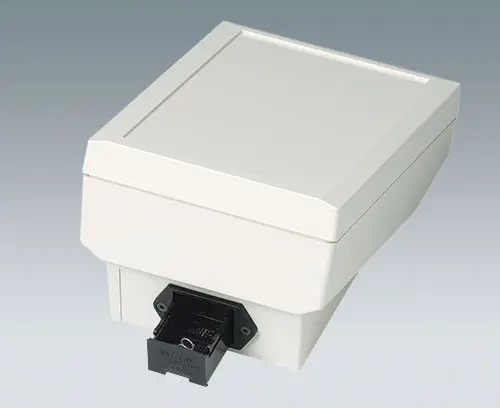

A9302510
Battery holder, 1 x 9 V (PP3)
Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.
Version For 1 flat battery 9 V (PP3)
Supply 1 battery holder, 1 drawer
A9302510
Battery holder, 1 x 9 V (PP3)Prodotto aggiunto alla lista
black RAL 9005

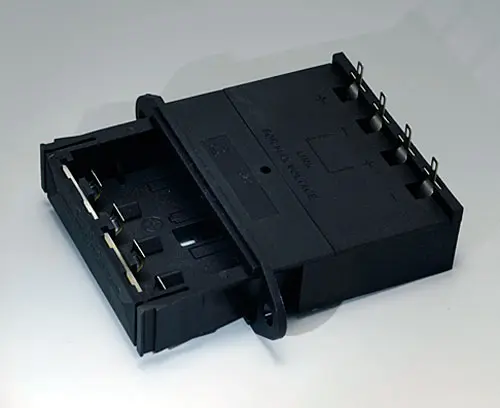

A9302540
Battery holder, 4 x AA
Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.
Version For 4 mignon cells 1.5 V (AA)
Supply 1 battery holder, 1 drawer
A9302540
Battery holder, 4 x AAProdotto aggiunto alla lista
black RAL 9005

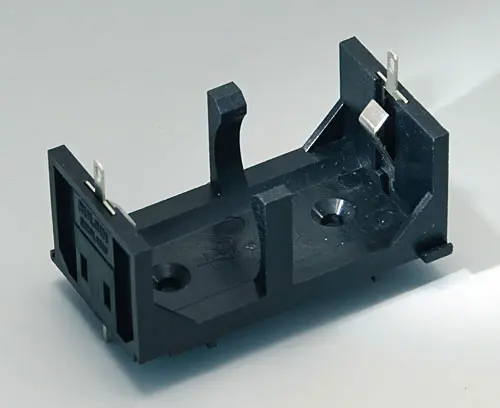

A9303210
Battery holder, 1 x C
Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.
Version For 1 baby cell 1.5 V (C/LR14)
Supply 1 battery holder
A9303210
Battery holder, 1 x CProdotto aggiunto alla lista
black RAL 9005

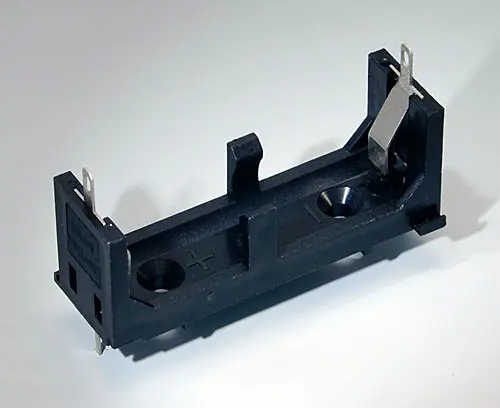

A9303310
Battery holder, 1 x AA
Insert battery holder. With direct line connection - can be soldered or used with plugs 2.8 x 0.3 mm. With pins for boards.
Version For 1 mignon cell 1.5 V (AA/LR6)
Supply 1 battery holder
A9303310
Battery holder, 1 x AAProdotto aggiunto alla lista
black RAL 9005

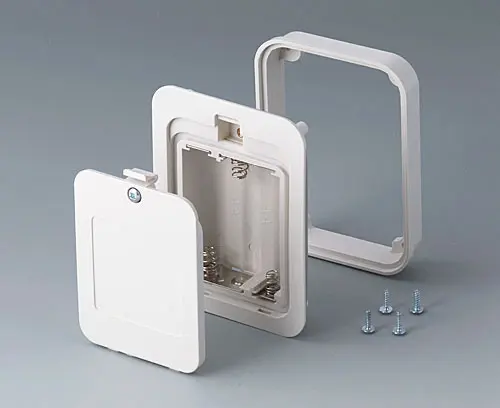

A9336117
Battery compartment kit, 3 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9336117
Battery compartment kit, 3 x AAProdotto aggiunto alla lista
off-white RAL 9002
93x69mm

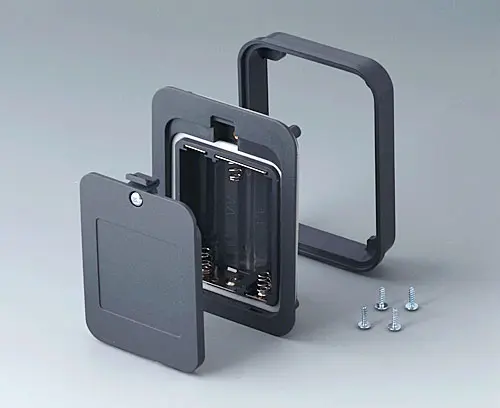

A9336118
Battery compartment kit, 3 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9336118
Battery compartment kit, 3 x AAProdotto aggiunto alla lista
lava
93x69mm

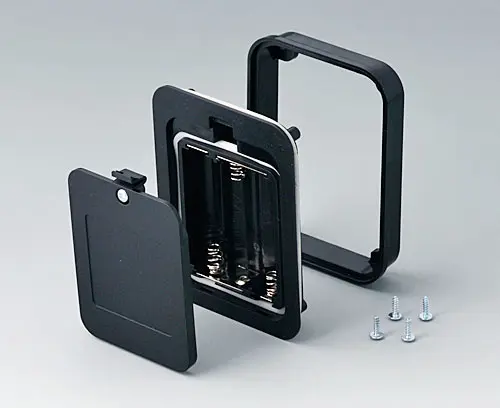

A9336119
Battery compartment kit, 3 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9336119
Battery compartment kit, 3 x AAProdotto aggiunto alla lista
black RAL 9005
93x69mm
A9338117
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338117
Battery compartment kit, 5 x AAProdotto aggiunto alla lista
off-white RAL 9002
93x98mm
A9338118
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338118
Battery compartment kit, 5 x AAProdotto aggiunto alla lista
lava
93x98mm

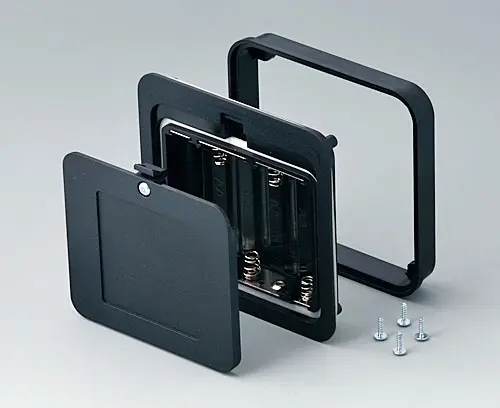

A9338119
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338119
Battery compartment kit, 5 x AAProdotto aggiunto alla lista
black RAL 9005
93x98mm

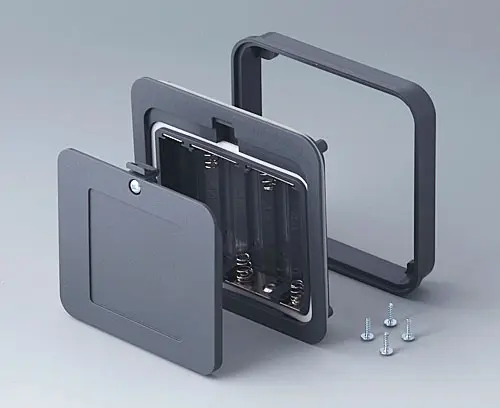

A9338218
Battery compartment kit, 5 x AA
For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 3 mm wall thickness where a recess of 1.5 mm is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.
Supply 1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
A9338218
Battery compartment kit, 5 x AAProdotto aggiunto alla lista
lava
93x98mm
A9345217
Set of battery compartment, 4 x AA
For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).
Supply 1 battery compartment, battery clips nickel-plated, assembly kit
A9345217
Set of battery compartment, 4 x AAProdotto aggiunto alla lista
off-white RAL 9002
