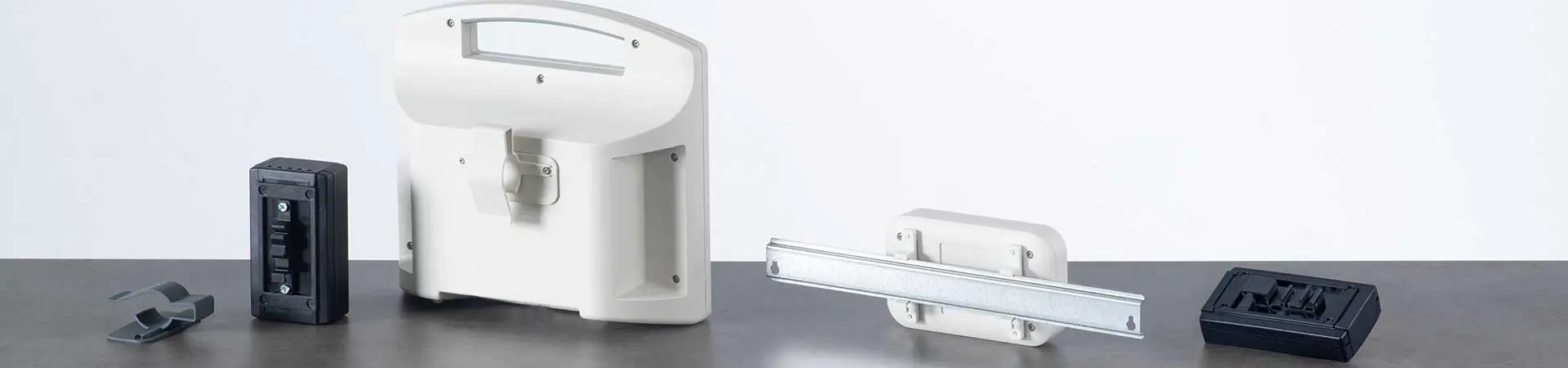

Supporti, fissaggi su binari/su tubi

Supporti, fissaggi su binari/su tubi

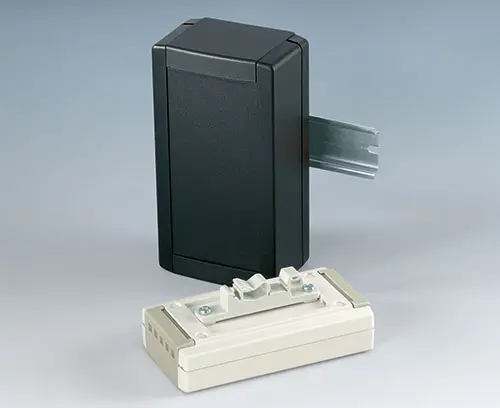

  • Elemento di fissaggio per guide DIN EN 60715 TH35 e G32

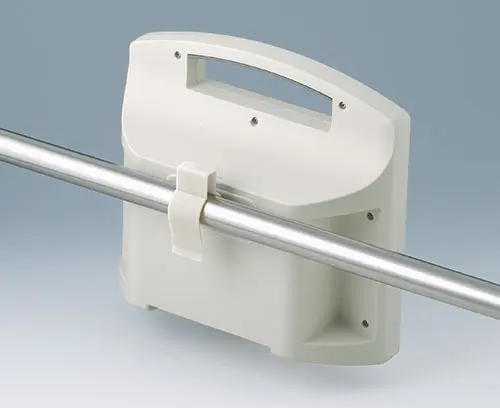

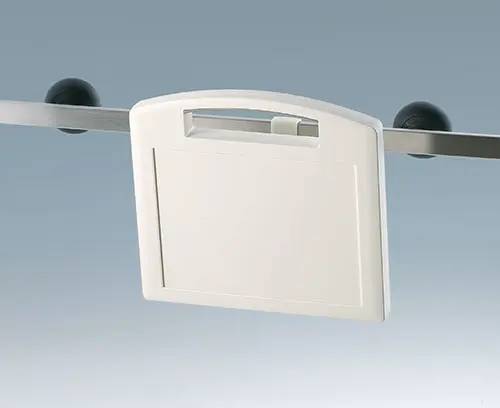

  • Fermaglio di bloccaggio per tubolari fino a ø 32 mm / guide per apparecchi secondo DIN EN ISO 19054
  • Staffa di montaggio per palo/traliccio e altre applicazioni
  • Seleziona tutti gli articoli
  • Modifiche specifiche del cliente

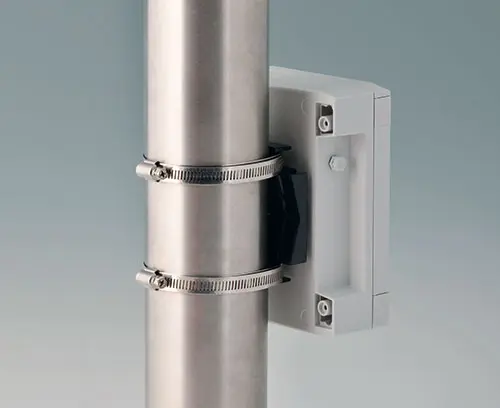

A9325018 Pole/mast mounting bracket

A9325018

Pole/mast mounting bracket

For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.

Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.

Supply 1 pole/mast mounting bracket

Chiudi

A9325018

Pole/mast mounting bracket
Prodotto aggiunto alla lista
ASA (UL 94 HB)
anthracite grey RAL 7016
100x100x20mm

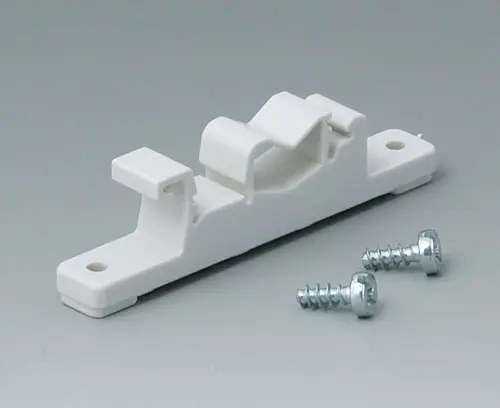

B1300017 Fastening element for DIN-Rails

B1300017

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Chiudi

B1300017

Fastening element for DIN-Rails
Prodotto aggiunto alla lista
PA 6
off-white RAL 9002

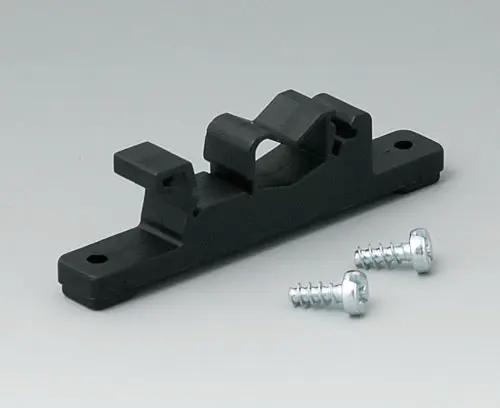

B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply 1 piece incl, assembly kit

Chiudi

B1300019

Fastening element for DIN-Rails
Prodotto aggiunto alla lista
PA 6
black RAL 9005

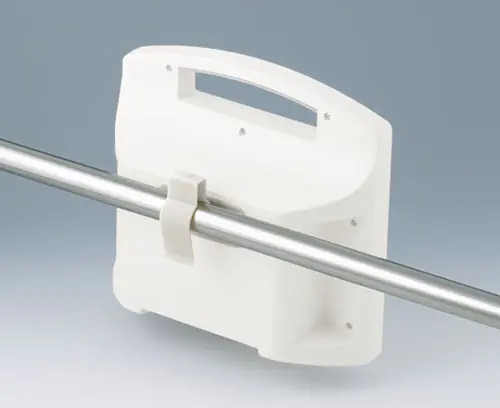

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Chiudi

B4308237

Holding clamps
Prodotto aggiunto alla lista
PA 6
off-white RAL 9002
B4308238 Holding clamps

B4308238

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Chiudi

B4308238

Holding clamps
Prodotto aggiunto alla lista
PA 6
lava

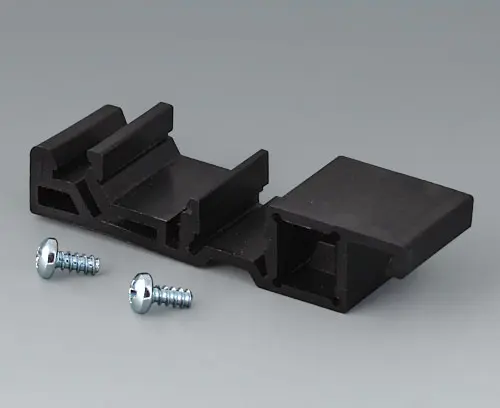

B6811751 DIN rail adapter

B6811751

DIN rail adapter Universal suspension element suitable for small plastic enclosures. Suitable for DIN EN 60715 (TH35, TH15 and G32). 2 screws for case assembly for wall thickness 3 mm. Locating holes see drawing.

Supply 1 piece, 2 screws

Chiudi

B6811751

DIN rail adapter
Prodotto aggiunto alla lista
PA 66 (UL 94 V-0)
black RAL 9005

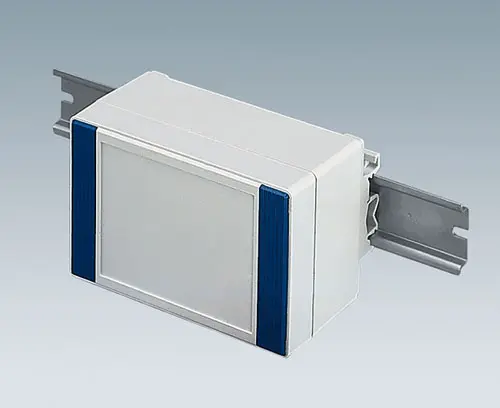

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

Chiudi

C2201088

Fastening elements to DIN-Rails
Prodotto aggiunto alla lista
PA 6
light grey RAL 7035
C2203128 Fastening elements to DIN-Rails

C2203128

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 120.

Supply 2 fastening elements, assembly kit

Chiudi

C2203128

Fastening elements to DIN-Rails
Prodotto aggiunto alla lista
PA 6
light grey RAL 7035
C2204168 Fastening elements to DIN-Rails

C2204168

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60715 TH35. For ROBUST-BOX width 160.

Supply 2 fastening elements, assembly kit

Chiudi

C2204168

Fastening elements to DIN-Rails
Prodotto aggiunto alla lista
PA 6
light grey RAL 7035

Opzioni prodotto per Supporti, fissaggi su binari/su tubi

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
