DIN modulární skříňka
A9068137
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
VersionWithout battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
SupplyCase-top and base, cable strain, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9068137
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "protection"
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefProdukt byl přidán do Vašeho košíku.
volcano
A9168002

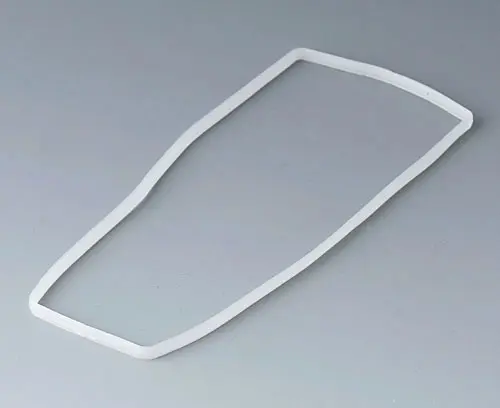

Sealing XL
Application: For a higher protection class. For the versions II - V.
Supply 1 sealing
A9168002
Sealing XLProdukt byl přidán do Vašeho košíku.
Accessory "wall/holder"
A9167027
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167027
Holding clampProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
A9168005
Adhesive foil XL
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9168005
Adhesive foil XLProdukt byl přidán do Vašeho košíku.
A9168307

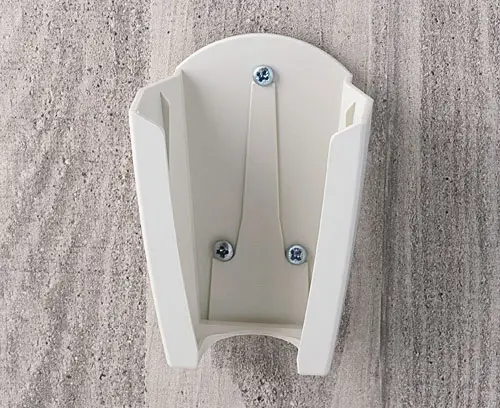

Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168307
Holder XLProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
Accessory "carrying"
A9167017

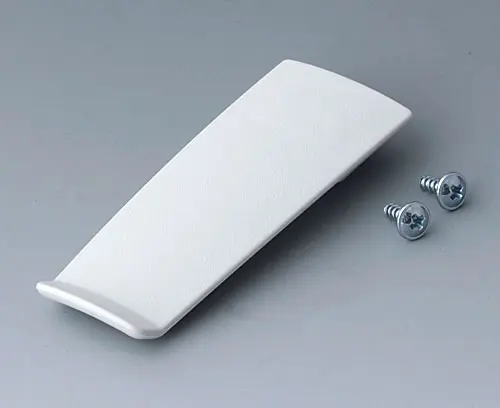

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167017
Belt/pocket clipProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Customising options for A9068137
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Enclosure
Cable gland
Třída produktu
Necessary accessories: sealing,
Barva
Enclosure
off-white RAL 9002,
Cable gland volcano
Cable gland volcano
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
168 mm
Šířka
74,4 mm
Výška
35,4 mm
PCB length, base
127 mm
PCB width, base
61 mm
PCB length, top
132 mm
PCB width, top
61 mm
Keypad length
110,5 mm
Keypad width
61,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 403 KB
- AutoCAD DWG-File 1 683 KB
- AutoCAD DXF-File 6 394 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 529 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012312.x_t 2 916 KB
- 00012312.STEP 6 744 KB
- 00012312.SAT 7 144 KB
Weight/1 part
98 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9068137 a nezapomeňte si vyžádat nabídku!
