DIN modulární skříňka

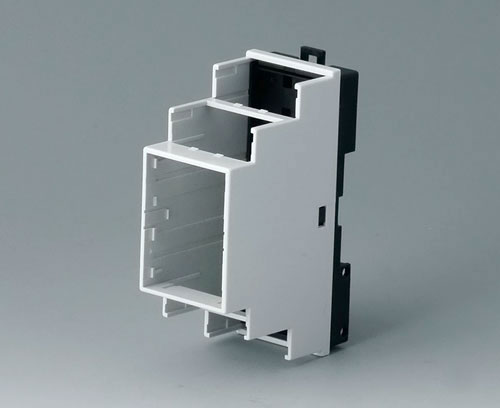

B6501121
RAILTEC B, 2 modules, Vers. VI
Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.
VersionIndividual configuration see accessories
Supply1 base part with locking clip, 1 top part
Generovat PDF pro B6501121
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "wall/holder"
B6600334
Supply 2 pieces as kit
B6600334
Wall suspension elementsblack
Accessory "terminals"

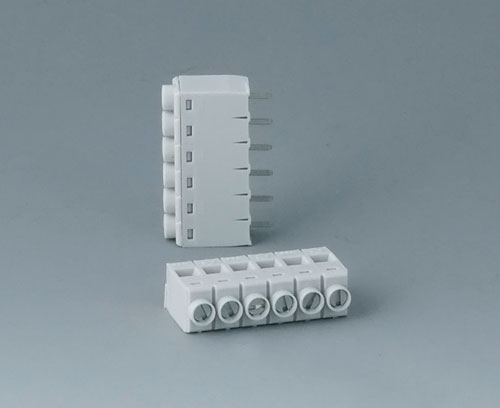

B6607111
Supply 1 piece
B6607111
Terminal block, block 5.0

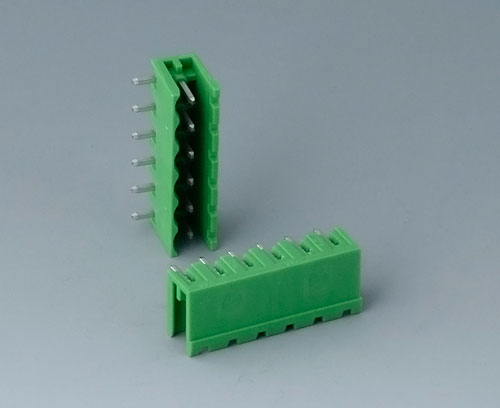

B6608222
Supply 1 piece
B6608222
Plug header, block 5.08
B6608223
Supply 1 piece
B6608223

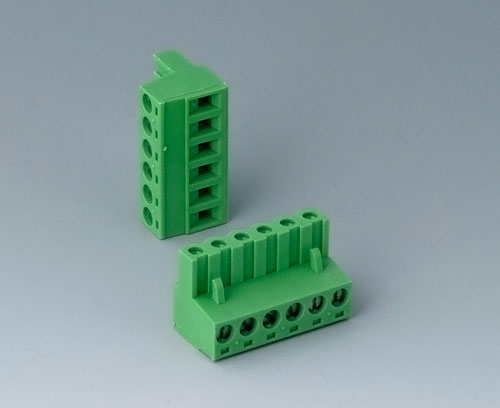

Plug header, block 5.08Accessory "terminal guards"

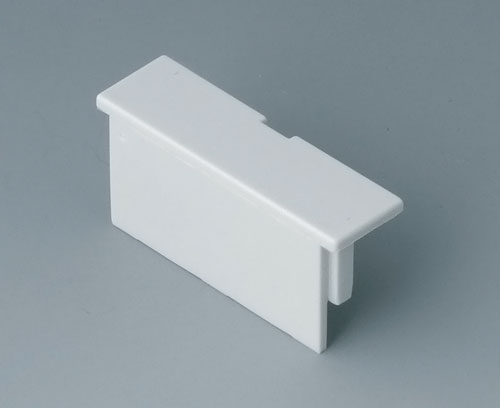

B6607140
Version Closed
Supply 1 piece
B6607140
Terminal guards, flatlight grey
B6607141
Version With ventilation slots
Supply 1 piece
B6607141
Terminal guards, flatlight grey
B6607142
Version For terminal block, block 5.0, 6-poles
Supply 1 piece
B6607142

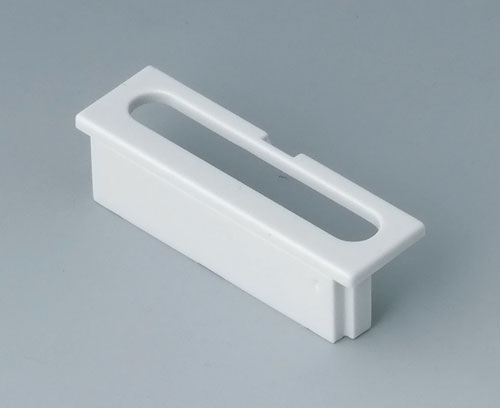

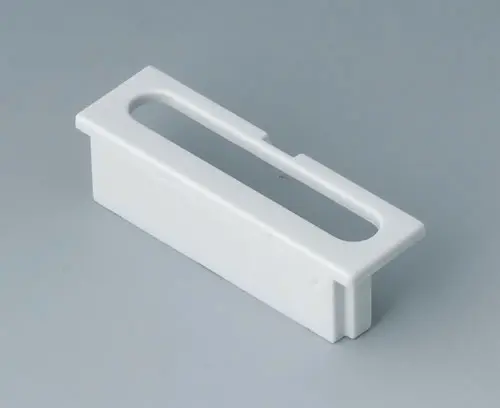

Terminal guards, flatlight grey
B6607143
Version Perforated, for block 5.0
Supply 1 piece
B6607143
Terminal guards, flatlight grey
B6607145
Version For KNX connector
Supply 1 piece
B6607145

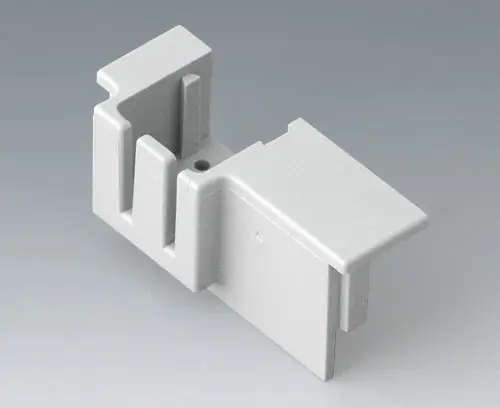

KNX Cover, flatlight grey

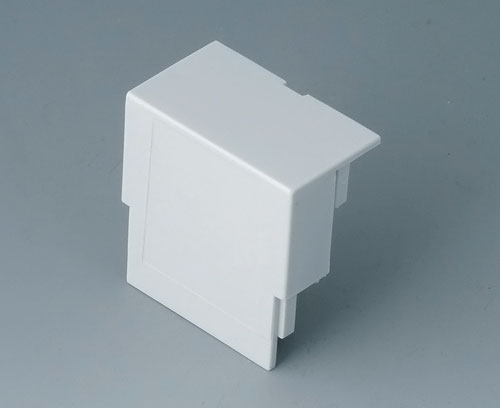

B6607160
Version Closed
Supply 1 piece
B6607160
Terminal guards, highlight grey

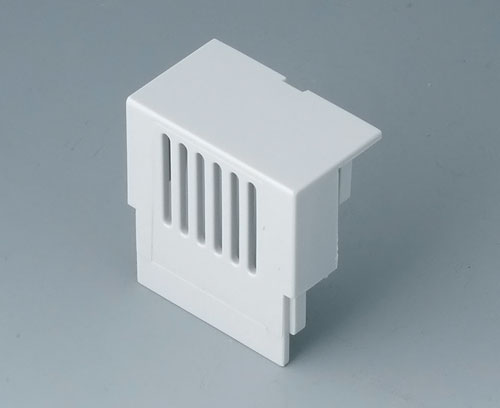

B6607161
Version With ventilation slots
Supply 1 piece
B6607161
Terminal guards, highlight grey
B6607162
Version Convex, closed
Supply 1 piece
B6607162
Terminal guards, highlight grey

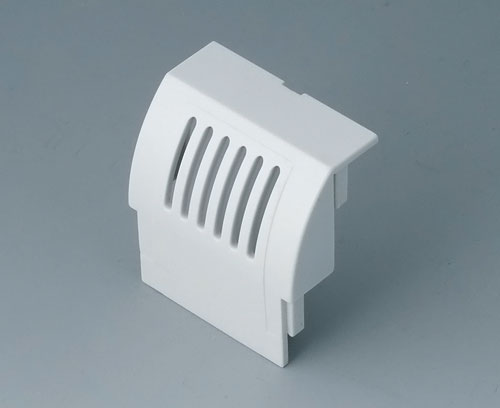

B6607163
Version Convex, with ventilation slots
Supply 1 piece
B6607163
Terminal guards, highlight grey
B6607191
Version With ventilation slots
Supply 1 piece
B6607191
Partition platelight grey
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Accessory
B6601100
Supply 1 lid
B6601100
Lid, 2 modulestransparent

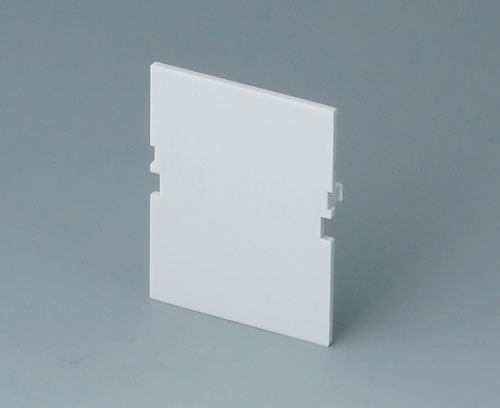

B6601180
Supply 1 front panel
B6601180
Front panel, 2 modules, Vers. VIlight grey
32x42mm
B6601480
Supply 1 front panel
B6601480
Front panel, 2 modules, Vers. VIred transparent
32x42mm
B6601580
Supply 1 front panel
B6601580

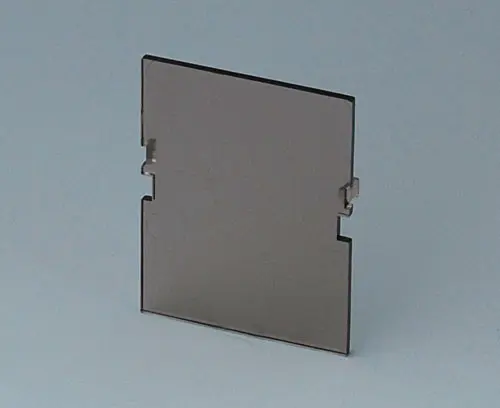

Front panel, 2 modules, Vers. VIsmoked glass
32x42mm
Top part
Bottom part
Bottom part black,
Locking clip black
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 205 KB
- AutoCAD DWG-File 424 KB
- AutoCAD DXF-File 1 425 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 294 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00010002.x_t 3 857 KB
- 00010002.STEP 8 254 KB
- 00010002.SAT 9 922 KB
Miscellaneous information
- Max. size of PCB in mm 568 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6501121 a nezapomeňte si vyžádat nabídku!
