DIN modulární skříňka
B6601100
Lid, 2 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Generovat PDF pro B6601100
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
B6501110
Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin
Supply 1 base part with locking clip, 1 top part
B6501110
RAILTEC B, 2 modules, Vers. Vlight grey RAL 7035
35x86x58mm
B6501111
Version For terminal blocks 5.0 / 5.08 (10 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6501111
RAILTEC B, 2 modules, Vers. Ilight grey RAL 7035
35x86x58mm

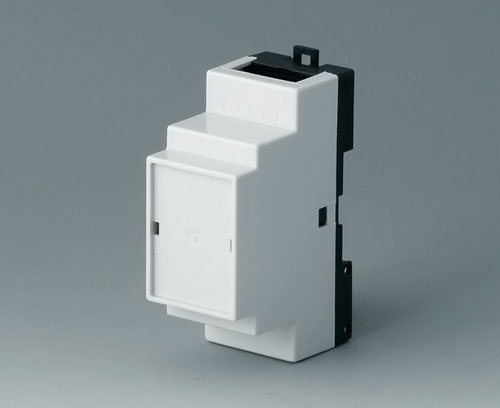

B6501112
Version For plug header (5-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6501112
RAILTEC B, 2 modules, Vers. IIlight grey RAL 7035
35x86x58mm

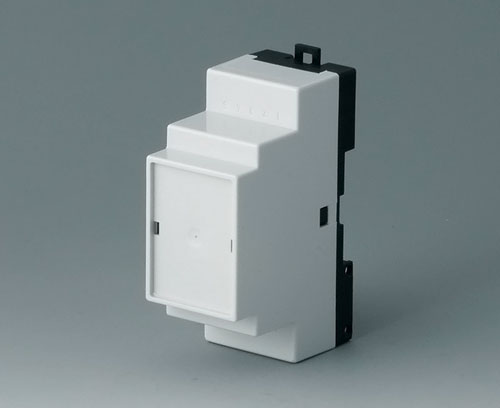

B6501113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6501113
RAILTEC B, 2 modules, Vers. IIIlight grey RAL 7035
35x86x58mm

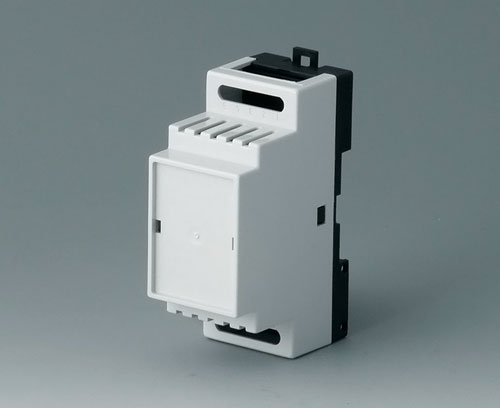

B6501114
Version For terminal blocks 5.0 / 5.08 (10 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6501114
RAILTEC B, 2 modules, Vers. Ilight grey RAL 7035
35x86x58mm

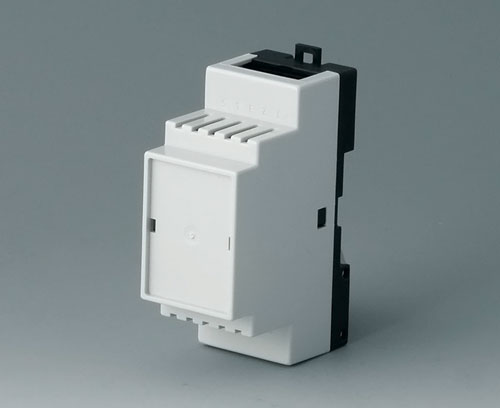

B6501115
Version For plug header (5-poles) blocks 5.0 / 5.08.
Supply 1 base part with locking clip, 1 top part
B6501115
RAILTEC B, 2 modules, Vers. IIlight grey RAL 7035
35x86x58mm

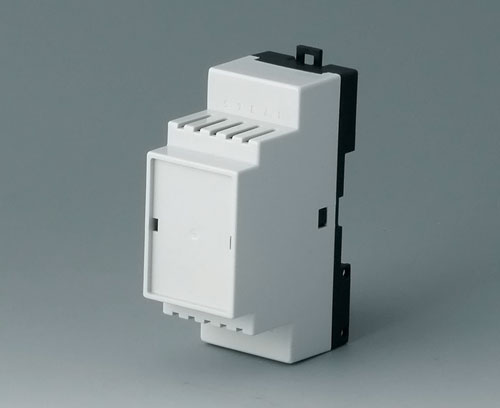

B6501116
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6501116
RAILTEC B, 2 modules, Vers. IIIlight grey RAL 7035
35x86x58mm
B6501117
Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6501117
RAILTEC B, 2 modules, Vers. IVlight grey RAL 7035
35x86x58mm
B6501118
Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6501118
RAILTEC B, 2 modules, Vers. IVlight grey RAL 7035
35x86x58mm

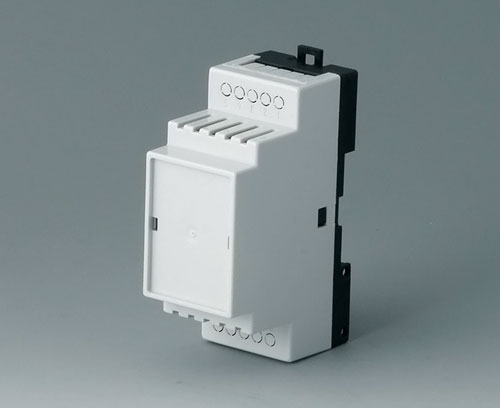

B6501119
Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin
Supply 1 base part with locking clip, 1 top part
B6501119
RAILTEC B, 2 modules, Vers. Vlight grey RAL 7035
35x86x58mm
B6501121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501121
RAILTEC B, 2 modules, Vers. VIlight grey RAL 7035
35x90x58mm

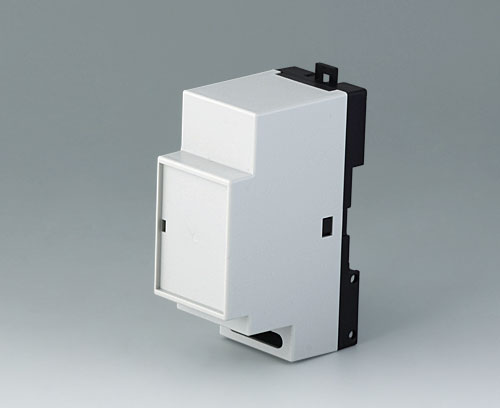

B6511111
Version For terminal blocks 5.0 / 5.08 (5 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6511111
RAILTEC B, 2 modules, Vers. XIlight grey RAL 7035
35x86x58mm
B6511112
Version For plug header (5-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6511112
RAILTEC B, 2 modules, Vers. XIIlight grey RAL 7035
35x86x58mm

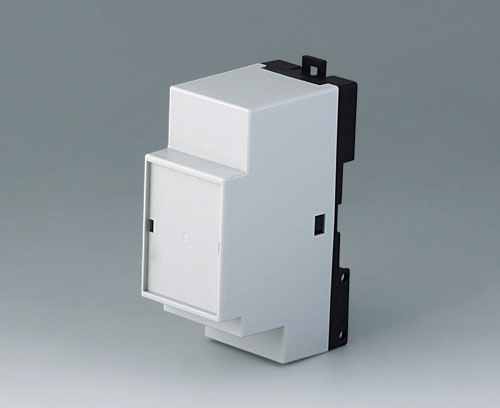

B6511113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6511113
RAILTEC B, 2 modules, Vers. XIIIlight grey RAL 7035
35x86x58mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 86 KB
- AutoCAD DWG-File 251 KB
- AutoCAD DXF-File 710 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6601100 a nezapomeňte si vyžádat nabídku!
