DIN modulární skříňka

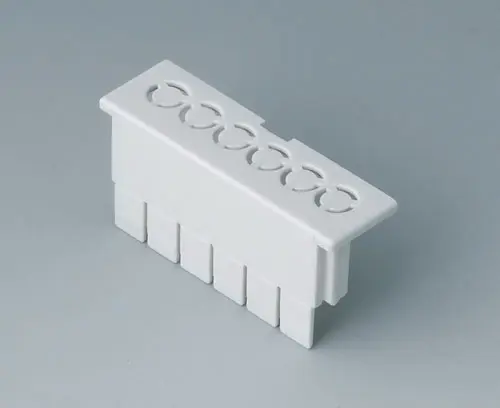

B6607143
Terminal guards, flat
Easy assembly through snap-in installation of the case parts.
VersionPerforated, for block 5.0
Supply1 piece
Generovat PDF pro B6607143
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

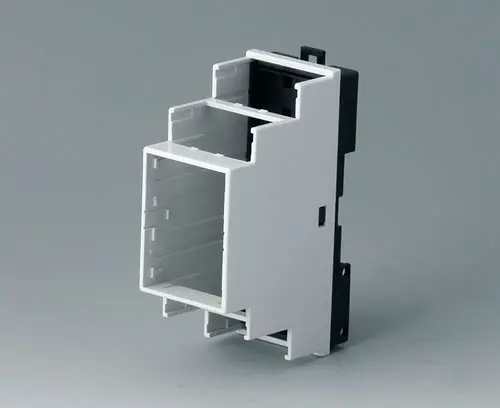

B6501121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501121
RAILTEC B, 2 modules, Vers. VIlight grey RAL 7035
35x90x58mm

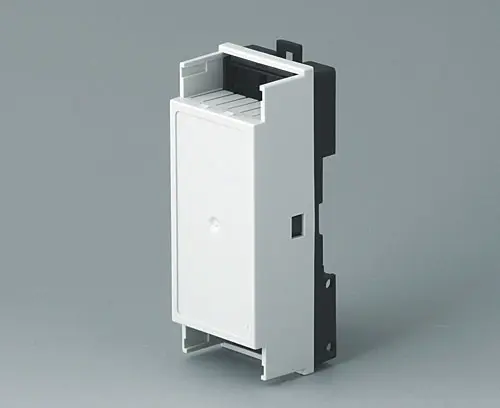

B6501229
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6501229
RAILTEC B, 2 modules, Vers. low profilelight grey RAL 7035
35x89,6x31,25mm

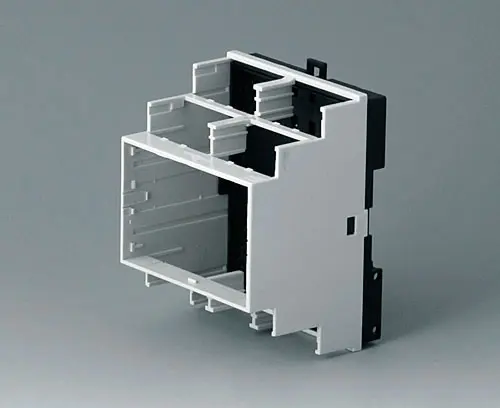

B6503121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503121
RAILTEC B, 4 modules, Vers. VIlight grey RAL 7035
70x90x58mm

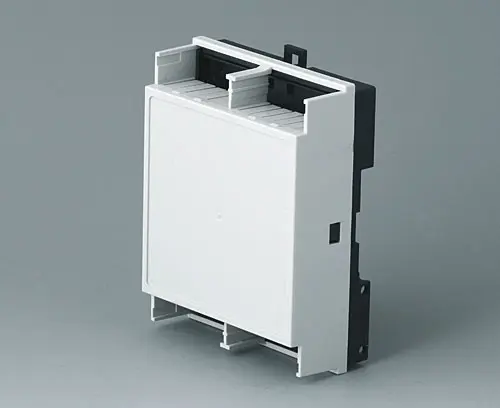

B6503229
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6503229
RAILTEC B, 4 modules, Vers. low profilelight grey RAL 7035
70x89,6x31,25mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 113 KB
- AutoCAD DWG-File 322 KB
- AutoCAD DXF-File 1 001 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6607143 a nezapomeňte si vyžádat nabídku!
