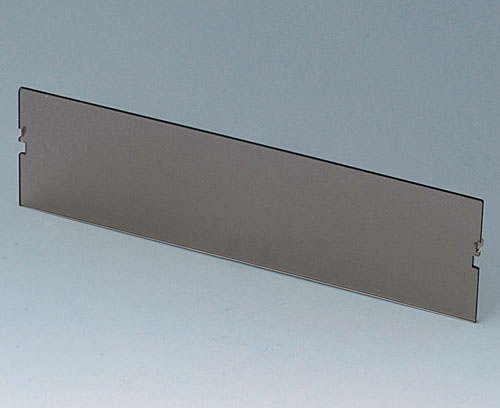

B6605580 Front panel, 9 modules, Vers. VI

B6605580

Front panel, 9 modules, Vers. VI

Snap-in.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

关闭

B6505121

RAILTEC B, 9 modules, Vers. VI
产品已添加到关注清单中
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm

Customising options for B6605580

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
smoked glass
Width
155 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.01 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
