DIN 标准导轨接线盒
Railtec B 型导轨盒 B

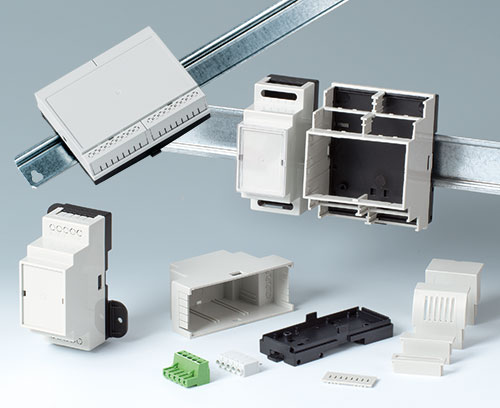

多用途 DIN - 标准导轨盒

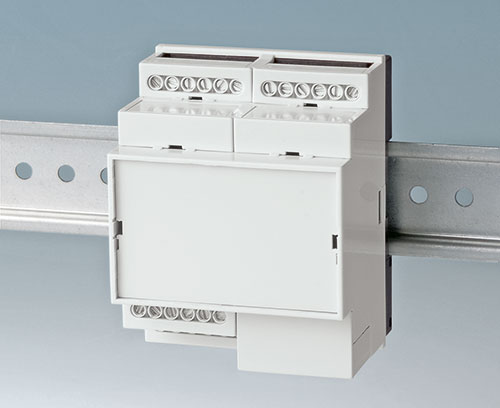

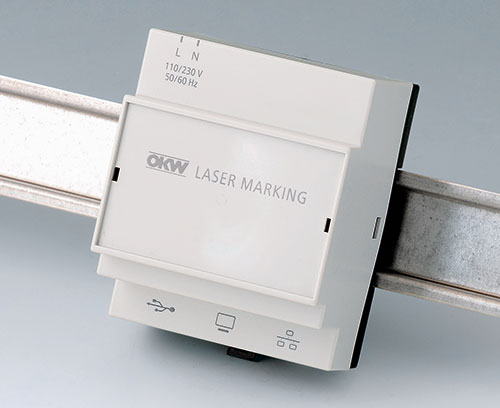

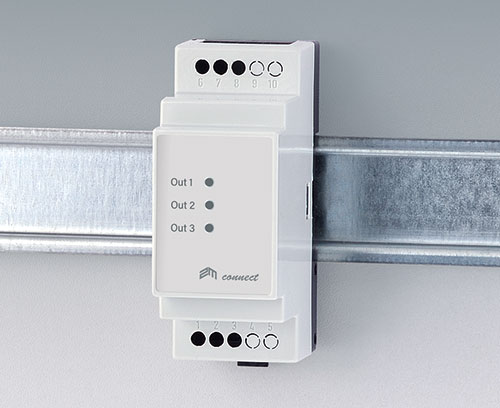

简单快速的适配 EN 60715 TH35 的 DIN 标准导轨的卡扣式安装体现了 RAILTEC B 型导轨盒 B 产品系列的特征。

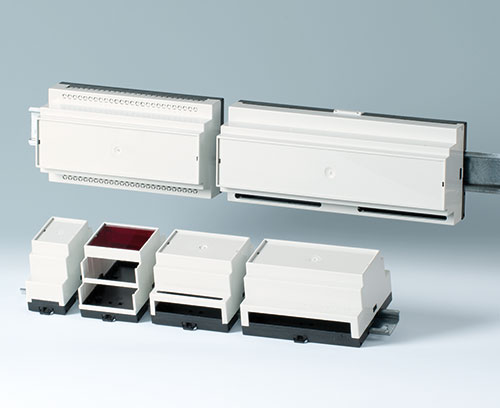

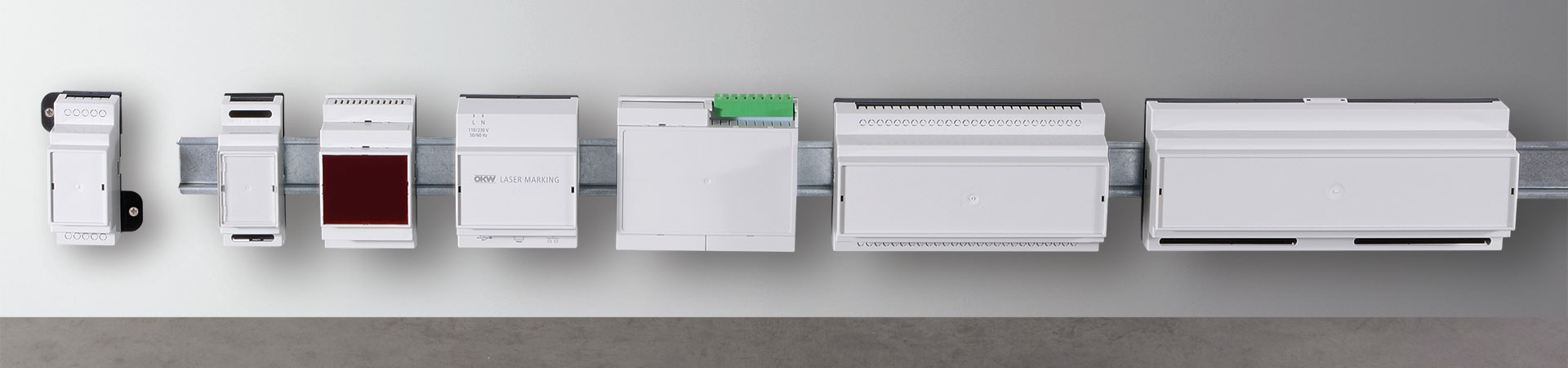

- 6 种规格 (2-12 个模块) 符合 DIN 43880 标准, 款式 1;

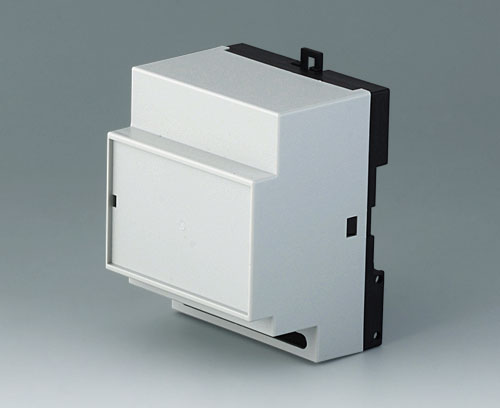

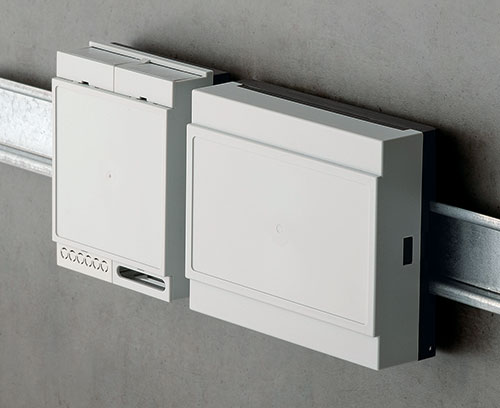

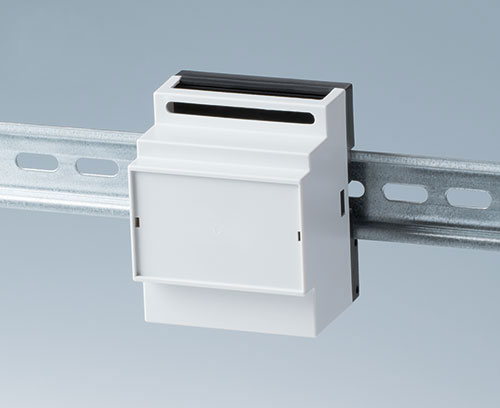

4 种规格 (2、4、 6 和 9 个模块) 配扁平上盒;
4 种规格 (2、4、 6 和 9 个模块) 配备扁平或较高上盒达到各 3 种款式 - 根据 VBG 4 及 IEC 529 / DIN VDE 0470-1 标准提供完全绝缘性和触摸安全性
- 阻燃材料 (UL 94 V-0)

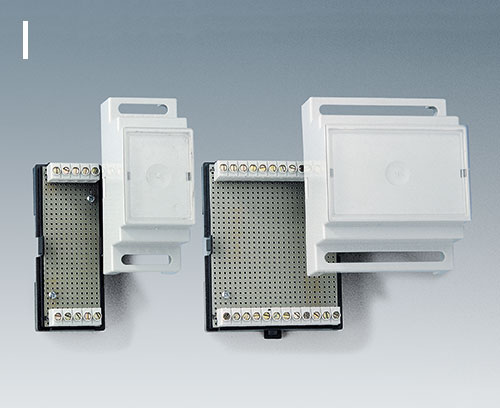

- 类型 I 和 XI: 适配接线端子排网格 5,0/5,08

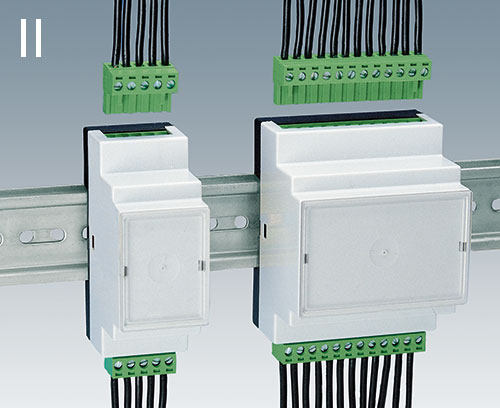

- 类型 II 和 XII: 适配接线端子排网格 5,0/5,08

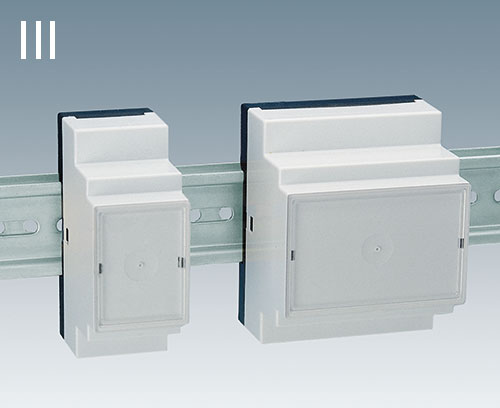

- 类型 III 和 XIII: 封闭式机盒,例如用于前置连接器、D-SUB 插头等

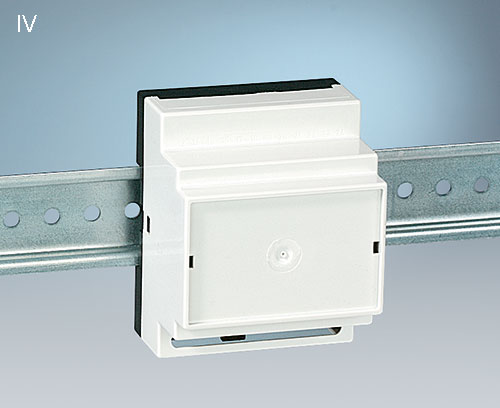

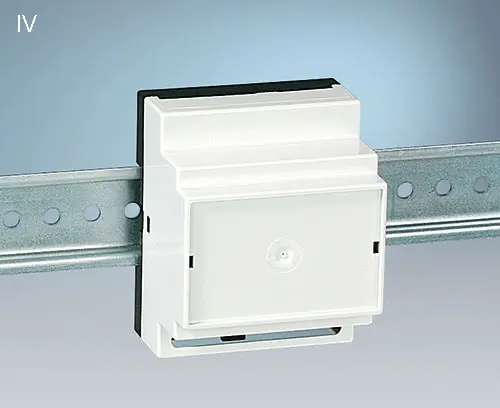

- 类型 IV: 适配接线端子排网格 5,0/5,08 (仅限于下部)

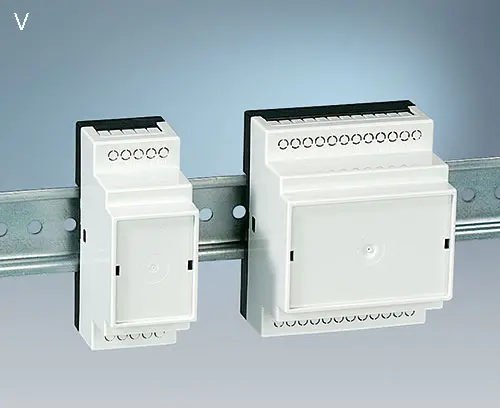

- 类型 V: 带有穿孔网格 5,0

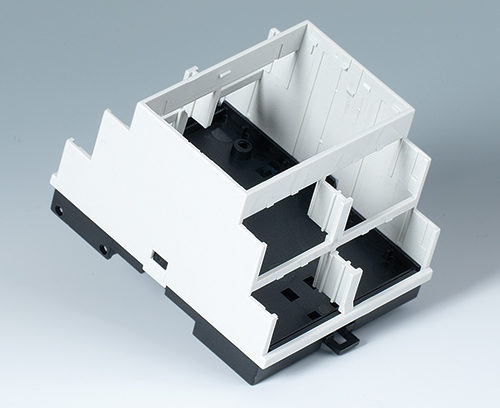

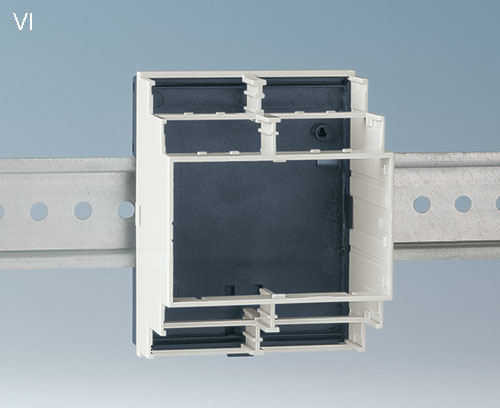

- 类型 VI: 敞开式机盒用于定制件组合(带端子排盖或分隔板),可选的 1 或 2 个连接端子排

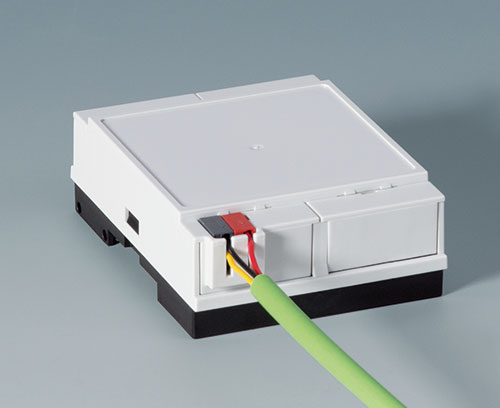

- 连接器盖适配 KNX 插头,适用于模块宽度 2 和 4 (机盒类型 VI 或带扁平上盒的机盒)

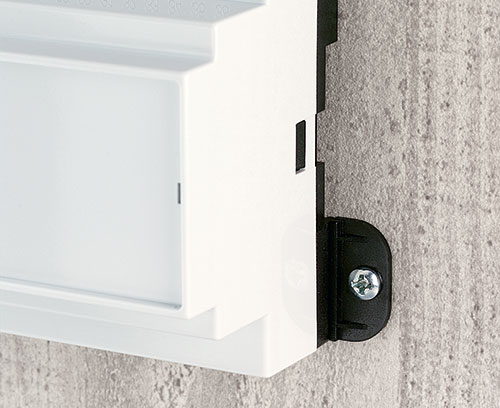

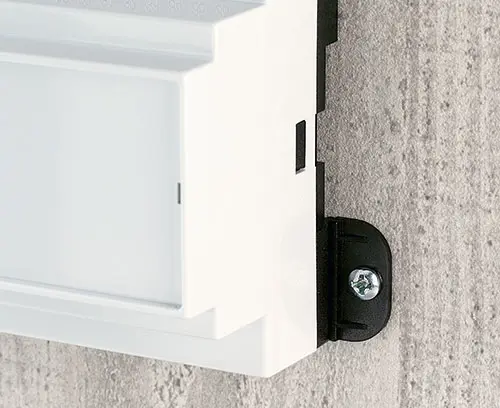

- 适合安装于 EN 60715 TH35 的 DIN 标准导轨上或直接安装于墙壁上

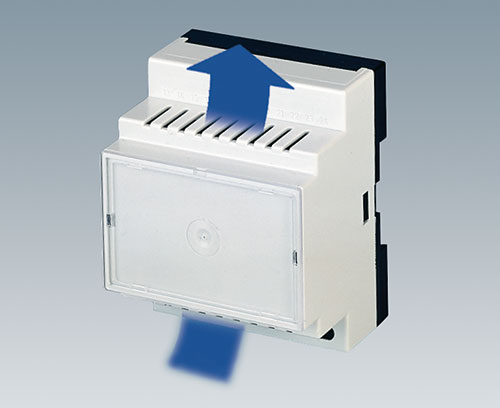

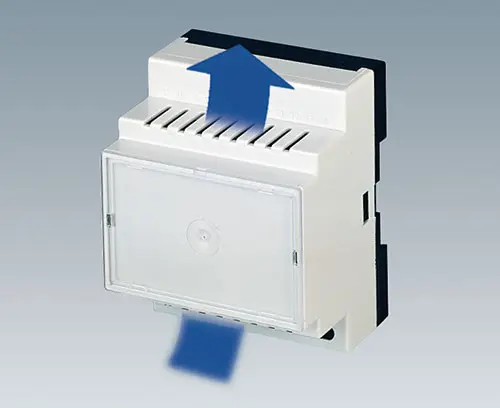

- 无或带通风槽,利于散热
- 组装灵活:电路板可在所有三个空间方向安装; 下盒设有固定柱,上盒设有导槽

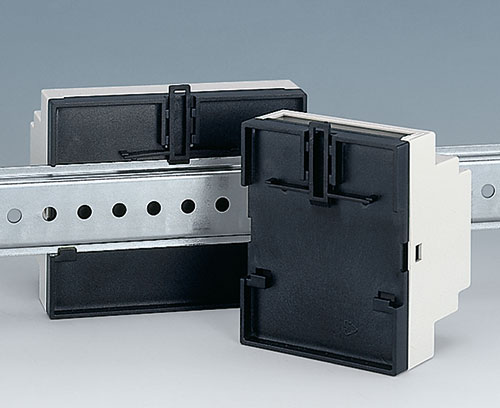

- 下盒已预先组装好卡夹环

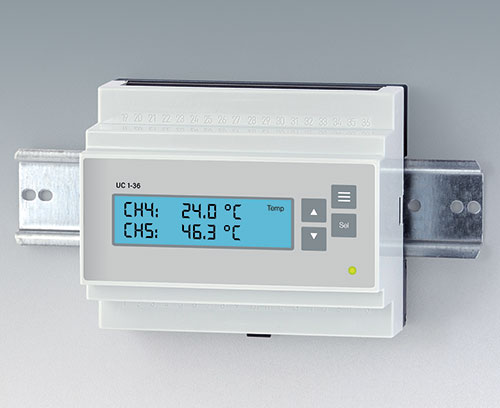

- 透明盒盖(较高类型的附件)用于保护显示屏和操作元件
- 防护等级 < IP 40

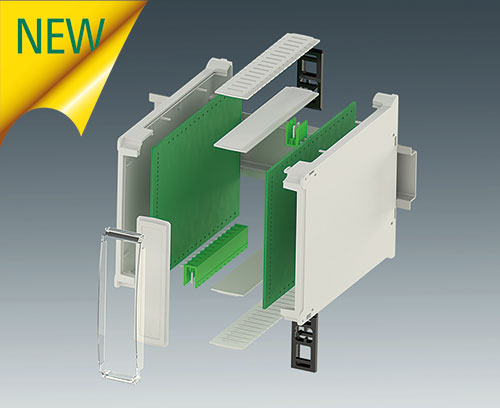

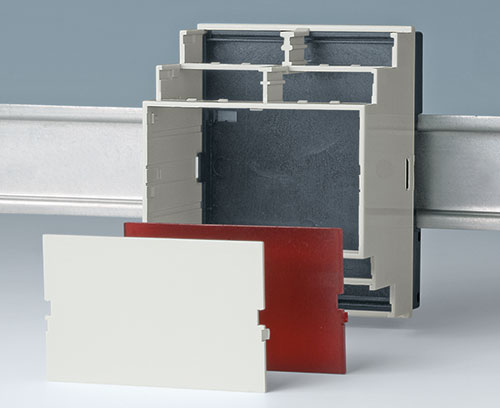

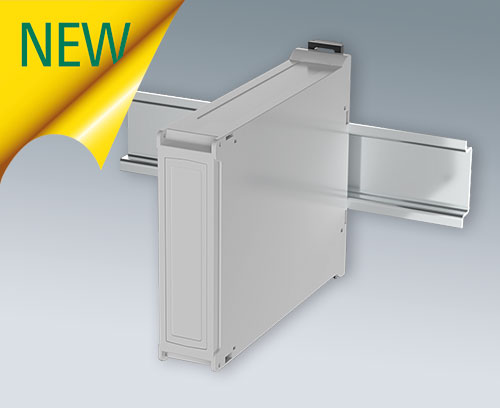

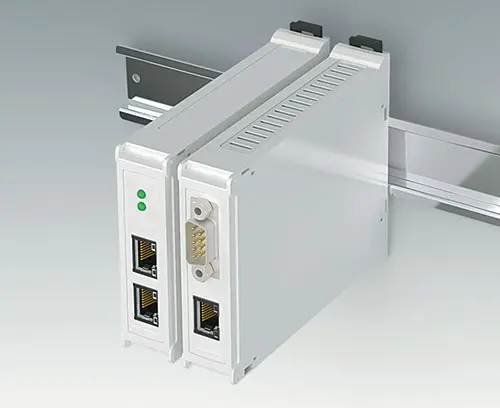

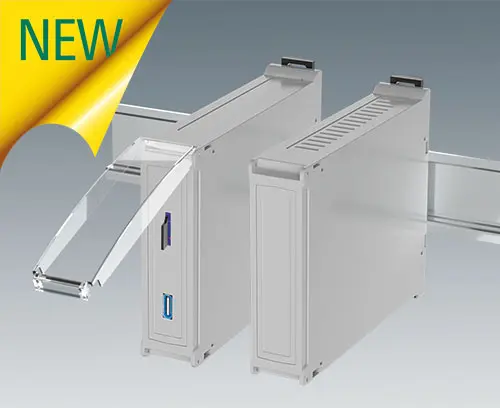

- 新款产品:RAILTEC BP 型导轨盒 BP 型 ,M22 – 带有可插拔侧面板和前面板的板面类型机盒,适合用于 EN 60715 TH35 的 DIN 标准导轨上。透明保护盖作为可订附件。
Learn more!
Read our blog posts on railtec b View blog posts >>
应用范围

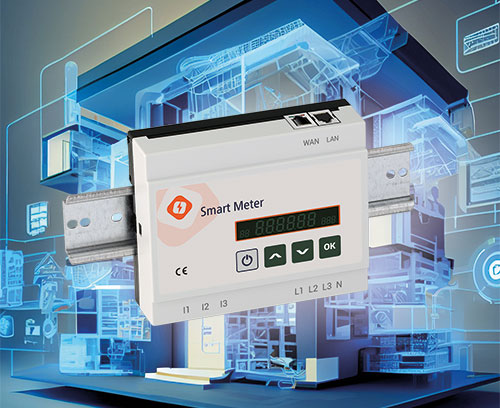

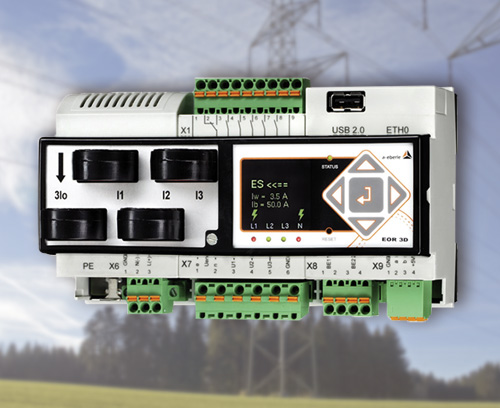

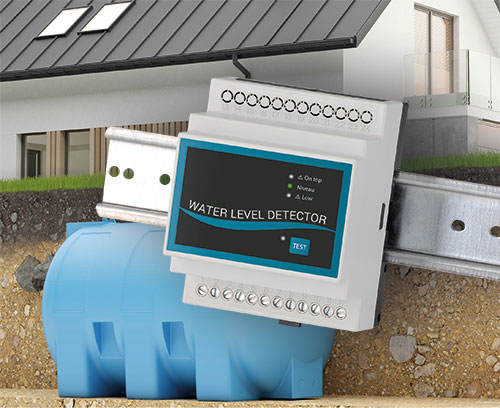

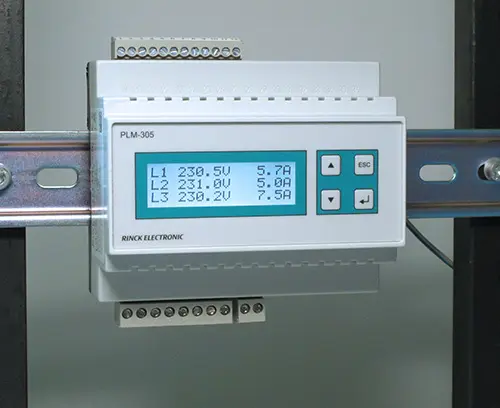

通用式设备安装盒。 符合机器设备和车辆行业的专业规格。 特别适用于控制和自动化技术。
请选择所需的产品类型或尺寸,或点击产品列表末尾的“选择所有产品”按键。
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)

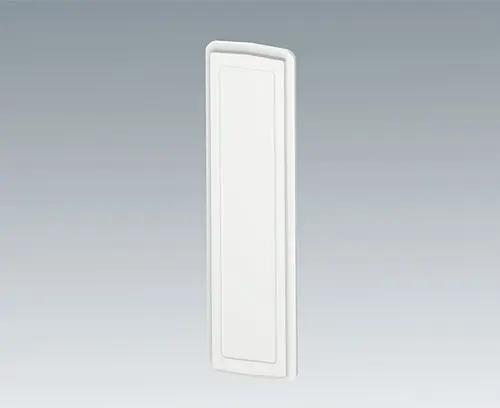

B6522801
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
B6522801
Front panellight grey RAL 7035
B6522811
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces

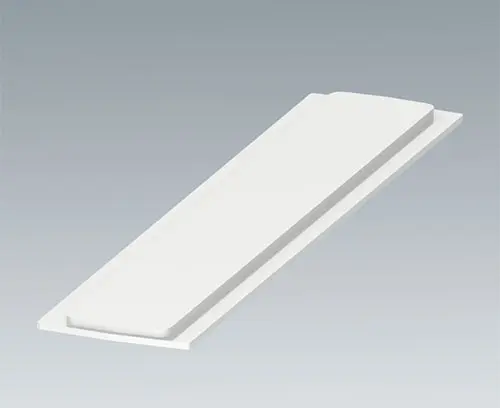

B6522811
Side panel closedlight grey RAL 7035
B6522821
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces

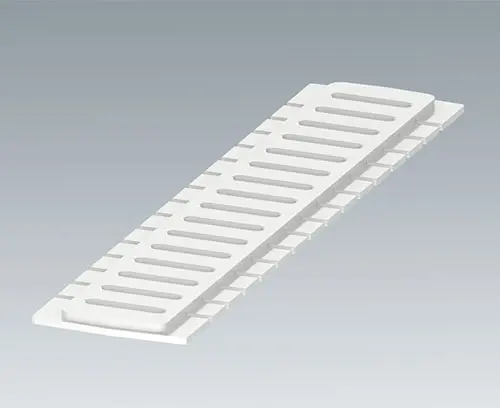

B6522821
Side panel with ventilation slotslight grey RAL 7035
B6600111
Supply 1 piece
B6600111

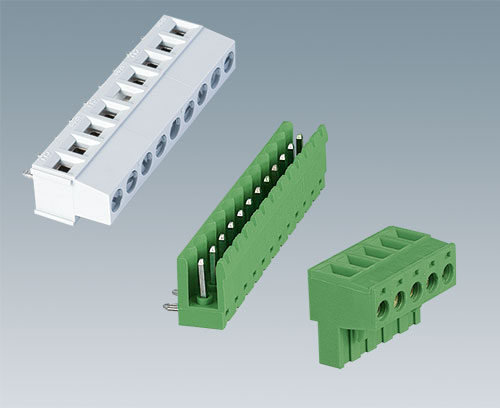

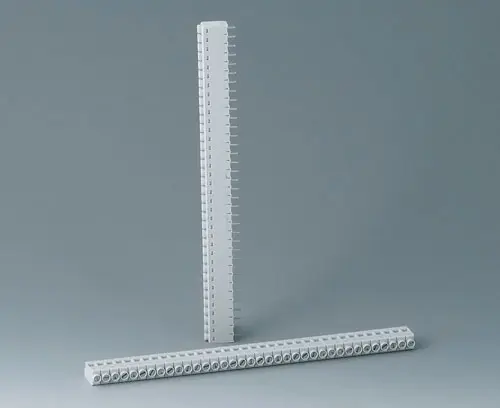

Terminal block, block 5.0light grey

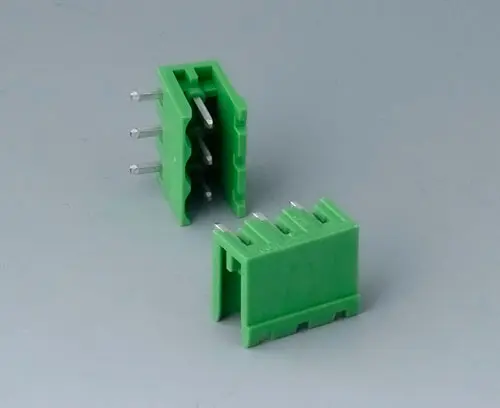

B6600222
Supply 1 piece
B6600222
Plug header, block 5.08
B6600334
Supply 2 pieces as kit
B6600334
Wall suspension elementsblack
B6601100
Supply 1 lid
B6601100
Lid, 2 modulestransparent
B6601111
Supply 1 piece
B6601111
Terminal block, block 5.0

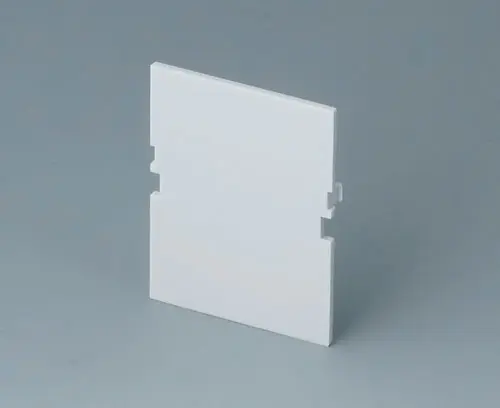

B6601180
Supply 1 front panel
B6601180
Front panel, 2 modules, Vers. VIlight grey
32x42mm
B6601222
Supply 1 piece
B6601222
Plug header, block 5.08
B6601223
Supply 1 piece
B6601223
Plug header, block 5.08

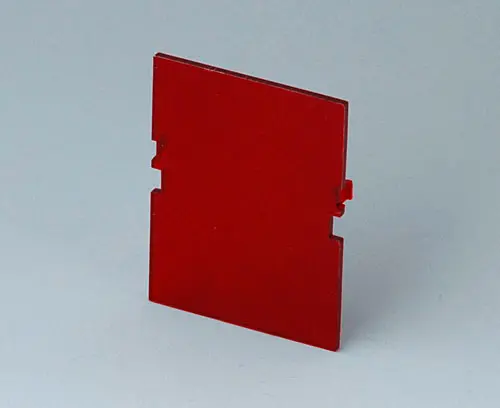

B6601480
Supply 1 front panel
B6601480
Front panel, 2 modules, Vers. VIred transparent
32x42mm

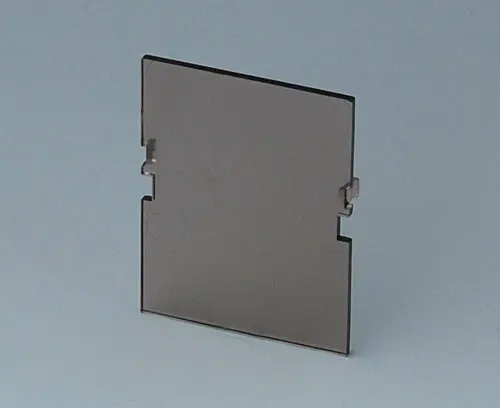

B6601580
Supply 1 front panel
B6601580
Front panel, 2 modules, Vers. VIsmoked glass
32x42mm
B6602100
Supply 1 lid
B6602100
Lid, 3 modulestransparent

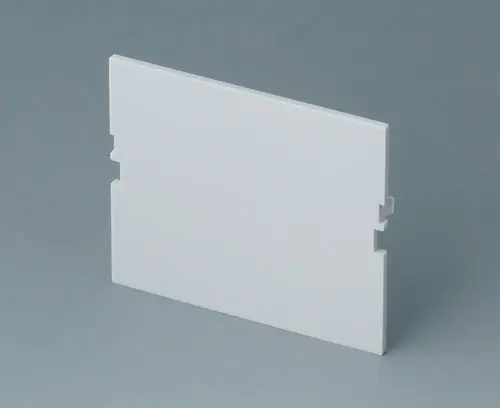

B6602180
Supply 1 front panel
B6602180
Front panel, 3 modules, Vers. VIlight grey
49x42mm
B6602222
Supply 1 piece
B6602222
Plug header, block 5.08
B6602223
Supply 1 piece
B6602223
Plug header, block 5.08
B6602480
Supply 1 front panel
B6602480

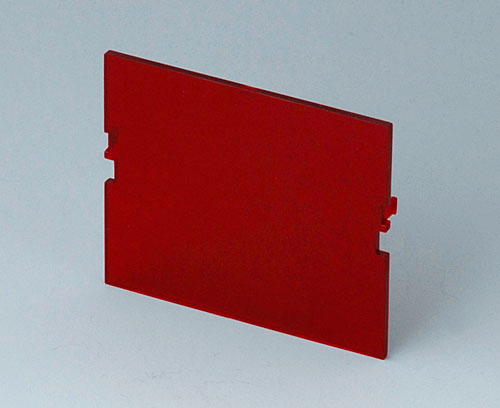

Front panel, 3 modules, Vers. VIred transparent
49x42mm

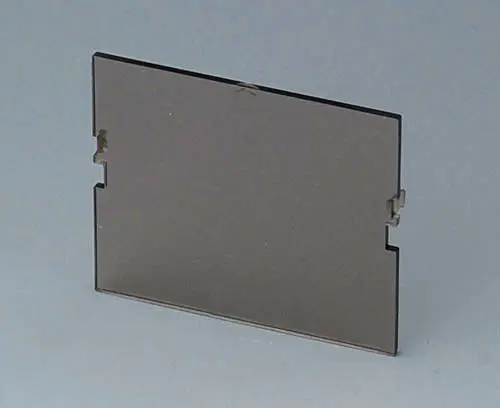

B6602580
Supply 1 front panel
B6602580
Front panel, 3 modules, Vers. VIsmoked glass
42x49mm
B6603100
Supply 1 lid

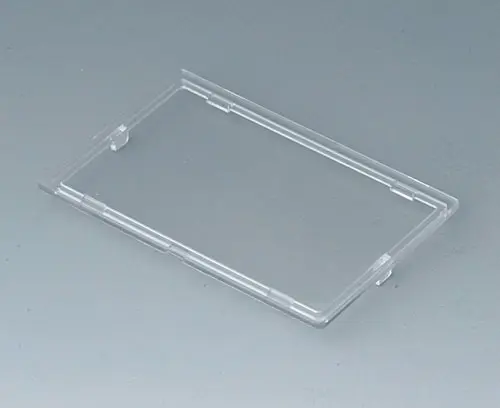

B6603100
Lid, 4 modulestransparent
B6603111
Supply 1 piece
B6603111
Terminal block, block 5.0

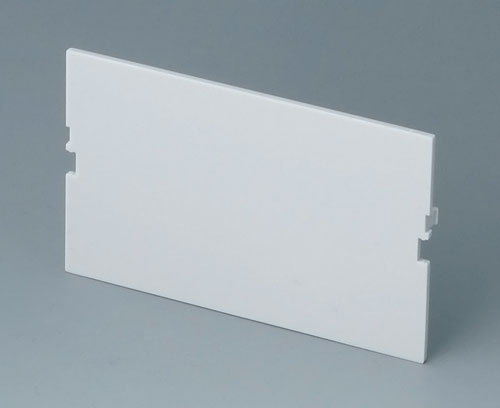

B6603180
Supply 1 front panel
B6603180
Front panel, 4 modules, Vers. VIlight grey
67x42mm
B6603222
Supply 1 piece
B6603222
Plug header, block 5.08
B6603223
Supply 1 piece
B6603223
Plug header, block 5.08
B6603480
Supply 1 front panel
B6603480

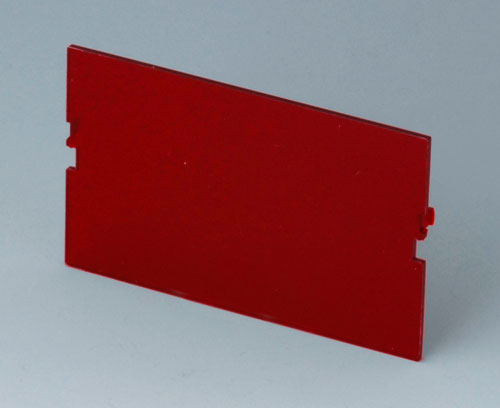

Front panel, 4 modules, Vers. VIred transparent
67x42mm

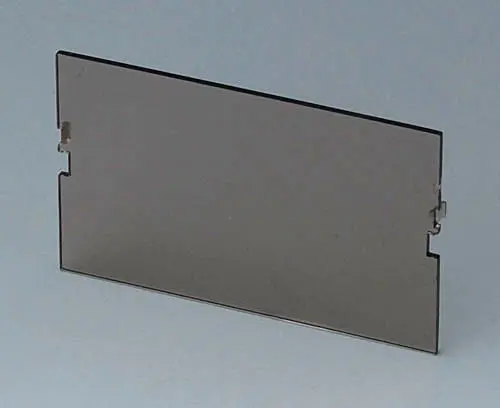

B6603580
Supply 1 front panel
B6603580
Front panel, 4 modules, Vers. VIsmoked glass
67x42mm
B6604100
Supply 1 lid
B6604100
Lid, 6 modulestransparent
B6604111
Supply 1 piece
B6604111
Terminal block, block 5.0

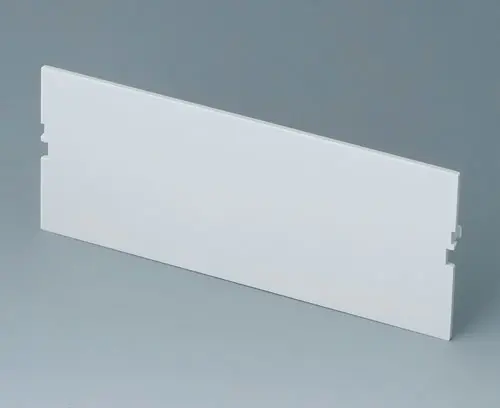

B6604180
Supply 1 front panel
B6604180
Front panel, 6 modules, Vers. VIlight grey
102x42mm
B6604222
Supply 1 piece
B6604222
Plug header, block 5.08
B6604223
Supply 1 piece
B6604223
Plug header, block 5.08
B6604480
Supply 1 front panel
B6604480

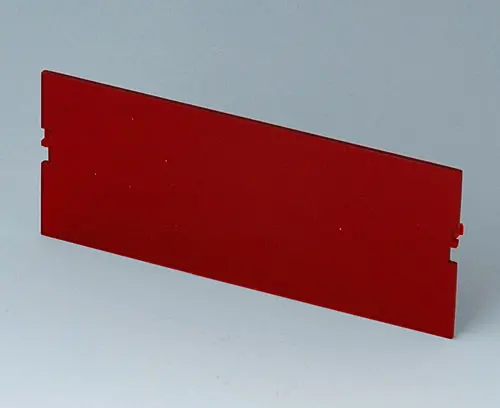

Front panel, 6 modules, Vers. VIred transparent
102x42mm
B6604580
Supply 1 front panel
B6604580
Front panel, 6 modules, Vers. VIsmoked glass
102x42mm
B6605100
Supply 1 lid
B6605100
Lid, 9 modulestransparent

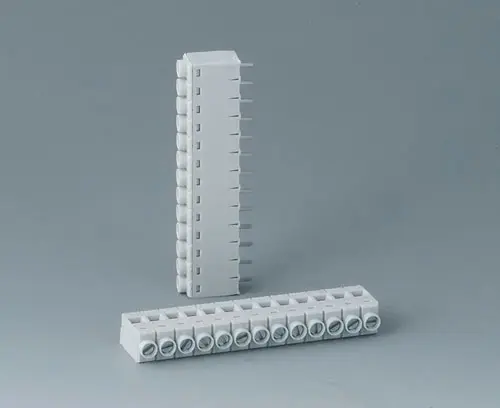

B6605111
Supply 1 piece
B6605111
Terminal block, block 5.0
B6605180
Supply 1 front panel
B6605180

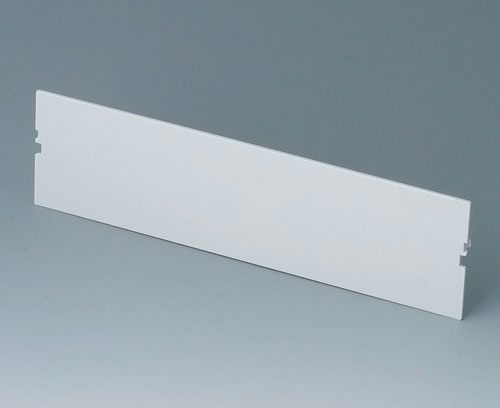

Front panel, 9 modules, Vers. VIlight grey
155x42mm
B6605222
Supply 1 piece
B6605222
Plug header, block 5.08
B6605223
Supply 1 piece
B6605223
Plug header, block 5.08
B6605480
Supply 1 front panel
B6605480

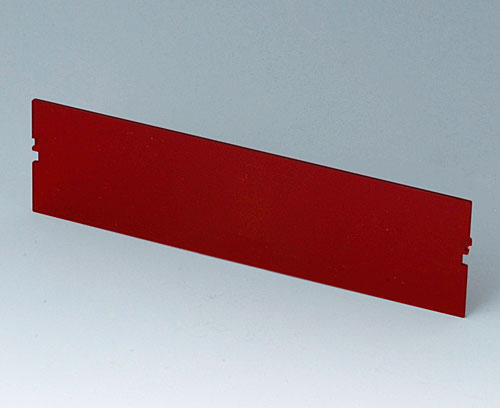

Front panel, 9 modules, Vers. VIred transparent
155x42mm

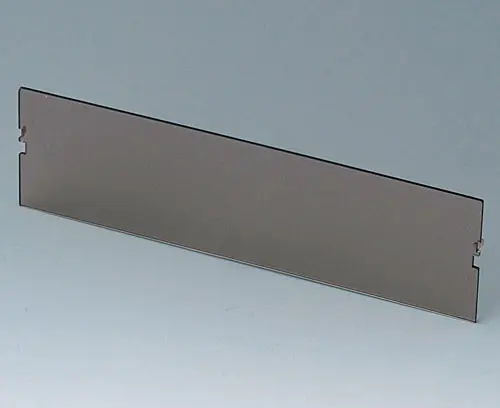

B6605580
Supply 1 front panel
B6605580
Front panel, 9 modules, Vers. VIsmoked glass
155x42mm
B6606100
Supply 1 lid
B6606100
Lid, 12 modulestransparent
B6606111
Supply 1 piece

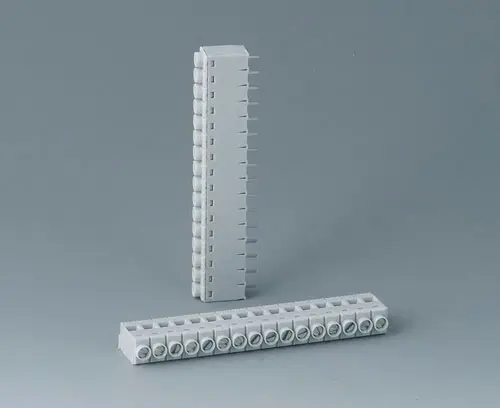

B6606111
Terminal block, block 5.0
B6606180
Supply 1 front panel
B6606180

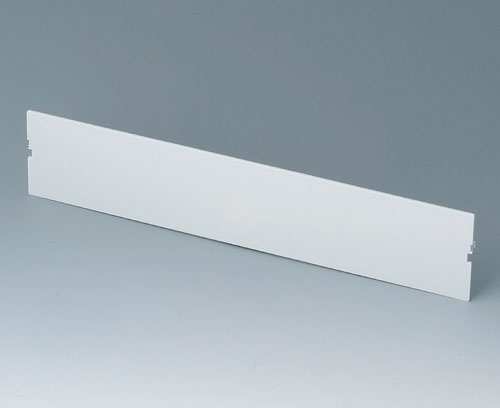

Front panel, 12 modules, Vers. VIlight grey
206x42mm
B6606222
Supply 1 piece
B6606222
Plug header, block 5.08
B6606223
Supply 1 piece
B6606223
Plug header, block 5.08
B6606480
Supply 1 front panel

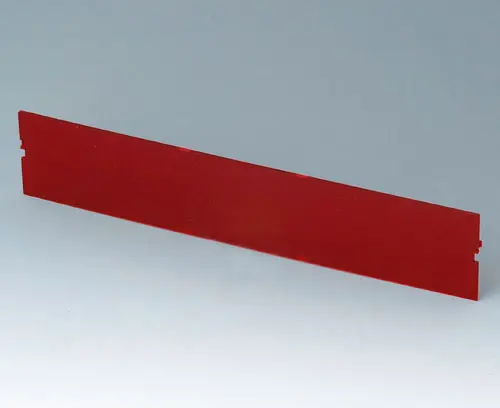

B6606480
Front panel, 12 modules, Vers. VIred transparent
206x42mm
B6606580
Supply 1 front panel
B6606580

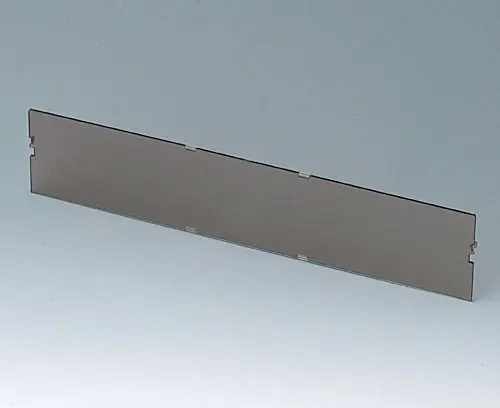

Front panel, 12 modules, Vers. VIsmoked glass
206x42mm
B6607111
Supply 1 piece
B6607111

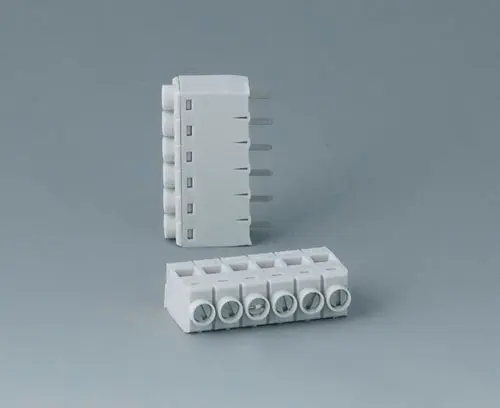

Terminal block, block 5.0

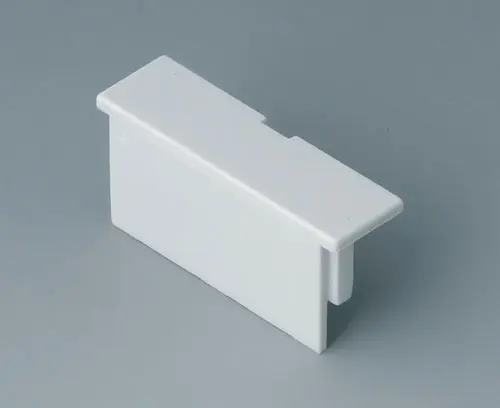

B6607140
Version Closed
Supply 1 piece
B6607140
Terminal guards, flatlight grey

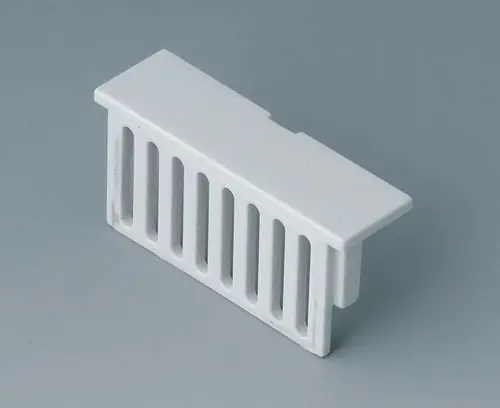

B6607141
Version With ventilation slots
Supply 1 piece
B6607141
Terminal guards, flatlight grey

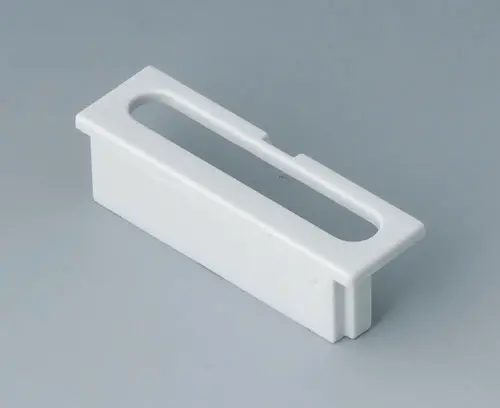

B6607142
Version For terminal block, block 5.0, 6-poles
Supply 1 piece
B6607142
Terminal guards, flatlight grey

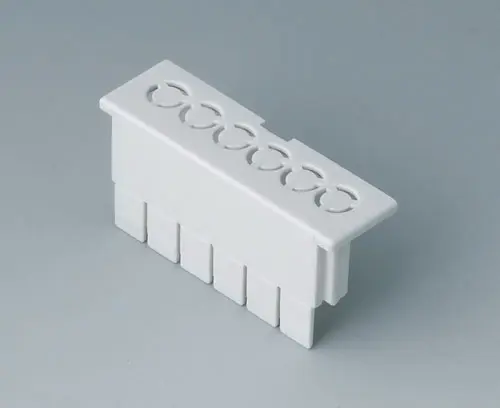

B6607143
Version Perforated, for block 5.0
Supply 1 piece
B6607143
Terminal guards, flatlight grey

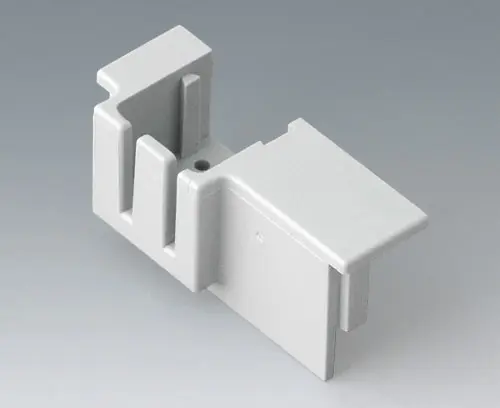

B6607145
Version For KNX connector
Supply 1 piece
B6607145
KNX Cover, flatlight grey

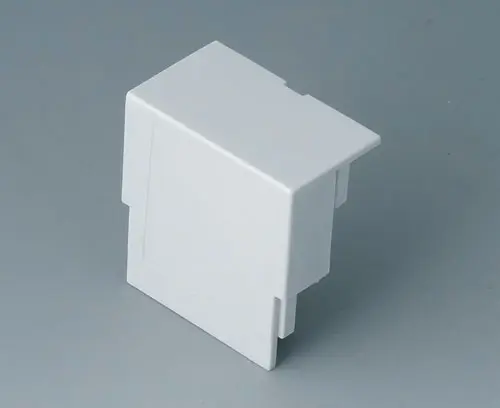

B6607160
Version Closed
Supply 1 piece
B6607160
Terminal guards, highlight grey

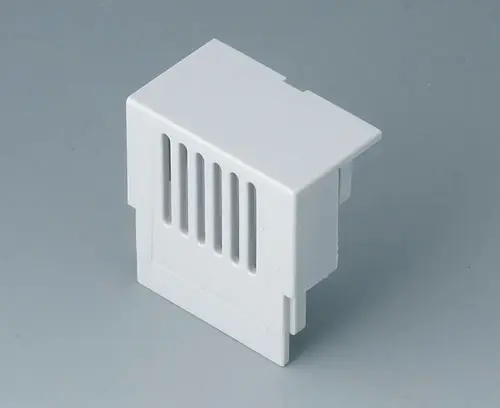

B6607161
Version With ventilation slots
Supply 1 piece
B6607161
Terminal guards, highlight grey
B6607162
Version Convex, closed
Supply 1 piece

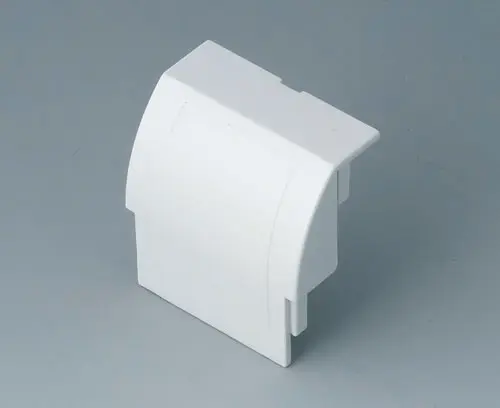

B6607162
Terminal guards, highlight grey
B6607163
Version Convex, with ventilation slots
Supply 1 piece
B6607163

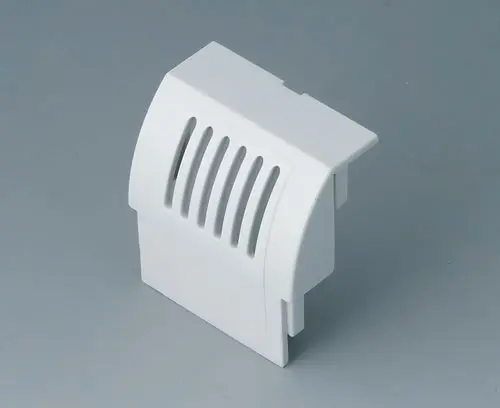

Terminal guards, highlight grey

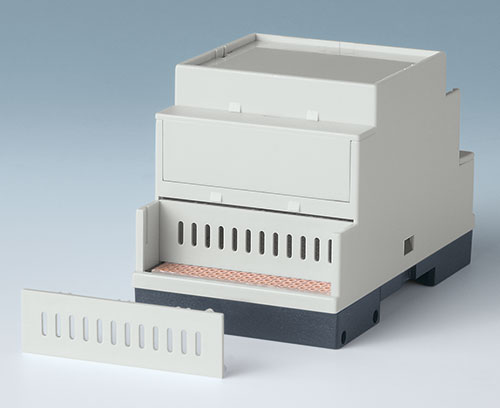

B6607191
Version With ventilation slots
Supply 1 piece

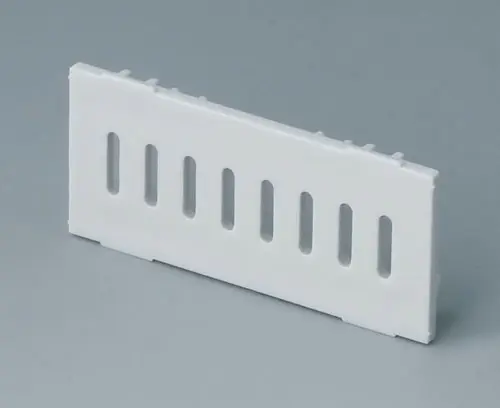

B6607191
Partition platelight grey
B6608111
Supply 1 piece
B6608111
Terminal block, block 5.0

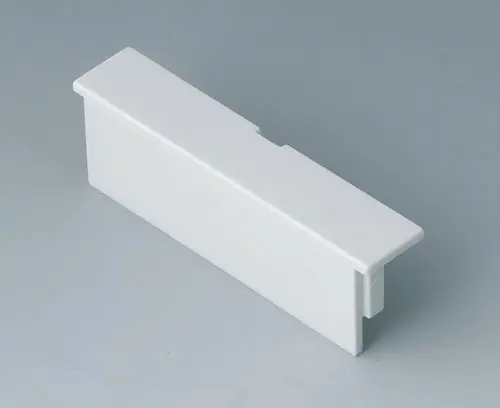

B6608140
Version Closed
Supply 1 piece
B6608140
Terminal guards, flatlight grey

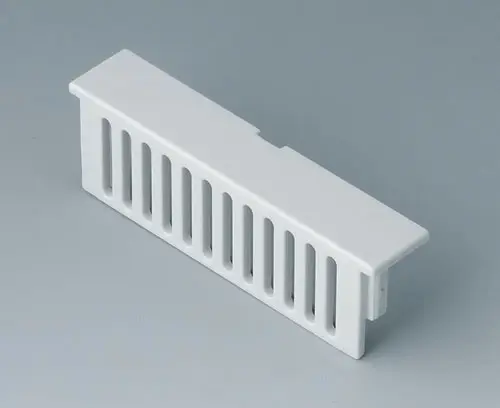

B6608141
Version With ventilation slots
Supply 1 piece
B6608141
Terminal guards, flatlight grey

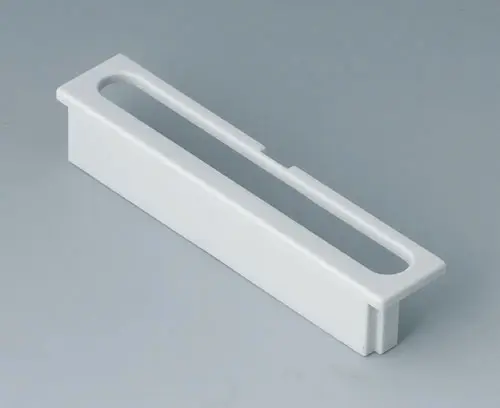

B6608142
Version For terminal block, block 5.0, 9-poles
Supply 1 piece
B6608142
Terminal guards, flatlight grey

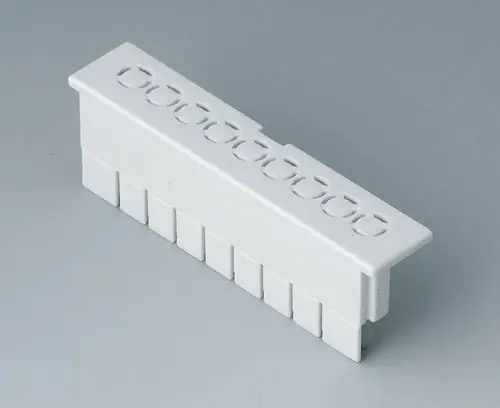

B6608143
Version Perforated, for block 5.0
Supply 1 piece
B6608143
Terminal guards, flatlight grey
B6608160
Version Closed
Supply 1 piece
B6608160
Terminal guards, highlight grey

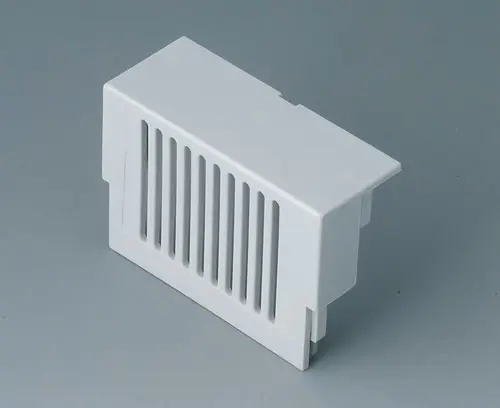

B6608161
Version With ventilation slots
Supply 1 piece
B6608161
Terminal guards, highlight grey
B6608162
Version Convex, closed
Supply 1 piece
B6608162
Terminal guards, highlight grey

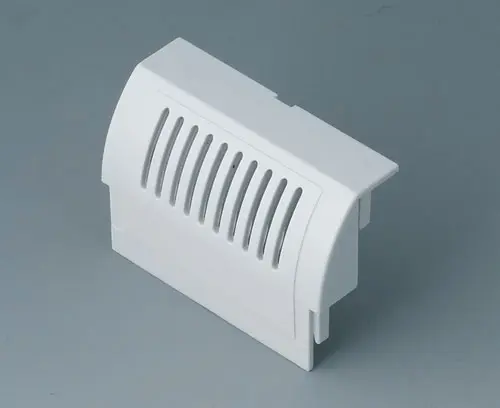

B6608163
Version Convex, with ventilation slots
Supply 1 piece
B6608163
Terminal guards, highlight grey
B6608191
Version With ventilation slots
Supply 1 piece
B6608191

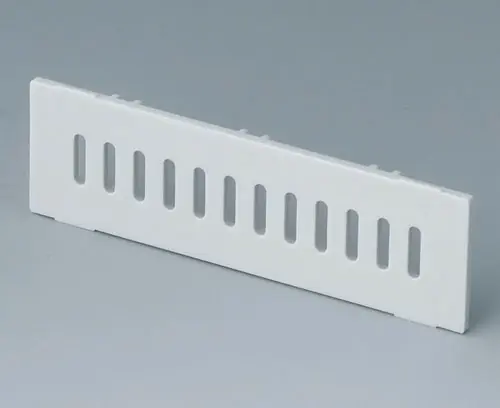

Partition platelight grey
B6608222
Supply 1 piece

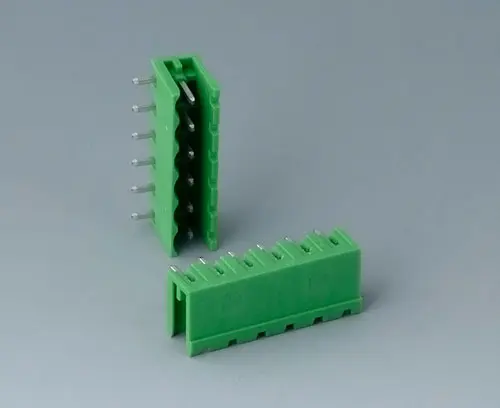

B6608222
Plug header, block 5.08

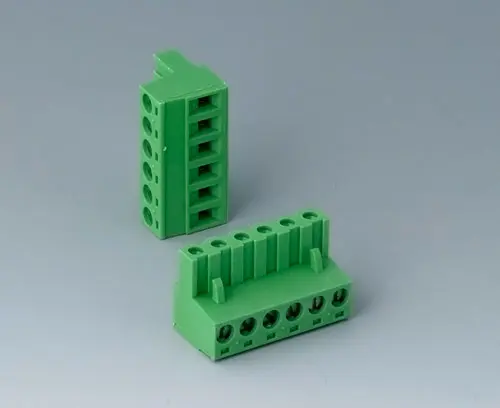

B6608223
Supply 1 piece
B6608223
Plug header, block 5.08
B6622101
Minimum order quantity: 10 pieces or multiples
Supply in packaging units of 10 pieces
