B6501119

RAILTEC B, 2 modules, Vers. V

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply

1 base part with locking clip, 1 top part

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B6501119

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“挂墙支架” 配件

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

B6600334

Wall suspension elements
产品已添加到关注清单中

black

“端子” 配件

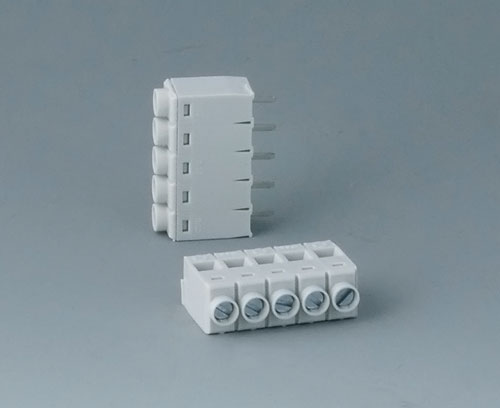

B6601111 Terminal block, block 5.0

B6601111

Terminal block, block 5.0 PCB terminal block, 5.0. 5-pin.

Supply 1 piece

B6601111

Terminal block, block 5.0
产品已添加到关注清单中
B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

B6601222

Plug header, block 5.08
产品已添加到关注清单中
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

B6601223

Plug header, block 5.08
产品已添加到关注清单中

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中

附件

B6601100 Lid, 2 modules

B6601100

Lid, 2 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

B6601100

Lid, 2 modules
产品已添加到关注清单中

transparent

Customising options for B6501119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

Top part

Bottom part
颜色
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
标准根据
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
宽度
35 mm
高度
86 mm
深度
58 mm
电路板长度，下盒
82 mm
电路板宽度，下盒
29.4 mm
Poles
≤ 10
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Miscellaneous information

Weight/1 part
31 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B6501119请务必索取报价！
